RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter

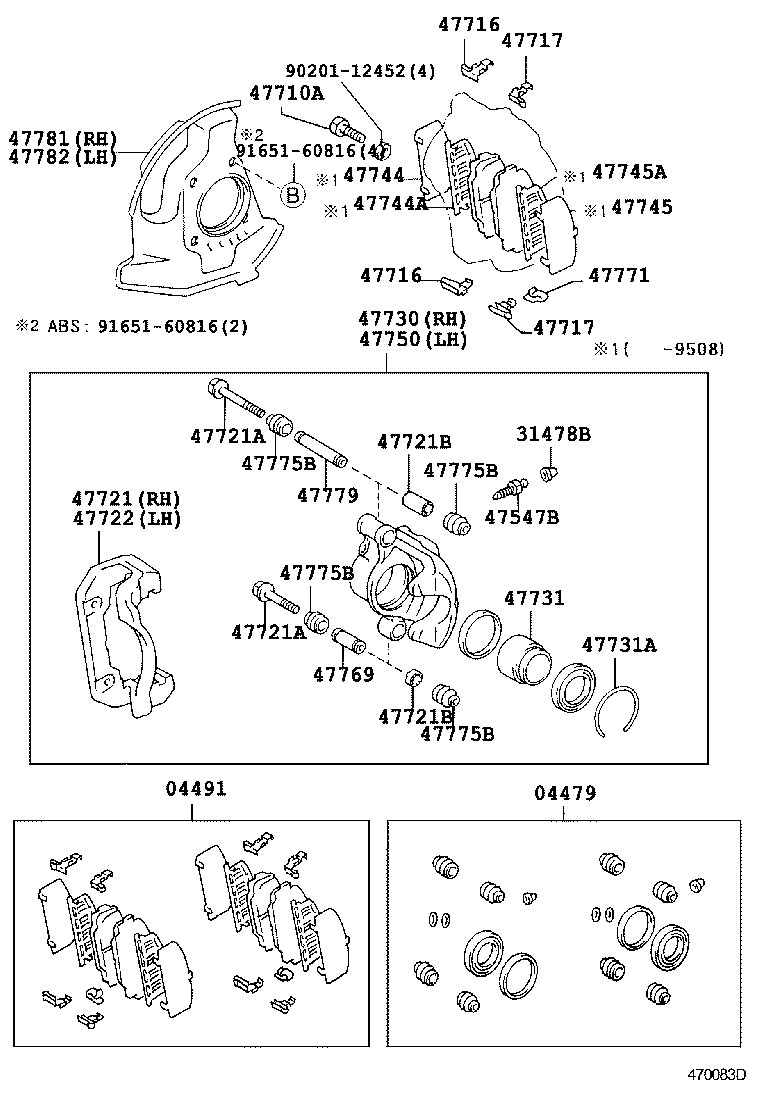

ILLUST NO. 1 OF 2(9808- )LH125,172,174,RZH112,114,115,125 ; (9808- )LH102,103,104,11#,154,162,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-26040 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 04479-26040 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 04479-26060 |
LH125..4FC;RZH113..ARL;RZH102,114..SRF..GL;LH105,113,115,RZH105,115..CIS;LH172,174,184,RZH103,125..(GL,STD)..(DSL,EFI) W(195/70R15C TIRE) |
1 | ||
| 04479-26060 |
LH125..4FC;RZH113..ARL;RZH102,114..SRF..GL;LH105,113,115,RZH105,115..CIS;LH172,174,184,RZH103,125..(GL,STD)..(DSL,EFI) W(195/70R15C TIRE) |
1 | ||
| 04479-26060 |
LH125..4FC;RZH103..SG;RZH113..DX;RZH113..ARL;LH105,113,115,166,176,RZH115..CIS;LH162,172,174,184,RZH105,125..DSL,EFI;RZH102,103,114,115..4D..(03S,10S,12S)..(ARL,GEN) W(195/70R15C TIRE) |
1 | ||
| 04479-26060 |
LH125..4FC;RZH103..SG;RZH113..DX;RZH113..ARL;LH105,113,115,166,176,RZH115..CIS;LH162,172,174,184,RZH105,125..DSL,EFI;RZH102,103,114,115..4D..(03S,10S,12S)..(ARL,GEN) W(195/70R15C TIRE) |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-26240 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 04491-26240 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 31478-30010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 31478-30010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 31478-30010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47547-12010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47547-12010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47547-12010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12132 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S *12-1.25P-31X20 |
4 | ||
| 90101-12132 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S *12-1.25P-31X20 |
4 | ||
| 90101-12132 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# *12-1.25P-31X20 |
4 | ||
| 90101-12132 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# *12-1.25P-31X20 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-26040 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47716-26040 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47716-26040 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47716-26040 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47716-26050 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47716-26050 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-26040 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47716-26040 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47716-26040 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47716-26040 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47716-26050 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47716-26050 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47717-26010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47717-26010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47717-26010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47717-26020 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47717-26020 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47717-26010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
4 | ||
| 47717-26010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47717-26010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
4 | ||
| 47717-26020 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47717-26020 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-26080 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47721-26080 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47721-26102 |
RZH112..RHD..SP;RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(03S,06S,12S);LH174,RZH115..(10S,15S)..(CBR,DSL);LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47721-26102 |
RZH112..RHD..SP;RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(03S,06S,12S);LH174,RZH115..(10S,15S)..(CBR,DSL);LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47721-26080 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47721-26080 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47721-26103 |
LH172..HRF;LH172..5D..GEN;LH172..ARL,GCC;LH172..GL..DSL;RZH112,115..SRF..STD;LH172,RZH115..LHD..4D..(03S,12S);LH172,174..4D..(06S,15S)..(GCC,GEN);LH10#,11#,162,176,184,RZH10#,113,114,125..HRF,SRF W(15 INCHES DISC WHEEL) |
1 | ||
| 47721-26103 |
LH172..HRF;LH172..5D..GEN;LH172..ARL,GCC;LH172..GL..DSL;RZH112,115..SRF..STD;LH172,RZH115..LHD..4D..(03S,12S);LH172,174..4D..(06S,15S)..(GCC,GEN);LH10#,11#,162,176,184,RZH10#,113,114,125..HRF,SRF W(15 INCHES DISC WHEEL) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10388 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX65.5-30 |
2 | ||
| 90119-10388 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX65.5-30 |
2 | ||
| 90119-10014 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX65.5-30 |
2 | ||
| 90119-10014 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX65.5-30 |
2 | ||
| 90119-10249 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX95.5-30 |
2 | ||
| 90119-10249 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX95.5-30 |
2 | ||
| 90119-10014 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX65.5-30 |
2 | ||
| 90119-10014 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX65.5-30 |
2 | ||
| 90119-10249 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX95.5-30 |
2 | ||
| 90119-10249 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX95.5-30 |
2 | ||
| 90119-10389 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX95.5-30 |
2 | ||
| 90119-10389 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX95.5-30 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10388 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX65.5-30 |
2 | ||
| 90119-10388 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX65.5-30 |
2 | ||
| 90119-10014 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX65.5-30 |
2 | ||
| 90119-10014 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX65.5-30 |
2 | ||
| 90119-10249 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX95.5-30 |
2 | ||
| 90119-10249 |
LH172..03S..GL;RZH115..15S..CBR;RZH105,115..STD..CIS;RZH102,103,105,113..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,104,11#,125,RZH103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) *10-1.25PX95.5-30 |
2 | ||
| 90119-10014 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX65.5-30 |
2 | ||
| 90119-10014 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX65.5-30 |
2 | ||
| 90119-10249 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX95.5-30 |
2 | ||
| 90119-10249 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN *10-1.25PX95.5-30 |
2 | ||
| 90119-10389 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX95.5-30 |
2 | ||
| 90119-10389 |
LH10#,11#,125,RZH10#,11#,125 *10-1.25PX95.5-30 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16005 |
LH10#,11#,125,RZH10#,11#,125..GL,STD MAIN |
2 | ||
| 90387-16005 |
LH10#,11#,125,RZH10#,11#,125..GL,STD MAIN |
2 | ||
| 90387-16004 |
LH10#,11#,125,RZH10#,11#,125..GL,STD SUB |
2 | ||
| 90387-16004 |
LH10#,11#,125,RZH10#,11#,125..GL,STD SUB |
2 | ||
| 90387-16004 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN SUB |
2 | ||
| 90387-16004 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN SUB |
2 | ||
| 90387-16005 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN MAIN |
2 | ||
| 90387-16005 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN MAIN |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16005 |
LH10#,11#,125,RZH10#,11#,125..GL,STD MAIN |
2 | ||
| 90387-16005 |
LH10#,11#,125,RZH10#,11#,125..GL,STD MAIN |
2 | ||
| 90387-16004 |
LH10#,11#,125,RZH10#,11#,125..GL,STD SUB |
2 | ||
| 90387-16004 |
LH10#,11#,125,RZH10#,11#,125..GL,STD SUB |
2 | ||
| 90387-16004 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN SUB |
2 | ||
| 90387-16004 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN SUB |
2 | ||
| 90387-16005 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN MAIN |
2 | ||
| 90387-16005 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN MAIN |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-26080 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47721-26080 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47722-26032 |
RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S W(15 INCHES DISC WHEEL) |
1 | ||
| 47722-26032 |
RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S W(15 INCHES DISC WHEEL) |
1 | ||
| 47722-26032 |
RZH112..RHD..SP;RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(03S,06S,12S);LH174,RZH115..(10S,15S)..(CBR,DSL);LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47722-26032 |
RZH112..RHD..SP;RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(03S,06S,12S);LH174,RZH115..(10S,15S)..(CBR,DSL);LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47721-26080 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47721-26080 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47722-26033 |
LH172..HRF;LH172..5D..GEN;LH172..ARL,GCC;LH172..GL..DSL;RZH112,115..SRF..STD;LH172,RZH115..LHD..4D..(03S,12S);LH172,174..4D..(06S,15S)..(GCC,GEN);LH10#,11#,162,176,184,RZH10#,113,114,125..HRF,SRF W(15 INCHES DISC WHEEL) |
1 | ||
| 47722-26033 |
LH172..HRF;LH172..5D..GEN;LH172..ARL,GCC;LH172..GL..DSL;RZH112,115..SRF..STD;LH172,RZH115..LHD..4D..(03S,12S);LH172,174..4D..(06S,15S)..(GCC,GEN);LH10#,11#,162,176,184,RZH10#,113,114,125..HRF,SRF W(15 INCHES DISC WHEEL) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-26060 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47730-26060 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47730-26060 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47730-26060 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47730-26122 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47730-26122 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-25010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47731-25010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 47731-25010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47731-25010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-76001 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 90522-76001 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 90522-76001 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 90522-76001 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-26060 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 47744-26060 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47744-26060 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 47744-26060 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-26060 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47750-26060 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47750-26060 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47750-26060 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
1 | ||
| 47750-26122 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47750-26122 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
2 | ||
| 47769-40010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
2 | ||
| 47769-40010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
2 | ||
| 47769-40010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
2 | ||
| 47769-50010 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
2 | ||
| 47769-50010 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-26030 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47771-26030 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47771-35010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
2 | ||
| 47771-35010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
2 | ||
| 47771-35010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
2 | ||
| 47771-35010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
2 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-26020 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
8 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-50010 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153 W(15 INCHES DISC WHEEL) |
4 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-26020 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
8 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47775-30070 |
LH172..HRF;RZH112..LHD;RZH115..CIS;LH172..03S..GL;LH172..LHD..4D;LH172..ARL,GCC;RZH112..RHD..SP;LH162..4FC..ARL;RZH113..4D..(ARL,GEN);LH172,RZH113..5D..03S..GEN;LH172,RZH115..4D..(06S,12S)..(DSL,EFI);LH154,162,174,RZH102,113,115..(03S,06S,10S,11S,15S)..5F..(CBR,DSL);LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,06S,09S,11S,12S,14S,15S W(195/70R15C TIRE) |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
2 | ||
| 47779-40010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
2 | ||
| 47779-40010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
2 | ||
| 47779-40010 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-26070 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47781-26070 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47781-26070 |
RZH115..15S;LH184,RZH105..12S,14S;LH174..STD..(GCC,GEN);LH102,103,104,11#,125,162,172,RZH102,103,104,112,113,114,125..ARL,GCC,GEN |
1 | ||
| 47781-26070 |
RZH115..15S;LH184,RZH105..12S,14S;LH174..STD..(GCC,GEN);LH102,103,104,11#,125,162,172,RZH102,103,104,112,113,114,125..ARL,GCC,GEN |
1 | ||
| 47703-26040 |
LH172..5F..ARL;LH162,184,RZH103,113,125..ARL W(ABS & 15 INCHES DISC WHEEL) |
1 | ||
| 47703-26040 |
LH172..5F..ARL;LH162,184,RZH103,113,125..ARL W(ABS & 15 INCHES DISC WHEEL) |
1 | ||
| 47703-26010 |
LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172..5D..03S..GEN;RZH112,115..SRF..(03S,06S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47703-26010 |
LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172..5D..03S..GEN;RZH112,115..SRF..(03S,06S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-26070 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47782-26070 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 47782-26070 |
RZH115..15S;LH184,RZH105..12S,14S;LH174..STD..(GCC,GEN);LH102,103,104,11#,125,162,172,RZH102,103,104,112,113,114,125..ARL,GCC,GEN |
1 | ||
| 47782-26070 |
RZH115..15S;LH184,RZH105..12S,14S;LH174..STD..(GCC,GEN);LH102,103,104,11#,125,162,172,RZH102,103,104,112,113,114,125..ARL,GCC,GEN |
1 | ||
| 47704-26040 |
LH172..5F..ARL;LH162,184,RZH103,113,125..ARL W(ABS & 15 INCHES DISC WHEEL) |
1 | ||
| 47704-26040 |
LH172..5F..ARL;LH162,184,RZH103,113,125..ARL W(ABS & 15 INCHES DISC WHEEL) |
1 | ||
| 47704-26010 |
LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172..5D..03S..GEN;RZH112,115..SRF..(03S,06S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| 47704-26010 |
LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172..5D..03S..GEN;RZH112,115..SRF..(03S,06S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(15 INCHES DISC WHEEL) |
1 | ||
| Common parts | ||||
| 90201-12452 | ||||
| 91651-60816 | ||||
ILLUST NO. 2 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-26030 |
LH10#,11#,125,RZH10#,11#,125 MARK SUMITOMO PS509 |
1 | ||
| 04465-26051 |
LH184,RZH113..5F..ARL;LH103,113,125,162,172,RZH103,125..ARL MARK AKB PA527 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-26010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 04945-26131 |
RZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,114,125,135,15# W(195/70R15 TIRE) |
1 | ||
| 04945-26131 |
RZH113..LHD;RZH115..STD..CBR;RZH115..12S..CBR;RZH115..STD..CIS;LH113,RZH105..CIS,GCC;LH113,RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,112,114,115,125,166,176,RZH102,103,104,112,114,125,135,153..(03S,06S,10S,12S,14S,15S)..(GL,STD) W(195/70R15 TIRE) |
1 | ||
| 04945-35072 |
LH184,RZH113..5F..ARL;LH103,113,125,162,172,RZH103,125..ARL W(15 INCHES DISC WHEEL) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-26010 |
LH10#,11#,125,RZH10#,11#,125..GL,STD |
1 | ||
| 04947-26010 |
LH10#,11#,125,172,174,184,RZH10#,11#,125,135,153 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
