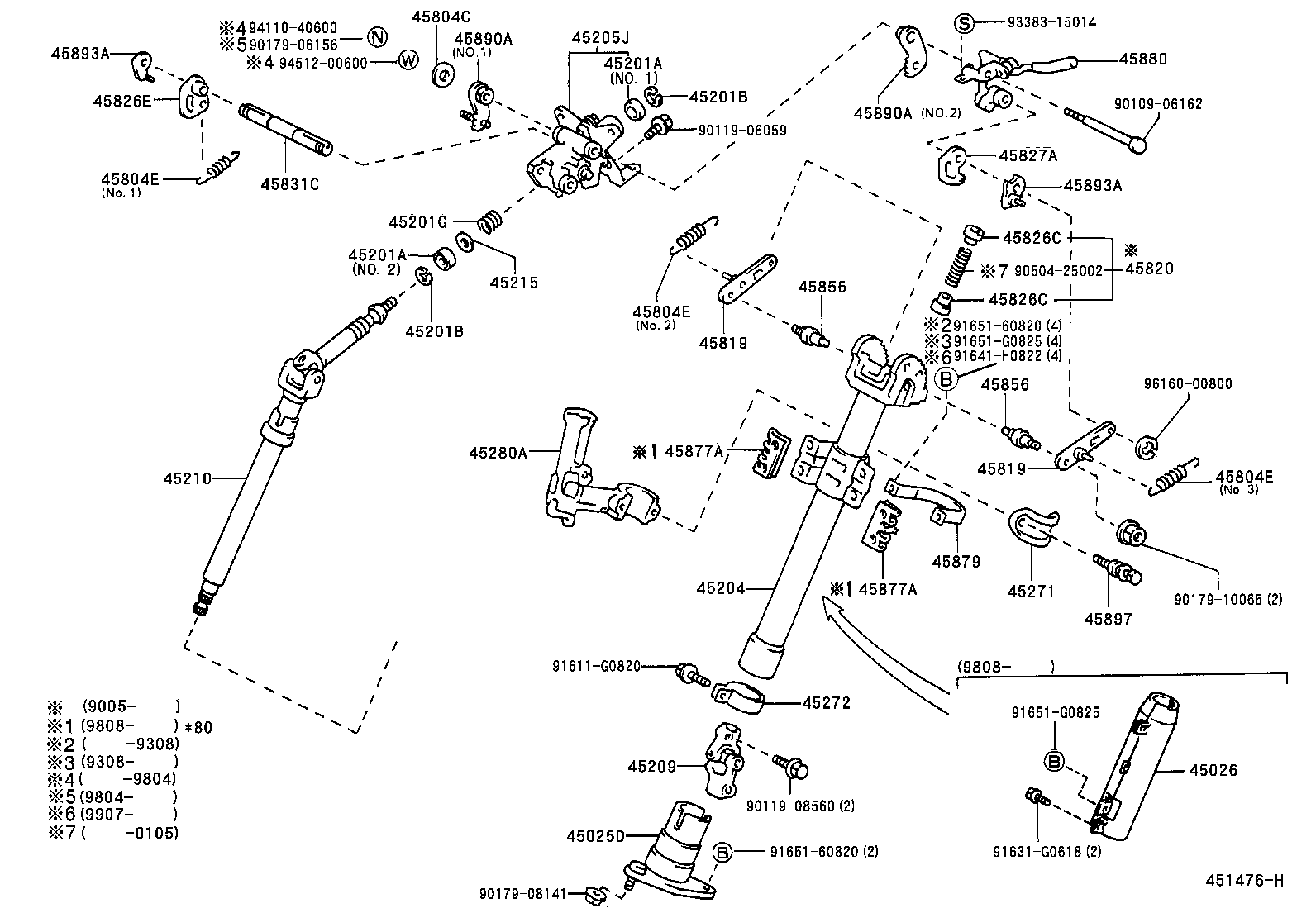

RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2625003 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45287-2613003 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD GRAY,TRIM1#,LOWER |
1 | ||
| 45286-2623003 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD W(RIGID STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45287-2615003 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING),GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26380B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45286-26370B0 |
RZH105,114;LH10#,11#,125,172,176,RZH102,103,112,113,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
RZH105,114;LH10#,11#,125,172,176,RZH102,103,112,113,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45287-26280B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26370B0 |
LH102,105,112..LHD..SG;LH103,113,115,125,RZH102..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45286-26380B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
LH102,105,112..LHD..SG;LH103,113,115,125,RZH102..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45287-26280B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26370B0 |
RZH113;LH162..GEN;LH172..5F..STD;LH172..GL..DEFI;RZH112..RHD..SP;RZH104,112..LHD..STD;RZH115..STD..(CIS,GCC);RZH103,105..(03S,06S,12S)..EFI;LH112,162,174..4D..(03S,06S,15S)..5F;LH102,104,114,164,166,176,184,RZH114,125..(03S,10S,12S,14S,15S)..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26280B0 |
LH172..5F..STD;LH172..03S..GL;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH162,RZH102,115..4D..(03S,10S,12S)..5F..(ARL,GEN);LH112,154,184,RZH105,135,155..4D..(03S,06S,11S,12S,14S,15S)..(DSL,EFI);LH102,104,114,164,166,174,176,RZH112,114,125..(03S,10S,12S,14S,15S)..STD W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26380B0 |
LH172..5F..STD;LH172..03S..GL;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH162,RZH102,115..4D..(03S,10S,12S)..5F..(ARL,GEN);LH112,154,184,RZH105,135,155..4D..(03S,06S,11S,12S,14S,15S)..(DSL,EFI);LH102,104,114,164,166,174,176,RZH112,114,125..(03S,10S,12S,14S,15S)..STD W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
RZH113;LH162..GEN;LH172..5F..STD;LH172..GL..DEFI;RZH112..RHD..SP;RZH104,112..LHD..STD;RZH115..STD..(CIS,GCC);RZH103,105..(03S,06S,12S)..EFI;LH112,162,174..4D..(03S,06S,15S)..5F;LH102,104,114,164,166,176,184,RZH114,125..(03S,10S,12S,14S,15S)..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26370B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26380B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26280B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2625003 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45287-2613003 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD GRAY,TRIM1#,LOWER |
1 | ||
| 45286-2623003 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD W(RIGID STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45287-2615003 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING),GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26380B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45286-26370B0 |
RZH105,114;LH10#,11#,125,172,176,RZH102,103,112,113,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
RZH105,114;LH10#,11#,125,172,176,RZH102,103,112,113,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45287-26280B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26370B0 |
LH102,105,112..LHD..SG;LH103,113,115,125,RZH102..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45286-26380B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
LH102,105,112..LHD..SG;LH103,113,115,125,RZH102..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45287-26280B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26370B0 |
RZH113;LH162..GEN;LH172..5F..STD;LH172..GL..DEFI;RZH112..RHD..SP;RZH104,112..LHD..STD;RZH115..STD..(CIS,GCC);RZH103,105..(03S,06S,12S)..EFI;LH112,162,174..4D..(03S,06S,15S)..5F;LH102,104,114,164,166,176,184,RZH114,125..(03S,10S,12S,14S,15S)..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26280B0 |
LH172..5F..STD;LH172..03S..GL;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH162,RZH102,115..4D..(03S,10S,12S)..5F..(ARL,GEN);LH112,154,184,RZH105,135,155..4D..(03S,06S,11S,12S,14S,15S)..(DSL,EFI);LH102,104,114,164,166,174,176,RZH112,114,125..(03S,10S,12S,14S,15S)..STD W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26380B0 |
LH172..5F..STD;LH172..03S..GL;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH162,RZH102,115..4D..(03S,10S,12S)..5F..(ARL,GEN);LH112,154,184,RZH105,135,155..4D..(03S,06S,11S,12S,14S,15S)..(DSL,EFI);LH102,104,114,164,166,174,176,RZH112,114,125..(03S,10S,12S,14S,15S)..STD W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
RZH113;LH162..GEN;LH172..5F..STD;LH172..GL..DEFI;RZH112..RHD..SP;RZH104,112..LHD..STD;RZH115..STD..(CIS,GCC);RZH103,105..(03S,06S,12S)..EFI;LH112,162,174..4D..(03S,06S,15S)..5F;LH102,104,114,164,166,176,184,RZH114,125..(03S,10S,12S,14S,15S)..STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26370B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26270B0 |
LH174..15S;LH172..GL..DEFI;RZH105,112,115..SRF..(03S,06S,12S);LH10#,11#,16#,172,176,184,RZH103,104,113,114,115,125..DX,STD W(RIGID STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45286-26380B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,UPPER |
1 | ||
| 45287-26280B0 |
RZH115..STD;LH154,RZH115..11S,12S;LH10#,11#,16#,17#,184,RZH10#,112,113,114,125,135,155 W(TILT STEERING),BLUISH GRAY,TRIM1#,LOWER |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-26070 |
RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) |
1 | ||
| 45895-26070 |
LH172..HRF;RZH112..LHD;LH172..5D..GEN;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH113,115..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH172,174..4D..(06S,15S)..STD..(GCC,GEN);LH112,154,184,RZH125,135,15#..4D..(ARL,GEN) |
1 | ||
| 45895-26070 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
| 93568-55014 | ||||

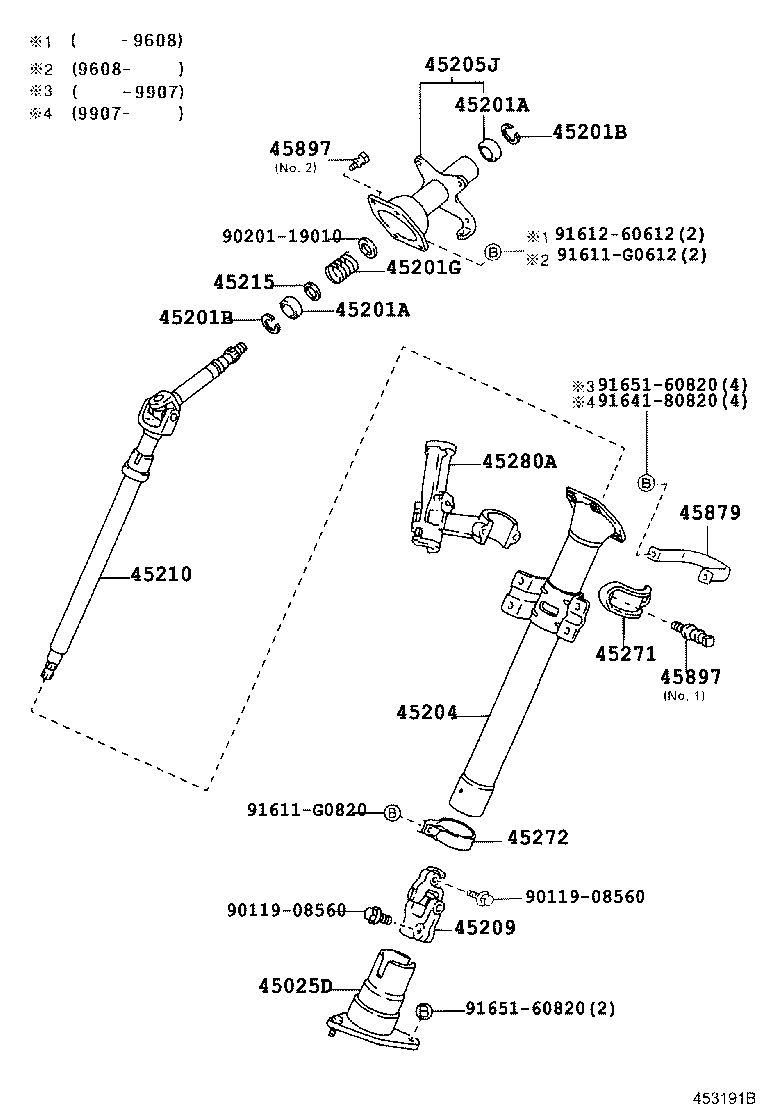

ILLUST NO. 1 OF 4(8908- )
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-26050 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC W(AIR BAG) |
1 | ||
| 45025-26060 |
LH172..5D..06S;LH172,RZH113..(ARL,GCC)..(DSL,EFI);LH103,113,162,RZH103,113..RHD..06S;LH103,113,125,162,174,184,RZH103,115,125..4D..(ARL,GCC)..(DSL,EFI) W(AIR BAG) |
1 | ||
| 45025-26060 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC W(AIR BAG) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-26011 |
LH103,113..06S;LH103,113,115,125..ARL,GCC |
1 | ||
| 45026-26010 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC W(*80) |
1 | ||
| 45026-26011 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC |
1 | ||
| 45026-26011 |
LH172..5D..06S;RZH113..RHD..06S;LH172,RZH113..5F..(ARL,GCC);LH174,184,RZH115,125..ARL,GCC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 & NO.2 |
2 | ||
| 90363-18008 |
LH172..5F..STD;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH172,RZH115..(03S,12S,15S)..GL;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,112,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) NO.2 |
1 | ||
| 90363-18008 |
RZH112..LHD;RZH104,105,114;LH172..03S..STD;RZH112..RHD..SP;RZH115..STD..(CIS,GCC)..EFI;LH172,174,RZH115..(06S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,16#,176,184,RZH102,103,113,125..DX,STD |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 & NO.2 |
2 | ||
| 90363-18008 |
LH172..5F..STD;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH172,RZH115..(03S,12S,15S)..GL;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,112,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) NO.2 |
1 | ||
| 90363-18008 |
RZH112..LHD;RZH104,105,114;LH172..03S..STD;RZH112..RHD..SP;RZH115..STD..(CIS,GCC)..EFI;LH172,174,RZH115..(06S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,16#,176,184,RZH102,103,113,125..DX,STD |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-26090 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING) |
1 | ||
| 45204-26080 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-26120 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD |
1 | ||
| 45205-26140 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING) |
1 | ||
| 45205-26230 |
RZH103..RHD..SG;RZH115..STD..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(GL,STD);LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..GL,STD W(TILT STEERING) |
1 | ||
| 45205-26200 |
RZH105..CBR;RZH103..RHD..SG;RZH115..STD..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..STD;LH10#,11#,125,176,RZH102,112,113,114,125..03S,06S,12S,14S,15S W(RIGID STEERING) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26050 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-26010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-26191 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06019 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 94613-10601 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
LH103,113,125,RZH103,113,125..ARL NO.3 |
1 | ||
| 90507-08012 |
LH103,113,125,RZH103,113,125..ARL NO.1 |
1 | ||
| 90507-12035 |
LH103,113,125,RZH103,113,125..ARL NO.2 |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
LH103,113,125,RZH103,113,125..ARL NO.3 |
1 | ||
| 90507-08012 |
LH103,113,125,RZH103,113,125..ARL NO.1 |
1 | ||
| 90507-12035 |
LH103,113,125,RZH103,113,125..ARL NO.2 |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-08010 |
LH103,113,125,RZH103,113,125..ARL NO.3 |
1 | ||
| 90507-08012 |
LH103,113,125,RZH103,113,125..ARL NO.1 |
1 | ||
| 90507-12035 |
LH103,113,125,RZH103,113,125..ARL NO.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
LH103,113,125,RZH103,113,125..ARL |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
LH103,113,125,RZH103,113,125..ARL |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-35010 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
LH103,113,125,RZH103,113,125..ARL |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
LH103,113,125,RZH103,113,125..ARL |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-22050 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-22020 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
LH103,113,125,RZH103,113,125..ARL OD=9.989-9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
LH103,113,125,RZH103,113,125..ARL OD=9.989-9.998 |
2 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-26010 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC |
2 | ||
| 45877-26010 |
LH172..5D..06S;RZH113..RHD..06S;LH172,RZH113..5F..(ARL,GCC);LH174,184,RZH115,125..ARL,GCC |
2 | ||
| 45877-26010 |
LH103,113..06S;LH103,113,115,125..ARL,GCC |
2 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-26010 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC |
2 | ||
| 45877-26010 |
LH172..5D..06S;RZH113..RHD..06S;LH172,RZH113..5F..(ARL,GCC);LH174,184,RZH115,125..ARL,GCC |
2 | ||
| 45877-26010 |
LH103,113..06S;LH103,113,115,125..ARL,GCC |
2 | ||
| 45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2 | ||||
| 45879-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S W(RIGID STEERING) |
1 | ||
| 45879-26040 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC W(TILT STEERING) |
1 | ||
| 45879-26040 |
LH162,172,RZH113..RHD..5D..06S;LH172,RZH113..(ARL,GCC)..(DSL,EFI);LH103,113,125,162,174,184,RZH103,115,125..4D..(ARL,GCC)..(DSL,EFI) W(TILT STEERING) |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-35010 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
LH103,113,125,RZH103,113,125..ARL NO.1 |
1 | ||
| 45890-22090 |
LH103,113,125,RZH103,113,125..ARL NO.2 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
LH103,113,125,RZH103,113,125..ARL NO.1 |
1 | ||
| 45890-22090 |
LH103,113,125,RZH103,113,125..ARL NO.2 |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-22030 |
LH103,113,125,RZH103,113,125..ARL MARK 1 |
1 | ||
| 45893-22090 |
LH103,113,125,RZH103,113,125..ARL MARK B |
1 | ||
| 45893-22050 |
LH103,113,125,RZH103,113,125..ARL MARK 3 |
1 | ||
| 45893-22060 |
LH103,113,125,RZH103,113,125..ARL MARK 4 |
1 | ||
| 45893-22040 |
LH103,113,125,RZH103,113,125..ARL MARK 2 |
1 | ||
| 45893-22110 |
LH103,113,125,RZH103,113,125..ARL MARK D |
1 | ||
| 45893-22070 |
LH103,113,125,RZH103,113,125..ARL MARK 5 |
1 | ||
| 45893-22120 |
LH103,113,125,RZH103,113,125..ARL MARK E |
1 | ||
| 45893-22100 |
LH103,113,125,RZH103,113,125..ARL MARK C |
1 | ||
| 45893-22080 |
LH103,113,125,RZH103,113,125..ARL MARK A |
1 | ||
| 45893-22080 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK A |
1 | ||
| 45893-22060 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 4 |
1 | ||
| 45893-22070 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 5 |
1 | ||
| 45893-22110 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK D |
1 | ||
| 45893-22040 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 2 |
1 | ||
| 45893-22030 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 1 |
1 | ||
| 45893-22090 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK B |
1 | ||
| 45893-22100 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK C |
1 | ||
| 45893-22050 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 3 |
1 | ||
| 45893-22120 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK E |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-22030 |
LH103,113,125,RZH103,113,125..ARL MARK 1 |
1 | ||
| 45893-22090 |
LH103,113,125,RZH103,113,125..ARL MARK B |
1 | ||
| 45893-22050 |
LH103,113,125,RZH103,113,125..ARL MARK 3 |
1 | ||
| 45893-22060 |
LH103,113,125,RZH103,113,125..ARL MARK 4 |
1 | ||
| 45893-22040 |
LH103,113,125,RZH103,113,125..ARL MARK 2 |
1 | ||
| 45893-22110 |
LH103,113,125,RZH103,113,125..ARL MARK D |
1 | ||
| 45893-22070 |
LH103,113,125,RZH103,113,125..ARL MARK 5 |
1 | ||
| 45893-22120 |
LH103,113,125,RZH103,113,125..ARL MARK E |
1 | ||
| 45893-22100 |
LH103,113,125,RZH103,113,125..ARL MARK C |
1 | ||
| 45893-22080 |
LH103,113,125,RZH103,113,125..ARL MARK A |
1 | ||
| 45893-22080 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK A |
1 | ||
| 45893-22060 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 4 |
1 | ||
| 45893-22070 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 5 |
1 | ||
| 45893-22110 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK D |
1 | ||
| 45893-22040 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 2 |
1 | ||
| 45893-22030 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 1 |
1 | ||
| 45893-22090 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK B |
1 | ||
| 45893-22100 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK C |
1 | ||
| 45893-22050 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK 3 |
1 | ||
| 45893-22120 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# MARK E |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LH10#,11#,125,RZH10#,11#,125..DX,STD NO.2 |
2 | ||
| 45897-12020 |
LH10#,11#,125,RZH10#,11#,125 NO.1 |
2 | ||
| 45897-12020 |
RZH113..LHD;RZH115..CBR;RZH103..RHD..SG;RZH105,113,115..STD..(ARL,CIS);LH172,RZH103..RHD..4D..(GL,STD);LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,114,125,135,153 |
2 | ||
| 45897-12020 |
RZH105..CBR;RZH113..LHD;RZH103..RHD..SG;RZH115..15S..CBR;LH172,RZH103..RHD..4D..STD;RZH105,113,115..STD..(ARL,CIS);LH10#,11#,125,166,176,RZH102,104,112,114,125..03S,06S,12S,14S,15S NO.1 |
2 | ||
| 45897-12030 |
RZH115..15S;LH172..03S..STD;LH172,RZH104,105,114..SG;LH10#,11#,125,16#,174,176,184,RZH102,103,112,113,125..DX,STD NO.2 |
2 | ||
| Common parts | ||||
| 90109-06162 | ||||
| 90119-06059 | ||||
| 90119-08560 | ||||
| 90179-06156 | ||||
| 90179-08141 | ||||
| 90179-10065 | ||||
| 90504-25002 | ||||
| 91611-G0820 | ||||
| 91631-G0618 | ||||
| 91641-H0822 | ||||
| 91651-60820 | ||||
| 91651-G0825 | ||||
| 93383-15014 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 3 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-26020 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 45266-26020 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45266-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45266-26020 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45266-26020 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-26030 |
LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD W(POWER STEERING) |
1 | ||
| 45390-26050 |
LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 45390-26031 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD W(POWER STEERING) |
1 | ||
| 45390-26031 |
LH172,184,RZH103,113,125..RHD;LH11#,162,174,RZH105,112,114,135,153..RHD..5F W(POWER STEERING) |
1 | ||
| 45390-26031 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD W(POWER STEERING) |
1 | ||
| 45390-26051 |
LH103,11#,125,162,172,174,RZH103,104,105,112,113,114,125..RHD..(DX,STD) W(MANUAL STEERING) |
1 | ||
| 45390-26051 |
RZH113..RHD..4D;LH11#,RZH103,105,112,114,125..RHD;LH172..RHD..SRF..4D..STD..GEN..DSL;LH162,174..RHD..SRF..(03S,15S)..GEN W(MANUAL STEERING) |
1 | ||
| 45390-26051 |
RZH113..RHD..4D;LH172..RHD..SRF..4D..STD..GEN;LH162,174..RHD..SRF..(03S,15S)..GEN;LH11#,RZH103,104,105,112,114,125..RHD W(MANUAL STEERING) |
1 | ||
| 45390-26031 |
LH184,RZH103,113,125..RHD;LH11#,162,172,174,RZH105,112,114,135,153..RHD..5F W(POWER STEERING) |
1 | ||
| 45390-26051 |
LH11#,RZH103,105,112,114,125..RHD;LH172..RHD..SRF..4D..STD..GEN..DSL;LH162,174..RHD..SRF..(03S,15S)..GEN;LH174,RZH113..RHD..4D..(03S,06S,08S,12S) W(MANUAL STEERING) |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-26040 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45635-26040 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD |
1 | ||
| 45635-26040 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45635-26040 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45635-26040 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-26020 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD |
1 | ||
| 45636-26020 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45636-26020 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45636-26020 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45636-26020 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-26050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45637-26030 |
RZH103,104,105,114,115..GL,STD;LH10#,11#,125,162,172,174,RZH102,112,113,125..DX,STD W(MANUAL STEERING) |
1 | ||
| 45637-26050 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 W(POWER STEERING) |
1 | ||
| 45637-26030 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45637-26050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45637-26030 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45637-26030 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45637-26020 |
LH10#,11#,125,RZH10#,11#,125 W(POWER STEERING) |
1 | ||
| 45637-26050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45637-26030 |
LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING) |
1 | ||
| 45638A - PROTECTOR, INTER LINK JOINT, LOWER NO.2 | ||||
| 45638-26020 |
LH10#,11#,125,RZH10#,11#,125 W(MANUAL STEERING) |
1 | ||
| 45638-26010 |
LH10#,11#,125,RZH10#,11#,125 W(POWER STEERING) |
1 | ||
| 45638-26020 |
RZH103,104,105,114,115..GL,STD;LH10#,11#,125,162,172,174,RZH102,112,113,125..DX,STD W(MANUAL STEERING) |
1 | ||
| 45638-26011 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 W(POWER STEERING) |
1 | ||
| 45638-26011 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45638-26011 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45638-26011 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45638-26020 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45638-26020 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| 45638-26020 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING) |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90468-12016 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
ILLUST NO. 1 OF 4(8908- )
RIGID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-26050 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC W(AIR BAG) |
1 | ||
| 45025-26060 |
LH172..5D..06S;LH172,RZH113..(ARL,GCC)..(DSL,EFI);LH103,113,162,RZH103,113..RHD..06S;LH103,113,125,162,174,184,RZH103,115,125..4D..(ARL,GCC)..(DSL,EFI) W(AIR BAG) |
1 | ||
| 45025-26060 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC W(AIR BAG) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 & NO.2 |
2 | ||
| 90363-18008 |
LH172..5F..STD;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH172,RZH115..(03S,12S,15S)..GL;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,112,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) NO.2 |
1 | ||
| 90363-18008 |
RZH112..LHD;RZH104,105,114;LH172..03S..STD;RZH112..RHD..SP;RZH115..STD..(CIS,GCC)..EFI;LH172,174,RZH115..(06S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,16#,176,184,RZH102,103,113,125..DX,STD |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S NO.1 & NO.2 |
2 | ||
| 90363-18008 |
LH172..5F..STD;LH172..GL..DEFI;LH162,RZH112..5D;RZH104..LHD..STD;RZH103,113..DX,STD;RZH115..STD..(CIS,GCC);LH172,RZH115..(03S,12S,15S)..GL;LH112,162,174,RZH114..4D..5F..STD;LH102,104,114,154,164,166,176,184,RZH102,105,112,125,135,15#..4D..(03S,10S,11S,12S,14S,15S)..(ARL,CIS,GEN) NO.2 |
1 | ||
| 90363-18008 |
RZH112..LHD;RZH104,105,114;LH172..03S..STD;RZH112..RHD..SP;RZH115..STD..(CIS,GCC)..EFI;LH172,174,RZH115..(06S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,16#,176,184,RZH102,103,113,125..DX,STD |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-26090 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING) |
1 | ||
| 45204-26080 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-26120 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD |
1 | ||
| 45205-26140 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING) |
1 | ||
| 45205-26230 |
RZH103..RHD..SG;RZH115..STD..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(GL,STD);LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..GL,STD W(TILT STEERING) |
1 | ||
| 45205-26200 |
RZH105..CBR;RZH103..RHD..SG;RZH115..STD..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..STD;LH10#,11#,125,176,RZH102,112,113,114,125..03S,06S,12S,14S,15S W(RIGID STEERING) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26050 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-26010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-26010 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-26191 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2 | ||||
| 45879-26020 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S W(RIGID STEERING) |
1 | ||
| 45879-26040 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC W(TILT STEERING) |
1 | ||
| 45879-26040 |
LH162,172,RZH113..RHD..5D..06S;LH172,RZH113..(ARL,GCC)..(DSL,EFI);LH103,113,125,162,174,184,RZH103,115,125..4D..(ARL,GCC)..(DSL,EFI) W(TILT STEERING) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LH10#,11#,125,RZH10#,11#,125..DX,STD NO.2 |
2 | ||
| 45897-12020 |
LH10#,11#,125,RZH10#,11#,125 NO.1 |
2 | ||
| 45897-12020 |
RZH113..LHD;RZH115..CBR;RZH103..RHD..SG;RZH105,113,115..STD..(ARL,CIS);LH172,RZH103..RHD..4D..(GL,STD);LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,114,125,135,153 |
2 | ||
| 45897-12020 |
RZH105..CBR;RZH113..LHD;RZH103..RHD..SG;RZH115..15S..CBR;LH172,RZH103..RHD..4D..STD;RZH105,113,115..STD..(ARL,CIS);LH10#,11#,125,166,176,RZH102,104,112,114,125..03S,06S,12S,14S,15S NO.1 |
2 | ||
| 45897-12030 |
RZH115..15S;LH172..03S..STD;LH172,RZH104,105,114..SG;LH10#,11#,125,16#,174,176,184,RZH102,103,112,113,125..DX,STD NO.2 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LH10#,11#,125,RZH10#,11#,125..DX,STD NO.2 |
2 | ||
| 45897-12020 |
LH10#,11#,125,RZH10#,11#,125 NO.1 |
2 | ||
| 45897-12020 |
RZH113..LHD;RZH115..CBR;RZH103..RHD..SG;RZH105,113,115..STD..(ARL,CIS);LH172,RZH103..RHD..4D..(GL,STD);LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,114,125,135,153 |
2 | ||
| 45897-12020 |
RZH105..CBR;RZH113..LHD;RZH103..RHD..SG;RZH115..15S..CBR;LH172,RZH103..RHD..4D..STD;RZH105,113,115..STD..(ARL,CIS);LH10#,11#,125,166,176,RZH102,104,112,114,125..03S,06S,12S,14S,15S NO.1 |
2 | ||
| 45897-12030 |
RZH115..15S;LH172..03S..STD;LH172,RZH104,105,114..SG;LH10#,11#,125,16#,174,176,184,RZH102,103,112,113,125..DX,STD NO.2 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90201-19010 | ||||
| 91611-G0612 | ||||
| 91611-G0820 | ||||
| 91612-60612 | ||||
| 91641-80820 | ||||
| 91651-60820 | ||||

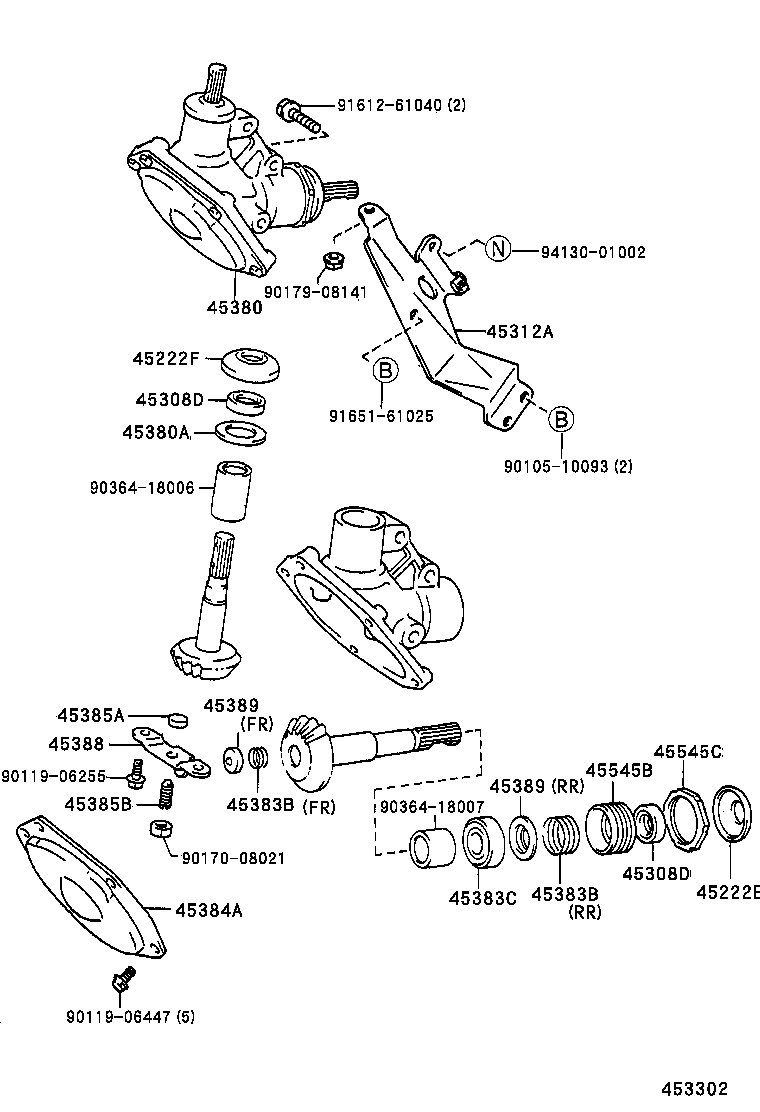

ILLUST NO. 4 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27030 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 45222-27030 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27030 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45222-27030 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-27050 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 45222-27050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27050 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45222-27030 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 90311-15002 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 90311-15002 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 90311-15002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-26140 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45312-26140 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45312-26140 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD |
1 | ||
| 45312-26140 |
LH11#,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 45312-26140 |
LH11#,162,172,174,184,RZH103,105,112,113,114,125,135,153..RHD |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-27011 |
LH10#,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD W(POWER STEERING) |
1 | ||
| 45380-28011 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 45380-26010 |
RZH113..RHD..4D;LH172..RHD..SRF..4D..STD..GEN;LH162,174..RHD..SRF..(03S,15S)..GEN;LH11#,RZH103,104,105,112,114,125..RHD W(MANUAL STEERING) |
1 | ||
| 45380-26010 |
RZH113..RHD..4D;LH11#,RZH103,105,112,114,125..RHD;LH172..RHD..SRF..4D..STD..GEN..DSL;LH162,174..RHD..SRF..(03S,15S)..GEN W(MANUAL STEERING) |
1 | ||
| 45380-26010 |
LH103,11#,125,162,172,174,RZH103,104,105,112,113,114,125..RHD..(DX,STD) W(MANUAL STEERING) |
1 | ||
| 45380-37010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45380-37010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45380-37010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 W(POWER STEERING) |
1 | ||
| 45380-37010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING) |
1 | ||
| 45380-26010 |
RZH113..RHD..4D;LH11#,RZH103,105,114,125..RHD;LH172..RHD..SRF..4D..STD..GEN..DSL;LH162,174,RZH112..RHD..SRF..(03S,15S)..GEN W(MANUAL STEERING) |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18005 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=2.05,MARK 5 |
1 | ||
| 90209-18006 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=2.10,MARK 6 |
1 | ||
| 90209-18002 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 T=1.90,MARK 2 |
1 | ||
| 90209-18004 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=2.00,MARK 4 |
1 | ||
| 90209-18006 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 T=2.10,MARK 6 |
1 | ||
| 90209-18008 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=2.20,MARK 8 |
1 | ||
| 90209-18005 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 T=2.05,MARK 5 |
1 | ||
| 90209-18003 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 T=1.95,MARK 3 |
1 | ||
| 90209-18007 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 T=2.15,MARK 7 |
1 | ||
| 90209-18003 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.95,MARK 3 |
1 | ||
| 90209-18003 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=1.95,MARK 3 |
1 | ||
| 90209-18002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.90,MARK 2 |
1 | ||
| 90209-18004 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 T=2.00,MARK 4 |
1 | ||
| 90209-18008 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 T=2.20,MARK 8 |
1 | ||
| 90209-18002 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=1.90,MARK 2 |
1 | ||
| 90209-18006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.10,MARK 6 |
1 | ||
| 90209-18007 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S T=2.15,MARK 7 |
1 | ||
| 90209-18007 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.15,MARK 7 |
1 | ||
| 90209-18005 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.05,MARK 5 |
1 | ||
| 90209-18008 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.20,MARK 8 |
1 | ||
| 90209-18004 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.00,MARK 4 |
1 | ||
| 90209-18008 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.20,MARK 8 |
1 | ||
| 90209-18007 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.15,MARK 7 |
1 | ||
| 90209-18002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.90,MARK 2 |
1 | ||
| 90209-18003 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.95,MARK 3 |
1 | ||
| 90209-18005 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.05,MARK 5 |
1 | ||
| 90209-18006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.10,MARK 6 |
1 | ||
| 90209-18004 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.00,MARK 4 |
1 | ||
| 90209-18006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.10,MARK 6 |
1 | ||
| 90209-18004 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.00,MARK 4 |
1 | ||
| 90209-18003 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.95,MARK 3 |
1 | ||
| 90209-18007 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.15,MARK 7 |
1 | ||
| 90209-18002 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=1.90,MARK 2 |
1 | ||
| 90209-18005 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.05,MARK 5 |
1 | ||
| 90209-18008 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# T=2.20,MARK 8 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
RZH103..RHD..EFI;LH125,RZH125..STD;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH125,172..(SMRF,SRF)..(03S,15S)..GL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,166,176,184,RZH104,114,135,153..03S,06S,09S,12S,15S W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 90501-20080 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 FRONT |
1 | ||
| 90501-20080 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S FRONT |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,104,105,114,115..GL,STD;LH10#,11#,125,162,172,174,RZH102,112,113,125..DX,STD W(MANUAL STEERING),REAR |
1 | ||
| 90501-18063 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 90501-18063 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH172,RZH115..4D..SG..(CIS,GEN)..(DSL,EFI);LH154,174,184,RZH102,103,114,125..03S,06S,10S,11S,14S,15S;LH10#,11#,16#,176,RZH104,105,112,135,15#..(SMRF,SRF)..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
RZH103..RHD..EFI;LH125,RZH125..STD;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH125,172..(SMRF,SRF)..(03S,15S)..GL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,166,176,184,RZH104,114,135,153..03S,06S,09S,12S,15S W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 90501-20080 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 FRONT |
1 | ||
| 90501-20080 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S FRONT |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..GL..DEFI;LH172,184..5F..STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,113,125;LH172..03S..5F..STD;LH172,184..(06S,14S)..5F;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
LH184..5F..ARL;LH172..GL..DEFI;LH172,RZH103,113,125..DX,STD;LH10#,11#,162,164,174,RZH104,105,112,114,115..5F W(MANUAL STEERING),REAR |
1 | ||
| 90501-22029 |
RZH103,104,105,114,115..GL,STD;LH10#,11#,125,162,172,174,RZH102,112,113,125..DX,STD W(MANUAL STEERING),REAR |
1 | ||
| 90501-18063 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 90501-18063 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 W(POWER STEERING),REAR |
1 | ||
| 90501-20080 |
RZH113..CBR;LH172..4D..06S..DSL;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH154,184,RZH102,103,115,125..ARL,CIS,GEN;LH10#,11#,16#,174,176,RZH104,105,112,114,135,15#..(03S,06S,11S,12S,15S)..5F FRONT |
1 | ||
| 90501-18063 |
RZH113..CBR;RZH113..5D..03S..GEN;RZH113..4D..(ARL,GEN);RZH113..LHD..06S..GEN;LH172,RZH115..(03S,15S)..(CBR,DSL);LH172,RZH115..4D..SG..(CIS,GEN)..(DSL,EFI);LH154,174,184,RZH102,103,114,125..03S,06S,10S,11S,14S,15S;LH10#,11#,16#,176,RZH104,105,112,135,15#..(SMRF,SRF)..(03S,06S,11S,12S,15S)..5F W(POWER STEERING),REAR |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 90363-15010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90363-15010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90363-15010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 90363-15010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45384-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45384-27010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 45384-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45384-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45385-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385-27010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 45385-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 90113-08006 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 90113-08006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90113-08006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90113-08006 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45388-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45388-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45388-27010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 45388-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 REAR |
1 | ||
| 45389-27021 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S REAR |
1 | ||
| 45389-27010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S FRONT |
1 | ||
| 45389-27010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 FRONT |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 REAR |
1 | ||
| 45389-27021 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S REAR |
1 | ||
| 45389-27010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S FRONT |
1 | ||
| 45389-27010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 FRONT |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27021 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# REAR |
1 | ||
| 45389-27010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# FRONT |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 45545-10010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45545-10010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45545-10010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 45545-10010 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 90179-38001 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90179-38001 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90179-38001 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 90179-38001 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| Common parts | ||||
| 90105-10093 | ||||
| 90119-06255 | ||||
| 90119-06447 | ||||
| 90170-08021 | ||||
| 90179-08141 | ||||
| 90364-18006 | ||||
| 90364-18007 | ||||
| 91612-61040 | ||||
| 91651-61025 | ||||
| 94130-01002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
