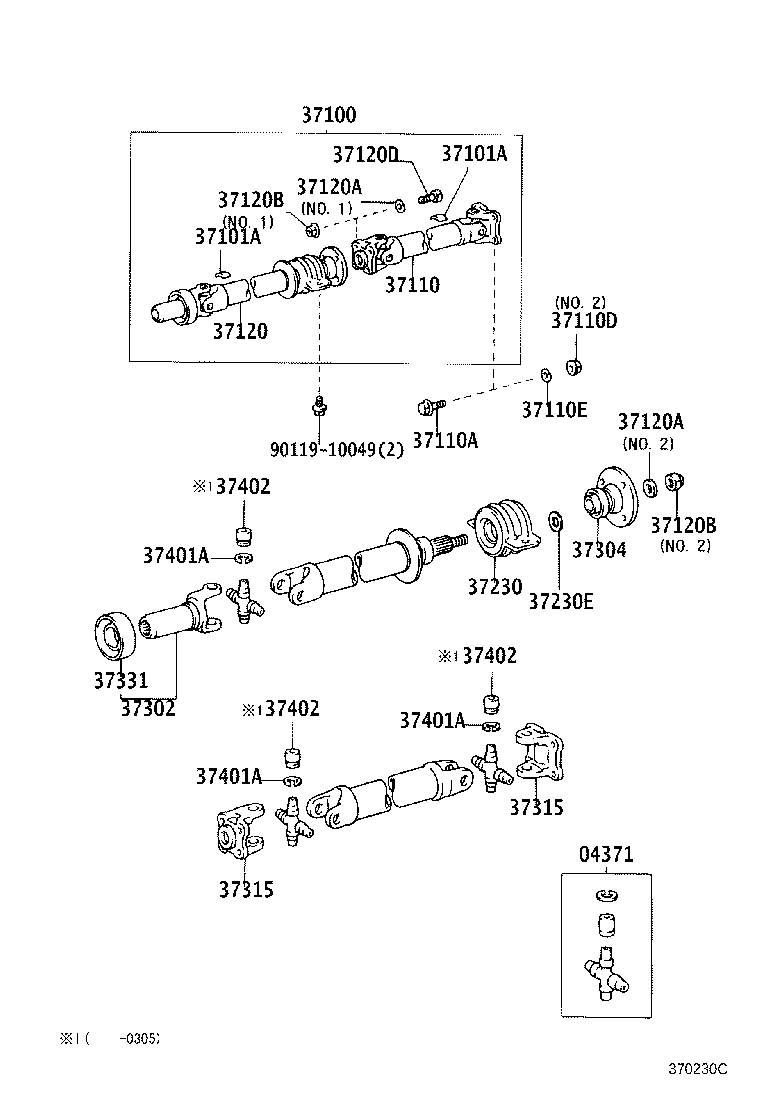

RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter
(8908- )LH125,184,RZH125,135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-30021 |
LH125,RZH125 |
3 | ||
| 04371-60080 |
LH184,RZH125,135 |
3 | ||
| 04371-30041 |
LH125,184,RZH125,135 |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-26060 |
LH125,184,RZH125,135..5F |
1 | ||
| 37100-26060 |
LH184,RZH125,135..5F |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01147 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 2G,T=2.0 |
1 | ||
| 90937-01151 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 12G,L=24.9 |
1 | ||
| 90937-01149 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 6G,L=12.4 |
1 | ||
| 90937-01148 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 4G,T=2.0 |
1 | ||
| 90937-01132 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 10G,L=20.7 |
1 | ||
| 90937-01152 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 14G,L=29.0 |
1 | ||
| 90937-01150 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 8G,L=16.6 |
1 | ||
| 90937-01136 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 20G,L=41.4 |
1 | ||
| 90937-01140 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 30G,L=62.2 |
1 | ||
| 90937-01151 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 12G,L=24.9 |
1 | ||
| 90937-01149 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 6G,L=12.4 |
1 | ||
| 90937-01150 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 8G,L=16.6 |
1 | ||
| 90937-01152 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 14G,L=29.0 |
1 | ||
| 90937-01147 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 2G,T=2.0 |
1 | ||
| 90937-01158 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 28G,L=58.1 |
1 | ||
| 90937-01153 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 16G,L=33.2 |
1 | ||
| 90937-01132 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 10G,L=20.7 |
1 | ||
| 90937-01154 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 18G,L=37.3 |
1 | ||
| 90937-01148 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 4G,T=2.0 |
1 | ||
| 90937-01157 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 26G,L=53.9 |
1 | ||
| 90937-01156 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 24G,L=49.7 |
1 | ||
| 90937-01155 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 22G,L=45.6 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01147 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 2G,T=2.0 |
1 | ||
| 90937-01151 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 12G,L=24.9 |
1 | ||
| 90937-01149 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 6G,L=12.4 |
1 | ||
| 90937-01148 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 4G,T=2.0 |
1 | ||
| 90937-01132 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 10G,L=20.7 |
1 | ||
| 90937-01152 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 14G,L=29.0 |
1 | ||
| 90937-01150 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 8G,L=16.6 |
1 | ||
| 90937-01136 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 20G,L=41.4 |
1 | ||
| 90937-01140 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 30G,L=62.2 |
1 | ||
| 90937-01151 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 12G,L=24.9 |
1 | ||
| 90937-01149 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 6G,L=12.4 |
1 | ||
| 90937-01150 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 8G,L=16.6 |
1 | ||
| 90937-01152 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 14G,L=29.0 |
1 | ||
| 90937-01147 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 2G,T=2.0 |
1 | ||
| 90937-01158 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 28G,L=58.1 |
1 | ||
| 90937-01153 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 16G,L=33.2 |
1 | ||
| 90937-01132 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 10G,L=20.7 |
1 | ||
| 90937-01154 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 18G,L=37.3 |
1 | ||
| 90937-01148 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 4G,T=2.0 |
1 | ||
| 90937-01157 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 26G,L=53.9 |
1 | ||
| 90937-01156 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 24G,L=49.7 |
1 | ||
| 90937-01155 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S 22G,L=45.6 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-26490 |
LH125,184,RZH125,135..5F |
1 | ||
| 37110-26490 |
LH125,184,RZH125,135..5F |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S *10-1.00PX27-13 |
4 | ||
| 90105-10424 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# *10-1.00PX29-15 |
4 | ||
| 90105-10466 |
LH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15# *10-1.00PX29-15 |
4 | ||
| 90105-10085 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 *10-1.00PX27-13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S |
4 | ||
| 90179-10059 |
LH10#,11#,125,162,172,174,184,RZH10#,11#,125,135,153 |
4 | ||
| 90178-10006 |
LH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,135,15# |
4 | ||
| 90178-10007 |
LH10#,11#,154,162,164,172,174,184,RZH10#,11#,125,135,15# |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S |
4 | ||
| 90560-10102 |
LH10#,11#,154,162,164,172,174,184,RZH10#,11#,125,135,15# |
4 | ||
| 90204-10002 |
LH10#,11#,125,162,172,174,184,RZH10#,11#,125,135,153 |
4 | ||
| 90560-10101 |
LH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,135,15# |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-26020 |
LH125,184,RZH125,135..5F |
1 | ||
| 37120-26020 |
LH184,RZH125,135..5F |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
LH125,184,RZH125,135 OD=36.6,T=0.8,NO.2 |
1 | ||
| 90201-18182 |
LH125,184,RZH125,135 OD=33.5,T=4.0,NO.2 |
1 | ||
| 90204-10002 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90204-10002 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90201-18182 |
LH125,184,RZH125,135 OD=33.5,T=4.0,NO.2 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
LH125,184,RZH125,135 OD=36.6,T=0.8,NO.2 |
1 | ||
| 90201-18182 |
LH125,184,RZH125,135 OD=33.5,T=4.0,NO.2 |
1 | ||
| 90204-10002 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90204-10002 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90201-18182 |
LH125,184,RZH125,135 OD=33.5,T=4.0,NO.2 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
LH125,184,RZH125,135 NO.2 |
1 | ||
| 90179-10059 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90179-10059 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90179-18009 |
LH125,184,RZH125,135 NO.2 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
LH125,184,RZH125,135 NO.2 |
1 | ||
| 90179-10059 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90179-10059 |
LH125,184,RZH125,135 NO.1 |
4 | ||
| 90179-18009 |
LH125,184,RZH125,135 NO.2 |
1 | ||
| 37120D - BOLT (FOR CENTER PROPELLER SHAFT) | ||||
| 90105-10085 |
LH125,184,RZH125,135 |
4 | ||
| 90105-10085 |
LH184,RZH125,135 |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-26010 |
LH125,184,RZH125,135 |
1 | ||
| 37230-26010 |
LH184,RZH125,135 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-26005 |
LH125,184,RZH125,135 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-35030 |
RZH102,112..SRF;RZH103,113..CBR;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH105,114,115..(4F,5F)..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
LH184,RZH125,135 |
1 | ||
| 37304-35041 |
LH125,184,RZH125,135 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LH125,184,RZH125,135 |
2 | ||
| 37315-35070 |
LH125,166,176,184,RZH125,135 |
2 | ||
| 37315-35040 |
LH125,166,176,184,RZH125,135 |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LH125,184,RZH125,135 |
2 | ||
| 37315-35070 |
LH125,166,176,184,RZH125,135 |
2 | ||
| 37315-35040 |
LH125,166,176,184,RZH125,135 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
LH184,RZH102;RZH112..SG..03S;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,162,164,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S |
1 | ||
| 37331-30010 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26040 |
LH125,RZH125 T=2.175,MARK 2 |
12 | ||
| 90520-26041 |
LH125,RZH125 T=2.225,MARK 3 |
12 | ||
| 90520-26038 |
LH125,RZH125 T=2.125,MARK 1 |
12 | ||
| 90520-26042 |
LH125,RZH125 T=2.275,MARK 4 |
12 | ||
| 90520-26046 |
LH125,RZH125 T=2.475,MARK 8 |
12 | ||
| 90520-26044 |
LH125,RZH125 T=2.375,MARK 6 |
12 | ||
| 90520-26043 |
LH125,RZH125 T=2.325,MARK 5 |
12 | ||
| 90520-26045 |
LH125,RZH125 T=2.425,MARK 7 |
12 | ||
| 90520-26050 |
LH125,184,RZH125,135 T=2.44-2.46 |
12 | ||
| 90520-26053 |
LH125,184,RZH125,135 T=2.30-2.32 |
12 | ||
| 90520-26052 |
LH125,184,RZH125,135 T=2.28-2.30 |
12 | ||
| 90520-26056 |
LH125,184,RZH125,135 T=2.36-2.38 |
12 | ||
| 90520-26057 |
LH125,184,RZH125,135 T=2.38-2.40 |
12 | ||
| 90520-26051 |
LH125,184,RZH125,135 T=2.46-2.48 |
12 | ||
| 90520-26055 |
LH125,184,RZH125,135 T=2.34-2.36 |
12 | ||
| 90520-26054 |
LH125,184,RZH125,135 T=2.32-2.34 |
12 | ||
| 90520-26062 |
LH125,184,RZH125,135 T=2.18-2.20 |
12 | ||
| 90520-26063 |
LH125,184,RZH125,135 T=2.20-2.22 |
12 | ||
| 90520-26059 |
LH125,184,RZH125,135 T=2.42-2.44 |
12 | ||
| 90520-26058 |
LH125,184,RZH125,135 T=2.40-2.42 |
12 | ||
| 90520-26064 |
LH125,184,RZH125,135 T=2.22-2.24 |
12 | ||
| 90520-26066 |
LH125,184,RZH125,135 T=2.26-2.28 |
12 | ||
| 90520-26069 |
LH125,184,RZH125,135 T=2.52-2.54 |
12 | ||
| 90520-26068 |
LH125,184,RZH125,135 T=2.50-2.52 |
12 | ||
| 90520-26065 |
LH125,184,RZH125,135 T=2.24-2.26 |
12 | ||
| 90520-26067 |
LH125,184,RZH125,135 T=2.48-2.50 |
12 | ||
| 90520-25040 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.31,MARK 2 |
8 | ||
| 90520-25039 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.29,MARK 1 |
8 | ||
| 90520-25041 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.33,NO MARK |
8 | ||
| 90520-25045 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.41,MARK 7 |
8 | ||
| 90520-25043 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.37,BLUE |
8 | ||
| 90520-25042 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.35,BROWN |
8 | ||
| 90520-25053 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.57,MARK E |
8 | ||
| 90520-25046 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.43,MARK 8 |
8 | ||
| 90520-25044 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.39,MARK 6 |
8 | ||
| 90520-25049 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.49,MARK A |
8 | ||
| 90520-25048 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.47,MARK 10 |
8 | ||
| 90520-25052 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.55,MARK D |
8 | ||
| 90520-25054 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.19,MARK D |
8 | ||
| 90520-25057 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.25,MARK G |
8 | ||
| 90520-25050 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.51,MARK B |
8 | ||
| 90520-25051 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.53,MARK C |
8 | ||
| 90520-25058 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.27,MARK H |
8 | ||
| 90520-25047 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.45,MARK 9 |
8 | ||
| 90520-25056 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.23,MARK F |
8 | ||
| 90520-25055 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.21,MARK E |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26040 |
LH125,RZH125 T=2.175,MARK 2 |
12 | ||
| 90520-26041 |
LH125,RZH125 T=2.225,MARK 3 |
12 | ||
| 90520-26038 |
LH125,RZH125 T=2.125,MARK 1 |
12 | ||
| 90520-26042 |
LH125,RZH125 T=2.275,MARK 4 |
12 | ||
| 90520-26046 |
LH125,RZH125 T=2.475,MARK 8 |
12 | ||
| 90520-26044 |
LH125,RZH125 T=2.375,MARK 6 |
12 | ||
| 90520-26043 |
LH125,RZH125 T=2.325,MARK 5 |
12 | ||
| 90520-26045 |
LH125,RZH125 T=2.425,MARK 7 |
12 | ||
| 90520-26050 |
LH125,184,RZH125,135 T=2.44-2.46 |
12 | ||
| 90520-26053 |
LH125,184,RZH125,135 T=2.30-2.32 |
12 | ||
| 90520-26052 |
LH125,184,RZH125,135 T=2.28-2.30 |
12 | ||
| 90520-26056 |
LH125,184,RZH125,135 T=2.36-2.38 |
12 | ||
| 90520-26057 |
LH125,184,RZH125,135 T=2.38-2.40 |
12 | ||
| 90520-26051 |
LH125,184,RZH125,135 T=2.46-2.48 |
12 | ||
| 90520-26055 |
LH125,184,RZH125,135 T=2.34-2.36 |
12 | ||
| 90520-26054 |
LH125,184,RZH125,135 T=2.32-2.34 |
12 | ||
| 90520-26062 |
LH125,184,RZH125,135 T=2.18-2.20 |
12 | ||
| 90520-26063 |
LH125,184,RZH125,135 T=2.20-2.22 |
12 | ||
| 90520-26059 |
LH125,184,RZH125,135 T=2.42-2.44 |
12 | ||
| 90520-26058 |
LH125,184,RZH125,135 T=2.40-2.42 |
12 | ||
| 90520-26064 |
LH125,184,RZH125,135 T=2.22-2.24 |
12 | ||
| 90520-26066 |
LH125,184,RZH125,135 T=2.26-2.28 |
12 | ||
| 90520-26069 |
LH125,184,RZH125,135 T=2.52-2.54 |
12 | ||
| 90520-26068 |
LH125,184,RZH125,135 T=2.50-2.52 |
12 | ||
| 90520-26065 |
LH125,184,RZH125,135 T=2.24-2.26 |
12 | ||
| 90520-26067 |
LH125,184,RZH125,135 T=2.48-2.50 |
12 | ||
| 90520-25040 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.31,MARK 2 |
8 | ||
| 90520-25039 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.29,MARK 1 |
8 | ||
| 90520-25041 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.33,NO MARK |
8 | ||
| 90520-25045 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.41,MARK 7 |
8 | ||
| 90520-25043 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.37,BLUE |
8 | ||
| 90520-25042 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.35,BROWN |
8 | ||
| 90520-25053 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.57,MARK E |
8 | ||
| 90520-25046 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.43,MARK 8 |
8 | ||
| 90520-25044 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.39,MARK 6 |
8 | ||
| 90520-25049 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.49,MARK A |
8 | ||
| 90520-25048 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.47,MARK 10 |
8 | ||
| 90520-25052 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.55,MARK D |
8 | ||
| 90520-25054 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.19,MARK D |
8 | ||
| 90520-25057 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.25,MARK G |
8 | ||
| 90520-25050 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.51,MARK B |
8 | ||
| 90520-25051 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.53,MARK C |
8 | ||
| 90520-25058 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.27,MARK H |
8 | ||
| 90520-25047 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.45,MARK 9 |
8 | ||
| 90520-25056 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.23,MARK F |
8 | ||
| 90520-25055 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.21,MARK E |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26040 |
LH125,RZH125 T=2.175,MARK 2 |
12 | ||
| 90520-26041 |
LH125,RZH125 T=2.225,MARK 3 |
12 | ||
| 90520-26038 |
LH125,RZH125 T=2.125,MARK 1 |
12 | ||
| 90520-26042 |
LH125,RZH125 T=2.275,MARK 4 |
12 | ||
| 90520-26046 |
LH125,RZH125 T=2.475,MARK 8 |
12 | ||
| 90520-26044 |
LH125,RZH125 T=2.375,MARK 6 |
12 | ||
| 90520-26043 |
LH125,RZH125 T=2.325,MARK 5 |
12 | ||
| 90520-26045 |
LH125,RZH125 T=2.425,MARK 7 |
12 | ||
| 90520-26050 |
LH125,184,RZH125,135 T=2.44-2.46 |
12 | ||
| 90520-26053 |
LH125,184,RZH125,135 T=2.30-2.32 |
12 | ||
| 90520-26052 |
LH125,184,RZH125,135 T=2.28-2.30 |
12 | ||
| 90520-26056 |
LH125,184,RZH125,135 T=2.36-2.38 |
12 | ||
| 90520-26057 |
LH125,184,RZH125,135 T=2.38-2.40 |
12 | ||
| 90520-26051 |
LH125,184,RZH125,135 T=2.46-2.48 |
12 | ||
| 90520-26055 |
LH125,184,RZH125,135 T=2.34-2.36 |
12 | ||
| 90520-26054 |
LH125,184,RZH125,135 T=2.32-2.34 |
12 | ||
| 90520-26062 |
LH125,184,RZH125,135 T=2.18-2.20 |
12 | ||
| 90520-26063 |
LH125,184,RZH125,135 T=2.20-2.22 |
12 | ||
| 90520-26059 |
LH125,184,RZH125,135 T=2.42-2.44 |
12 | ||
| 90520-26058 |
LH125,184,RZH125,135 T=2.40-2.42 |
12 | ||
| 90520-26064 |
LH125,184,RZH125,135 T=2.22-2.24 |
12 | ||
| 90520-26066 |
LH125,184,RZH125,135 T=2.26-2.28 |
12 | ||
| 90520-26069 |
LH125,184,RZH125,135 T=2.52-2.54 |
12 | ||
| 90520-26068 |
LH125,184,RZH125,135 T=2.50-2.52 |
12 | ||
| 90520-26065 |
LH125,184,RZH125,135 T=2.24-2.26 |
12 | ||
| 90520-26067 |
LH125,184,RZH125,135 T=2.48-2.50 |
12 | ||
| 90520-25040 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.31,MARK 2 |
8 | ||
| 90520-25039 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.29,MARK 1 |
8 | ||
| 90520-25041 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.33,NO MARK |
8 | ||
| 90520-25045 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.41,MARK 7 |
8 | ||
| 90520-25043 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.37,BLUE |
8 | ||
| 90520-25042 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.35,BROWN |
8 | ||
| 90520-25053 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.57,MARK E |
8 | ||
| 90520-25046 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.43,MARK 8 |
8 | ||
| 90520-25044 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.39,MARK 6 |
8 | ||
| 90520-25049 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.49,MARK A |
8 | ||
| 90520-25048 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.47,MARK 10 |
8 | ||
| 90520-25052 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.55,MARK D |
8 | ||
| 90520-25054 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.19,MARK D |
8 | ||
| 90520-25057 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.25,MARK G |
8 | ||
| 90520-25050 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.51,MARK B |
8 | ||
| 90520-25051 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.53,MARK C |
8 | ||
| 90520-25058 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.27,MARK H |
8 | ||
| 90520-25047 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.45,MARK 9 |
8 | ||
| 90520-25056 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.23,MARK F |
8 | ||
| 90520-25055 |
RZH125;RZH113..4FC;LH162..03S..GEN;LH10#,184,RZH10#,135..03S,06S,10S,12S,15S T=2.21,MARK E |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH125,RZH125 |
12 | ||
| 37402-30021 |
LH125,RZH125 RED PAINTED |
12 | ||
| 37402-30021 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S RED PAINTED |
8 | ||
| 37402-30011 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S NO PAINT |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH125,RZH125 |
12 | ||
| 37402-30021 |
LH125,RZH125 RED PAINTED |
12 | ||
| 37402-30021 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S RED PAINTED |
8 | ||
| 37402-30011 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S NO PAINT |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH125,RZH125 |
12 | ||
| 37402-30021 |
LH125,RZH125 RED PAINTED |
12 | ||
| 37402-30021 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S RED PAINTED |
8 | ||
| 37402-30011 |
RZH112..SG..03S;LH176,184,RZH102;LH113,172,RZH113..4FC;RZH113..LHD..06S..GEN;LH10#,125,16#,174,RZH103,104,105,125,135..03S,06S,09S,12S,14S NO PAINT |
8 | ||
| Common parts | ||||
| 90119-10049 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
