RZH119L-RRMREW (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )RZH10#,11#,155..LHD

Click highlighted areas on diagram

diagram 1708 44318 44319 44327A 44348A 44350 44410 44411C 44441 44443 9010510133 9010510271 9017910138 9046716007 9046716019 9046721010 9046721010 9056010060 9161160814 91611B0816 9161261025 9165140816
Part # Description Qty Price
Common parts
90105-10133
90105-10271
90179-10138
90467-16007
90467-16019
90467-21010
90560-10060
91611-60814
91611-B0816
91612-61025
91651-40816
Linked diagrams
1708

(8908- )LH102,104,105,11#,154,164,172,174..LHD

Click highlighted areas on diagram

diagram 44318 44319 44327A 44327A 44348A 44410 44411C 44416 44443 44457B 9010510042 9010510113 9010510255 9010512109 9017910138 9046716007 9046716019 9046716019 9046721010 9046721010 91611B0816 9165140816
Part # Description Qty Price
Common parts
90105-10042
90105-10113
90105-10255
90105-12109
90179-10138
90467-16007
90467-16019
90467-21010
91611-B0816
91651-40816

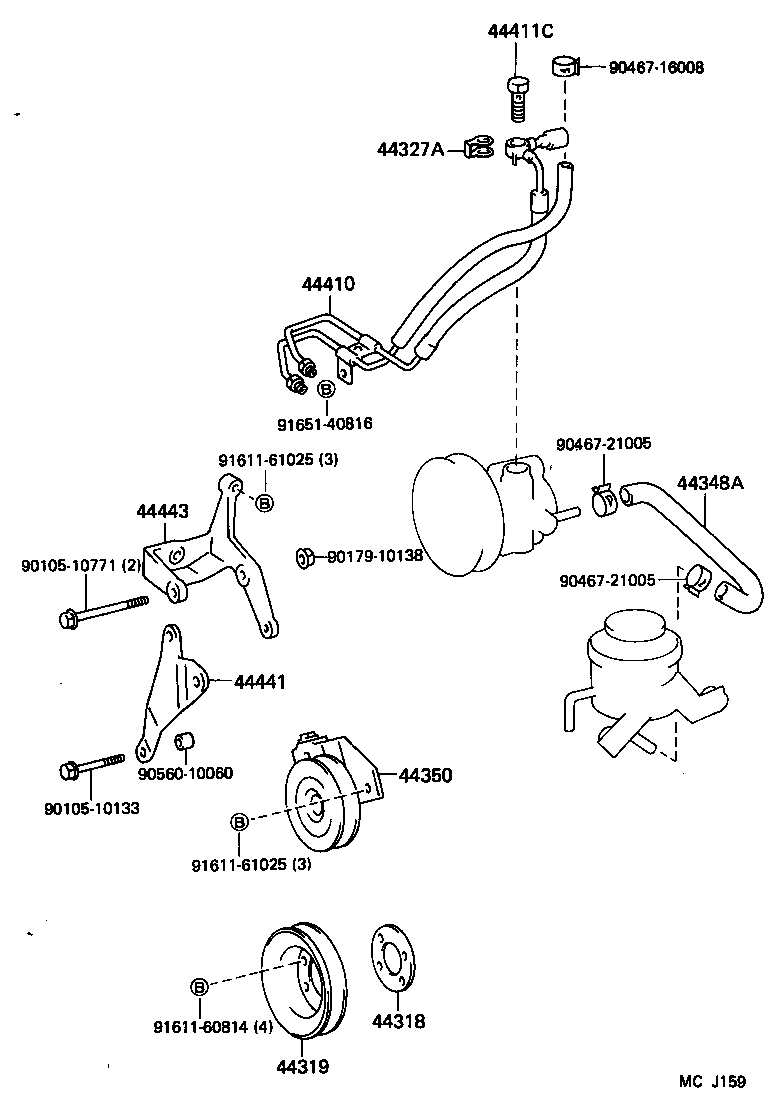

(8908- )RZH109,119

Click highlighted areas on diagram

diagram 44318 44319 44327A 44348A 44350 44410 44411C 44441 44443 9010510133 9010510771 9017910138 9046716008 9046721005 9046721005 9056010060 9161160814 9161161025 9161161025 9165140816
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26010

LH10#,11#

 1
44318-26020

RZH10#,11#

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-26020

RZH10#,11#

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

LH10#,11#

 1
44327-26020

LH10#,11#,RZH10#,11#

 1
44327-26030

LH10#,11#

 1
44327-26020

RZH10#,11#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26080

RZH109,119

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-26010

RZH10#,11#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26230

RZH109,119

 1
44410-26231

RZH109,119

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

LH10#,11#

*16-1.5PX26-12

 1
90401-16014

LH10#,11#,RZH10#,11#

*16-1.5PX31-15

 1
90401-16014

RZH10#,11#

*16-1.5PX31-15

 1
44441 - BRACKET, PUMP, FRONT
44441-26010

RZH10#,11#

 1
44443 - BRACKET, PUMP
44443-26030

RZH10#,11#

 1
44443-26031

RZH10#,11#

 1
Common parts
90105-10133
90105-10771
90179-10138
90467-16008
90467-21005
90560-10060
91611-60814
91611-61025
91651-40816
