RZH119L-RGMDEW (1989)
Toyota Hiace Van,Commuter
(9205-9308)LH102,104,112,114,115,125,RZH10#,11#,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14071 | ||||
| 90105-14136 | ||||
| 91661-61030 | ||||
(8908-9205)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14018 | ||||
| 90105-14071 | ||||
| 91661-61030 | ||||
(9308- )LH108,118,RZH109,119
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-95J11 |
RZH109,119 |
1 | ||
| 51049 - BAR SUB-ASSY, UNDER GUARD, FRONT | ||||
| 51040-29015 |
LH108,118,RZH109,119 |
1 | ||
| 51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-26200 |
LH108,118,RZH109,119 |
1 | ||
| 51203-95J10 |
LH108,118,RZH109,119 |
1 | ||
| 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-95J03 |
RZH109,119 |
1 | ||
| 51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4 | ||||
| 51409-26050 |
RZH103,109,11#..DX,GL |
1 | ||
| 51409-95J03 |
RZH103,113,119..DX |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51405-95J06 |
RZH119..DX |
1 | ||
| 51405-26040 |
RZH109,119..DX |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51406-95J04 |
RZH119..DX |
1 | ||
| 51406-26040 |
RZH109,119..DX |
1 | ||
| 51443B - COVER, ENGINE UNDER, NO.3 | ||||
| 51443-95J02 |
LH108,118,RZH109,119 |
1 | ||
| 51446B - BRACKET, ENGINE UNDER COVER, NO.2 | ||||
| 51446-26030 |
LH102,11#..DX,GL |
1 | ||
| 51446-95J03 |
LH102,11#..DX |
1 | ||
| 51490 - SHUTTER ASSY, ENGINE REAR SIDE, LH | ||||
| 51490-95J00 |
LH102,11#..DX |
1 | ||
| 51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH | ||||
| 51617-95J00 |
LH108,118,RZH109,119 |
1 | ||
| 51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH | ||||
| 51618-95J00 |
LH108,118,RZH109,119 |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-26040 |
LH108,118,RZH109,119 NO.3 |
1 | ||
| 52380-26030 |
LH108,118,RZH109,119 NO.1 |
1 | ||
| 52380-26020 |
LH108,118,RZH109,119 NO.2 |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-26040 |
LH108,118,RZH109,119 NO.3 |
1 | ||
| 52380-26030 |
LH108,118,RZH109,119 NO.1 |
1 | ||
| 52380-26020 |
LH108,118,RZH109,119 NO.2 |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-26040 |
LH108,118,RZH109,119 NO.3 |
1 | ||
| 52380-26030 |
LH108,118,RZH109,119 NO.1 |
1 | ||
| 52380-26020 |
LH108,118,RZH109,119 NO.2 |
1 | ||
| 52391 - SUPPORT, DIFFERENTIAL | ||||
| 52391-26080 |
LH108,118,RZH109,119 |
1 | ||
| 52393 - SUPPORT, FRONT DIFFERENTIAL, NO.2 | ||||
| 52393-26030 |
LH108,118,RZH109,119 |
1 | ||
| Common parts | ||||
| 90105-14051 | ||||
| 90105-14060 | ||||
| 90105-14071 | ||||
| 90119-08623 | ||||
| 90119-10454 | ||||
| 90119-12108 | ||||
| 90119-12120 | ||||
| 90119-12123 | ||||
| 90119-14019 | ||||
| 90170-14012 | ||||
| 90209-19002 | ||||
| 90467-08063 | ||||
| 90467-09123 | ||||
| 90950-01255 | ||||
| 91621-40820 | ||||
| 91655-40820 | ||||
| 91661-40820 | ||||
| 91661-61030 | ||||
| 94621-11400 | ||||
| 94622-11400 | ||||

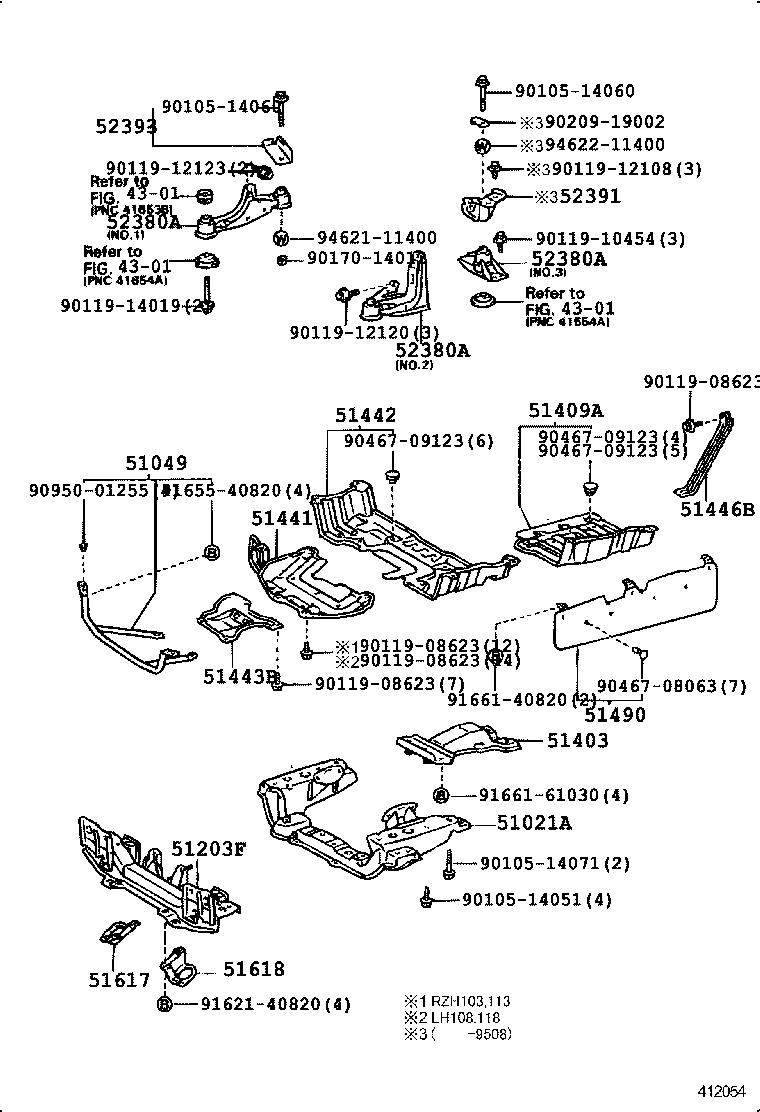

| Linked diagrams | ||||
| 4301 | ||||
(8908-9308)LH108,118,RZH109,119
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-95J11 |
RZH109,119 |
1 | ||
| 51049 - BAR SUB-ASSY, UNDER GUARD, FRONT | ||||
| 51040-29015 |
LH108,118,RZH109,119 |
1 | ||
| 51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-26200 |
LH108,118,RZH109,119 |
1 | ||
| 51203-95J10 |
LH108,118,RZH109,119 |
1 | ||
| 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-95J03 |
RZH109,119 |
1 | ||
| 51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4 | ||||
| 51409-26050 |
RZH103,109,11#..DX,GL |
1 | ||
| 51409-95J03 |
RZH103,113,119..DX |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51405-95J06 |
RZH119..DX |
1 | ||
| 51405-26040 |
RZH109,119..DX |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51406-95J04 |
RZH119..DX |
1 | ||
| 51406-26040 |
RZH109,119..DX |
1 | ||
| 51443B - COVER, ENGINE UNDER, NO.3 | ||||
| 51443-95J02 |
LH108,118,RZH109,119 |
1 | ||
| 51446B - BRACKET, ENGINE UNDER COVER, NO.2 | ||||
| 51446-26030 |
LH102,11#..DX,GL |
1 | ||
| 51446-95J03 |
LH102,11#..DX |
1 | ||
| 51453B - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51453-95J02 |
LH118,RZH119..DX |
1 | ||
| 51463A - SILENCER, ENGINE UNDER COVER, FRONT, LH | ||||
| 51463-95J01 |
LH118,RZH119..DX |
1 | ||
| 51475 - SILENCER, ENGINE UNDER COVER, NO.5 | ||||
| 51475-95J01 |
LH102,11#,RZH103,113,119..DX |
1 | ||
| 51611 - STOPPER, FRONT SUSPENSION BOUND, RH | ||||
| 51611-95J01 |
LH108,118,RZH109,119 |
1 | ||
| 51611-95J02 |
LH108,118,RZH109,119 |
1 | ||
| 51612 - STOPPER, FRONT SUSPENSION BOUND, LH | ||||
| 51612-95J02 |
LH108,118,RZH109,119 |
1 | ||
| 51612-95J01 |
LH108,118,RZH109,119 |
1 | ||
| 51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH | ||||
| 51617-95J00 |
LH108,118,RZH109,119 |
1 | ||
| 51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH | ||||
| 51618-95J00 |
LH108,118,RZH109,119 |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-26040 |
LH108,118,RZH109,119 NO.3 |
1 | ||
| 52380-26030 |
LH108,118,RZH109,119 NO.1 |
1 | ||
| 52380-26020 |
LH108,118,RZH109,119 NO.2 |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-26040 |
LH108,118,RZH109,119 NO.3 |
1 | ||
| 52380-26030 |
LH108,118,RZH109,119 NO.1 |
1 | ||
| 52380-26020 |
LH108,118,RZH109,119 NO.2 |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-26040 |
LH108,118,RZH109,119 NO.3 |
1 | ||
| 52380-26030 |
LH108,118,RZH109,119 NO.1 |
1 | ||
| 52380-26020 |
LH108,118,RZH109,119 NO.2 |
1 | ||
| 52391 - SUPPORT, DIFFERENTIAL | ||||
| 52391-26080 |
LH108,118,RZH109,119 |
1 | ||
| 52393 - SUPPORT, FRONT DIFFERENTIAL, NO.2 | ||||
| 52393-26030 |
LH108,118,RZH109,119 |
1 | ||
| Common parts | ||||
| 90105-12126 | ||||
| 90105-14017 | ||||
| 90105-14018 | ||||
| 90105-14060 | ||||
| 90119-08623 | ||||
| 90119-12108 | ||||
| 90119-12120 | ||||
| 90119-12123 | ||||
| 90119-14019 | ||||
| 90170-14012 | ||||
| 90179-08123 | ||||
| 90467-09103 | ||||
| 90950-01255 | ||||
| 91621-40820 | ||||
| 91655-40820 | ||||
| 91661-40822 | ||||
| 91661-61030 | ||||
