RZH119L-RGMDEW (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )LH10#,11#,125,162,164,172,174,184,RZH10#,11#,125

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48178 48178 48510 48510A 48510A 48510B 48510B 48510C 48520 48660 48670 48674 48674 48674A 48674A 48674B 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817B 48817B 48819A 48824A 48827 48828 48829A 9010112164 9010112170 9010510166 9011608083 9011908793 9017010021 9017012004 9017012004 9017012008 9017018001 9017018001 9017908061 9020118011 9020618001 9165140816 91651B0825 9418461001 9418461001 9418461001 9462111000 9462211200 9462211200
Part # Description Qty Price
Common parts
90101-12164
90101-12170
90105-10166
90116-08083
90119-08793
90170-10021
90170-12004
90170-12008
90170-18001
90179-08061
90201-18011
90206-18001
91651-40816
91651-B0825
94184-61001
94621-11000
94622-11200

(8908- )LH108,118,RZH109,119

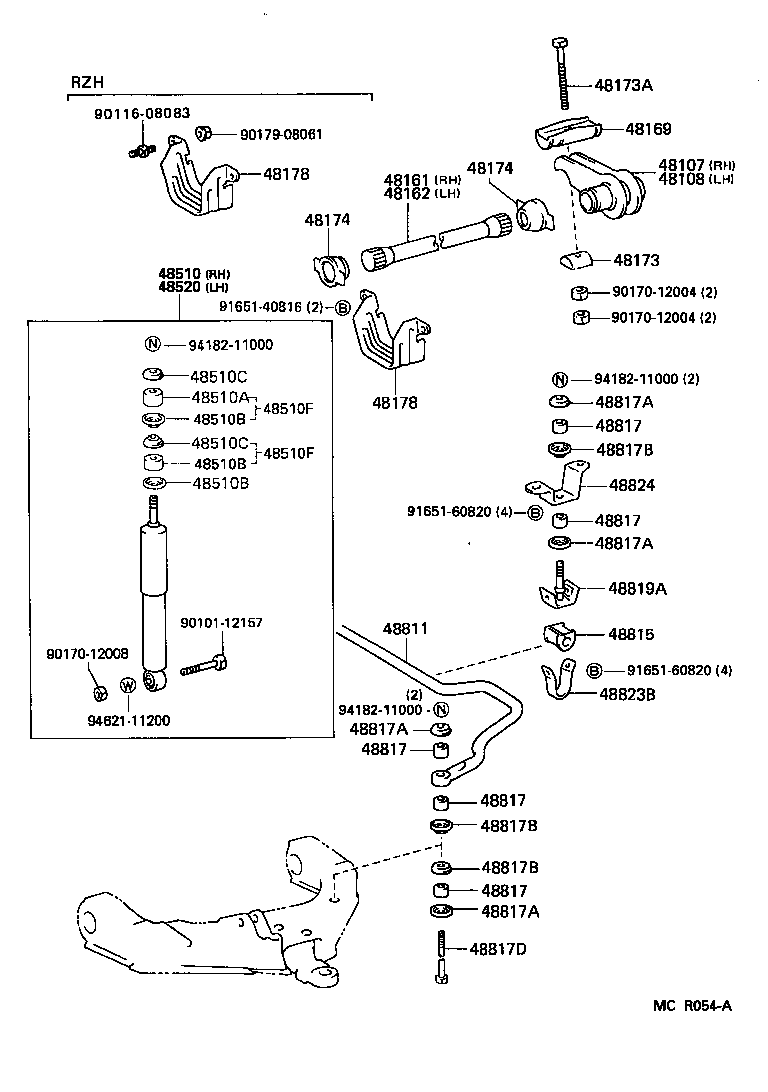

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48178 48178 48510 48510A 48510B 48510B 48510B 48510C 48510C 48510F 48510F 48520 48811 48815 48817 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817B 48817B 48817D 48819A 48823B 48824 9010112157 9011608083 9017012004 9017012004 9017012008 9017908061 9165140816 9165160820 9165160820 9418211000 9418211000 9418211000 9462111200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-26050

LH10#,11#,RZH10#,11#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-26050

LH10#,11#,RZH10#,11#

 1
48161 - SPRING, TORSION BAR, RH
48161-26160

LH108,118,RZH109,119

 1
48161-26290

LH108,118,RZH109,119

 1
48162 - SPRING, TORSION BAR, LH
48162-26290

LH108,118,RZH109,119

 1
48162-26160

LH108,118,RZH109,119

 1
48169 - SWIVEL, ANCHOR ARM
48169-26030

LH108,118,RZH109,119

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

LH10#,11#,RZH10#,11#

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12165

LH108,118,RZH109,119

LH

 1
90101-12091

LH108,118,RZH109,119

RH

 1
48174 - COVER, TORSION BAR DUST
48174-26010

LH108,118,RZH109,119

 4
48174-26010

LH10#,11#,RZH10#,11#

 2
48174 - COVER, TORSION BAR DUST
48174-26010

LH108,118,RZH109,119

 4
48174-26010

LH10#,11#,RZH10#,11#

 2
48178 - PROTECTOR, TORSION BAR DUST COVER, RH
48178-26030

LH10#,11#,RZH10#,11#

 1
48178 - PROTECTOR, TORSION BAR DUST COVER, RH
48178-26030

LH10#,11#,RZH10#,11#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-29595

LH108,118,RZH109,119

MARK 48511-26200

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LH10#,11#,RZH10#,11#

 4
90948-01031

LH108,118,RZH109,119

 2
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

LH108,118,RZH109,119

 2
90948-01035

LH108,118,RZH109,119

 2
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

LH108,118,RZH109,119

 2
90948-01035

LH108,118,RZH109,119

 2
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

LH108,118,RZH109,119

 2
90948-01035

LH108,118,RZH109,119

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LH10#,11#,RZH10#,11#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

LH10#,11#,RZH10#,11#

 4
48510F - CUSHION, SHOCK ABSORBER
90948-01035

LH108,118,RZH109,119

 2
48510F - CUSHION, SHOCK ABSORBER
90948-01035

LH108,118,RZH109,119

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-29595

LH108,118,RZH109,119

MARK 48511-26200

 1
48811 - BAR, STABILIZER, FRONT
48811-26180

LH108,118,RZH109,119

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-26050

LH108,118,RZH109,119

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH108,118,RZH109,119

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH108,118,RZH109,119

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH108,118,RZH109,119

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH108,118,RZH109,119

 10
48817 - CUSHION, FRONT STABILIZER
90948-01002

LH108,118,RZH109,119

 10
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH10#,11#,RZH10#,11#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH10#,11#,RZH10#,11#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH10#,11#,RZH10#,11#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LH10#,11#,RZH10#,11#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LH108,118,RZH109,119

 6
90948-02005

LH108,118,RZH109,119

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LH108,118,RZH109,119

 6
90948-02005

LH108,118,RZH109,119

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

LH108,118,RZH109,119

 6
90948-02005

LH108,118,RZH109,119

 8
48817D - BOLT(FOR FRONT STABILIZER)
91121-51080

LH108,118,RZH109,119

 2
91112-61080

LH108,118,RZH109,119

 2
48819A - BOLT, FRONT STABILIZER
48819-26040

LH108,118,RZH109,119

 2
48823B - COVER, FRONT STABILIZER BRACKET
48823-26090

LH108,118,RZH109,119

 2
48824 - BRACKET, STABILIZER, FRONT
48824-26090

LH108,118,RZH109,119

 2
Common parts
90101-12157
90116-08083
90170-12004
90170-12008
90179-08061
91651-40816
91651-60820
94182-11000
94621-11200
