RZH119L-RGMDEW (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9508) ; (9508- )15S..GL..EFI ; (9508-)RZH114,115..LHD..SRF..STD..GEN

Click highlighted areas on diagram

diagram 04485 43211 43212 43310A 43330 43350 43360 4803 4803 4803 48066 48067 48068 48069 48167 48190 48198 48331A 48332 48610 48630 48631B 48631B 48632 48632 48654 9010114041 9010212005 9010212005 9010510057 9010512183 9010512200 9017016010 9017112004 9017112004 9017910054 9017912020 9017918004 9017918004 9025203011 9025203011 9025204003 9025204003 9414671600 9414671600 9418040800 9462211400 9462211600
Part # Description Qty Price
Common parts
90101-14041
90102-12005
90105-10057
90105-12183
90105-12200
90170-16010
90171-12004
90179-10054
90179-12020
90179-18004
90252-03011
90252-04003
94146-71600
94180-40800
94622-11400
94622-11600
Linked diagrams

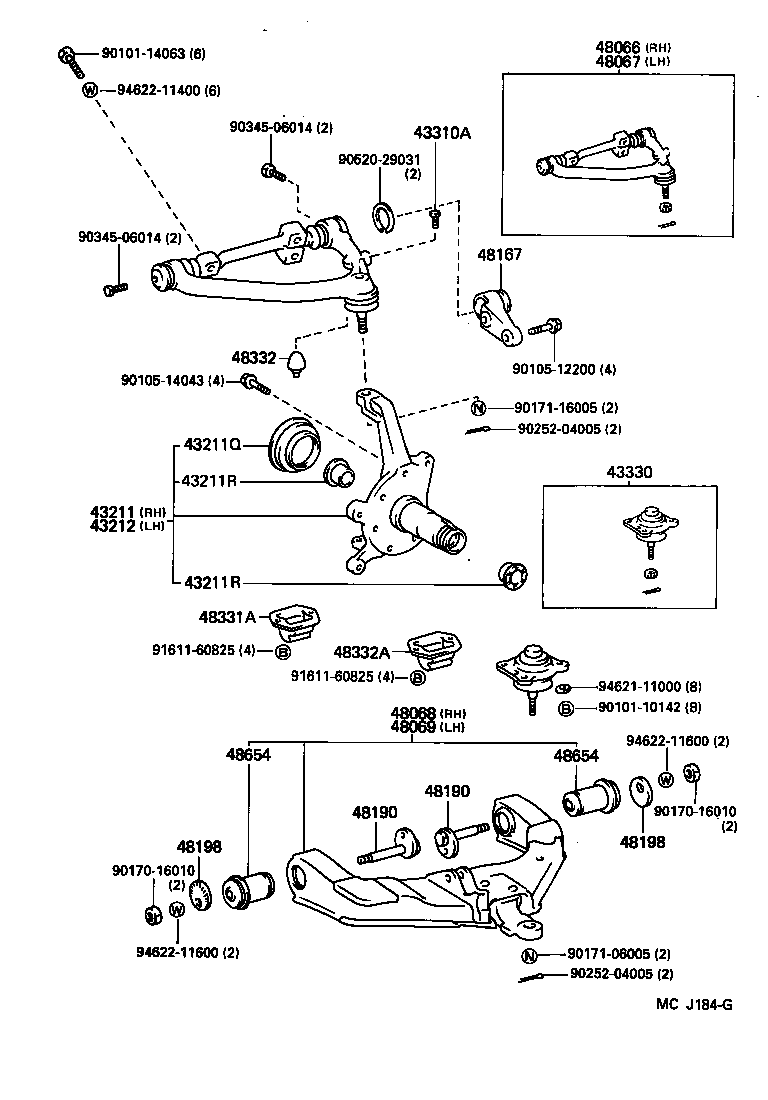

4803

(8908- )LH108,118,RZH109,119

Click highlighted areas on diagram

diagram 43211 43211Q 43211R 43211R 43212 43310A 43330 48066 48067 48068 48069 48167 48190 48190 48198 48198 48331A 48332 48332A 48654 48654 9010110142 9010114063 9010512200 9010514043 9017016010 9017016010 9017106005 9017116005 9025204005 9025204005 9034506014 9034506014 9052029031 9161160825 9161160825 9462111000 9462211400 9462211600 9462211600
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43201-26030

LH108,118,RZH109,119

 1
43201-26010

LH108,118,RZH109,119

 1
43211Q - SEAL, OIL (FOR STEERING KNUCKLE)
90316-60002

LH108,118,RZH109,119

 2
43211R - BUSH (FOR STEERING KNUCKLE)
90381-30003

LH108,118,RZH109,119

OUTER

 2
90999-70069

LH108,118,RZH109,119

INNER

 2
43211R - BUSH (FOR STEERING KNUCKLE)
90381-30003

LH108,118,RZH109,119

OUTER

 2
90999-70069

LH108,118,RZH109,119

INNER

 2
43212 - KNUCKLE, STEERING, LH
43202-26010

LH108,118,RZH109,119

 1
43202-26030

LH108,118,RZH109,119

 1
43310A - PLUG (FOR BALL JOINT)
90345-06014

LH10#,11#,RZH10#,11#

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29305

LH108,118,RZH109,119

 2
43330-29215

LH108,118,RZH109,119

 2
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-29025

LH108,118,RZH109,119

 1
48066-29045

LH108,118,RZH109,119

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-29025

LH108,118,RZH109,119

 1
48067-29045

LH108,118,RZH109,119

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-26061

LH108,118,RZH109,119

 1
48068-26060

LH108,118,RZH109,119

 1
48068-26062

LH108,118,RZH109,119

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-26061

LH108,118,RZH109,119

 1
48069-26062

LH108,118,RZH109,119

 1
48069-26060

LH108,118,RZH109,119

 1
48167 - ARM, TORQUE
48106-26020

LH108,118,RZH109,119

 2
48190 - CAM ASSY, CAMBER ADJUST
48190-26020

LH108,118,RZH109,119

 4
48190 - CAM ASSY, CAMBER ADJUST
48190-26020

LH108,118,RZH109,119

 4
48198 - CAM, CAMBER ADJUST, NO.2
48198-26010

LH108,118,RZH109,119

 4
48198 - CAM, CAMBER ADJUST, NO.2
48198-26010

LH108,118,RZH109,119

 4
48331A - BUMPER, FRONT SPRING, NO.1
48331-26051

LH108,118,RZH109,119

 2
48332 - BUMPER, FRONT SPRING, NO.2
48332-35020

LH10#,11#,RZH10#,11#

 2
48332A - BUMPER, FRONT SPRING, NO.3
48331-26061

LH108,118,RZH109,119

 2
48654 - BUSH, LOWER ARM
48061-35011

LH108,118,RZH109,119

 4
48061-26040

LH108,118,RZH109,119

 4
48061-26031

LH10#,11#,RZH10#,11#

 2
48061-35011

LH108,118,RZH109,119

 2
48654 - BUSH, LOWER ARM
48061-35011

LH108,118,RZH109,119

 4
48061-26040

LH108,118,RZH109,119

 4
48061-26031

LH10#,11#,RZH10#,11#

 2
48061-35011

LH108,118,RZH109,119

 2
Common parts
90101-10142
90101-14063
90105-12200
90105-14043
90170-16010
90171-06005
90171-16005
90252-04005
90345-06014
90520-29031
91611-60825
94621-11000
94622-11400
94622-11600
