RZH119L-RGMDEW (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )LH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,135,15#

Click highlighted areas on diagram

diagram 42611B 42611B 43501A 43501B 43502 43510 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43512B 43514 43514 43520 43525 43525 9011910753 9025204002 9025204002
Part # Description Qty Price
Common parts
90119-10753
90252-04002

(8908- )LH108,118,RZH109,119

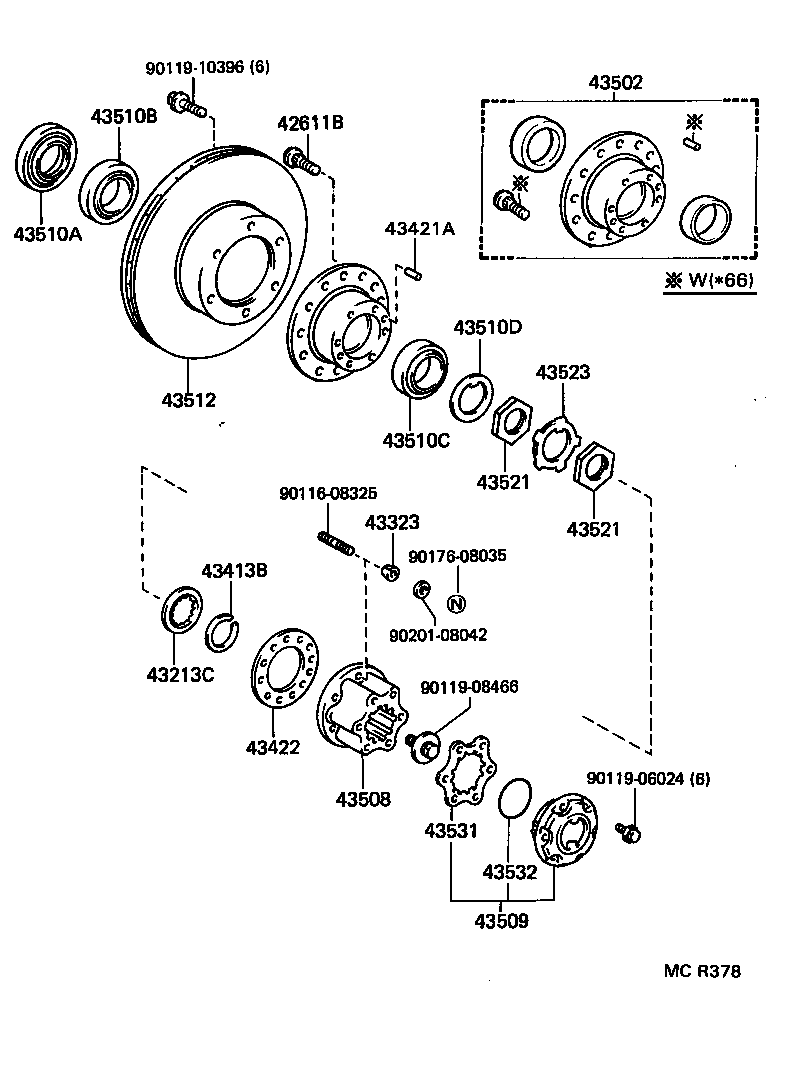

Click highlighted areas on diagram

diagram 42611B 43213C 43323 43413B 43421A 43422 43502 43508 43509 43510A 43510B 43510C 43510D 43512 43521 43521 43523 43531 43532 9011608325 9011906024 9011908466 9011910396 9017608035 9020108042
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02049

LH108,118,RZH109,119

 12
43213C - SPACER (FOR DRIVE SHAFT)
90560-27010

LH108,118,RZH109,119

T=1.8

 2
90560-27011

LH108,118,RZH109,119

T=2.25

 2
90560-27005

LH108,118,RZH109,119

T=2.0

 2
43323 - WASHER, CONE (FOR FRONT AXLE SHAFT)
42323-60010

LH108,118,RZH109,119

 12
43413B - RING, DRIVE SHAFT SNAP
90520-27023

LH108,118,RZH109,119

 2
43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)
90250-07057

LH108,118,RZH109,119

 4
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-60010

LH108,118,RZH109,119

 2
43422-60020

LH108,118,RZH109,119

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43511-39015

LH108,118,RZH109,119

 2
43511-35905

LH108,118,RZH109,119

 2
43508 - BODY SUB-ASSY, FREE WHEEL HUB
43508-35010

LH108,118,RZH109,119

 2
43509 - COVER SUB-ASSY, FREE WHEEL HUB
43509-35030

LH108,118,RZH109,119

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-66001

LH108,118,RZH109,119

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-49084

LH108,118,RZH109,119

 2
90368-49084

LH108,118,RZH109,119

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-45087

LH108,118,RZH109,119

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-42030

LH108,118,RZH109,119

 2
43512 - DISC, FRONT
43512-26130

LH108,118,RZH109,119

 2
43512-26100

LH108,118,RZH109,119

 2
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LH108,118,RZH109,119

 4
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LH108,118,RZH109,119

 4
43523 - WASHER, FRONT WHEEL ADJUSTING LOCK
90215-42025

LH108,118,RZH109,119

 2
43531 - GASKET, FREE WHEEL HUB
43531-60010

LH108,118,RZH109,119

 2
43532 - RING, FREE WHEEL HUB
43532-60010

LH108,118,RZH109,119

 2
Common parts
90116-08325
90119-06024
90119-08466
90119-10396
90176-08035
90201-08042
