RZH115R-BRMRS (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Aug 1998
Engine 2RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )GL,SGL ; (9808- )RZH115..STD..GEN

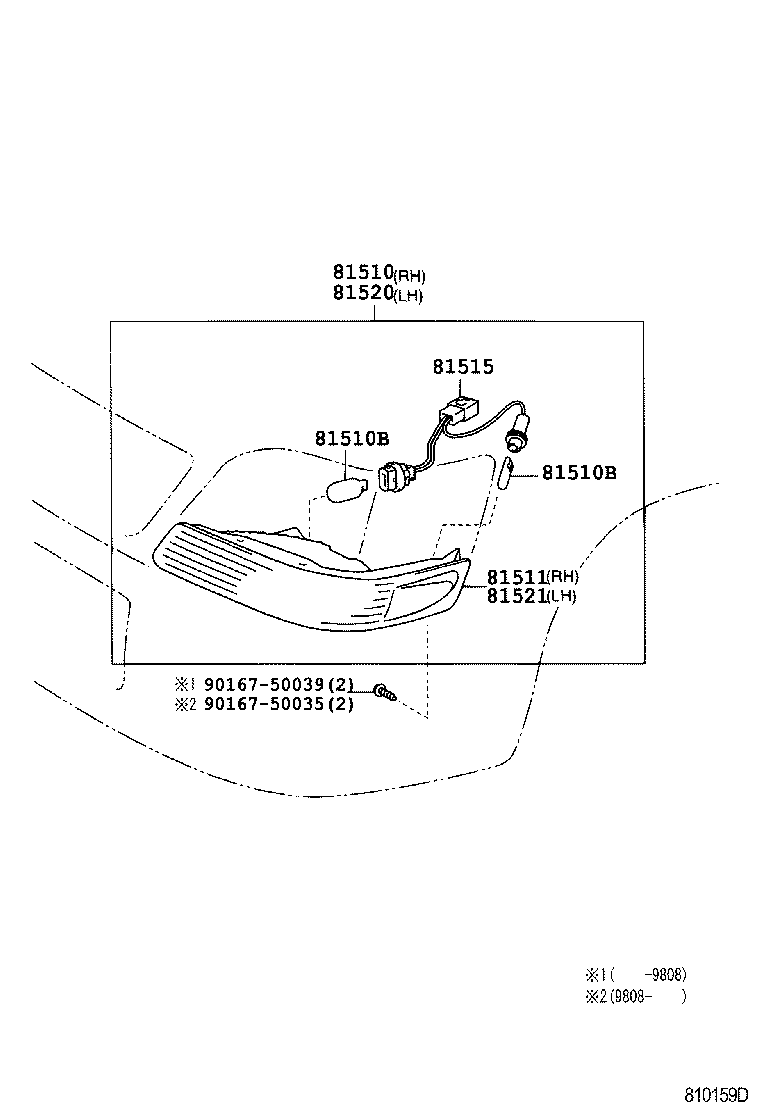

Click highlighted areas on diagram

W(SCULAPTURE HEADLAMP)

diagram 81510 81510B 81510B 81511 81515 81520 81521 9016750035 9016750039
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-95J16

LH10#,11#,RZH10#,11#..GEN

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

12V 5W

 4
99132-11210

RZH105..LHD..STD;RZH115..STD..CIS;RZH112,113,115..SRF..STD..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH102,103,104,114,125..(03S,06S,09S,12S,14S,15S)..(DX,SGL,STD)

12V 21W

 2
99132-11210

LH10#,11#,125,RZH10#,11#,125,135,153

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

12V 5W

 4
99132-11210

RZH105..LHD..STD;RZH115..STD..CIS;RZH112,113,115..SRF..STD..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH102,103,104,114,125..(03S,06S,09S,12S,14S,15S)..(DX,SGL,STD)

12V 21W

 2
99132-11210

LH10#,11#,125,RZH10#,11#,125,135,153

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95J16

LH10#,11#,RZH10#,11#..GEN

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95J16

LH10#,11#,RZH10#,11#..GEN

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-95J16

LH10#,11#,RZH10#,11#..GEN

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95J16

LH10#,11#,RZH10#,11#..GEN

 1
Common parts
90167-50035
90167-50039
