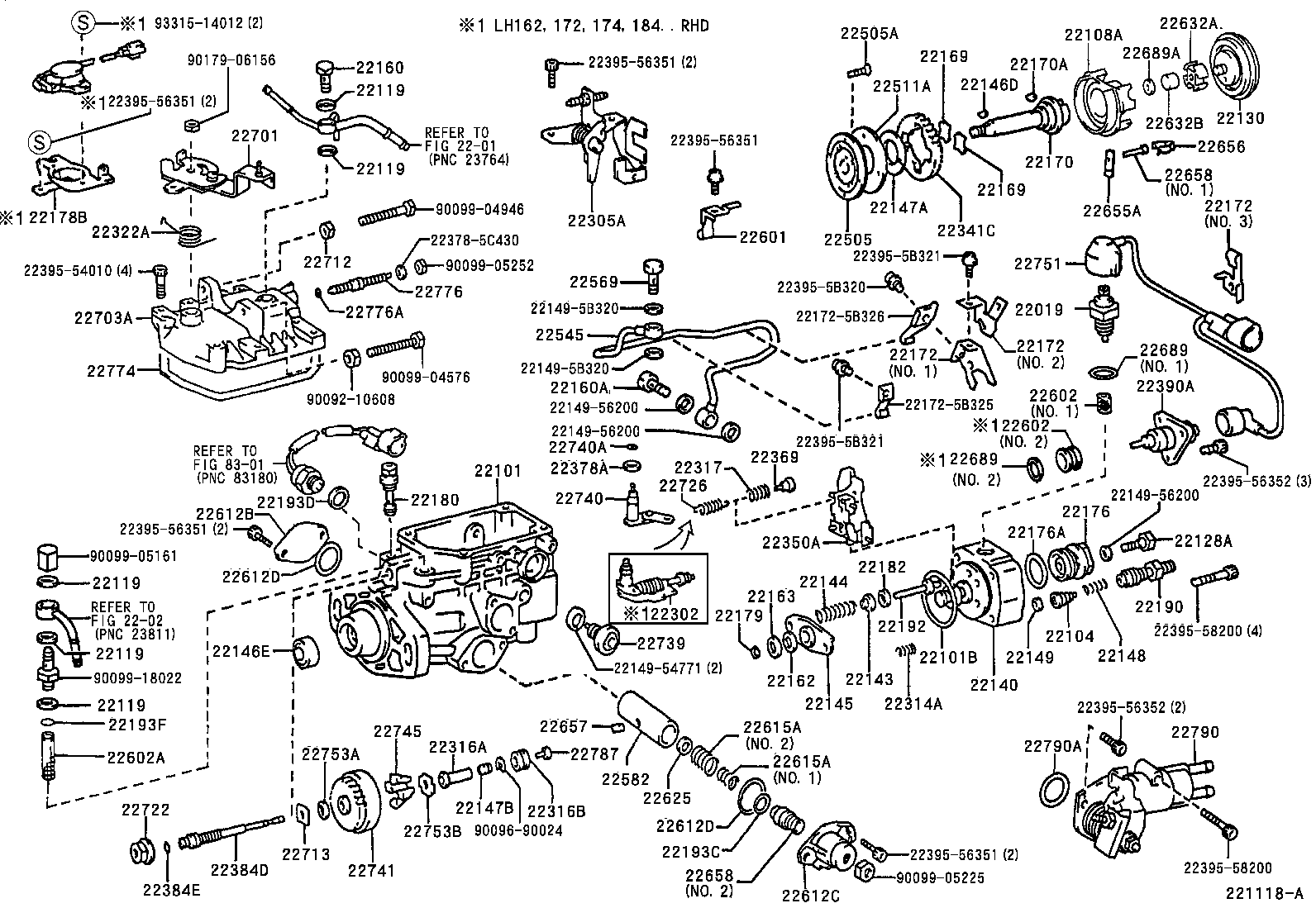

RZH115L-BFMGE (1999)
Toyota Hiace Van,Commuter
(0007- )5L..LH154,162,184..03S,10S,11S,15S..GEN ; (0007- )3L,5L..LH105,113,11
W(TACHO METER PICK UP SENSOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 90099-14053 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 90201-12109 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22128-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22143-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22145-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 90099-13018 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22544-64740 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22161-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22147-54290 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
4 | ||
| 22148-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22160-64010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22162-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22163-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22169-54180 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22169-54180 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 90099-13017 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22176-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54013 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.2 |
1 | ||
| 22179-54013 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.2 |
1 | ||
| 22179-54012 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.1 |
1 | ||
| 22179-54012 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.1 |
1 | ||
| 22179-54017 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.6 |
1 | ||
| 22179-54017 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.6 |
1 | ||
| 22179-54011 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.0 |
1 | ||
| 22179-54011 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.0 |
1 | ||
| 22179-54018 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.7 |
1 | ||
| 22179-54018 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.7 |
1 | ||
| 22179-54014 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.3 |
1 | ||
| 22179-54014 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.3 |
1 | ||
| 22179-54016 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.5 |
1 | ||
| 22179-54016 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.5 |
1 | ||
| 22179-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.9 |
1 | ||
| 22179-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.9 |
1 | ||
| 22179-54015 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.4 |
1 | ||
| 22179-54015 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.4 |
1 | ||
| 22179-54019 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.8 |
1 | ||
| 22179-54019 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.8 |
1 | ||
| 22179-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.9 |
1 | ||
| 22179-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.9 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-55050 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22180-55050 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=0.5 |
2 | ||
| 22182-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=0.5 |
2 | ||
| 22188-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.0 |
2 | ||
| 22188-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=2.0 |
2 | ||
| 22184-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.0 |
2 | ||
| 22184-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.0 |
2 | ||
| 22186-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.5 |
2 | ||
| 22186-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.5 |
2 | ||
| 22187-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.8 |
2 | ||
| 22187-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.8 |
2 | ||
| 22183-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=0.8 |
2 | ||
| 22183-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=0.8 |
2 | ||
| 22185-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.2 |
2 | ||
| 22185-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.2 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22192-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22314-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 90099-10148 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54730 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22322-54730 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22341-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176..5F |
1 | ||
| 22369-54010 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176..5F |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 90099-14049 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22505-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 90099-00723 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22602-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22602-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22632-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22655-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22657-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22689-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22689-56350 |
5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22775-77121 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.25 |
1 | ||
| 22714-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.25 |
1 | ||
| 22716-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.65 |
1 | ||
| 22716-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.65 |
1 | ||
| 22713-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.05 |
1 | ||
| 22713-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.05 |
1 | ||
| 22717-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.85 |
1 | ||
| 22717-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.85 |
1 | ||
| 22715-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.45 |
1 | ||
| 22715-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 T=1.45 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22722-54470 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22739-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
2 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22741-54020 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22753-54010 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22776-54110 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.4 |
1 | ||
| 22787-54027 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.4 |
1 | ||
| 22787-54033 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=4.0 |
1 | ||
| 22787-54033 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=4.0 |
1 | ||
| 22787-64640 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=4.1 |
1 | ||
| 22787-64640 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=4.1 |
1 | ||
| 22787-64643 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.2 |
1 | ||
| 22787-64643 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.2 |
1 | ||
| 22787-64641 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.0 |
1 | ||
| 22787-64641 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.0 |
1 | ||
| 22787-54029 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.6 |
1 | ||
| 22787-54029 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.6 |
1 | ||
| 22787-54031 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.8 |
1 | ||
| 22787-54031 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=3.8 |
1 | ||
| 22787-64680 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=4.2 |
1 | ||
| 22787-64680 |
5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=4.2 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22149-5B320 | ||||
| 22172-5B325 | ||||
| 22172-5B326 | ||||
| 22378-5C430 | ||||
| 22395-54010 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22395-5B320 | ||||
| 22395-5B321 | ||||
| 90092-10608 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06156 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
