RZH114R-BRPRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Oct 1990
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)STD

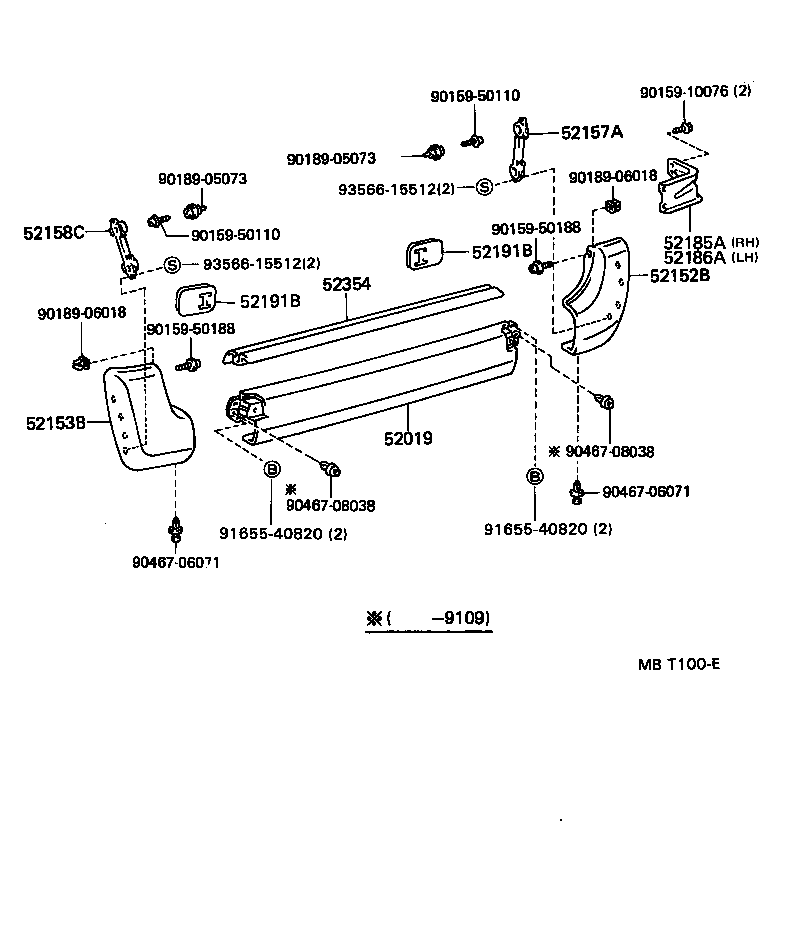

Click highlighted areas on diagram

diagram 52019 52152B 52153B 52157A 52158C 52185A 52186A 52191B 52191B 52354 9015950110 9015950110 9015950188 9015950188 9015960076 9018905073 9018905073 9018906018 9018906018 9046706071 9046706071 9046708038 9046708038 9046713060 9165160816 9165160816 9356615512 9356615512
Part # Description Qty Price
52019 - BAR SUB-ASSY, REAR BUMPER
52019-95J31

LH10#,11#,125,RZH10#,11#,125..STD

 1
52152B - EXTENSION, REAR BUMPER, RH
52165-95J01

LH10#,11#,125,RZH10#,11#,125..STD

 1
52153B - EXTENSION, REAR BUMPER, LH
52166-95J01

LH10#,11#,125,RZH10#,11#,125..STD

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J03

LH10#,11#,125,RZH10#,11#,125..STD

W(DOUBLE SWING BACK DOOR)

 1
Common parts
90159-50110
90159-50188
90159-60076
90189-05073
90189-06018
90467-06071
90467-08038
90467-13060
91651-60816
93566-15512

(8908-9308)

Click highlighted areas on diagram

W(STEP)

diagram 52157A 52158C 52159 52191B 52191B 52302 52354 52354 9015950110 9015950110 9015950188 9015950188 9015950188 9018905073 9018905073 9018906018 9018906018 9018906018 9095001695 9165140814 9356615512 9356615512
Part # Description Qty Price
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J03

LH10#,11#,125,RZH10#,11#,125..STD

W(DOUBLE SWING BACK DOOR)

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J03

LH10#,11#,125,RZH10#,11#,125..STD

W(DOUBLE SWING BACK DOOR)

 1
Common parts
90159-50110
90159-50188
90189-05073
90189-06018
90950-01695
91651-40814
93566-15512

(8908-9308)LH118..STD ; (8908-9308)LH10#,112,RZH10#,11#

Click highlighted areas on diagram

diagram 52019 52152B 52153B 52157A 52158C 52185A 52186A 52191B 52191B 52354 9015910076 9015950110 9015950110 9015950188 9015950188 9018905073 9018905073 9018906018 9018906018 9046706071 9046706071 9046708038 9046708038 9165540820 9165540820 9356615512 9356615512
Part # Description Qty Price
Common parts
90159-10076
90159-50110
90159-50188
90189-05073
90189-06018
90467-06071
90467-08038
91655-40820
93566-15512

(8908-9308)

Click highlighted areas on diagram

W(STEP)

diagram 52157A 52158C 52159 52191B 52191B 52302 52354 52354 9015950110 9015950110 9015950188 9015950188 9015950188 9018905073 9018905073 9018906018 9018906018 9018906018 9095001695 9165140814 9356615512 9356615512
Part # Description Qty Price
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00

LH10#,11#,125,RZH10#,11#,125

 2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J03

LH10#,11#,125,RZH10#,11#,125..STD

W(DOUBLE SWING BACK DOOR)

 1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J03

LH10#,11#,125,RZH10#,11#,125..STD

W(DOUBLE SWING BACK DOOR)

 1
Common parts
90159-50110
90159-50188
90189-05073
90189-06018
90950-01695
91651-40814
93566-15512
