RZH114L-ZRMRS (1991)
Toyota Hiace Van,Commuter

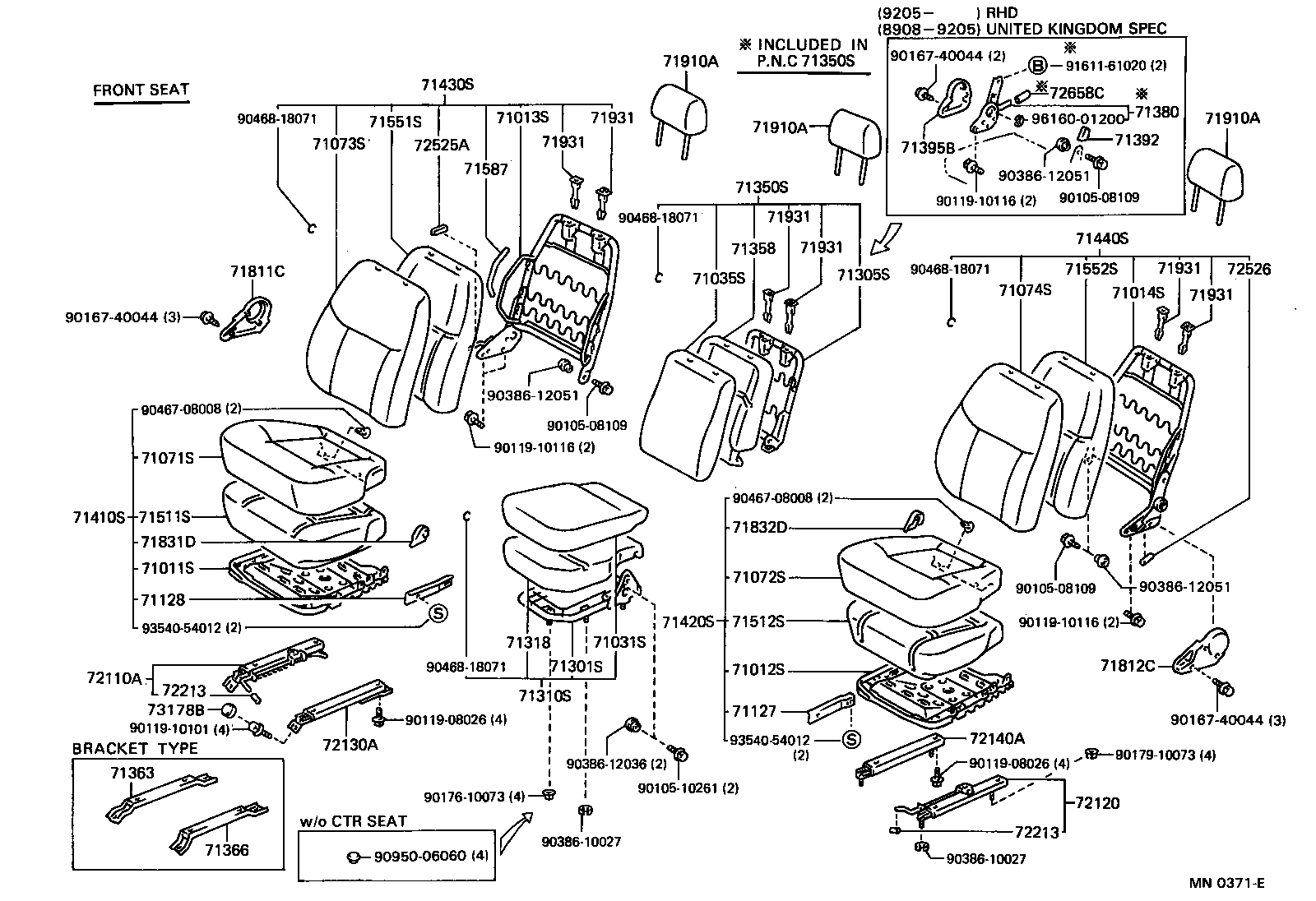

ILLUST NO. 6 OF 7(9411- )GEN
W(HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-95J01 |
LH104,114,115,RZH104,114 |
1 | ||
| 71344-95J01 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71344-95J01 |
RZH115..GL,STD;LH184,RZH114..15S;LH114,115,174,176..STD |
1 | ||
| 71344-95J01 |
LH114,115,RZH114,115 |
1 | ||
| 71344-95J01 |
LH114,115,125,176,184,RZH114,115..12S,15S |
1 | ||
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J44 |
RZH115..GL,STD;LH184,RZH114..15S;LH114,115,174,176..STD |
1 | ||
| 71350-95J44 |
LH104,114,115,RZH104,114 |
1 | ||
| 71350-95J44 |
LH114,115,RZH114,115 |
1 | ||
| 71350-95J44 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71350-95J44 |
LH114,115,125,176,184,RZH114,115..12S,15S |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J17 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71360-95J17 |
LH114,115,RZH114,115 |
1 | ||
| 71360-95J17 |
LH104,114,115,RZH104,114 |
1 | ||
| 71360-95J17 |
LH114,115,125,176,184,RZH114,115..12S,15S |
1 | ||
| 71360-95J17 |
RZH115..GL,STD;LH184,RZH114..15S;LH114,115,174,176..STD |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
LH125..ARL;LH103,104,105,11#,RZH104,105,112,114,115,125..SG |
2 | ||
| 71434-95701 |
LH104,105,114,115,125,166,176,184,RZH104,105,114,115,125 |
2 | ||
| 71434-95701 |
LH10#,11#,125,RZH10#,11#,125..06S,12S,14S,15S |
2 | ||
| 71434-95701 |
LH103,104,105,11#,125,RZH104,105,112,114,115,125..SG |
2 | ||
| 71434-95701 |
RZH114..15S;LH184,RZH104,105,115..GL,STD;LH104,105,114,115,125,164,166,174,176,RZH125..STD |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J01B0 |
LH114,115,125,RZH114,115..15S BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH114,115,125,176,184,RZH114,115..15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J01B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0003 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1# |
1 | ||
| 71486-95J00B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1# |
1 | ||
| 71486-95J00B0 |
LH114,115,125,176,184,RZH114,115..12S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 71486-95J0003 |
LH104,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 71486-95J00B0 |
RZH115,155..GL,STD;LH114,115,174,176..STD;LH154,184,RZH114..11S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 71498 - PROTECTOR, REAR SEAT BACK | ||||
| 71498-9570303 |
LH114,115,RZH114 GRAY,TRIM1# |
2 | ||
| 71498-9570303 |
LH114,115,125,RZH114,125 GRAY,TRIM1# |
2 | ||
| 71498-95703B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1# |
2 | ||
| 71498-95703B0 |
LH114,115,125,176,184,RZH114,115..15S BLUISH GRAY,TRIM1# |
2 | ||
| 71498-95703B0 |
LH114,115,174,176,184,RZH114,115..15S BLUISH GRAY,TRIM1# |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
LH104,113,114,115,RZH104,112,114..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
RZH114,115;LH113,114,115,125,RZH112..(06S,15S)..(DSL,EFI) 30 X 45 |
1 | ||
| 71621-95J02 |
LH113,114,115,125,RZH112,114,115..4D..(06S,15S) 30 X 45 |
1 | ||
| 71621-95J02 |
LH114,115,176,184,RZH114,115 30 X 45 |
1 | ||
| 71621-95J02 |
LH113,114,115,RZH112,114,115..4D..SG 30 X 45 |
1 | ||
| 71621-95J02 |
LH114,115,174,176,184,RZH114,115..12S,15S 30 X 45 |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71692-9570313 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570313 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570313 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95703B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95703B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71692-95703B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71691-95703B0 |
RZH113..06S..GEN..CBR;LH103,113,114,115,125,RZH103,114,115..06S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95703B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95703B0 |
LH114,115,125,176,184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71691-95703B0 |
LH114,115,125,RZH114,115..15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95703B0 |
LH114,115,176,184,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71692-9570313 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570313 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570313 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95703B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95703B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71692-95703B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71691-95703B0 |
RZH113..06S..GEN..CBR;LH103,113,114,115,125,RZH103,114,115..06S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95703B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95703B0 |
LH114,115,125,176,184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71691-95703B0 |
LH114,115,125,RZH114,115..15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95703B0 |
LH114,115,176,184,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95702B0 |
LH114,115,125,RZH114,115..15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95702B0 |
LH125..SMRF;LH125..STD..GEN;LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570213 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71692-95702B0 |
LH125..SMRF;LH125,RZH113..SG..STD..GEN..(CBR,DSL);LH103,113,114,115,RZH103,114,115..06S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95702B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71691-95702B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71692-95702B0 |
LH114,115,176,184,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95702B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95702B0 |
LH114,115,176,184,RZH114,115 BLUISH GRAY,TRIM1# |
1 | ||
| 71692-95702B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95702B0 |
LH114,115,125,RZH114,115..15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95702B0 |
LH125..SMRF;LH125..STD..GEN;LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570213 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,INNER |
1 | ||
| 71692-95702B0 |
LH125..SMRF;LH125,RZH113..SG..STD..GEN..(CBR,DSL);LH103,113,114,115,RZH103,114,115..06S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95702B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71691-95702B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,INNER |
1 | ||
| 71692-95702B0 |
LH114,115,176,184,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71692-95702B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 71691-95702B0 |
LH114,115,176,184,RZH114,115 BLUISH GRAY,TRIM1# |
1 | ||
| 71692-95702B0 |
LH114,115,174,176..STD;LH184,RZH114,115..12S,15S BLUISH GRAY,TRIM1#,OUTER |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| 72065-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
RZH102..RHD..06S..5F;LH104,105,114,115,RZH103,104,113,114..SG GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
RZH113..06S..GEN;LH103,113,114,115,125,RZH103,114,115..SG..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
LH112,114,115,125,RZH113,114,115..09S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
RZH113..06S..GEN..CBR;LH103,113,114,115,125,RZH103,114,115..06S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
RZH113..06S..EFI;LH103,113,114,115,174,176,184,RZH103,114,115..06S,10S,12S,15S BLUISH GRAY,TRIM1#,NO.3 SEAT |
1 | ||
| 72525-95J01B0 |
LH112,114,115,RZH113,114,115..09S,15S BLUISH GRAY,TRIM1# |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J02 |
LH114,115,125,176,184,RZH114,115..12S,15S |
2 | ||
| 72613-95J02 |
LH104,105,114,115,125,RZH104,114,125 |
2 | ||
| 72613-95J02 |
LH104,114,115,RZH104,114 |
2 | ||
| 72613-95J02 |
LH184,RZH114,115..12S,15S;LH114,115,174,176..(10S,15S)..STD |
2 | ||
| 72613-95J02 |
LH114,115,RZH114,115 |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J02 |
LH114,115,125,176,184,RZH114,115..12S,15S |
2 | ||
| 72613-95J02 |
LH104,105,114,115,125,RZH104,114,125 |
2 | ||
| 72613-95J02 |
LH104,114,115,RZH104,114 |
2 | ||
| 72613-95J02 |
LH184,RZH114,115..12S,15S;LH114,115,174,176..(10S,15S)..STD |
2 | ||
| 72613-95J02 |
LH114,115,RZH114,115 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95J04 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 72650-95J04 |
LH114,115,125,176,184,RZH114,115..12S,15S |
1 | ||
| 72650-95J04 |
LH114,115,RZH114,115 |
1 | ||
| 72650-95J04 |
LH104,114,115,RZH104,114 |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH112,114,115,RZH113,114,115..09S,15S BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
RZH113..06S..GEN;LH103,113,114,115,125,RZH103,114,115..SG BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH112,114,115,125,RZH113,114,115..09S,15S BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH102,114,115,125,RZH114,115..09S,15S;LH103,113,RZH103,113..SG..GEN..(CBR,DSL) BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570113 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH112,114,115,RZH113,114,115..09S,15S BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
RZH113..06S..GEN;LH103,113,114,115,125,RZH103,114,115..SG BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH112,114,115,125,RZH113,114,115..09S,15S BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH102,114,115,125,RZH114,115..09S,15S;LH103,113,RZH103,113..SG..GEN..(CBR,DSL) BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570113 |
LH104,114,115,RZH103,104,113,114..GEN GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
RZH112..5D;LH154,174,RZH115,155..11S,12S,15S;LH102,103,11#,162,172,176,184,RZH102,103,113,114..06S,09S,10S,15S BLUISH GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH102,103,11#,172,176,184,RZH102,103,11#..SG..(GL,STD) BLUISH GRAY,TRIM1# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95J04 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 72660-95J04 |
LH114,115,RZH114,115 |
1 | ||
| 72660-95J04 |
LH114,115,125,176,184,RZH114,115..12S,15S |
1 | ||
| 72660-95J04 |
LH104,114,115,RZH104,114 |
1 | ||
| 79041A - COVER SUB-ASSY, NO.4 SEAT CUSHION | ||||
| 79041-95J1203 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79041-95J11B2 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J1103 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79041-95J1203 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79041-95J1703 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79041-95J11B6 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J17B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J11B4 |
LH104,114,115,RZH104,105,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J17B3 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J11B7 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J1703 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79041-26170B0 |
RZH104;RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH105..LHD FABRIC SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26160B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26220B0 |
LH114,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J11B7 |
RZH104,105..LHD..(CIS,GEN);LH174,RZH114..15S..(CIS,GEN);RZH115..(10S,15S)..(CIS,GEN);LH104,105,114,115,164,166,176..(12S,15S)..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26160B0 |
LH174,RZH114..15S..(CIS,GEN);RZH115..(10S,15S)..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105..(12S,15S)..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26200B0 |
LH114,174,176,RZH114,115..15S..(CIS,GEN) SEAT = TYPE C-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26170B0 |
RZH104,105;RZH114,115..LHD..15S;LH104,105,114,115,164,166,174,176..LHD..(12S,15S) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26210B0 |
LH114,174,176,RZH114,115..15S..(CIS,GEN) SEAT = TYPE G-*104,-,TRIM1# |
1 | ||
| 79043A - COVER SUB-ASSY, NO.4 SEAT BACK | ||||
| 79043-95J1203 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79043-95J1803 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79043-95J1703 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79043-95J1203 |
RZH114..LHD;RZH104..LHD..4F W(FOLDING REAR SEAT & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79043-95J1803 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79043-95J1903 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J1103 |
LH104,105,114,115,RZH104,114 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79043-95J11B5 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J18B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79043-26050B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79043-26080B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79043-26080B2 |
RZH114,115..LHD..15S;LH104,105,114,115,164,166,174,176,RZH104,105..LHD..(12S,15S) SEAT = TYPE B-*104,BLUISH GRAY,TRIM16 |
1 | ||
| 79043-26050B2 |
RZH104,105..LHD..(CIS,GEN);LH174,RZH114,115..15S..(CIS,GEN);LH104,105,114,115,164,166,176..(12S,15S)..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
RZH104,105..LHD..(CIS,GEN);LH174,RZH114,115..15S..(CIS,GEN);LH104,105,114,115,164,166,176..(12S,15S)..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79019-95J00 |
LH114,115,125,176,184,RZH114,115..12S,15S |
1 | ||
| 79019-95J00 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 79019-95J00 |
LH114,115,RZH114,115 |
1 | ||
| 79019-95J00 |
LH104,114,115,RZH104,114 |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 71334-26020 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 |
2 | ||
| 71334-95703 |
LH104,113,114,115,RZH10#,11#..SG L=25 |
2 | ||
| 71334-26020 |
LH104,105,114,115,125,166,176,184,RZH104,105,114,115,125 |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J00 |
RZH112..EFI;LH112,RZH112..5D;LH10#,113,114,115,125,RZH10#,113,114,115,125..SG..STD L=38 |
2 | ||
| 79199-95J00 |
LH125..ARL;LH113,114,115,RZH104,112,114,125..SG;LH104,105,112,RZH105,113,115..LHD..SG..STD L=38 |
2 | ||
| 79199-95J00 |
LH113,114,115,125,RZH104,112,114,125..SG;LH104,105,112,RZH105,113,115..LHD..SG..STD L=38 |
2 | ||
| 79199-95J00 |
RZH113..06S..CBR;LH10#,11#,125,166,172,176,184,RZH10#,112,114,115,125..06S,12S,14S,15S |
2 | ||
| 79199-95J00 |
RZH104..STD;RZH112..EFI;LH112,RZH112,114..LHD..SG..GEN;LH10#,113,114,115,125,RZH102,103,105,113,115..(SMRF,SRF)..(06S,12S,15S)..(CBR,DSL) L=38 |
2 | ||
| 79199-95J00 |
RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD) |
2 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-95J0003 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1# |
2 | ||
| 79378-26010B0 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 GRAY,TRIM1# |
2 | ||
| 79378-26010B0 |
LH184,RZH114,115..12S,15S;LH114,115,174,176..(10S,15S)..STD GRAY,TRIM1# |
2 | ||
| 79378-26010B0 |
LH114,115,176,184,RZH114,115 GRAY,TRIM1# |
2 | ||
| 79378-26010B0 |
LH104,105,114,115,125,RZH104,105,114,115,125 GRAY,TRIM1# |
2 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-26010 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 LH |
1 | ||
| 79405-26010 |
LH104,105,114,115,125,RZH104,105,114,115,125 LH |
1 | ||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79405-26010 |
LH114,115,176,184,RZH114,115 W(FOLDING REAR SEAT),RH |
1 | ||
| 79405-26020 |
LH114,115,176,184,RZH114,115 W(FOLDING REAR SEAT),LH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79405-26020 |
LH104,105,114,115,125,RZH104,105,114,115,125 RH |
1 | ||
| 79432-26040 |
LH114,115,176,RZH114,115..15S RH |
1 | ||
| 79405-26020 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 RH |
1 | ||
| 79405-26020 |
RZH115..GL,STD;LH184,RZH114..15S;LH114,115,174,176..(10S,15S)..STD W(FOLDING REAR SEAT),LH |
1 | ||
| 79432-26040 |
LH114,115,174,176,RZH114,115..15S RH |
1 | ||
| 79405-26010 |
RZH115..GL,STD;LH184,RZH114..15S;LH114,115,174,176..(10S,15S)..STD W(FOLDING REAR SEAT),RH |
1 | ||
| 79433-26020 |
LH114,115,176,RZH114,115..15S LH |
1 | ||
| 79433-26020 |
LH114,115,174,176,RZH114,115..15S LH |
1 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-26010 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 LH |
1 | ||
| 79405-26010 |
LH104,105,114,115,125,RZH104,105,114,115,125 LH |
1 | ||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79405-26010 |
LH114,115,176,184,RZH114,115 W(FOLDING REAR SEAT),RH |
1 | ||
| 79405-26020 |
LH114,115,176,184,RZH114,115 W(FOLDING REAR SEAT),LH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79405-26020 |
LH104,105,114,115,125,RZH104,105,114,115,125 RH |
1 | ||
| 79432-26040 |
LH114,115,176,RZH114,115..15S RH |
1 | ||
| 79405-26020 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 RH |
1 | ||
| 79405-26020 |
RZH115..GL,STD;LH184,RZH114..15S;LH114,115,174,176..(10S,15S)..STD W(FOLDING REAR SEAT),LH |
1 | ||
| 79432-26040 |
LH114,115,174,176,RZH114,115..15S RH |
1 | ||
| 79405-26010 |
RZH115..GL,STD;LH184,RZH114..15S;LH114,115,174,176..(10S,15S)..STD W(FOLDING REAR SEAT),RH |
1 | ||
| 79433-26020 |
LH114,115,176,RZH114,115..15S LH |
1 | ||
| 79433-26020 |
LH114,115,174,176,RZH114,115..15S LH |
1 | ||
| 79406 - LEG SUB-ASSY, NO.4 SEAT, REAR | ||||
| 79406-95J04 |
LH114,115,174,176,RZH114,115..15S |
1 | ||
| 79406-95J01 |
LH114,115,176,RZH114,115..15S W(FOLDING REAR SEAT) |
1 | ||
| 79406-95J04 |
LH114,115,176,RZH114,115..15S |
1 | ||
| 79406-95J01 |
LH114,115,174,176,RZH114,115..15S W(FOLDING REAR SEAT) |
1 | ||
| 79420A - CUSHION ASSY, NO.4 SEAT | ||||
| 79420-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79420-95J2603 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79420-95J19B0 |
LH114,RZH114..LHD W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J2603 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79420-95J21B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J2003 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79420-95J1903 |
LH104,114,RZH104,114..LHD W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79420-95J2103 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79420-95J21B7 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J26B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J19B4 |
LH114,115,RZH114,115..LHD..(CIS,GEN) W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J19B6 |
LH114,115,RZH114,115..LHD..(CIS,GEN) W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26170B0 |
RZH104;RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P4 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J26P0 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P1 |
LH104,114,115,RZH104,105,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J26B6 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J19B8 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(FOLDING REAR SEAT & VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26180B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26160B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26160B3 |
LH174..15S..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105,114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26170B3 |
RZH104,105..STD;LH104,105,114,115,164,166,174,176,RZH114,115..LHD..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26230B0 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) SEAT = TYPE C-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26250B0 |
LH114,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-26240B0 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) SEAT = TYPE G-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P7 |
RZH104,105..LHD..STD..(CIS,GEN);LH104,105,114,115,164,166,174,176,RZH114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79435 - PAD, NO.4 SEAT CUSHION | ||||
| 79045-95J01 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,125,166,176,184,RZH104,105..CIS,GEN |
1 | ||
| 79045-95J02 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FOLDING REAR SEAT) |
1 | ||
| 79045-95J02 |
RZH104;RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH105..LHD W(FOLDING REAR SEAT) |
1 | ||
| 79045-95J01 |
LH104,105,114,115,RZH104,114..CIS,GEN |
1 | ||
| 79045-95J02 |
RZH104,105;RZH114,115..LHD..15S;LH104,105,114,115,164,166,174,176..LHD..(12S,15S) W(FOLDING REAR SEAT) |
1 | ||
| 79045-95J01 |
LH174,RZH114,115..15S..(CIS,GEN);LH104,105,114,115,164,166,176,184,RZH104,105..(12S,15S)..(CIS,GEN) |
1 | ||
| 79440A - BACK ASSY, NO.4 SEAT | ||||
| 79440-95J2603 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2603 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2103 |
RZH114..LHD W(FOLDING REAR SEAT & VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2003 |
LH114,115,RZH114 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2703 |
RZH114..LHD W(FABRIC SEAT & FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J27B1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT & FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J2203 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79440-95J22B6 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J20B0 |
LH114,115,RZH114..CIS,GEN W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J26B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J20B8 |
RZH114..LHD;LH114,115,RZH115..GEN BLUSIH GRAY,TRIM1# |
1 | ||
| 79440-95J27B7 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT & FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J27B5 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT & FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22B8 |
LH104,114,115,RZH104,105,114,115..CIS,GEN FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J20B6 |
LH114,115,RZH114,115..CIS,GEN W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J26B7 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26100B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26130B0 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT & FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26060B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26120B0 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J20P1 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) W(FOLDING REAR SEAT & VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J26B5 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22P1 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26100B3 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26060B5 |
LH174..15S..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105,114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22P4 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26130B3 |
LH114,115,174,176,RZH114,115..LHD..15S..STD SEAT = TYPE B-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26120B3 |
LH114,115,174,176,RZH114,115..15S..STD..(CIS,GEN) SEAT = TYPE C-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J20P4 |
LH114,115,174,176,RZH114,115..15S..STD..(CIS,GEN) SEAT = TYPE G-*104 & W(FOLDING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79475 - PAD, NO.4 SEAT BACK | ||||
| 79047-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79047-95J01 |
LH114,115,174,176,RZH114,115..15S W(FOLDING REAR SEAT) |
1 | ||
| 79047-95J01 |
LH114,115,176,RZH114,115..15S W(FOLDING REAR SEAT) |
1 | ||
| 79047-95J00 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105 |
1 | ||
| Common parts | ||||
| 90105-10161 | ||||
| 90119-10315 | ||||
| 90119-10409 | ||||
| 90119-11008 | ||||
| 90159-60280 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90386-13016 | ||||
| 90468-18071 | ||||
| 90506-23023 | ||||
| 90523-06017 | ||||
| 91612-B1020 | ||||
| 93530-54016 | ||||
| 96160-00600 | ||||
ILLUST NO. 7 OF 7(8908-9907)LH104,105,114,115,125,166,174,176,184,RZH104,105,114,115,125 ; (9907-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-26370 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79105-26370 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95J11 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79105-95J11 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
ILLUST NO. 7 OF 7(9907- )LH104,105,114,115,125,164,166,174,176,RZH125..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J07 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333-95J11 |
LH114,115,176,RZH114,115..LHD..15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J30 |
LH125..ARL;LH114,115,RZH114,115,125 FRONT |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J18 |
LH114,115,176,RZH114,115..LHD..15S REAR |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333-95J30 |
LH114,115,125,174,176,184,RZH114,115,125..14S,15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 71333B - LEG, REAR SEAT CUSHION, NO.3 | ||||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J25 |
LH114,115,176,RZH114,115..15S REAR |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 71333-95J21 |
LH114,115,RZH114,115 FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79331-26150 |
LH114,115,176,RZH114,115..15S FRONT |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-26370 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79105-26370 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95J11 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79105-95J11 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79105-95J16 |
LH114,115,RZH114,115..LHD |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79205-26130 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79305-26260 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH114,115,RZH114,115 |
6 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N2203 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N0903 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N0803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79011-95N0903 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N2203 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B0 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N22B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,105,114,115..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
LH114..RHD;RZH114,115..15S..(CIS,GEN);LH104,105,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
RZH114,115..LHD..15S;LH104,105,114,115,164,166,174,176,RZH104,105..LHD..(12S,15S) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79014-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79014-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26250B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26220B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
RZH114,115..LHD..15S;LH114,115,174,176,RZH105..LHD..(12S,15S)..(CBR,DSL) SEAT = TYPE B-*104,BLUISH GRAY,TRIM16 |
1 | ||
| 79014-26220B2 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
RZH115..STD..(GCC,GEN)..EFI;LH114,174,RZH114..LHD..15S..(GCC,GEN) BLUISH GRAY,TRIM16 |
2 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N3303 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1903 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N3303 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1903 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79120-95N18B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B4 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P1 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B6 |
LH104,114,115,RZH104,105,114,115..CIS,GEN SEAT = TYPE N-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79120-95N18B8 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B3 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79015-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79150-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79150-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J12B0 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26140B1 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26141B3 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B2 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B3 |
RZH115..STD..(CIS,GEN)..EFI;LH114,174,176,RZH114..LHD..15S..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B5 |
RZH104,114..LHD..STD;RZH115..STD..GEN..EFI;RZH115..STD..(CIS,GCC);LH104,114,164,166,174,176,RZH105..LHD..(12S,15S)..STD..(DSL,EFI) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 1 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| 72065-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH114,115,RZH114,115 |
6 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79011-95N0903 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N2203 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N0803 |
LH114,115,RZH114 GRAY,TRIM1# |
1 | ||
| 79011-95N08B0 |
LH114,115,RZH114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH114,115,RZH114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH114,115,RZH114,115..CIS,GEN BLUISH GRAY,TRIM1#,NO.1 SEAT |
1 | ||
| 79011-95N22B1 |
RZH105..GEN;LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
LH114,115,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79014-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79014-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26220B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26250B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
LH114,115,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104,BLUISH GRAY,TRIM16 |
1 | ||
| 79014-26220B2 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-95N1903 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1803 |
LH114,115,RZH114 GRAY,TRIM1# |
1 | ||
| 79120-95N3303 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N18B0 |
LH114,115,RZH114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33B2 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79120-95N18B4 |
LH114,115,RZH114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B8 |
RZH114..LHD..15S;LH114,115,176,RZH115..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B0 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B0 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B5 |
LH114,115,174,176,RZH114,115..LHD..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B3 |
LH114,115,174,176,RZH114,115..LHD..15S..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79015-95J00 |
LH114,115,RZH114,115 |
1 | ||
| 79015-95J00 |
RZH104..LHD;LH104,114,115,RZH105,114,115 NO.1 SEAT |
1 | ||
| 79015-95J00 |
RZH114,115..15S;LH114,115,176,RZH105..STD..(CBR,DSL) NO.1 SEAT |
1 | ||
| 79025-95J00 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD NO.2 SEAT |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79150-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J12B0 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26140B1 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26141B3 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B3 |
RZH115..STD..(CIS,GEN)..EFI;LH114,174,176,RZH114..LHD..15S..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B5 |
RZH104,114..LHD..STD;RZH115..STD..GEN..EFI;RZH115..STD..(CIS,GCC);LH104,114,164,166,174,176,RZH105..LHD..(12S,15S)..STD..(DSL,EFI) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| 72065-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH114,115,RZH114,115 |
6 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79021-95J6103 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79021-95J5303 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 79021-95J5403 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79021-95J53B0 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J53B3 |
LH114,RZH114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J53B3 |
LH114,115,RZH114,115..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J53B4 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79021-95J61B1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79022-26030B0 |
LH114,115,174,176,RZH114,115..LHD..15S..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79022-26040B0 |
RZH114,115..LHD..15S;LH114,115,174,176,RZH105..LHD..(12S,15S)..(CBR,DSL) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79014-95J1203 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 79014-95J1303 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J2003 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH114,RZH114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B4 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J20B2 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26250B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26220B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26220B2 |
LH114,115,174,176,RZH114,115..LHD..15S..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
LH114,115,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104,BLUISH GRAY,TRIM16 |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79220-95J7403 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79220-95J6703 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 79220-95J67B6 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J74B4 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J67B1 |
LH114,RZH114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J74B1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J6803 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79220-95J74B6 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J67B8 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79230-26040B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79220-95J67P0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79230-26040B3 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79230-26050B3 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79025-95J00 |
RZH104..GL;LH114,115,RZH114,115..LHD |
1 | ||
| 79025-95J00 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79150-95J1303 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J1203 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 79150-95J12B0 |
LH114,RZH114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J2003 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J20B1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J20B3 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J12B4 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH114,115,RZH114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26140B1 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26141B3 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B2 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B5 |
LH114,115,174,176,RZH114,115..LHD..15S..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B3 |
LH114,115,174,176,RZH114,115..LHD..15S..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79017-95J00 |
LH114,115,RZH114,115 |
1 | ||
| 79017-95J00 |
RZH114,115..15S;LH114,115,176,RZH105..STD..(CBR,DSL) |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 91611-61025 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 3 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| 72065-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72065-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10035 | ||||
| 90119-10415 | ||||
| 90119-10595 | ||||
| 90333-30002 | ||||
| 91611-61025 | ||||
| 91616-61025 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-95J1203 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 78071-95J1103 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 78071-95J11B2 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26040B0 |
RZH115..GCC;LH114,115,RZH114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78071-95J1303 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 78071-95J13B1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26030B2 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26090B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26041B1 |
LH114,115,176,RZH114,115..LHD..15S BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26030B3 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26090B0 |
LH114,115,174,176,RZH114,115..LHD..15S..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26041B1 |
LH114,115,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-95J1403 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 78073-95J0803 |
LH125,RZH125;LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 78073-95J1303 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 78073-95J08B2 |
LH114,RZH114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 78073-95J0803 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 78073-95J08B2 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78073-95J14B1 |
LH114,115,RZH114,115..LHD W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78073-95J08B0 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78073-26090B1 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78073-26060B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78073-26070B0 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78073-26070B0 |
LH114,115,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78073-26060B0 |
LH114,115,174,176,RZH114,115..LHD..15S..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-95J04 |
LH114,RZH114..LHD |
1 | ||
| 78701-26040 |
LH114,115,176,RZH114,115..LHD |
1 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH114,115,RZH114,115 |
3 | ||
| 78703-95J01 |
LH114,115,125,176,184,RZH114,115..15S |
3 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-95J03 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD |
2 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-95J1203 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 78720-95J1103 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 78720-95J11B0 |
LH114,RZH114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 78720-95J13B1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78720-95J1303 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 78720-95J11B5 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26060B0 |
LH114,115,RZH114,115..LHD..STD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26060B3 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26070B0 |
RZH115..GCC;LH114,115,RZH114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78720-95J13B4 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26071B2 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26060B6 |
LH114,115,174,176,RZH114,115..LHD..15S..STD..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26071B5 |
LH114,115,174,176,RZH114,115..LHD..15S..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26110B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78720-26110B3 |
LH114,115,174,176,RZH114,115..LHD..15S..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH105,115..LHD..(GCC,GEN);LH104,114,RZH104,105,114,115..LHD..STD..(CBR,DSL) LH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J02 |
LH115..LHD..(GCC,GEN);LH114,RZH114,115..LHD..STD..(CBR,DSL) RH SEAT LEG |
1 | ||
| 78726-95J01 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S) LH SEAT LEG |
2 | ||
| 78726-95J02 |
LH114,115,174,176,RZH114,115..LHD..(12S,15S) RH SEAT LEG |
1 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH114,115,125,176,184,RZH114,115..15S |
3 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH114,115,RZH114,115 |
3 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J03 |
LH114,115,176,RZH114,115..LHD RH |
1 | ||
| 78735-95J02 |
LH115,RZH114,115..LHD..15S;LH104,105,114,166,176,RZH104,105..LHD..(CIS,GEN) LH |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-95J1303 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 78740-95J0803 |
LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 78740-95J1403 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 78740-95J14B1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78740-95J0803 |
LH125,RZH125;LH114,RZH114..LHD GRAY,TRIM1# |
1 | ||
| 78740-95J14B5 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78740-26070B1 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78740-95J14B4 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78740-95J08P0 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78740-95J08B6 |
LH114,115,RZH114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 78740-26100B0 |
LH114,115,176,RZH114,115..LHD..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78740-95J08B0 |
LH114,RZH114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 78740-26080B0 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 78740-26080B5 |
LH114,115,174,176,RZH114,115..LHD..15S..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78740-26070B8 |
LH114,115,174,176,RZH114,115..LHD..15S..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH114,115,125,176,184,RZH114,115..15S |
3 | ||
| 78775-95J00 |
LH114,115,RZH114,115 |
3 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J02 |
LH114,115,176,RZH114,115..LHD W(FABRIC SEAT) |
1 | ||
| 78791-95J00 |
LH114,115,176,184,RZH114,115..15S RH |
2 | ||
| 78792 - SPRING, SUB SEAT LINK, NO.2 | ||||
| 78792-95J00 |
LH104,105,114,115,RZH104,105,114,115 |
2 | ||
| 78792-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78792-95J00 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,184,RZH104,105..12S,15S |
2 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH114,115,125,176,184,RZH114,115..15S BLUISH GRAY,TRIM1# |
6 | ||
| 78797-95J0003 |
LH114,115,RZH114 GRAY,TRIM1# |
6 | ||
| 78797-95J00B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1# |
6 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90109-08137 | ||||
| 90119-08079 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90468-18071 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 94541-01000 | ||||
| 94612-10800 | ||||
ILLUST NO. 4 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH114,115,RZH114,115 |
6 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH114,115,125,176,184,RZH114,115..15S |
6 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J01B0 |
LH114,115,125,RZH114,115..15S BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH114,115,125,176,184,RZH114,115..15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J01B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH105,115..LHD..(GCC,GEN);LH104,114,RZH104,105,114,115..LHD..STD..(CBR,DSL) LH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J02 |
LH115..LHD..(GCC,GEN);LH114,RZH114,115..LHD..STD..(CBR,DSL) RH SEAT LEG |
1 | ||
| 78726-95J01 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S) LH SEAT LEG |
2 | ||
| 78726-95J02 |
LH114,115,174,176,RZH114,115..LHD..(12S,15S) RH SEAT LEG |
1 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J04 |
LH114,115,176,RZH114,115..LHD..15S LH |
2 | ||
| 78731-95J05 |
LH114,115,176,RZH114,115..LHD RH |
1 | ||
| 78803A - LEG SUB-ASSY, SUB SEAT, RH | ||||
| 78803-95J06 |
LH114,115,RZH114,115..LHD |
1 | ||
| Common parts | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-95J1703 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78072-95J1803 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78072-95J1603 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
2 | ||
| 78072-95J1803 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78072-95J18B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78072-95J1703 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78072-26030B2 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26040B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78072-95J16B2 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26041B1 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26030B3 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26041B1 |
RZH114,115..LHD..15S;LH104,105,114,115,164,166,174,176,RZH104,105..LHD..(12S,15S) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26080B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,164,166,174,176,RZH104,105..LHD..(12S,15S)..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78072-26080B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78073-95J1403 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78073-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78073-95J0803 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
2 | ||
| 78073-95J08B0 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J1403 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78073-95J08B2 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26060B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26070B0 |
RZH114,115..LHD..15S;LH104,105,114,115,164,166,174,176,RZH104,105..LHD..(12S,15S) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26090B1 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J08B2 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26070B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-95J14B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78073-26060B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,164,166,174,176,RZH104,105..LHD..(12S,15S)..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78702-26040 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD |
2 | ||
| 78702-95J04 |
LH104,114,RZH104,114..LHD |
2 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
LH114,115,RZH114,115 |
3 | ||
| 78703-95J01 |
LH114,115,125,176,184,RZH114,115..15S |
3 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
LH114,115,125,176,184,RZH114,115..15S |
3 | ||
| 78727-26010 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
2 | ||
| 78727-26010 |
LH114,115,RZH114,115 |
3 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-95J1703 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78730-95J1803 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78730-95J1603 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
2 | ||
| 78730-95J18B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-95J1703 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78730-95J18B7 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-95J16B8 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26071B2 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-95J16B0 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26070B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26060B1 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78730-95J1803 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78730-26060B3 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26120B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26120B3 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78730-26071B5 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-95J03 |
LH114,115,176,RZH114,115..LHD RH |
1 | ||
| 78735-95J02 |
LH115,RZH114,115..LHD..15S;LH104,105,114,166,176,RZH104,105..LHD..(CIS,GEN) LH |
2 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78740-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
2 | ||
| 78740-95J0803 |
LH114,RZH114..LHD GRAY,TRIM1# |
3 | ||
| 78740-95J08B0 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J1403 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78740-95J08P0 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J08B6 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J14B5 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J14B4 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J1403 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
2 | ||
| 78740-26100B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-95J14B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26080B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26070B1 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26070B8 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78740-26080B5 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-95J00 |
LH114,115,125,176,184,RZH114,115..15S |
3 | ||
| 78775-95J00 |
LH114,115,RZH114,115 |
3 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
RZH104;LH104,114,115,RZH105,114,115..LHD |
2 | ||
| 78791-95J02 |
LH114,115,176,RZH114,115..LHD W(FABRIC SEAT) |
1 | ||
| 78791-95J00 |
LH114,115,176,184,RZH114,115..15S RH |
2 | ||
| 78795 - BRACKET, SUB SEAT, NO.2 | ||||
| 78795-95J01 |
LH114,115,176,RZH114,115..LHD..15S |
1 | ||
| 78797 - COVER, SUB SEAT | ||||
| 78797-95J00B0 |
LH104,114,115,125,RZH104,105,114,115..12S,15S BLUISH GRAY,TRIM1# |
4 | ||
| 78797-95J00B0 |
LH114,115,125,176,184,RZH114,115..15S BLUISH GRAY,TRIM1# |
6 | ||
| 78797-95J0003 |
LH114,115,RZH114 GRAY,TRIM1# |
6 | ||
| 78797-95J00B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1# |
6 | ||
| Common parts | ||||
| 90109-08133 | ||||
| 90119-10415 | ||||
| 90119-10579 | ||||
| 90206-12050 | ||||
| 90389-10026 | ||||
| 90468-18071 | ||||
| 93560-15012 | ||||
| 94542-01400 | ||||
ILLUST NO. 5 OF 7(8908-9411)LH104,105,114,115,125,RZH104,114..RHD..GEN ; (9411- )LH114,115,174,RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
LH114,115,RZH114,115 |
6 | ||
| 71315-95J02 |
LH104,114,115,125,RZH104,105,114,115..12S,15S |
4 | ||
| 71315-95J02 |
LH114,115,125,176,184,RZH114,115..15S |
6 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,114,115,RZH104,114 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J01B0 |
LH114,115,125,RZH114,115..15S BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH114,115,125,176,184,RZH114,115..15S BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
6 | ||
| 71485-95J01B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J02B0 |
LH104,114,115,125,RZH104,105,114,115 BLUISH GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
LH105,115..LHD..(GCC,GEN);LH104,114,RZH104,105,114,115..LHD..STD..(CBR,DSL) LH SEAT LEG |
2 | ||
| 78726-95J00 |
RZH114,115..15S;LH104,105,114,115,125,166,176,184,RZH104,105..12S,15S W/BRACKET |
2 | ||
| 78726-95J02 |
LH115..LHD..(GCC,GEN);LH114,RZH114,115..LHD..STD..(CBR,DSL) RH SEAT LEG |
1 | ||
| 78726-95J01 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S) LH SEAT LEG |
2 | ||
| 78726-95J02 |
LH114,115,174,176,RZH114,115..LHD..(12S,15S) RH SEAT LEG |
1 | ||
| 78726-95J00 |
LH104,105,114,115,RZH104,105,114,115 W/BRACKET |
2 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J04 |
LH114,115,176,RZH114,115..LHD..15S LH |
2 | ||
| 78731-95J05 |
LH114,115,176,RZH114,115..LHD RH |
1 | ||
| 78794 - BRACKET, SUB SEAT, NO.1 | ||||
| 78794-95J00 |
LH114,115,176,RZH114,115..15S |
1 | ||
| 78804B - LEG SUB-ASSY, SUB SEAT, LH | ||||
| 78803-95J05 |
LH104,105,114,115,RZH104,105,114,115..LHD |
2 | ||
| 78803-95J06 |
LH114,115,176,184,RZH114,115 LH |
1 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90119-10035 | ||||
| 90119-10271 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90389-10012 | ||||
| 90523-06017 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
ILLUST NO. 1 OF 7(9808- )LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD
SEAT BACK=SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95N2203 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N0903 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N0803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79011-95N0903 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N2203 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B0 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N22B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH104,114,115,RZH104,105,114,115..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
LH114..RHD;RZH114,115..15S..(CIS,GEN);LH104,105,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
RZH114,115..LHD..15S;LH104,105,114,115,164,166,174,176,RZH104,105..LHD..(12S,15S) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79014-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79014-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26250B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26220B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
RZH114,115..LHD..15S;LH114,115,174,176,RZH105..LHD..(12S,15S)..(CBR,DSL) SEAT = TYPE B-*104,BLUISH GRAY,TRIM16 |
1 | ||
| 79014-26220B2 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
RZH115..STD..(GCC,GEN)..EFI;LH114,174,RZH114..LHD..15S..(GCC,GEN) BLUISH GRAY,TRIM16 |
2 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-26220B2 |
LH174,RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N3303 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1903 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N3303 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1903 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1803 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79120-95N18B0 |
LH104,114,115,RZH104,114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B4 |
LH104,114,115,RZH104,114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P1 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B6 |
LH104,114,115,RZH104,105,114,115..CIS,GEN SEAT = TYPE N-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B0 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79120-95N18B8 |
RZH114,115..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..CIS,GEN W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B0 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B3 |
LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD..(12S,15S)..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79150-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79150-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J12B0 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26140B1 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26141B3 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B2 |
RZH114,115..LHD..15S;LH104,105,114,115,166,176,RZH104,105..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B3 |
RZH115..STD..(CIS,GEN)..EFI;LH114,174,176,RZH114..LHD..15S..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B5 |
RZH104,114..LHD..STD;RZH115..STD..GEN..EFI;RZH115..STD..(CIS,GCC);LH104,114,164,166,174,176,RZH105..LHD..(12S,15S)..STD..(DSL,EFI) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-26270B3 |
LH114,RZH114,115..LHD..15S..STD..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 2 OF 7(9808- )LH104,105,114,115,164,166,174,176,RZH104,105,114,115..LHD
SEAT BACK=SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79011-95N0903 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N2203 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79011-95N0803 |
LH114,115,RZH114 GRAY,TRIM1# |
1 | ||
| 79011-95N08B0 |
LH114,115,RZH114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH114,115,RZH114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B2 |
LH114,115,RZH114,115..CIS,GEN BLUISH GRAY,TRIM1#,NO.1 SEAT |
1 | ||
| 79011-95N22B1 |
RZH105..GEN;LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26610B0 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26690B0 |
LH114,115,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79011-95N08B3 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79014-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79014-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79014-95J12B3 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-95J20B2 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26220B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B0 |
RZH114,115..LHD..15S;LH114,115,176,RZH105..LHD..STD..(CBR,DSL) W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26250B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) FOAMED LEATHER SEAT,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-26230B2 |
LH114,115,174,176,RZH114,115..LHD..15S SEAT = TYPE B-*104,BLUISH GRAY,TRIM16 |
1 | ||
| 79014-26220B2 |
LH114,174,176,RZH114,115..LHD..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-26220B2 |
LH114,115,174,176,RZH114,115..LHD..15S..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-95N1903 |
RZH114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N1803 |
LH114,115,RZH114 GRAY,TRIM1# |
1 | ||
| 79120-95N3303 |
RZH114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79120-95N18B0 |
LH114,115,RZH114..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33B2 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P2 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD SEAT = TYPE J-*104,GRAY,TRIM1# |
1 | ||
| 79120-95N18B4 |
LH114,115,RZH114,115..CIS,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N33P1 |
LH114,115,RZH114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-95N18B8 |
RZH114..LHD..15S;LH114,115,176,RZH115..15S..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B0 |
LH114,115,176,RZH114,115..15S..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B0 |
LH114,115,176,RZH114,115..LHD..15S W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26680B5 |
LH114,115,174,176,RZH114,115..LHD..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26790B3 |
LH114,115,174,176,RZH114,115..LHD..15S..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79150-95J2003 |
RZH114..LHD;RZH104..LHD..4F W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J1303 |
RZH104,114..LHD W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J12B0 |
LH104,114,RZH104,114..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J1203 |
LH104,114,RZH104,114..LHD GRAY,TRIM1# |
1 | ||
| 79150-95J20B3 |
LH104,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J2003 |
RZH104,114..LHD W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79150-95J20B1 |
LH104,105,114,115,RZH104,105,114,115..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J12B4 |
LH104,114,115,RZH104,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-95J1303 |
RZH114..LHD;RZH104..LHD..4F W(VINYL LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 79150-26150B0 |
RZH115..GCC;LH104,114,115,RZH104,105,114..LHD W(FABRIC SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26140B1 |
LH104,114,115,RZH104,105,114,115..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26141B3 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) W(VINYL LEATHER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B0 |
RZH114,115..LHD..15S..(CIS,GEN);LH104,105,114,115,166,176,RZH104,105..LHD..(CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26270B3 |
RZH115..STD..(CIS,GEN)..EFI;LH114,174,176,RZH114..LHD..15S..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-26151B5 |
RZH104,114..LHD..STD;RZH115..STD..GEN..EFI;RZH115..STD..(CIS,GCC);LH104,114,164,166,174,176,RZH105..LHD..(12S,15S)..STD..(DSL,EFI) SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-26270B3 |
LH114,RZH114,115..LHD..15S..STD..GEN SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79961 - COVER, NO.1 SEAT BACK | ||||
| 79961-95J0303 |
LH114,115,RZH114 GRAY,TRIM1#,LH |
3 | ||
| 79961-95J0203 |
LH114,115,RZH114 GRAY,TRIM1#,RH |
3 | ||
| 79961-95J02B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,RZH114,115 BLUISH GRAY,TRIM1#,LH |
3 | ||
| 79961-95J02B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,RH |
3 | ||
| 79961-95J03B0 |
LH114,115,174,176,RZH114,115..15S BLUISH GRAY,TRIM1#,LH |
3 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
ILLUST NO. 1 OF 4(8908-9205)LH112,RZH112..RHD ; (8908- )LHD ;(9205- )RHD
(8908-9205)RHD=UNITED KINGDOM SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08109 | ||||
| 90105-10261 | ||||
| 90119-08026 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90167-40044 | ||||
| 90176-10073 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12036 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90468-18071 | ||||
| 90950-06060 | ||||
| 91611-61020 | ||||
| 93540-54012 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
