RZH113R-RBMREW (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCHES

diagram 84110 84140 84310 84312 84450 84450 84650 85432 89435 9014940013 9014940013 9046400551 9165140816 9331913008 9331915012
Part # Description Qty Price
Common parts
90149-40013
90464-00551
91651-40816
93319-13008
93319-15012

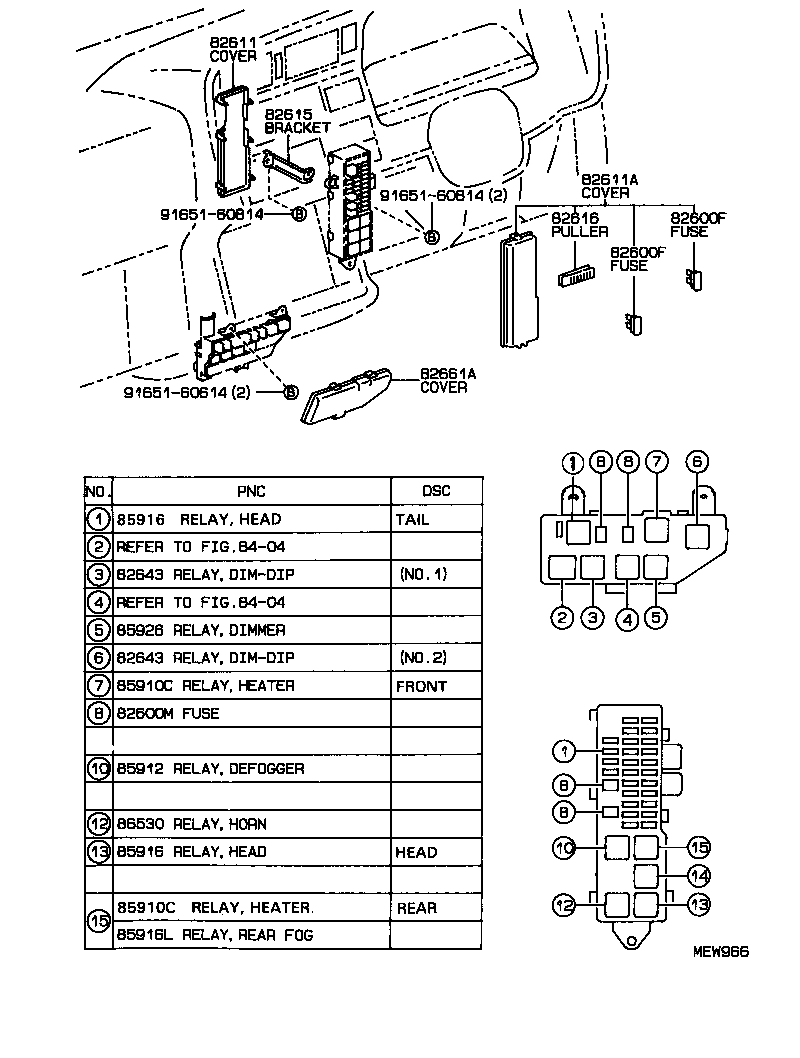

ILLUST NO. 4 OF 8(9308- )RHD

Click highlighted areas on diagram

diagram 82600F 82600F 82600M 82611 82611A 82615 82616 82643 82643 82661A 8404 8404 85910C 85910C 85912 85916 85916 85916L 85926 86530 9165160614 9165160814 9165160814
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09005

LH10#,11#,RZH10#,11#

7.5A

 1
90982-09003

LH10#,11#,RZH10#,11#

15A

 1
82600F - FUSE, FUSE BLOCK
90982-09005

LH10#,11#,RZH10#,11#

7.5A

 1
90982-09003

LH10#,11#,RZH10#,11#

15A

 1
82600M - FUSE, MEDIUM CURRENT
90982-10001

LH10#,11#,RZH10#,11#

30A,PINK

 1
90982-10002

LH102,112,RZH113..RHD

40A,GREEN

 1
82611 - COVER, FUSE BLOCK
82611-26130

LH102,112,RZH113..RHD

 1
82611A - COVER, FUSE BLOCK, NO.2
82611-26071

LH112,RZH113..RHD

UNITED KINGDOM SPEC

 1
82611-26051

LH102,112,RZH113..RHD

 1
82611-26071

LH102,112,RZH113..RHD

UNITED KINGDOM SPEC

 1
82615 - BRACKET, FUSE
82615-95J01

LH102,112,RZH113..RHD

UPPER

 1
82616 - PULLER, FUSE
82616-12010

LH10#,11#,RZH10#,11#

 1
82643 - RELAY, DIM-DIP LAMP
90987-04002

LH112,RZH112,113..RHD

UNITED KIGDOM SPEC,NO.2

 1
90987-02009

LH112,RZH113..RHD

UNITED KIGDOM SPEC,NO.1

 1
90987-04002

LH102,112,RZH113..RHD

UNITED KIGDOM SPEC,NO.2

 1
90987-02009

LH102,112,RZH113..RHD

UNITED KIGDOM SPEC,NO.1

 1
82643 - RELAY, DIM-DIP LAMP
90987-04002

LH112,RZH112,113..RHD

UNITED KIGDOM SPEC,NO.2

 1
90987-02009

LH112,RZH113..RHD

UNITED KIGDOM SPEC,NO.1

 1
90987-04002

LH102,112,RZH113..RHD

UNITED KIGDOM SPEC,NO.2

 1
90987-02009

LH102,112,RZH113..RHD

UNITED KIGDOM SPEC,NO.1

 1
82661A - COVER, RELAY BLOCK, NO.2
82661-26070

RZH113..RHD

 1
82661-26090

LH102,112,RZH113..RHD

UNITED KINGDOM SPEC

 1
82661-26090

LH112,RZH113..RHD

UNITED KINGDOM SPEC

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

LH10#,11#,RZH10#,11#

FRONT

 1
90987-04002

LH10#,11#,RZH10#,11#

FRONT

 1
90987-02004

LH10#,11#,RZH10#,11#

 2
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

LH10#,11#,RZH10#,11#

FRONT

 1
90987-04002

LH10#,11#,RZH10#,11#

FRONT

 1
90987-02004

LH10#,11#,RZH10#,11#

 2
85912 - RELAY, DEFOGGER
90987-02004

RZH112..4D;RZH119..STD;RZH102..4D..STD;LH10#,11#,RZH103,109,113,115

 1
90987-02009

LH10#,11#,RZH10#,11#

 1
85916 - RELAY, LIGHT CONTROL
90987-02009

LH10#,11#,RZH10#,11#

TAIL LAMP

 1
90987-02006

LH10#,11#,RZH10#,11#

HEADLAMP

 1
90987-01003

LH10#,11#,RZH10#,11#

TAIL LAMP

 1
85916 - RELAY, LIGHT CONTROL
90987-02009

LH10#,11#,RZH10#,11#

TAIL LAMP

 1
90987-02006

LH10#,11#,RZH10#,11#

HEADLAMP

 1
90987-01003

LH10#,11#,RZH10#,11#

TAIL LAMP

 1
85916L - RELAY, REAR FOG LAMP
90987-02009

LH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)

 1
85926 - RELAY, HEADLAMP DIMMER
85926-30020

LH102,112,RZH113..RHD

 1
85926-30020

LH112,RZH112,113..RHD

 1
86530 - RELAY ASSY, HORN
90987-01003

LH10#,11#,RZH10#,11#

 1
90987-02009

LH10#,11#,RZH10#,11#

 1
Common parts
91651-60614
91651-60814
Linked diagrams
8404
