RZH113L-RGMDEC (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

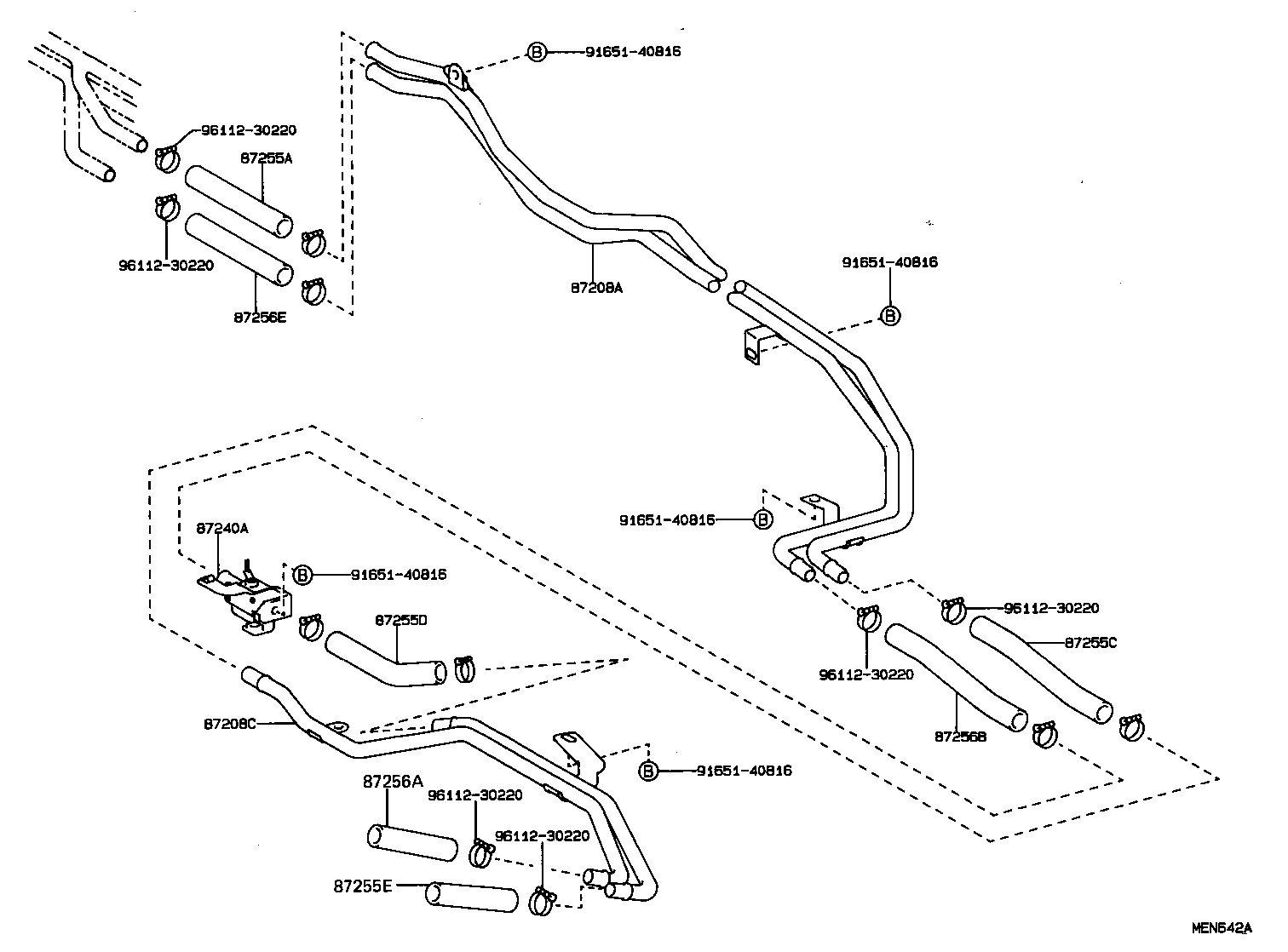

ILLUST NO. 2 OF 2(8908-9808)RZH10#,11#..LHD

Click highlighted areas on diagram

REAR

diagram 87208B 87208C 87240A 87248B 87255A 87255B 87255C 87255D 87255E 87256A 87256B 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
Common parts
91651-40816
96112-30220

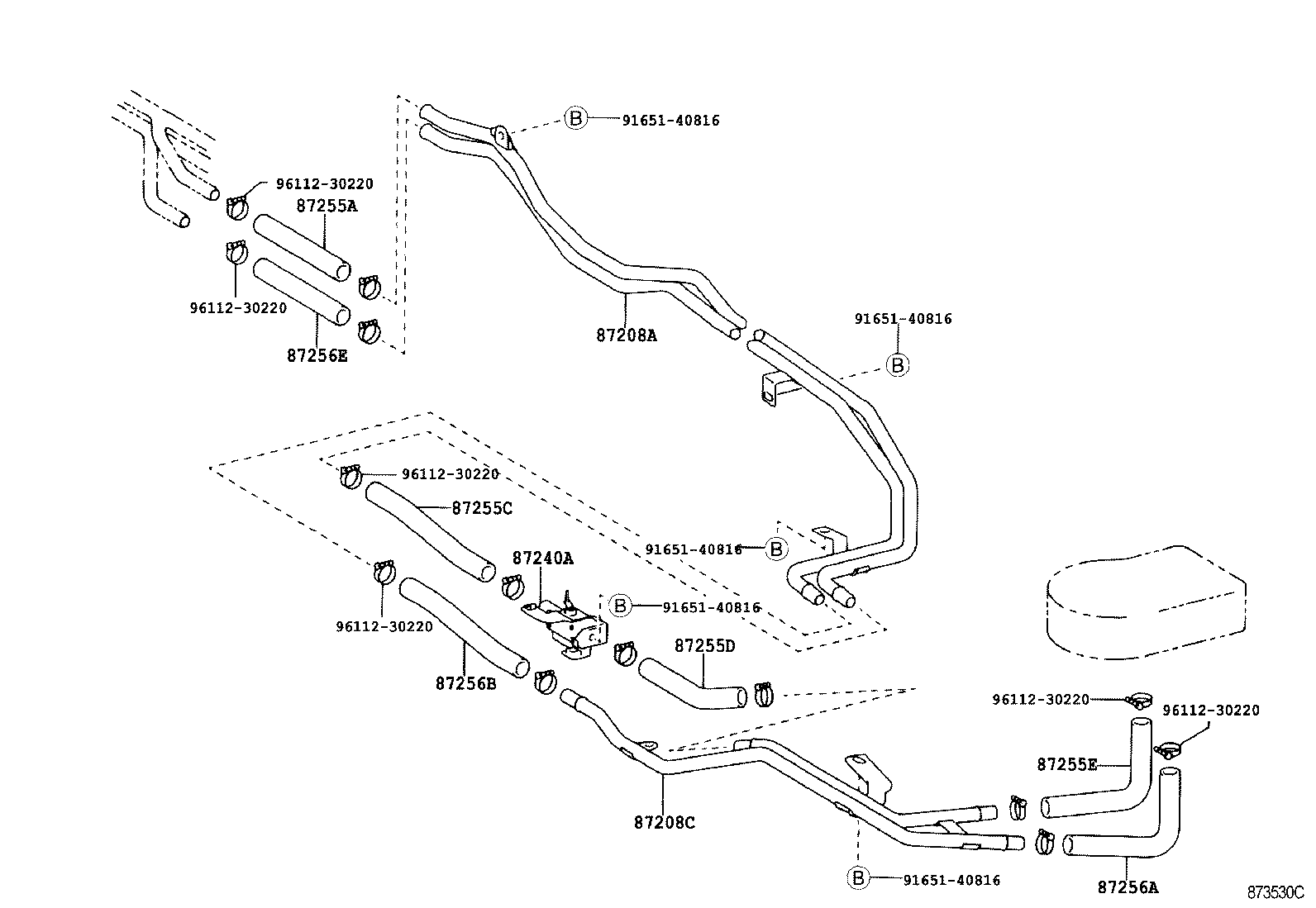

ILLUST NO. 2 OF 2(8908-9808)LH102,104,105,11#..LHD

Click highlighted areas on diagram

REAR

diagram 87208A 87208C 87240A 87255A 87255C 87255D 87255E 87256A 87256B 87256E 9165140816 9165140816 9165140816 9165140816 9165140816 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
Common parts
91651-40816
96112-30220

ILLUST NO. 1 OF 2(8908- )LH10#,11#

Click highlighted areas on diagram

FRONT

diagram 8712495J14 87208 87208 87240 87240 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87251 9165140816 9165140816 9165140816 9165140816 9165140816 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J49

LH102,11#..05S,09S

 1
87208-95J49

LH102,11#..DX

W(REAR HEATER)

 1
87208-95J50

LH10#,11#

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J49

LH102,11#..05S,09S

 1
87208-95J49

LH102,11#..DX

W(REAR HEATER)

 1
87208-95J50

LH10#,11#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J07

LH10#,11#,RZH10#,11#..LHD

 1
87240-26050

LH10#,11#,RZH10#,11#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J07

LH10#,11#,RZH10#,11#..LHD

 1
87240-26050

LH10#,11#,RZH10#,11#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#

 1
87245-95J48

RZH10#,11#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30220

RZH10#,11#

*H,L=220

 1
87245-95J60

LH10#,11#..LHD;RZH103,109,11#..LHD..STD

 1
87245-95J60

LH10#,11#..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30220

RZH10#,11#

*H,L=220

 1
87245-95J60

LH10#,11#..LHD;RZH103,109,11#..LHD..STD

 1
87245-95J60

LH10#,11#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30095

LH10#,11#,RZH10#,11#..LHD

*H,L=95

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30095

LH10#,11#,RZH10#,11#..LHD

*H,L=95

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J45

LH10#,11#,RZH10#,11#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J45

LH10#,11#,RZH10#,11#..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

RZH10#,11#

L=300

 1
99556-30300

RZH113..RHD;RZH10#,11#..DX,GL

L=300

 1
87245-95J47

LH10#,11#

 1
Common parts
87124-95J14
91651-40816
96112-30250

ILLUST NO. 1 OF 2(8908- )RZH10#,11#

Click highlighted areas on diagram

FRONT

diagram 8721495J14 87240 87240 87245A 87245B 87245C 87245C 87245E 87245E 87246A 87246A 87246E 87248A 87248A 87249A 87249A 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95J07

LH10#,11#,RZH10#,11#..LHD

 1
87240-26050

LH10#,11#,RZH10#,11#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J07

LH10#,11#,RZH10#,11#..LHD

 1
87240-26050

LH10#,11#,RZH10#,11#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#

 1
87245-95J48

RZH10#,11#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30220

RZH10#,11#

*H,L=220

 1
87245-95J60

LH10#,11#..LHD;RZH103,109,11#..LHD..STD

 1
87245-95J60

LH10#,11#..LHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J60

RZH10#,11#..LHD

 1
87245-95J60

RZH102,109,11#..09S;RZH103..4D..(03S,05S,09S)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J60

RZH10#,11#..LHD

 1
87245-95J60

RZH102,109,11#..09S;RZH103..4D..(03S,05S,09S)

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30095

LH10#,11#,RZH10#,11#..LHD

*H,L=95

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30095

LH10#,11#,RZH10#,11#..LHD

*H,L=95

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J45

LH10#,11#,RZH10#,11#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J45

LH10#,11#,RZH10#,11#..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

RZH10#,11#

L=300

 1
99556-30300

RZH113..RHD;RZH10#,11#..DX,GL

L=300

 1
87245-95J47

LH10#,11#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-95J51

RZH119..DX;RZH102,103,112,113,115..4D..SG

W(REAR HEATER)

 1
87208-26330

RZH10#,11#..DX,GL

 1
87208-95J52

RZH10#,11#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-95J51

RZH119..DX;RZH102,103,112,113,115..4D..SG

W(REAR HEATER)

 1
87208-26330

RZH10#,11#..DX,GL

 1
87208-95J52

RZH10#,11#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95J45

RZH10#,11#

 1
87208-26230

RZH10#,11#..DX,GL

 1
87208-95J75

RZH119..DX;RZH102,103,112,113,115..4D..SG

W(REAR HEATER)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95J45

RZH10#,11#

 1
87208-26230

RZH10#,11#..DX,GL

 1
87208-95J75

RZH119..DX;RZH102,103,112,113,115..4D..SG

W(REAR HEATER)

 1
Common parts
87214-95J14
91651-40816
96112-30250

ILLUST NO. 2 OF 2(8908- )LH102,11#..DX

Click highlighted areas on diagram

REAR

diagram 87208A 87208C 87240A 87255A 87255C 87255D 87255E 87256A 87256B 87256E 9165140816 9165140816 9165140816 9165140816 9165140816 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J58

LH102,11#..DX

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J67

RZH119..DX;LH102,11#,RZH103,112,113..4D..(06S,09S)

 1
87208-26270

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J09

RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)

 1
87240-95J09

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20180

RZH119..DX;RZH103,112,113,115..4D..SG

*H,L=180

 1
99556-20200

LH102,11#..DX

L=200

 1
99556-20180

RZH102,109,11#..09S;RZH103..4D..(03S,05S,09S)

*H,L=180

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20230

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

*H,L=300

 1
99556-20300

RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)

L=300

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20180

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

*H,L=180

 1
99556-20145

RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)

*H,L=145

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87245-95J63

RZH119..DX;LH102,11#,RZH103,112,113..4D..(06S,09S)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

RZH119..DX;LH102,11#,RZH103,112,113..4D..(06S,09S)

 1
87245-95J64

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)

L=300

 1
99556-20230

LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)

*H,L=300

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20180

LH102,11#..DX

*H,L=180

 1
Common parts
91651-40816
96112-30220
