8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

RZH113L-RGMDEC (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995

Engine 2RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(8908- )

Click highlighted areas on diagram

REAR COOLER DUCT(MAKER OPT)

Part #	Description	Period	Qty	Price
Common parts
88536-95J42
90119-06882
90159-60446
93315-15010
93540-25020
93560-56012

ILLUST NO. 2 OF 4(8908- )LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

REAR CONTROL

Part #	Description	Period	Qty	Price
Common parts
55933-22020
82711-95J03
90480-01532
93566-14512
Linked diagrams
8401

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

FRONT CONTROL

Part #	Description	Period	Qty	Price
Common parts
87124-20020
93560-55016
93568-54512
Linked diagrams
8302
8401

ILLUST NO. 3 OF 4(8908- )LHD

Click highlighted areas on diagram

FRONT DUCT-W(HEATER) & W(B/V)

Part #	Description	Period	Qty	Price
Common parts
90159-50068
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020
93568-55012

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

FRONT DUCT-W/O(HEATER) & W/O(B/V)

Part #	Description	Period	Qty	Price
Common parts
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020

ILLUST NO. 3 OF 4(9405- )

Click highlighted areas on diagram

REAR HEATER DUCT

Part #	Description	Period	Qty	Price
Common parts
90183-05049
93540-55020
93560-15010

ILLUST NO. 4 OF 4(8908- )RZH113..09S ; (8908- )06S..GCC..EFI ; (8908- )RZH113..06S..CBR ; (

Click highlighted areas on diagram

REAR COOLER DUCT(DEALER OPT)

Part #	Description	Period	Qty	Price
Common parts
88578-26010
88718-22420
88893-26020
93219-13005
93219-13008
93385-16018

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

FRONT CONTROL

Part #	Description	Period	Qty
55538A - COVER, COOLER SWITCH HOLE
55538-22060	LH10#,11#,RZH10#,11#	08/1989 - 08/1995	1
55905A - KNOB, HEATER CONTROL
55905-95J05	LH10#,11#,RZH10#,11#..LHD MODE	08/1989 - 08/1995	2
55905-95J04	LH10#,11#,RZH10#,11#..LHD TEMP	08/1989 - 08/1995	2
55905A - KNOB, HEATER CONTROL
55905-95J05	LH10#,11#,RZH10#,11#..LHD MODE	08/1989 - 08/1995	2
55905-95J04	LH10#,11#,RZH10#,11#..LHD TEMP	08/1989 - 08/1995	2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95J03	LH10#,11#,RZH10#,11#	08/1989 - 11/1989	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J08	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95J02	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J02	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J23	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-13013	LH10#,11#,RZH10#,11#	08/1989 - 08/1995	1
55922 - BRACKET, HEATER CONTROL BASE
55922-95J00	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	2
Common parts
93560-15020
Linked diagrams
8302
8401

ILLUST NO. 2 OF 4(8908- )LH102,11#,RZH102,103,11#..4D..06S,09S,15S

Click highlighted areas on diagram

REAR CONTROL

Part #	Description	Period	Qty
55519R - PLATE, HEATER CONTROL NAME
55519-95J20	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S) TEMP	08/1989 - 05/1991	1
55519-95J19	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S) FAN	08/1989 - 05/1991	1
55519-26030	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S) FAN	03/1994 - 08/1995	1
55519-26040	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S) TEMP	03/1994 - 08/1995	1
55519-95J19	LH102,RZH113..05S,09S;LH102..LHD..4D..SP..EUR;LH11#,RZH10#,119..LHD..4D..(03S,05S,09S) FAN	08/1993 - 03/1994	1
55519-95J20	LH102,RZH113..05S,09S;LH102..LHD..4D..SP..EUR;LH11#,RZH10#,119..LHD..4D..(03S,05S,09S) TEMP	08/1993 - 03/1994	1
55519R - PLATE, HEATER CONTROL NAME
55519-95J20	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S) TEMP	08/1989 - 05/1991	1
55519-95J19	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S) FAN	08/1989 - 05/1991	1
55519-26030	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S) FAN	03/1994 - 08/1995	1
55519-26040	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S) TEMP	03/1994 - 08/1995	1
55519-95J19	LH102,RZH113..05S,09S;LH102..LHD..4D..SP..EUR;LH11#,RZH10#,119..LHD..4D..(03S,05S,09S) FAN	08/1993 - 03/1994	1
55519-95J20	LH102,RZH113..05S,09S;LH102..LHD..4D..SP..EUR;LH11#,RZH10#,119..LHD..4D..(03S,05S,09S) TEMP	08/1993 - 03/1994	1
55907R - CABLE SUB-ASSY, TEMPERATURE CONTROL
55907-95J05	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)	08/1989 - 05/1991	1
55907-95J05	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	1
55910R - CONTROL ASSY, HEATER
55910-95J21	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	1
55910-95J21	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)	08/1989 - 05/1991	1
55937R - KNOB, HEATER CONTROL LEVER
55905-10110	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	2
55905-10110	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)	08/1989 - 05/1991	2
55937R - KNOB, HEATER CONTROL LEVER
55905-10110	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	2
55905-10110	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)	08/1989 - 05/1991	2
55939 - ORNAMENT, HEATER CONTROL
55939-95J0103	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S) GRAY,TRIM1#	08/1989 - 05/1991	1
55939-95J01B0	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S) BLUISH GRAY,TRIM1#	08/1993 - 08/1995	1
55944 - PLATE, HEATER CONTROL SUPPORT
55944-95J00	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	3
55944-95J00	RZH119..DX;LH102,11#,RZH103,112,113,115..4D..(06S,09S,15S)	08/1989 - 05/1991	3
Common parts
55933-22020
82711-95J03
90480-01532
93566-14512
Linked diagrams
8401

ILLUST NO. 3 OF 4(8908- )LHD

Click highlighted areas on diagram

FRONT DUCT

Part #	Description	Period	Qty
55077B - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55077-95J01	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-95J02	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-95J02	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-95J00	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-95J00	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
87211 - DUCT, AIR, NO.1
87211-95J08	LH10#,11#,RZH10#,11#..LHD	08/1989 - 08/1995	1
87239A - COVER, HEATER INLET HOLE
87239-95J04	LH10#,11#,RZH10#,11#	08/1989 - 08/1993	1
87239-26020	LH10#,11#,RZH10#,11#..LHD	08/1993 - 08/1995	1
Common parts
90159-50068
90159-60259
90179-06060
90189-06084
93560-15020
93566-15514

ILLUST NO. 4 OF 4(8908- )LHD

Click highlighted areas on diagram

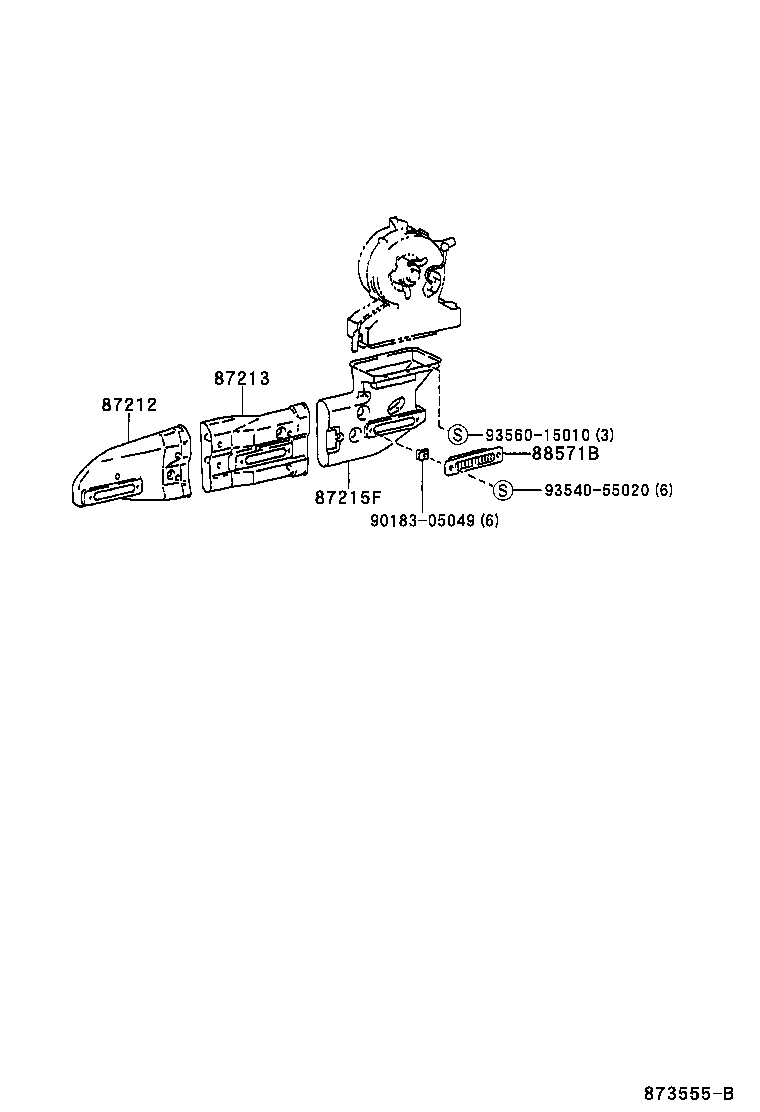

REAR HEATER DUCT

Part #	Description	Period	Qty
87212 - DUCT, AIR, REAR NO.1
87212-95J03	RZH119..DX;LH102,11#,RZH103,112,113..4D..(06S,09S)	08/1989 - 05/1991	1
87212-95J03	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	1
87213 - DUCT, AIR, REAR NO.2
87213-95J02	RZH119..DX;LH102,11#,RZH103,112,113..4D..(06S,09S)	08/1989 - 05/1991	1
87213-95J02	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	1
87215F - DUCT, AIR, REAR NO.3
87215-95J01	RZH119..DX;LH102,11#,RZH103,112,113..4D..(06S,09S)	08/1989 - 05/1991	1
87215-95J01	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..05S,09S;LH112,RZH103..LHD..4D..(03S,05S,09S)	08/1993 - 08/1995	1
88571B - GRILLE, AIR OUTLET
87125-95J0803	RZH119..DX;LH102,11#,RZH103,112,113..4D..(06S,09S) GRAY,TRIM1#	08/1989 - 05/1991	3
87125-95J08C0	LH102..LHD..4D..SP..EUR;LH102,118,RZH102,109,11#..09S;LH112,RZH103..LHD..4D..(03S,09S) BLACK,TRIM1#	08/1993 - 08/1995	3
Common parts
90183-05020
93540-55025
93560-15010
