RZH113L-RGMDEC (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 67003H 67004H 67525 67528A 67852A 67857C 67857C 67857C 67871 67872 67887A 67888A 9014960027 9018906062 9018906221 9095001133 9095006001 9095006098
Part # Description Qty Price
Common parts
90149-60027
90189-06062
90189-06221
90950-01133
90950-06001
90950-06098

ILLUST NO. 1 OF 2(8908- )DX,GL,STD

Click highlighted areas on diagram

diagram 67603 67603 67604 67604 67604B 6777116080 67772F
Part # Description Qty Price
Common parts
67771-16080

ILLUST NO. 1 OF 2(8908- )

Click highlighted areas on diagram

diagram 67003H 67004H 67525 67528A 67852A 67857C 67857C 67871 67872 67887A 67888A 9014960027 9018906062 9095001133 9095006098
Part # Description Qty Price
67003H - DOOR SUB-ASSY, SLIDE, RH
67003-95J26

LH102,11#,RZH10#,11#..06S,09S,15S

W(ELECTRIC DOOR LOCK)

 1
67003-95J25

LH102,11#,RZH10#,11#..06S,09S,15S

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95J00

LH102,11#,RZH10#,11#..4D

 2
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-95J00

LH102,11#,RZH10#,11#..4D

 2
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-95J03

LH102,11#,RZH10#,11#..4D

 1
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-95J02

LH10#,11#,RZH10#,11#..LHD

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-95J00

LH10#,11#,RZH10#,11#..LHD

 1
Common parts
90149-60027
90189-06062
90950-01133
90950-06098

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 67603 67603 67604 67604B 6777116080 67772F
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-95J0403

LH102,11#,RZH10#,11#..06S,09S,15S

GRAY,TRIM1#

 1
67630-95J04B0

LH102,11#,RZH103,109,11#..06S,09S

BLUISH GRAY,TRIM1#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-95J0403

LH102,11#,RZH10#,11#..06S,09S,15S

GRAY,TRIM1#

 1
67630-95J04B0

LH102,11#,RZH103,109,11#..06S,09S

BLUISH GRAY,TRIM1#

 1
Common parts
67771-16080

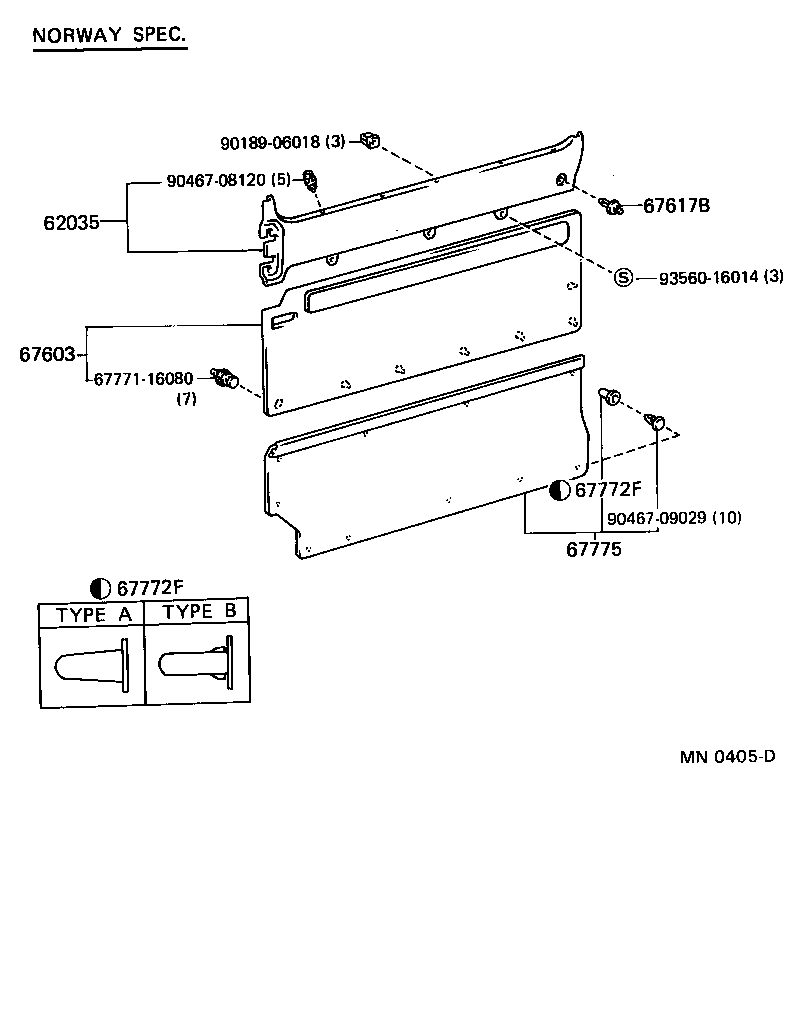

ILLUST NO. 2 OF 2(8908- )DX

Click highlighted areas on diagram

diagram 62035 67603 67617B 6777116080 67772F 67772F 67775 9018906018 9046708120 9046709029 9356016014
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-95J0403

LH102,11#,RZH10#,11#..06S,09S,15S

GRAY,TRIM1#

 1
67630-95J04B0

LH102,11#,RZH103,109,11#..06S,09S

BLUISH GRAY,TRIM1#

 1
Common parts
67771-16080
90189-06018
90467-08120
90467-09029
93560-16014
