RZH113L-RGMDEC (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9308- )LH102,104,105,11#,154,164,172,174,RZH10#,11#,155..LHD

Click highlighted areas on diagram

W/O(ABS)

diagram 31478D 47311 47311B 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47316 47316A 47321 47321D 47322B 47323 47324 47325 47326 47327 47351B 47378 47381 47910 47910B 47936 9046106112 9046106112 9046106112 9046112328 9046400581 9046808032 9046808032 9046808032 9048001069 9048001196 9048001359 9094901535 9094901536 9094901A33 9094901A34 9094901A35 9161160814 9161160814 9161160814 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611G0816 91611G0820 91611G0820 91611G0820 9165140814 9165140820 9622130905
Part # Description Qty Price
Common parts
90461-06112
90461-12328
90464-00581
90468-08032
90480-01069
90480-01196
90480-01359
90949-01535
90949-01536
90949-01A33
90949-01A34
90949-01A35
91611-60814
91611-B0816
91611-G0816
91611-G0820
91651-40814
91651-40820
96221-30905

ILLUST NO. 3 OF 3(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125

Click highlighted areas on diagram

W(LSPV)

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47936 47937 47938 9017908230 9020108062 9020123360 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91611B0816 91611B0816 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800 9538102020
Part # Description Qty Price
Common parts
90179-08230
90201-08062
90201-23360
91131-50840
91611-B0816
94130-00802
94512-00800
94612-10800
95381-02020

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47936 47937 47938 9017908117 9017910016 9020108062 9020123360 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9161160816 9411040800 9411040800 9414140800 9451200800 9451200800 9451200800 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26010

LH102,112,RZH102,103,112,113,115

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

LH10#,11#,RZH10#,11#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26180

LH10#,11#,RZH10#,11#

 1
47910B - PLUG, BLEEDER
47547-27020

LH10#,11#,RZH10#,11#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26080

LH102,112,RZH102,103,112,113,115

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH10#,11#,RZH10#,11#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH10#,11#,RZH10#,11#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LH10#,11#,RZH10#,11#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH10#,11#,RZH10#,11#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH10#,11#,RZH10#,11#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26110

LH10#,11#,RZH10#,11#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26090

LH10#,11#,RZH10#,11#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020

LH10#,11#,RZH10#,11#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LH10#,11#,RZH10#,11#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH10#,11#,RZH10#,11#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH10#,11#,RZH10#,11#

 2
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35040

LH10#,11#,RZH10#,11#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26020

LH10#,11#,RZH10#,11#

 1
47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET
47938-26010

LH10#,11#,RZH10#,11#

 1
Common parts
90179-08117
90179-10016
90201-08062
90201-23360
91131-50840
91611-60816
94110-40800
94141-40800
94512-00800
95381-02020

ILLUST NO. 1 OF 2(8908- )LH102,112,RZH102,103,112,113,115..LHD

Click highlighted areas on diagram

diagram 47311 47311B 47313 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47316 47316A 47321 47321D 47322B 47323 47324 47325 47326 47327 47351B 47378 9046106112 9046108567 9046112328 9046808032 9046808032 9046808032 9048001069 9048001196 9048001359 9094901535 9094901536 9161260814 9161260814 9161260816 9161260816 9161260820 9161260820 9161260820 9161260820 91612G0816 9165140814 9165140820 9622130905
Part # Description Qty Price

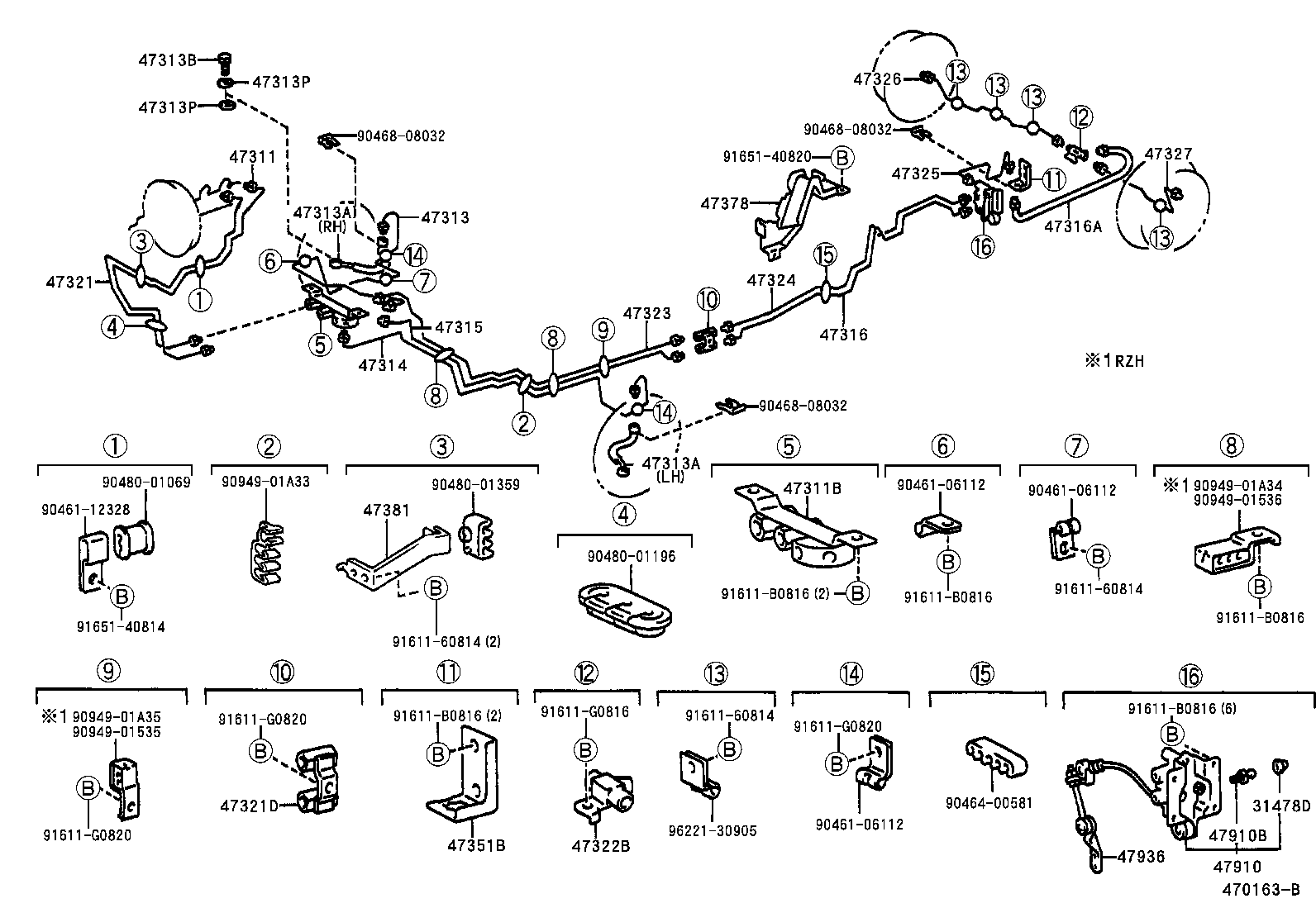

47311 - TUBE, FRONT BRAKE, NO.1
47311-26450

RZH10#,11#..LHD

 1
47311-26350

LH10#,11#..LHD

 1
47311-26370

RZH10#,11#..LHD

 1
47311-26460

LH10#,11#..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90414-10019

LH10#,11#,RZH10#,11#..5F

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26140

LH102,112,RZH102,103,112,113,115

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02590

LH102,112,RZH102,103,112,113,115

RH

 1
90947-02755

RZH103,113;LH102,112..DX,GL

RH

 1
90947-02756

RZH103,113;LH102,112..DX,GL

LH

 1
90947-02591

LH102,112,RZH102,103,112,113,115

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

LH10#,11#,RZH10#,11#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

LH10#,11#,RZH10#,11#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH10#,11#,RZH10#,11#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH10#,11#,RZH10#,11#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH10#,11#,RZH10#,11#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH10#,11#,RZH10#,11#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-26140

LH102,112,RZH102,103,112,113,115

 1
47314-26190

LH102,112,RZH102,103,113

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26150

LH10#,11#,RZH10#,11#

 1
47315-26120

LH10#,11#,RZH10#,11#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26150

LH11#,RZH11#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33456

LH102,112,RZH102,103,112,113,115

 1
96940-33455

LH102,112,RZH102,103,113

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26280

RZH10#,11#..LHD

 1
47321-26260

LH10#,11#..LHD

 1
47321-26360

RZH10#,11#..LHD

 1
47321-26370

LH10#,11#..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

LH10#,11#,RZH10#,11#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10243

LH10#,11#,RZH10#,11#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26310

LH10#,11#,RZH10#,11#

 1
47323-26340

LH10#,11#,RZH10#,11#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26180

LH11#,RZH11#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26250

LH10#,11#,RZH10#,11#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26280

LH102,112,RZH102,103,112,113,115..LHD

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26130

LH102,112,RZH102,103,112,113,115..LHD

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26120

LH10#,11#,RZH10#,11#

 1
47378 - PROTECTOR, BRAKE TUBE
47378-26010

LH112..RHD;RZH112..4D..(03S,09S);LH102,11#,RZH102,103,113,119..DX

 1
47378-26030

LH112,RZH113..RHD;RZH10#,11#..DX,GL

 1
Common parts
90461-06112
90461-08567
90461-12328
90468-08032
90480-01069
90480-01196
90480-01359
90949-01535
90949-01536
91612-60814
91612-60816
91612-60820
91612-G0816
91651-40814
91651-40820
96221-30905
