RZH113L-RGMDEC (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

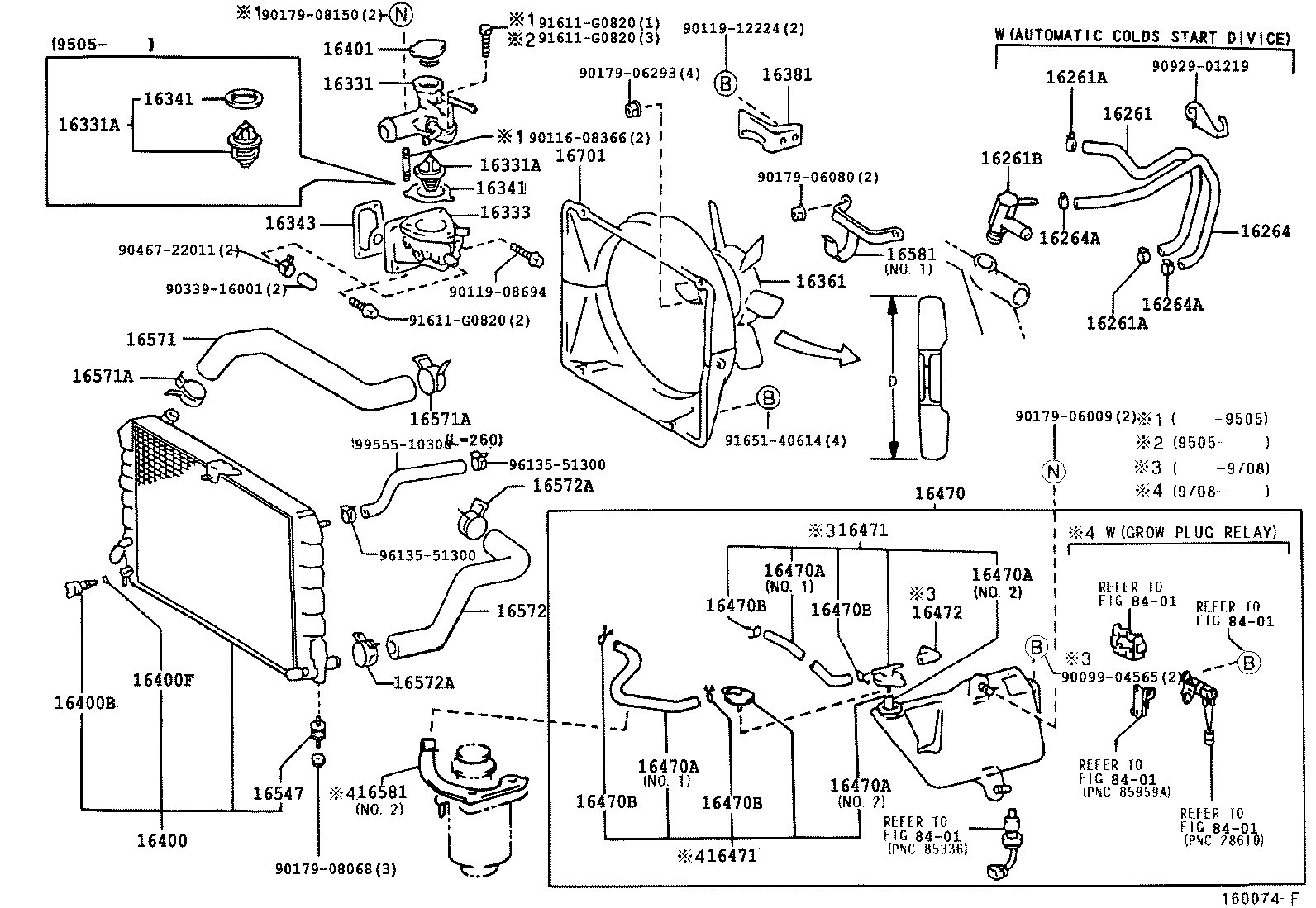

ILLUST NO. 1 OF 2(8908- )1RZ,2RZ

Click highlighted areas on diagram

diagram 1605 16119A 16127 16128A 1619271010 16261 16261A 16261A 16268 16268G 16309 16321 16325 16331 16331A 16331J 16341 16361 16361 16381 16385 16400 16400B 16400F 16400K 16400L 16400L 16400M 16400N 16400N 16401 16411 16470 16470A 16470A 16470B 16470B 16471 16472 16547 16571 16571A 16571A 16572 16572A 16572A 16701 8401 9009904565 9011908875 9011908A13 9011908A25 9011908A74 9011910757 9012208012 9017906080 9017906080 9017906311 9017908040 9017908040 9017908117 9033916001 9033916001 9046110732 9046722011 9046722011 9151160855 91511B0835 91511B0855 9151260835 91621B0625 9162660625 91641K0816 91642K1020 9165140614 9212260828
Part # Description Qty Price
Common parts
16192-71010
90099-04565
90119-08875
90119-08A13
90119-08A25
90119-08A74
90119-10757
90122-08012
90179-06080
90179-06311
90179-08040
90179-08117
90339-16001
90461-10732
90467-22011
91511-60855
91511-B0835
91511-B0855
91512-60835
91621-B0625
91626-60625
91641-K0816
91642-K1020
91651-40614
92122-60828
Linked diagrams
1605
8401

(8908-9808)2L,3L

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16264 16264A 16264A 16331 16331A 16331A 16333 16341 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470A 16470A 16470B 16470B 16470B 16470B 16471 16471 16472 16547 16571 16571A 16571A 16572 16572A 16572A 16581 16581 16701 8401 8401 8401 8401 8401 9009904565 9011608366 9011908694 9011912224 9017906009 9017906080 9017906293 9017908068 9017908150 9033916001 9046722011 9092901219 91611G0820 91611G0820 91611G0820 9165140614 9613551300 9613551300 9955510300
Part # Description Qty Price
Common parts
90099-04565
90116-08366
90119-08694
90119-12224
90179-06009
90179-06080
90179-06293
90179-08068
90179-08150
90339-16001
90467-22011
90929-01219
91611-G0820
91651-40614
96135-51300
99555-10300
Linked diagrams
8401

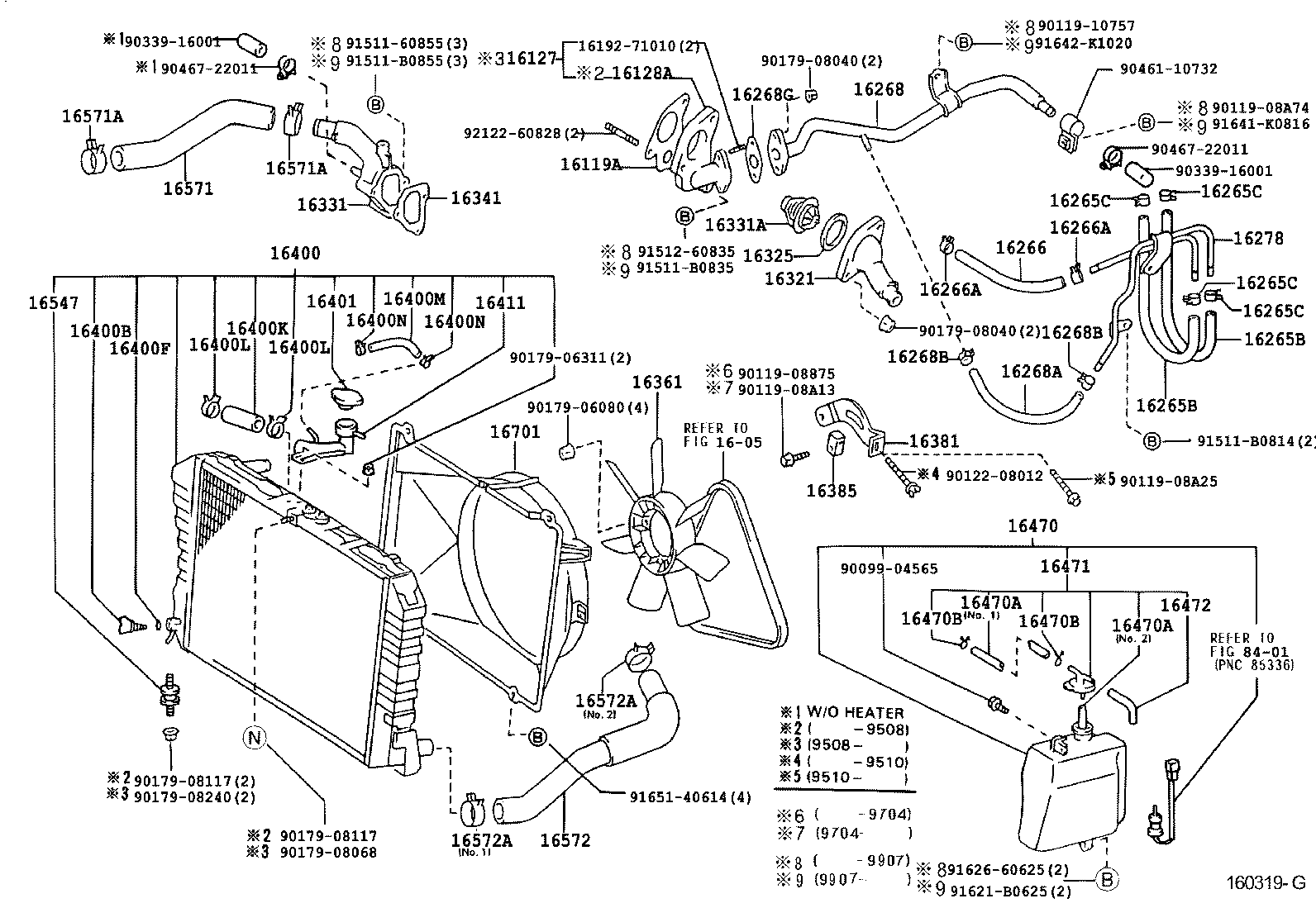

ILLUST NO. 1 OF 2(9405- )1RZE,2RZE

Click highlighted areas on diagram

diagram 1605 16119A 16127 16128A 1619271010 16265B 16265B 16265C 16265C 16265C 16265C 16266 16266A 16266A 16268 16268A 16268B 16268B 16268G 16278 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16400B 16400F 16400K 16400L 16400L 16400M 16400N 16400N 16401 16411 16470 16470A 16470A 16470B 16470B 16471 16472 16547 16571 16571A 16571A 16572 16572A 16572A 16701 8401 9009904565 9011908875 9011908A13 9011908A25 9011908A74 9011910757 9012208012 9017906080 9017906311 9017908040 9017908040 9017908068 9017908117 9017908117 9017908240 9033916001 9033916001 9046110732 9046722011 9046722011 9151160855 91511B0814 91511B0835 91511B0855 9151260835 91621B0625 9162660625 91641K0816 91642K1020 9165140614 9212260828
Part # Description Qty Price
Common parts
16192-71010
90099-04565
90119-08875
90119-08A13
90119-08A25
90119-08A74
90119-10757
90122-08012
90179-06080
90179-06311
90179-08040
90179-08068
90179-08117
90179-08240
90339-16001
90461-10732
90467-22011
91511-60855
91511-B0814
91511-B0835
91511-B0855
91512-60835
91621-B0625
91626-60625
91641-K0816
91642-K1020
91651-40614
92122-60828
Linked diagrams
1605
8401

(8908- )1RZ,2RZE

Click highlighted areas on diagram

diagram 1605 16119A 16128A 1619271010 16261 16261A 16261A 16265B 16265C 16265C 16266 16266A 16266A 16268 16268A 16268B 16268B 16268G 16278 16321 16325 16331 16331A 16331J 16341 16361 16381 16385 16400 16400B 16400F 16400K 16400L 16400L 16400M 16400N 16400N 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16547 16571 16571A 16571A 16572 16572A 16572A 16701 9009904565 9011208012 9011908875 9011908A74 9011910757 9017906080 9017908040 9017908040 9017908117 9046110732 9151160814 9151160855 9151260835 9165140614 91656A0625 9212260828
Part # Description Qty Price
16119A - GASKET, THERMOSTAT GUIDE
16119-75010

1RZ,2RZE..RZH10#,11#

 1
16119-75020

1RZ,2RZE..RZH10#,11#

 1
16128A - PLATE, WATER PUMP THERMOSTAT GUIDE
16128-75010

1RZ,2RZE..RZH10#,11#

 1
16128-75020

1RZ,2RZE..RZH10#,11#

 1
16265B - HOSE, INTAKE MANIFOLD WATER, NO.1
99555-10260

2RZE..RZH103,109,113,115,119

*H,L=250

 1
16265C - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE NO.1)
96135-41300

2RZE..RZH103,109,113,115,119

 2
16265C - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE NO.1)
96135-41300

2RZE..RZH103,109,113,115,119

 2
16266 - HOSE, INTAKE MANIFOLD WATER, NO.2
99555-10140

2RZE..RZH103,109,113,115,119

*H,L=140

 1
16266A - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE, NO.2)
96135-41300

2RZE..RZH103,109,113,115,119

 2
16266A - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE, NO.2)
96135-41300

2RZE..RZH103,109,113,115,119

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-75010

1RZ,2RZE..RZH10#,11#

 1
16268A - HOSE(FOR WATER BY-PASS PIPE)
99555-10160

2RZE..RZH103,109,113,115,119

*H,L=160

 1
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96135-41300

2RZE..RZH103,109,113,115,119

 2
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96135-41300

2RZE..RZH103,109,113,115,119

 2
16268G - GASKET(FOR WATER BY-PASS PIPE)
17175-75010

1RZ,2RZE..RZH10#,11#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-75011

2RZE..RZH103,109,11#

 1
16278-75010

2RZE..RZH103,109,113,115,119

 1
16321 - INLET, WATER
16321-75010

1RZ,2RZE..RZH10#,11#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

1RZ,2RZE..RZH10#,11#

 1
16331 - OUTLET, WATER
16304-75010

1RZ,2RZE..RZH10#,11#

 1
16331A - THERMOSTAT
90916-03088

1RZ,2RZE..RZH10#,11#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-75010

1RZ,2RZE..RZH10#,11#

 1
16361 - FAN
16361-38010

1RZ,2RZE..RZH10#,11#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-75010

1RZ,2RZE..RZH10#,11#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

1RZ,2RZE..RZH10#,11#

 1
16400 - RADIATOR ASSY
16400-75061

1RZ,2RZE..RZH10#,11#..5F

 1
16400-75062

1RZ,2RZE..RZH10#,11#..5F

 1
16400-75070

1RZ,2RZE..RZH10#,11#..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-75010

1RZ,2RZE..RZH10#,11#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

1RZ,2RZE..RZH10#,11#

 1
16400K - HOSE, WATER, NO.1
99555-40140

1RZ,2RZE..RZH10#,11#

L=140

 1
16400L - CLAMP, NO.1
90467-28003

1RZ,2RZE..RZH10#,11#

 2
16400L - CLAMP, NO.1
90467-28003

1RZ,2RZE..RZH10#,11#

 2
16400M - HOSE, WATER, NO.2
99555-10250

1RZ,2RZE..RZH10#,11#

*H,L=250

 1
16400N - CLAMP, NO.2
90467-13001

1RZ,2RZE..RZH10#,11#

 2
16400N - CLAMP, NO.2
90467-13001

1RZ,2RZE..RZH10#,11#

 2
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

1RZ,2RZE..RZH10#,11#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-75010

1RZ,2RZE..RZH10#,11#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33466

1RZ,2RZE..RZH10#,11#

*H,L=210,NO.1

 1
85338-75010

1RZ,2RZE..RZH10#,11#

NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33466

1RZ,2RZE..RZH10#,11#

*H,L=210,NO.1

 1
85338-75010

1RZ,2RZE..RZH10#,11#

NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1RZ,2RZE..RZH10#,11#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1RZ,2RZE..RZH10#,11#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-75010

1RZ,2RZE..RZH10#,11#

 1
16472 - HOSE, BREATHER
85338-70100

1RZ,2RZE..RZH10#,11#

 1
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-67040

1RZ,2RZE..RZH10#,11#

 2
16571 - HOSE, RADIATOR, INLET
16571-75010

1RZ,2RZE..RZH10#,11#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

1RZ,2RZE..RZH10#,11#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

1RZ,2RZE..RZH10#,11#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-75010

1RZ,2RZE..RZH102,103,112,113,115

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

1RZ,2RZE..RZH10#,11#

RADIATOR SIDE

 1
90467-37002

1RZ,2RZE..RZH10#,11#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

1RZ,2RZE..RZH10#,11#

RADIATOR SIDE

 1
90467-37002

1RZ,2RZE..RZH10#,11#

ENGINE SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16701-75010

1RZ,2RZE..RZH102,103,112,113,115

 1
Common parts
16192-71010
90099-04565
90112-08012
90119-08875
90119-08A74
90119-10757
90179-06080
90179-08040
90179-08117
90461-10732
91511-60814
91511-60855
91512-60835
91651-40614
91656-A0625
92122-60828
Linked diagrams
1605
