RZH113L-RGMDE (1994)

Toyota Hiace Van,Commuter

Production May 1994 - Aug 1995
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9405- )EFI

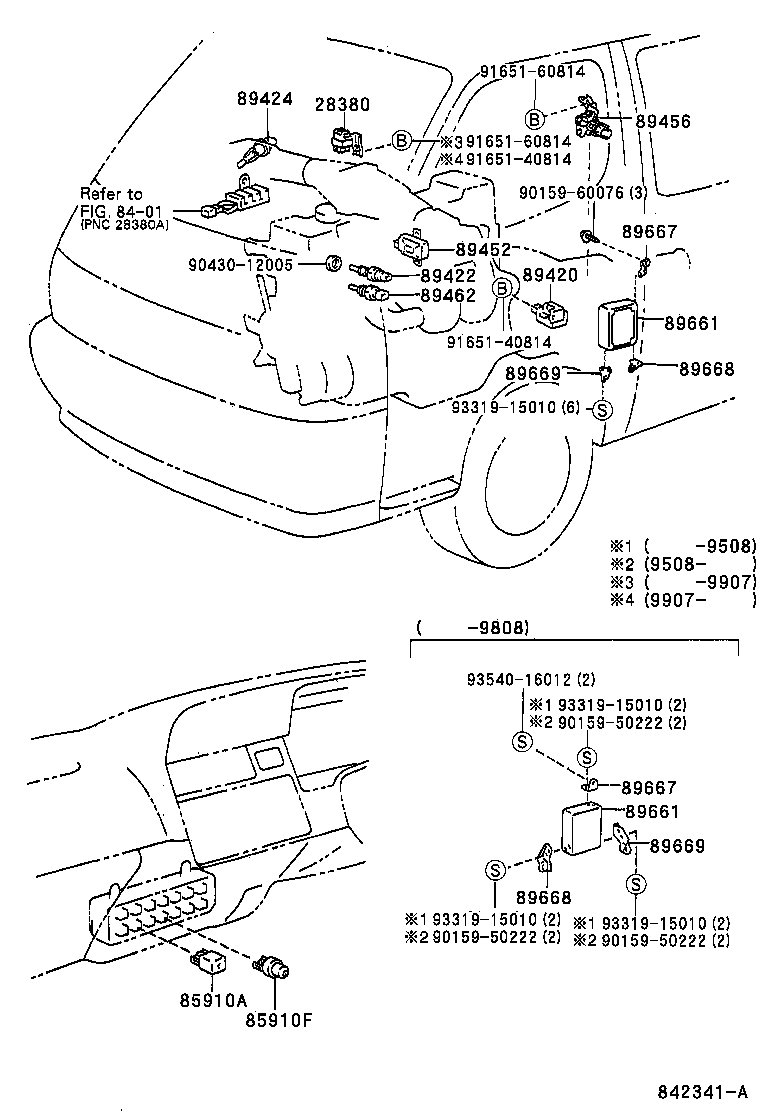

Click highlighted areas on diagram

diagram 28380 8401 85910A 85910F 89420 89422 89424 89452 89456 89462 89661 89661 89667 89667 89668 89668 89669 89669 9015950222 9015950222 9015950222 9015960076 9043012005 9165140814 9165140814 9165160814 9165160814 9331915010 9331915010 9331915010 9331915010 9354016012
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

RZH105,115..STD..CIS;RZH102,103,112,125,135,153..RHD..EFI;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

RZH105,115..STD..CIS;RZH102,103,112,125,135,153..RHD..EFI;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-20030

RZH113..EFI

 1
89661 - COMPUTER, ENGINE CONTROL
89661-26260

RZH113..DX

 1
89661 - COMPUTER, ENGINE CONTROL
89661-26260

RZH113..DX

 1
Common parts
90159-50222
90159-60076
90430-12005
91651-40814
91651-60814
93319-15010
93540-16012
Linked diagrams
8401
