RZH112R-RRMRS (1991)
Toyota Hiace Van,Commuter

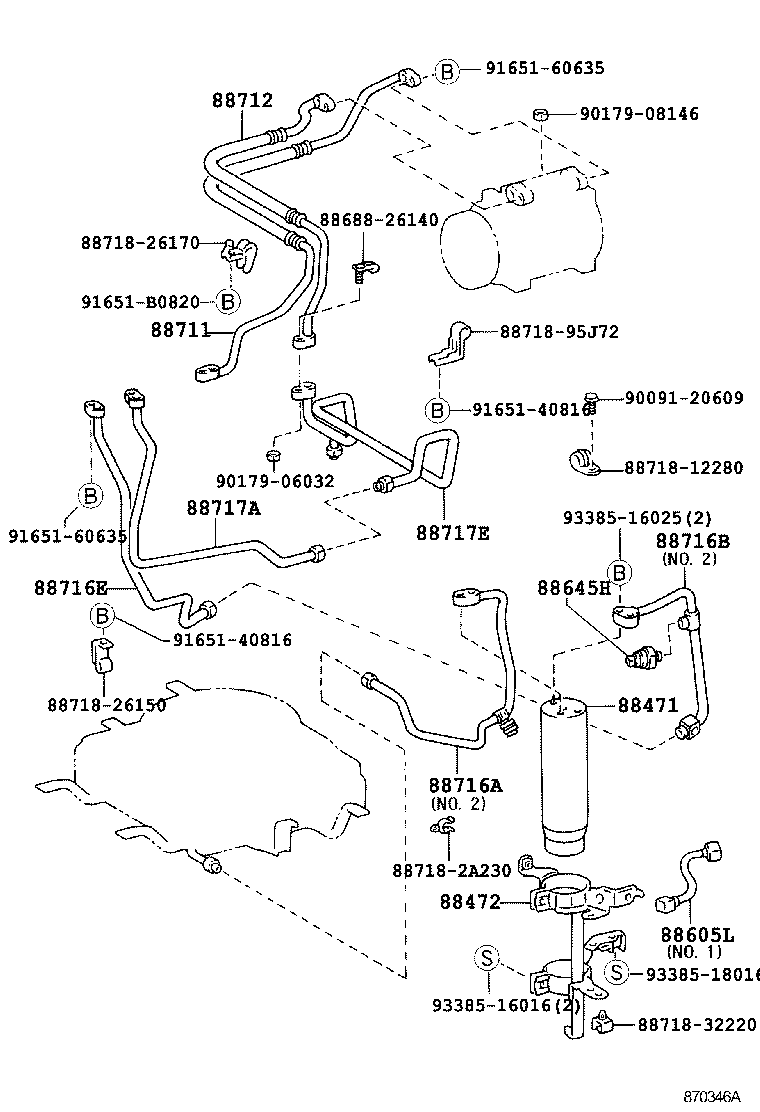

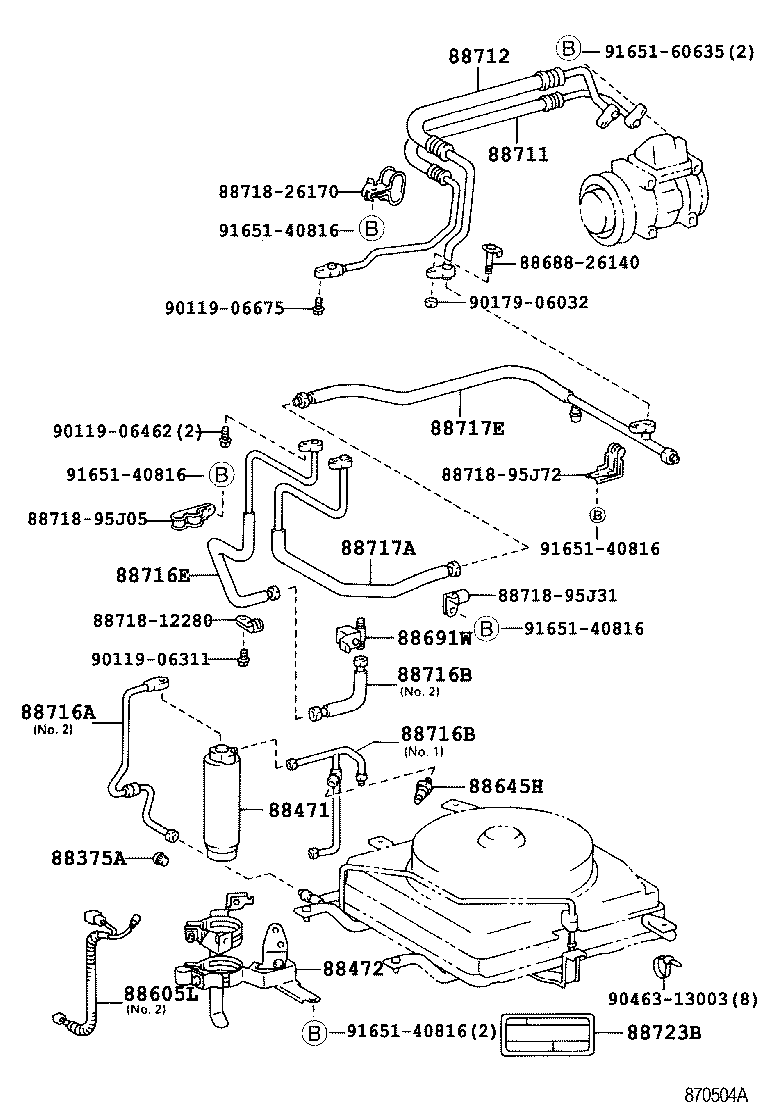

ILLUST NO. 2 OF 5(9308-9508)RHD
FRONT PIPING---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(06S,09S,10S,12S)..(CBR,DSL);LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH102,104,112,113,114..(03S,06S,09S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 88471-28100 |
RZH112..4D..06S |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26180 |
LH103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88605-26250 |
LH125,RZH125;LH112,113,RZH112,113..RHD..GEN;LH103,104,105,114,115,RZH10#,114,115..CIS,GCC,GEN DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88605-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD NO.1 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
RZH112..4D..06S |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-34010 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88718-12280 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 88718-95J72 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 90179-08146 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-B0820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93385-18016 | ||||

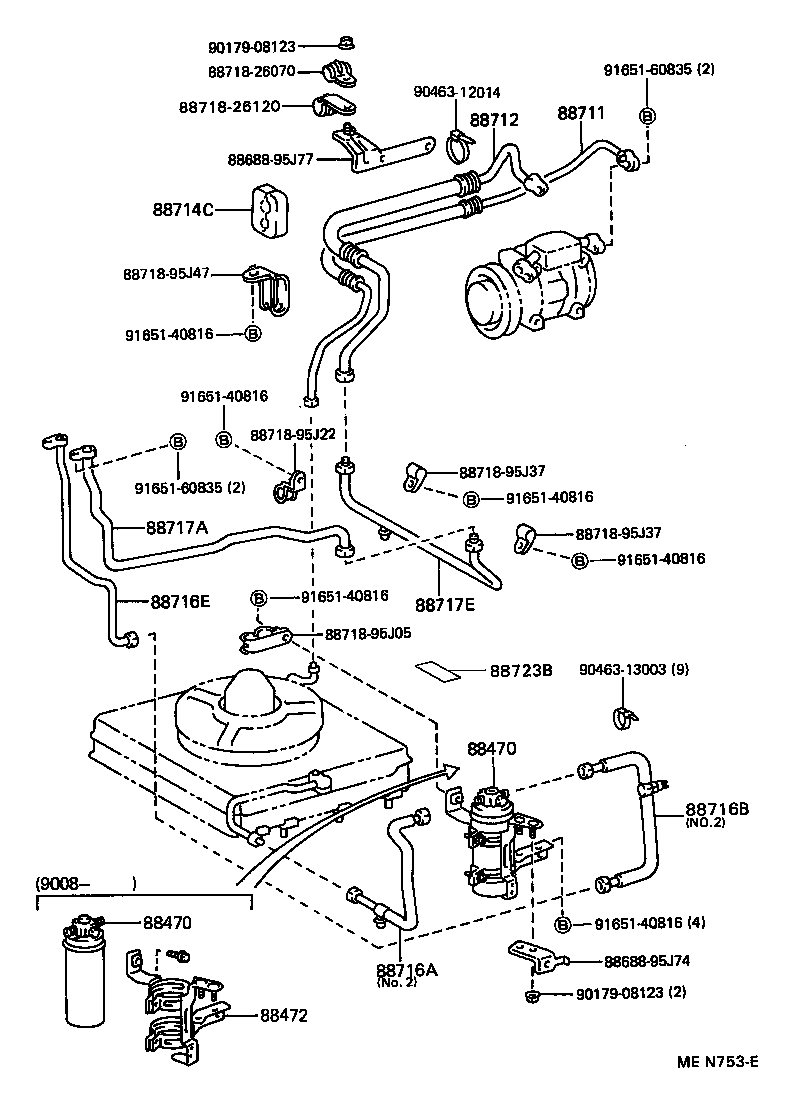

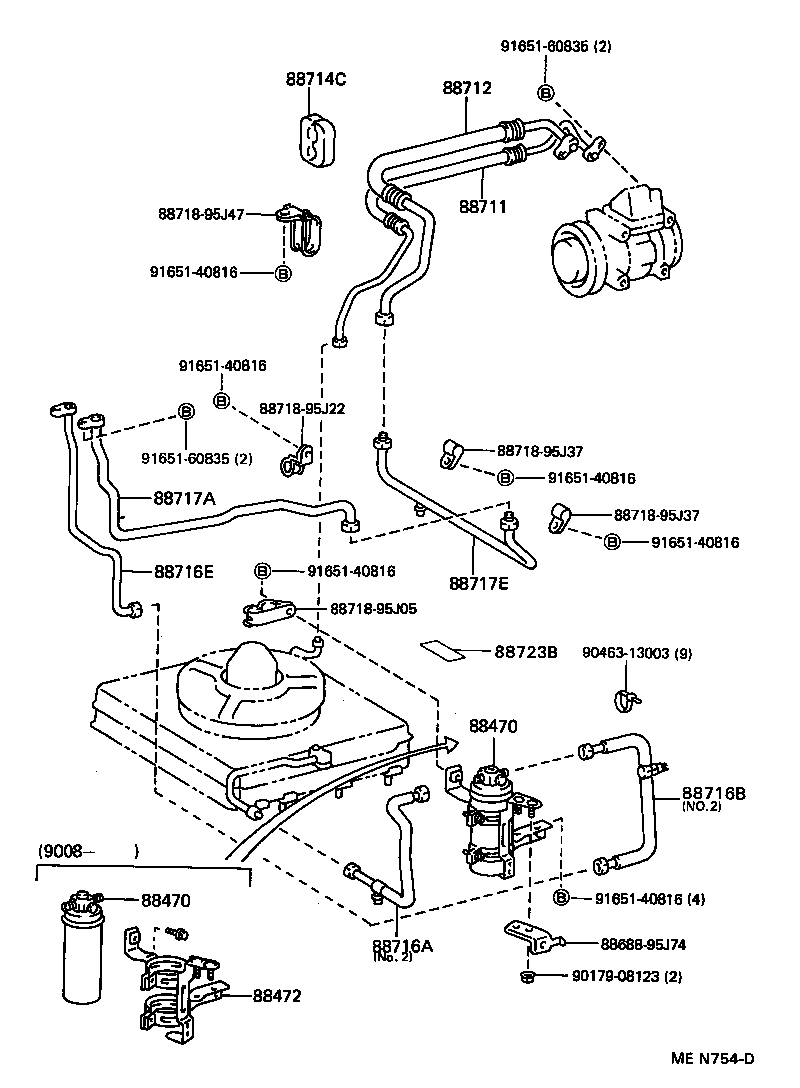

ILLUST NO. 1 OF 5(8908-9308)RHD..GEN
CONDENSER---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-26290 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN |
1 | ||
| 88460-26080 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88460-26530 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-26060 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88590-26080 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88590-26150 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-14450 | ||||
| 88718-95D14 | ||||
| 88897-28010 | ||||
| 90179-06032 | ||||
| 93385-16012 | ||||
| 93385-18020 | ||||

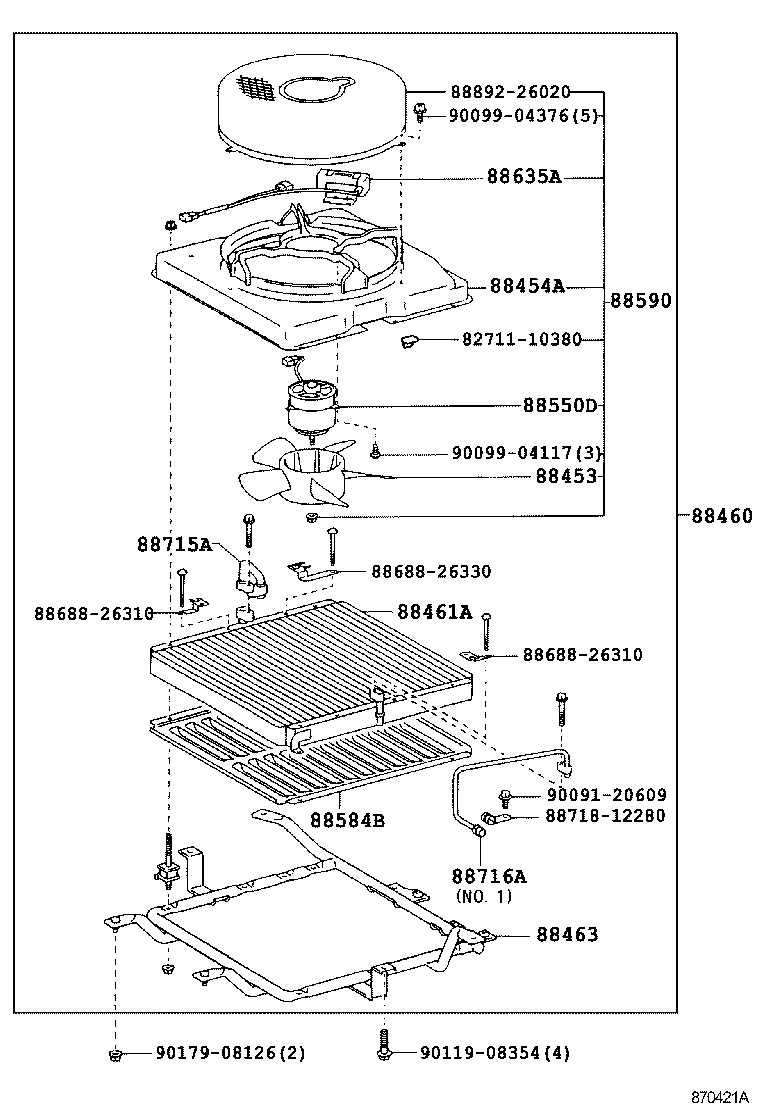

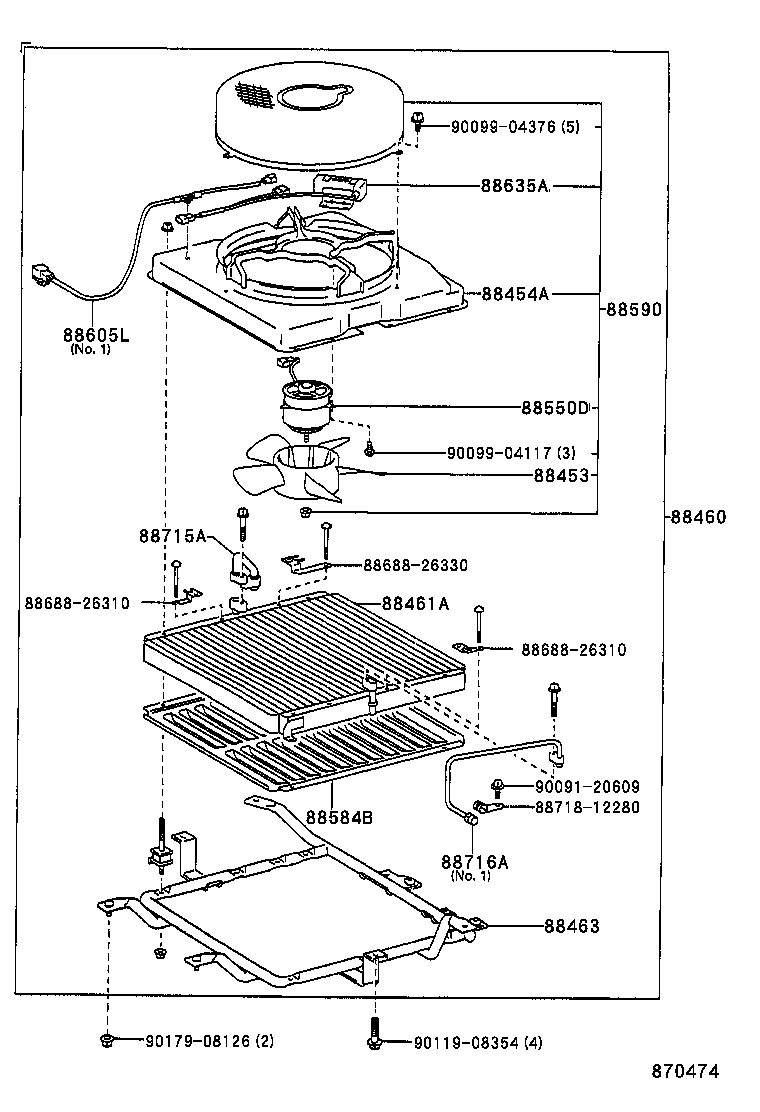

ILLUST NO. 1 OF 5(9308-9808)RHD
CONDENSER---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453-26020 |
RZH112..4D..06S |
1 | ||
| 88453-26020 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26100 |
RZH112..4D..06S |
1 | ||
| 88454-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88454-26100 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-26290 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN |
1 | ||
| 88460-26080 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88460-26530 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26020 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 88461-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88461-26140 |
RZH112..4D..06S |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-26060 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26110 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88550-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88584-26050 |
RZH112..4D..06S |
1 | ||
| 88584-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88590-26080 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88590-26150 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88715-26210 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88715-26330 |
RZH112..4D..06S |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88688-26310 | ||||
| 88688-26330 | ||||
| 88718-12280 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90119-08354 | ||||
| 90179-08126 | ||||
ILLUST NO. 2 OF 5(9508- )RHD
FRONT PIPING---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(06S,09S,10S,12S)..(CBR,DSL);LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH102,104,112,113,114..(03S,06S,09S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 88471-28100 |
RZH112..4D..06S |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26180 |
LH103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88605-26250 |
LH125,RZH125;LH112,113,RZH112,113..RHD..GEN;LH103,104,105,114,115,RZH10#,114,115..CIS,GCC,GEN DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88605-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD NO.1 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
RZH112..4D..06S |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-34010 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 88718-95J72 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-B0822 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 1 OF 5(9308-9808)RHD..GEN
CONDENSER---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453-26020 |
RZH112..4D..06S |
1 | ||
| 88453-26020 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26100 |
RZH112..4D..06S |
1 | ||
| 88454-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88454-26100 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-26290 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN |
1 | ||
| 88460-26080 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88460-26530 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26020 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 88461-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88461-26140 |
RZH112..4D..06S |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-26060 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26110 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88550-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88584-26050 |
RZH112..4D..06S |
1 | ||
| 88584-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88590-26080 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88590-26150 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26180 |
LH103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88605-26250 |
LH125,RZH125;LH112,113,RZH112,113..RHD..GEN;LH103,104,105,114,115,RZH10#,114,115..CIS,GCC,GEN DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88605-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD NO.1 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
RZH112..4D..06S |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88715-26210 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88715-26330 |
RZH112..4D..06S |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| Common parts | ||||
| 88688-26310 | ||||
| 88688-26330 | ||||
| 88718-12280 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90119-08354 | ||||
| 90179-08126 | ||||
ILLUST NO. 2 OF 5(9308-9508)RHD
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30280 |
RZH112..4D..06S |
2 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(06S,09S,10S,12S)..(CBR,DSL);LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH102,104,112,113,114..(03S,06S,09S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 88471-28100 |
RZH112..4D..06S |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26180 |
LH103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88605-26250 |
LH125,RZH125;LH112,113,RZH112,113..RHD..GEN;LH103,104,105,114,115,RZH10#,114,115..CIS,GCC,GEN DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88605-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD NO.1 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
RZH112..4D..06S |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-34010 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88718-12280 | ||||
| 88718-26170 | ||||
| 88718-95J05 | ||||
| 88718-95J31 | ||||
| 88718-95J72 | ||||
| 90119-06311 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06032 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
ILLUST NO. 2 OF 5(9508- )RHD
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(06S,09S,10S,12S)..(CBR,DSL);LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH102,104,112,113,114..(03S,06S,09S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 88471-28100 |
RZH112..4D..06S |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26180 |
LH103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88605-26250 |
LH125,RZH125;LH112,113,RZH112,113..RHD..GEN;LH103,104,105,114,115,RZH10#,114,115..CIS,GCC,GEN DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88605-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD NO.1 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
RZH112..4D..06S |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-34010 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26170 | ||||
| 88718-2A230 | ||||
| 88718-95J31 | ||||
| 88718-95J72 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-41020 | ||||
| 91651-60635 | ||||
| 91651-B0822 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(9308-9508)
REAR PIPING(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95A39 | ||||
| 88718-95J26 | ||||
| 88718-95J39 | ||||
| 88718-95J72 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90950-01047 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 93315-14012 | ||||
| 93319-15008 | ||||
ILLUST NO. 1 OF 5(9808- )RHD
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453-26020 |
RZH112..4D..06S |
1 | ||
| 88453-26020 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26100 |
RZH112..4D..06S |
1 | ||
| 88454-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88454-26100 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-26290 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN |
1 | ||
| 88460-26080 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88460-26530 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26020 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 88461-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88461-26140 |
RZH112..4D..06S |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26110 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88550-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88584-26050 |
RZH112..4D..06S |
1 | ||
| 88584-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88590-26080 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88590-26150 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88715-26210 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88715-26330 |
RZH112..4D..06S |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88463-26310 | ||||
| 88463-26320 | ||||
| 88463-26350 | ||||
| 88463-26360 | ||||
| 88463-26370 | ||||
| 88463-26380 | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88578-26080 | ||||
| 88718-26810 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90091-20803 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-06088 | ||||
| 90119-08354 | ||||
| 90179-06274 | ||||
| 91651-40820 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 5(9808- )
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374-30010 |
RZH112..4D..06S |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88374-30010 |
RZH112..4D..06S |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30280 |
RZH112..4D..06S |
2 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,103,105,113..(03S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125..03S,06S,12S,14S,15S |
1 | ||
| 88375-30290 |
RZH112..4D..06S |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(06S,09S,10S,12S)..(CBR,DSL);LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH102,104,112,113,114..(03S,06S,09S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 88471-28100 |
RZH112..4D..06S |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
LH102,103,112,113,RZH102,103,112,113..GL,STD 250G |
3 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26180 |
LH103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88605-26250 |
LH125,RZH125;LH112,113,RZH112,113..RHD..GEN;LH103,104,105,114,115,RZH10#,114,115..CIS,GCC,GEN DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88605-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88605-26570 |
LH102,103,112,113,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) NO.1 |
1 | ||
| 88605-26190 |
LH113..STD..(GCC,GEN);LH102,103,112,RZH102,103,112,113..(GL,SGL,STD)..(GCC,GEN) DEALER OPTION,NO.2 |
1 | ||
| 88605-26570 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD NO.1 |
1 | ||
| 88605-26570 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD NO.1 |
1 | ||
| 88605-26190 |
RZH102,103..(GL,STD)..GEN;LH102,103,112,113,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-26190 |
RZH102,103..GEN;LH102,103,112,113,162,172,RZH112,113..STD..(CIS,GCC,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88605-2F520 |
RZH112..4D..06S |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-34010 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-2F080 | ||||
| 88688-2F140 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-26830 | ||||
| 88718-26840 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-B0822 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(9808- )
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
LH102,103,112,113,RZH102,103,112,113..GL,STD 250G |
3 | ||
| Common parts | ||||
| 88688-26130 | ||||
| 88688-2F120 | ||||
| 88688-2F150 | ||||
| 88688-2F170 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26310 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88897-87401 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 5 OF 5(9308- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 3 OF 5(9508- )
REAR PIPING(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95A39 | ||||
| 88718-95J26 | ||||
| 88718-95J39 | ||||
| 88718-95J72 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90950-01047 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 93315-14012 | ||||
| 93319-15008 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---DUAL(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88463-95J29 | ||||
| 88688-95J74 | ||||
| 88688-95J77 | ||||
| 88718-12280 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 88718-95J70 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88718-12280 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374-30010 |
RZH112..4D..06S |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374-30010 |
RZH112..4D..06S |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30280 |
RZH112..4D..06S |
2 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30280 |
RZH112..4D..06S |
2 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
LH102,103,112,113,RZH102,103,112,113..GL,STD 250G |
3 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-34010 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J72 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 91651-B0820 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
ILLUST NO. 1 OF 5(8908-9308)RHD..GEN
CONDENSER(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453-26020 |
RZH112..4D..06S |
1 | ||
| 88453-26020 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26100 |
RZH112..4D..06S |
1 | ||
| 88454-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88454-26100 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-26290 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN |
1 | ||
| 88460-26080 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88460-26530 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26020 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 88461-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88461-26140 |
RZH112..4D..06S |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-26060 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26110 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88550-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88584-26050 |
RZH112..4D..06S |
1 | ||
| 88584-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88590-26080 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88590-26150 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| Common parts | ||||
| 88897-28010 | ||||
| 90119-08354 | ||||
| 90179-08126 | ||||
ILLUST NO. 2 OF 5(8908-9308)LH102,112..RHD
FRONT PIPING(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 2 OF 5(8908-9308)RZH102,112..RHD
FRONT PIPING---SINGLE(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J37 | ||||
| 88718-95J47 | ||||
| 90179-08123 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
ILLUST NO. 3 OF 5(8908-9308)
REAR PIPING(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-26040 | ||||
| 88718-95J39 | ||||
| 88718-95J55 | ||||
| 88718-95J56 | ||||
| 88718-95J57 | ||||
| 88718-95J59 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90119-06330 | ||||
| 90179-06167 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90950-01047 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 2 OF 5(8908-9308)RHD
FRONT PIPING---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374-30010 |
RZH112..4D..06S |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH174,RZH10#,114,115;LH10#,11#,125,166,172,176,RZH112,113,125..STD |
1 | ||
| 88374-12020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
2 | ||
| 88374-30010 |
RZH112..4D..06S |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30280 |
RZH112..4D..06S |
2 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD SUCTION SIDE |
1 | ||
| 88375-30290 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) SUCTION SIDE |
1 | ||
| 88375-20010 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD LIQUID SIDE |
1 | ||
| 88375-30280 |
RZH112..4D..06S |
2 | ||
| 88375-30280 |
RZH115..CBR;LH172..RHD..STD;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,113,114,125..03S,06S,10S,12S,14S,15S LIQUID SIDE |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION |
1 | ||
| 88470-95J02 |
LH10#,11#,RZH102,104,11#..RHD..GEN MAKER OPTION |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26050 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88472-95J02 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88472-26110 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88472-26090 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88472-26110 |
RZH112..4D..06S |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
LH102,103,112,113,RZH102,103,112,113..GL,STD 250G |
3 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD |
1 | ||
| 88645-34010 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J33 |
LH102,103,112,113 |
1 | ||
| 88711-95J35 |
RZH102,103,112,113..STD |
1 | ||
| 88711-26100 |
LH102,103,112,113..GEN |
1 | ||
| 88711-26120 |
RZH102,103,112,113..GEN |
1 | ||
| 88711-26260 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88711-26250 |
RZH112..4D..06S |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J19 |
LH10#,11#,125..RHD |
1 | ||
| 88712-26150 |
RZH112..4D..06S |
1 | ||
| 88712-95J22 |
RZH10#,11#,125..RHD |
1 | ||
| 88712-26160 |
LH102,103,112,114,115..RHD;LH113,125,172..RHD..(03S,06S,14S)..STD |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J82 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-95J82 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-95N06 |
LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD NO.3 |
1 | ||
| 88716-26360 |
LH102,103,112,113,RZH102,103,112,113..RHD NO.2 |
1 | ||
| 88716-2F060 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716-2F500 |
LH115..LHD..GEN;LH103,112,113,114,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) NO.2 |
1 | ||
| 88716-2F060 |
LH103,112,113,162,172,RZH103,112,113..RHD..STD..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-2F810 |
RZH112..4D..06S |
1 | ||
| 88716-2F060 |
LH103,112,113,172,RZH102,103,112,113..RHD..STD SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
LH113..RHD..STD..GEN;LH102,103,112,114,115,RZH102,103,104,11#..RHD..GEN |
1 | ||
| 88716-26110 |
LH102,103,11#,RZH102,103,104,112,113,114..RHD..GEN |
1 | ||
| 88716-26850 |
RZH112..4D..06S |
1 | ||
| 88716-95J85 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88717-26890 |
LH103,11#,125,RZH102,103,104,11#,125..RHD..(DX,STD) |
1 | ||
| 88717-26510 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD |
1 | ||
| 88717-95J40 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 88717-2F150 |
RZH112..4D..06S |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J42 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-26190 |
LH102,103,112,113,RZH102,103,112,113..RHD |
1 | ||
| 88717-26540 |
LH102,103,112,113,RZH102,103,112,113..RHD..(GL,STD) |
1 | ||
| 88717-26690 |
LH103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88717-2F180 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZH112..4D..06S |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88688-95J77 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J72 | ||||
| 88718-95J75 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 93385-16012 | ||||
| 93385-18016 | ||||
ILLUST NO. 1 OF 5(8908-9308)RHD..GEN
CONDENSER(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453-26020 |
RZH112..4D..06S |
1 | ||
| 88453-26020 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88453-95J00 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88453-26020 |
RZH112..4D..06S |
1 | ||
| 88453-26020 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26100 |
RZH112..4D..06S |
1 | ||
| 88454-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88454-26100 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-95J05 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88454-26100 |
RZH112..4D..06S |
1 | ||
| 88454-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88454-26100 |
LH174,RZH10#,114,115..CIS,GCC,GEN;LH10#,11#,166,172,176,RZH112,113..STD..(CIS,GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J21 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN MAKER OPTION |
1 | ||
| 88460-95J15 |
LH102,103,112,113..06S;RZH102,103,112,113..RHD..STD DEALER OPTION |
1 | ||
| 88460-26290 |
LH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN |
1 | ||
| 88460-26080 |
LH102,103,112,113,RZH102,103,112,113..RHD..GEN |
1 | ||
| 88460-26530 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26020 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 88461-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88461-95J09 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88461-26140 |
RZH112..4D..06S |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-26060 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88463-95J25 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26110 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88550-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-95J07 |
LH102,103,112,113,RZH102,112,113..GEN |
1 | ||
| 88550-26110 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88550-26050 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J00 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112 |
1 | ||
| 88584-26050 |
RZH112..4D..06S |
1 | ||
| 88584-26020 |
LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88590-26080 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88590-26150 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J00 |
LH102,103,112,113,RZH102,103,112,113..STD |
1 | ||
| 88590-26100 |
LH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD |
1 | ||
| 88590-26080 |
LH125,RZH113..4D..(06S,09S,14S);LH102,103,112,113,RZH102,103,112..RHD..GEN;LH104,105,112,114,115,RZH104,105,114,115,125..09S,12S,14S,15S |
1 | ||
| 88590-26150 |
RZH112..4D..06S SINGLE AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26150 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 88715-26210 |
LH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD |
1 | ||
| 88715-26330 |
RZH112..4D..06S |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J27 |
RZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD NO.1 |
1 | ||
| 88716-26260 |
LH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD NO.1 |
1 | ||
| 88716-95J75 |
LH102,103,112,113,RZH102,103,112,113..RHD..STD NO.2 |
1 | ||
| 88716-26570 |
LH102,103,11#,RZH102,103,104,11#..RHD..GEN NO.2 |
1 | ||
| 88716-26340 |
LH103,11#,RZH102,103,104,112,113,114..RHD..GEN NO.2 |
1 | ||
| 88716-26740 |
LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD NO.1 |
1 | ||
| 88716-26740 |
RZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-26570 |
LH103,112,113,RZH102,103,112,113..RHD..STD..GEN NO.2 |
1 | ||
| 88716-2F480 |
RZH112..4D..06S NO.1 |
1 | ||
| 88716-2F500 |
RZH112..4D..06S NO.2 |
1 | ||
| Common parts | ||||
| 88897-95J09 | ||||
| 90119-08354 | ||||
| 90179-08126 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
