RZH112R-RRMRS (1991)
Toyota Hiace Van,Commuter
(9608- )1RZ,2RZ..RZH114,115,125 ; (9608- )1RZ,2RZ..RZH10#,112,113..SRF
12V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

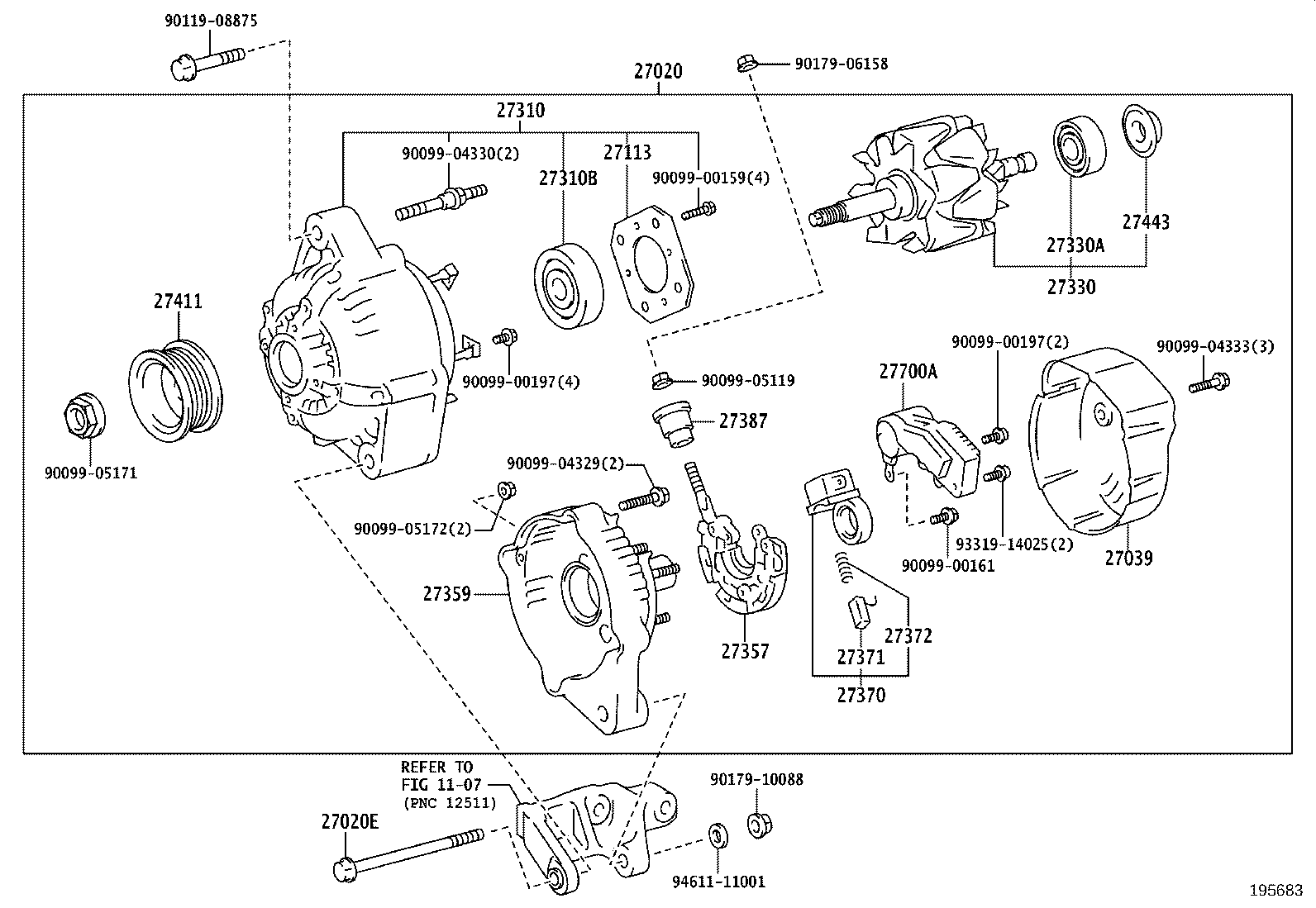

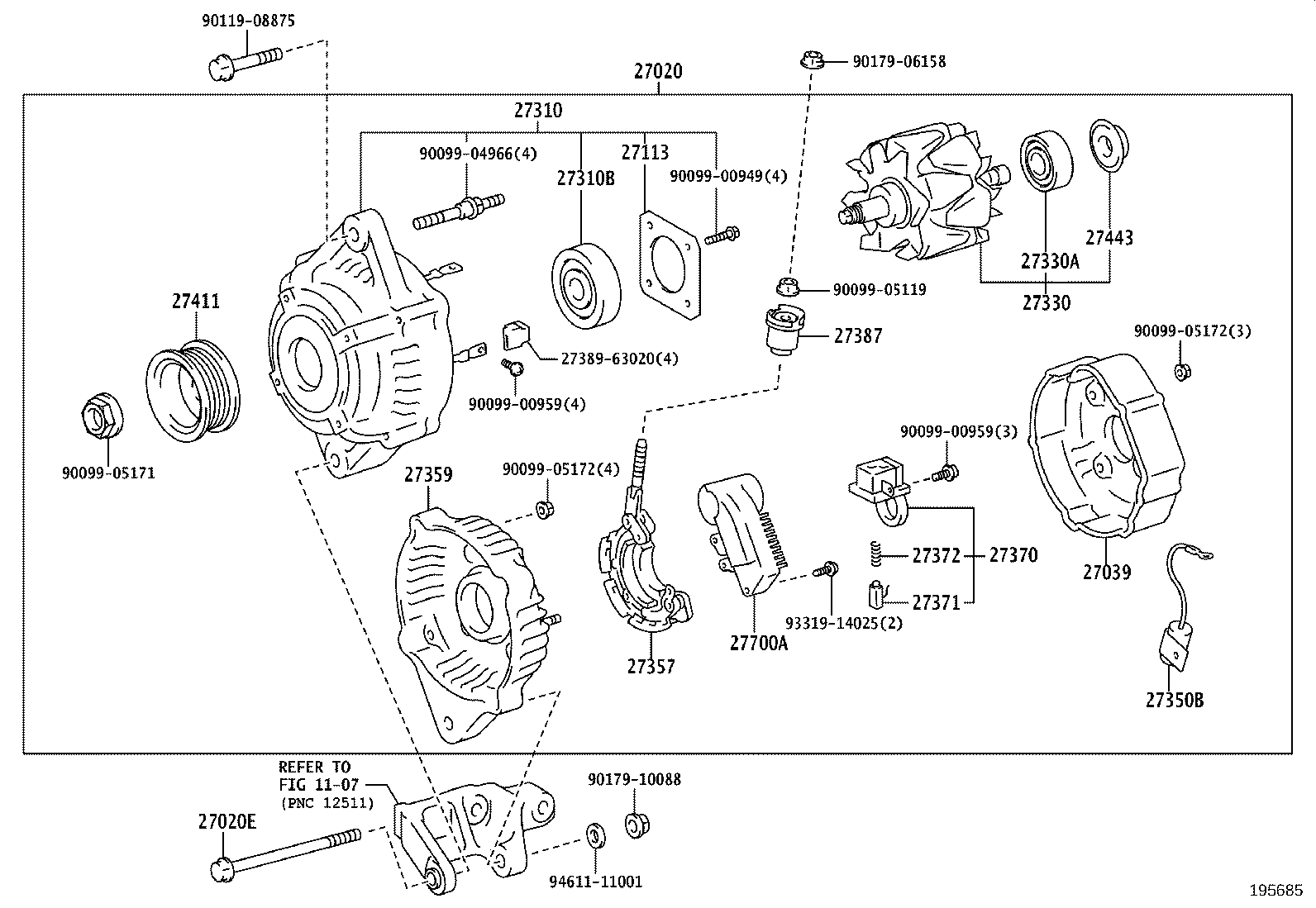

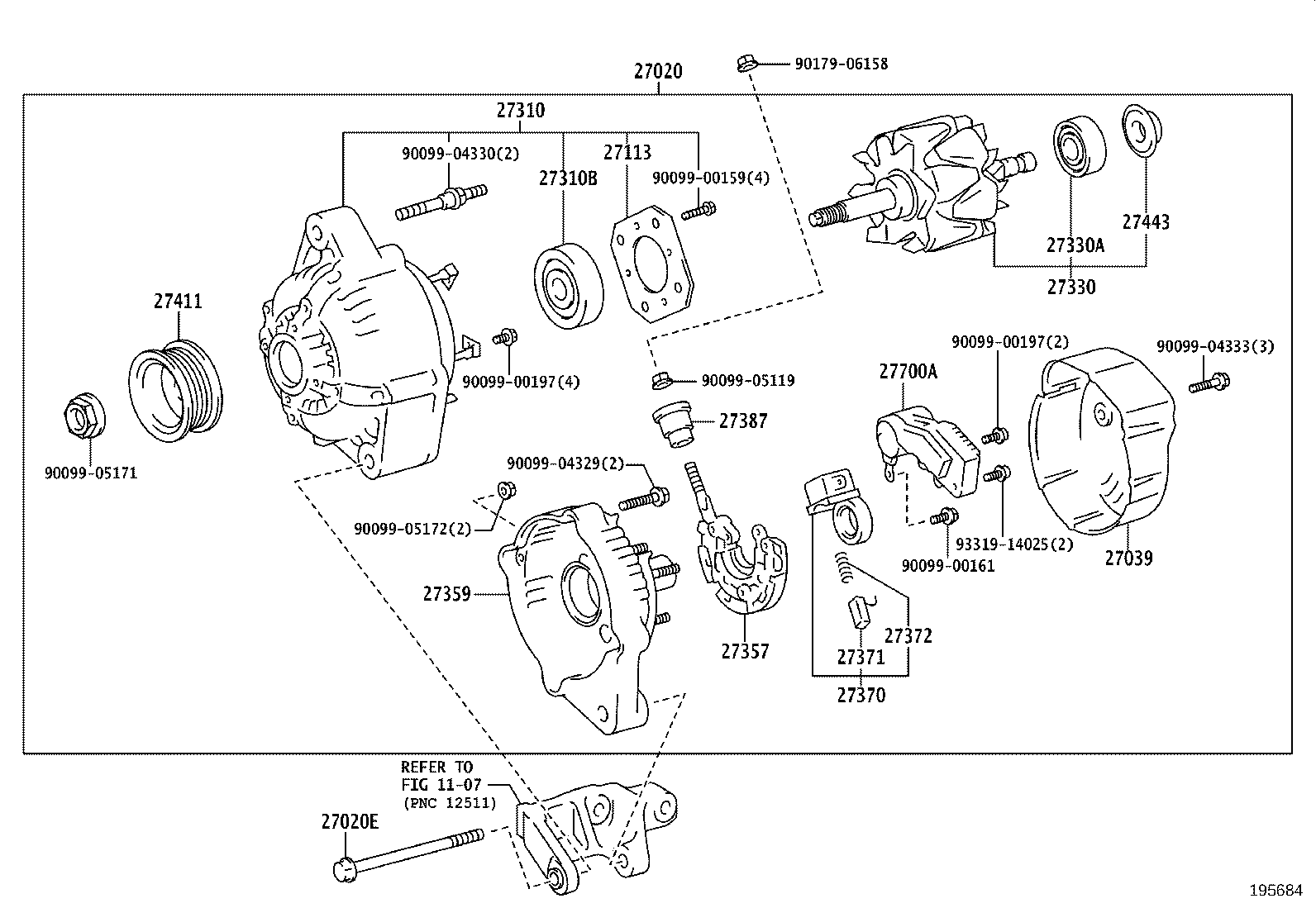

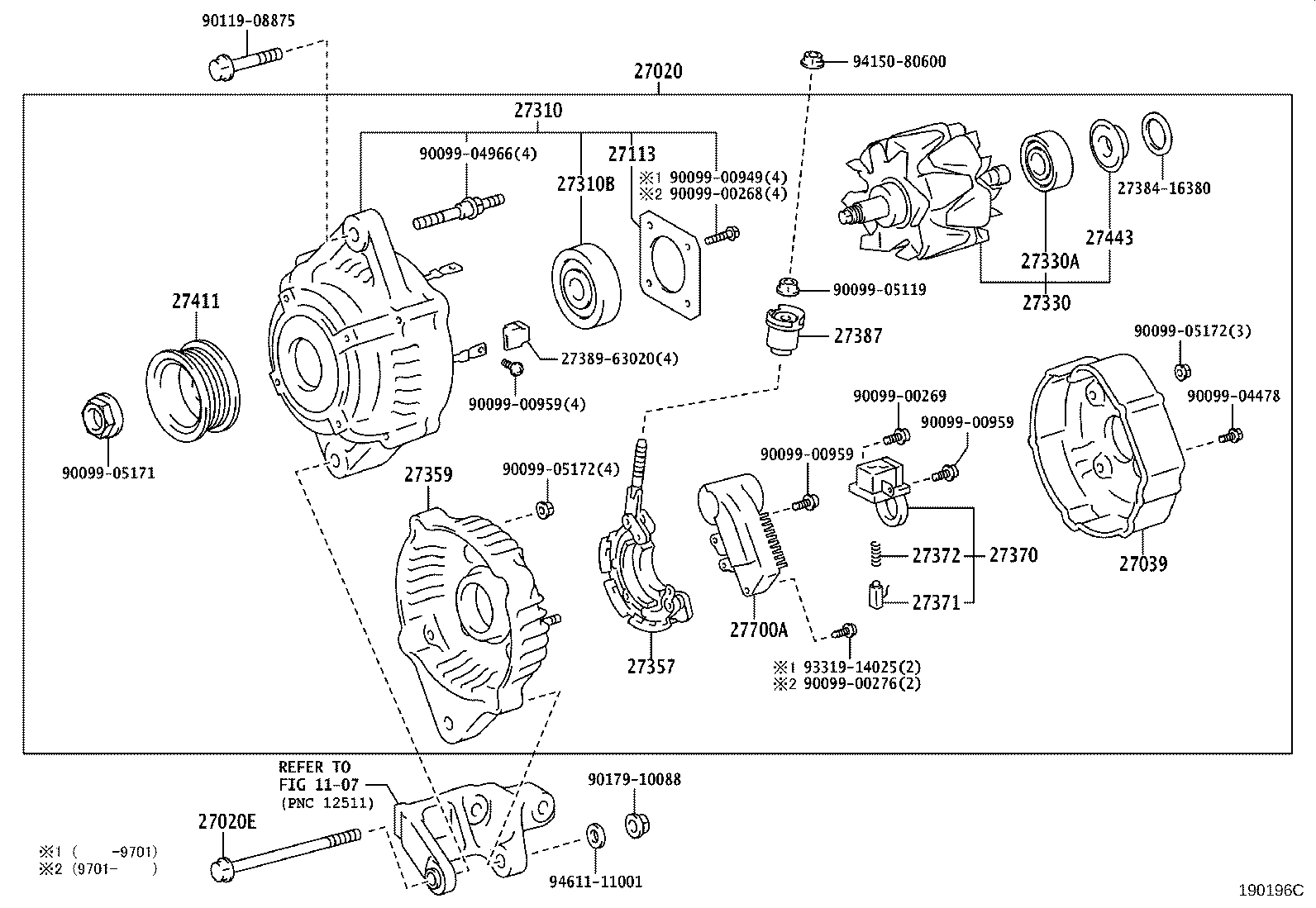

| 27020 - ALTERNATOR ASSY | ||||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD 12V 60A |
1 | ||
| 27060-72111 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27060-75080 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27060-75040 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27060-75250 |
1RZ..RZH112..4D..06S 12V 70A,MALAYSIA SPEC |
1 | ||
| 27060-75150 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
1RZ,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN) |
1 | ||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 90105-10221 |
1RZ..RZH112..4D..06S |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27039-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27312-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27312-70200 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27312-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27312-70200 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27312-70200 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72151 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-43060 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310-75040 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10178 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 90099-10198 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 90099-10178 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 90099-10159 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 90099-10178 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27330-72101 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 90099-10216 |
1RZ..RZH112..4D..06S |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27357-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125 12V 60A |
1 | ||
| 27357-63060 |
2L..LH104,114..LHD;2L,3L,1RZ..LH102,103,112,113,RZH102,112 12V 55A |
1 | ||
| 27357-63020 |
1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D 12V 60A,70A |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 27357-11130 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD VIETNAM SPEC |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
1RZ..RZH112..4D;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,104,113..RHD;1RZ,2RZ..RZH102,114,125..03S,14S,15S |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27370-35060 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27370-35060 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27370-35060 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125 12V 45A |
2 | ||
| 27371-70300 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112..4D..06S |
2 | ||
| 27371-63020 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
2 | ||
| 27371-70300 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH112..4D..06S ALTERNATOR 12V 70A |
4 | ||
| 27372-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH114..LHD..SRF..STD;1RZ..RZH102,104,112..LHD..4D..(03S,10S,12S) |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27387-70170 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH10#,112,113,125..RHD 12V 60A |
1 | ||
| 27411-16150 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27411-16150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27411-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27411-16180 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27411-16150 |
1RZ..RZH112..4D..06S |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66020 |
1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-66020 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27700-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27700-66020 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700-66040 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-70030 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27700-66040 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 27389-63020 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(9808- )2L,3L,5L ; (0108- )2L..LH112..RHD; (0108- )5L..LH174..15S ; (0108
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75150 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27060-75150 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD 12V 60A |
1 | ||
| 27060-72111 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27060-72111 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27060-75080 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27060-75080 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27060-75040 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27060-75040 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27060-75250 |
1RZ..RZH112..4D..06S 12V 70A,MALAYSIA SPEC |
1 | ||
| 27060-75250 |
1RZ..RZH112..4D..06S 12V 70A,MALAYSIA SPEC |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27039-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27039-73020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
1 | ||
| 27039-72010 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27039-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27039-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27064-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27312-70200 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27312-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27312-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27312-70200 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27312-70200 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27312-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27312-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27312-70200 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27312-70200 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27312-70200 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27312-70200 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72151 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27310-72151 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-43060 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310-75040 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-75040 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27310-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10178 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 90099-10198 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10198 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 90099-10178 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 90099-10159 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 90099-10159 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 90099-10178 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 90099-10178 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27330-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27330-72101 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27330-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10154 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 90099-10140 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 90099-10140 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 90099-10216 |
1RZ..RZH112..4D..06S |
1 | ||
| 90099-10216 |
1RZ..RZH112..4D..06S |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27357-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27357-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27357-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125 12V 60A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125 12V 60A |
1 | ||
| 27357-63060 |
2L..LH104,114..LHD;2L,3L,1RZ..LH102,103,112,113,RZH102,112 12V 55A |
1 | ||
| 27357-63060 |
2L..LH104,114..LHD;2L,3L,1RZ..LH102,103,112,113,RZH102,112 12V 55A |
1 | ||
| 27357-63020 |
1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D 12V 60A,70A |
1 | ||
| 27357-63020 |
1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D 12V 60A,70A |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 27357-67100 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 27357-11130 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD VIETNAM SPEC |
1 | ||
| 27357-11130 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD VIETNAM SPEC |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16180 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27359-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27359-16180 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
1RZ..RZH112..4D;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,104,113..RHD;1RZ,2RZ..RZH102,114,125..03S,14S,15S |
1 | ||
| 27370-63021 |
1RZ..RZH112..4D;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,104,113..RHD;1RZ,2RZ..RZH102,114,125..03S,14S,15S |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27370-63021 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27370-35060 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27370-35060 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27370-35060 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27370-35060 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27370-35060 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27370-35060 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27387-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27387-70170 |
3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27387-70170 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27388-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27443-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 27443-63020 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66020 |
1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-66020 |
1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-66020 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27700-66020 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27700-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27700-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27700-66020 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27700-66020 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700-75020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700-66040 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27700-66040 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-70030 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27700-66040 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27700-66040 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 27445-54450 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90105-10287 | ||||
| 90119-08654 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
(9808- )1RZ,2RZ ; (9808- )2RZE..RZH103,113,125..ARL ; (0108- )2L..LH112..R
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD 12V 60A |
1 | ||
| 27060-72111 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27060-72111 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27060-75080 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27060-75080 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27060-75040 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27060-75040 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27060-75250 |
1RZ..RZH112..4D..06S 12V 70A,MALAYSIA SPEC |
1 | ||
| 27060-75250 |
1RZ..RZH112..4D..06S 12V 70A,MALAYSIA SPEC |
1 | ||
| 27060-75150 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27060-75150 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
1RZ,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN) |
1 | ||
| 90105-10221 |
1RZ,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN) |
1 | ||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 90105-10221 |
1RZ..RZH112..4D..06S |
1 | ||
| 90105-10221 |
1RZ..RZH112..4D..06S |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27039-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27039-73020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
1 | ||
| 27039-72010 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27039-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27039-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27064-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72151 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27310-72151 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-43060 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310-75040 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-75040 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27310-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10178 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 90099-10198 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10198 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 90099-10178 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 90099-10159 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 90099-10159 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 90099-10178 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 90099-10178 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27312-72100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27312-72100 |
1RZ..RZH112..4D..06S |
1 | ||
| 27312-72100 |
1RZ..RZH112..4D..06S |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27330-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27330-72101 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27330-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10154 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 90099-10140 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 90099-10140 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 90099-10216 |
1RZ..RZH112..4D..06S |
1 | ||
| 90099-10216 |
1RZ..RZH112..4D..06S |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27357-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27357-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27357-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125 12V 60A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125 12V 60A |
1 | ||
| 27357-63060 |
2L..LH104,114..LHD;2L,3L,1RZ..LH102,103,112,113,RZH102,112 12V 55A |
1 | ||
| 27357-63060 |
2L..LH104,114..LHD;2L,3L,1RZ..LH102,103,112,113,RZH102,112 12V 55A |
1 | ||
| 27357-63020 |
1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D 12V 60A,70A |
1 | ||
| 27357-63020 |
1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D 12V 60A,70A |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 27357-67100 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 27357-11130 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD VIETNAM SPEC |
1 | ||
| 27357-11130 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD VIETNAM SPEC |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16180 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27359-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27359-16180 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
1RZ..RZH112..4D;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,104,113..RHD;1RZ,2RZ..RZH102,114,125..03S,14S,15S |
1 | ||
| 27370-63021 |
1RZ..RZH112..4D;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,104,113..RHD;1RZ,2RZ..RZH102,114,125..03S,14S,15S |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27370-63021 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27370-35060 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27370-35060 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27370-35060 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27370-35060 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27370-35060 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27370-35060 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125 12V 45A |
2 | ||
| 27371-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125 12V 45A |
2 | ||
| 27371-70300 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112..4D..06S |
2 | ||
| 27371-70300 |
1RZ..RZH112..4D..06S |
2 | ||
| 27371-63020 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
2 | ||
| 27371-63020 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
2 | ||
| 27371-70300 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27371-70300 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125 12V 45A |
2 | ||
| 27371-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125 12V 45A |
2 | ||
| 27371-70300 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112..4D..06S |
2 | ||
| 27371-70300 |
1RZ..RZH112..4D..06S |
2 | ||
| 27371-63020 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
2 | ||
| 27371-63020 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
2 | ||
| 27371-70300 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27371-70300 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
2 | ||
| 27372-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH112..4D..06S ALTERNATOR 12V 70A |
4 | ||
| 27372-87501 |
1RZ..RZH112..4D..06S ALTERNATOR 12V 70A |
4 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
2 | ||
| 27372-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH114..LHD..SRF..STD;1RZ..RZH102,104,112..LHD..4D..(03S,10S,12S) |
2 | ||
| 27372-87501 |
1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH114..LHD..SRF..STD;1RZ..RZH102,104,112..LHD..4D..(03S,10S,12S) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
2 | ||
| 27372-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH112..4D..06S ALTERNATOR 12V 70A |
4 | ||
| 27372-87501 |
1RZ..RZH112..4D..06S ALTERNATOR 12V 70A |
4 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
2 | ||
| 27372-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH114..LHD..SRF..STD;1RZ..RZH102,104,112..LHD..4D..(03S,10S,12S) |
2 | ||
| 27372-87501 |
1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH114..LHD..SRF..STD;1RZ..RZH102,104,112..LHD..4D..(03S,10S,12S) |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27387-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27387-70170 |
3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27387-70170 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27388-42010 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH10#,112,113,125..RHD 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH10#,112,113,125..RHD 12V 60A |
1 | ||
| 27411-16150 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27411-16150 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27411-16150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27411-16150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27411-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27411-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27411-16180 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27411-16180 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27411-16150 |
1RZ..RZH112..4D..06S |
1 | ||
| 27411-16150 |
1RZ..RZH112..4D..06S |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27443-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 27443-63020 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66020 |
1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-66020 |
1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-66020 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27700-66020 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27700-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27700-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27700-66020 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27700-66020 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700-75020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700-66040 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27700-66040 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-70030 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27700-66040 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27700-66040 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(8908-9608)1RZ,2RZ
12V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD 12V 60A |
1 | ||
| 27060-72111 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27060-75080 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27060-75040 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27060-75250 |
1RZ..RZH112..4D..06S 12V 70A,MALAYSIA SPEC |
1 | ||
| 27060-75150 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
1RZ,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN) |
1 | ||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 90105-10221 |
1RZ..RZH112..4D..06S |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27039-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27312-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27312-70200 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27312-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27312-70200 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27312-70200 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72151 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-43060 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310-75040 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10178 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 90099-10198 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 90099-10178 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 90099-10159 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 90099-10178 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27330-72101 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 90099-10216 |
1RZ..RZH112..4D..06S |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD |
1 | ||
| 90099-52106 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D |
1 | ||
| 90099-52106 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 90099-52106 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27357-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125 12V 60A |
1 | ||
| 27357-63060 |
2L..LH104,114..LHD;2L,3L,1RZ..LH102,103,112,113,RZH102,112 12V 55A |
1 | ||
| 27357-63020 |
1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D 12V 60A,70A |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 27357-11130 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD VIETNAM SPEC |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
1RZ..RZH112..4D;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,104,113..RHD;1RZ,2RZ..RZH102,114,125..03S,14S,15S |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27370-35060 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27370-35060 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27370-35060 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125 12V 45A |
2 | ||
| 27371-70300 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112..4D..06S |
2 | ||
| 27371-63020 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
2 | ||
| 27371-70300 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH112..4D..06S ALTERNATOR 12V 70A |
4 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH114..LHD..SRF..STD;1RZ..RZH102,104,112..LHD..4D..(03S,10S,12S) |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27387-70170 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH10#,112,113,125..RHD 12V 60A |
1 | ||
| 27411-16150 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27411-16150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27411-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27411-16180 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27411-16150 |
1RZ..RZH112..4D..06S |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66020 |
1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-66020 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27700-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27700-66020 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700-66040 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-70030 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27700-66040 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(8908-9308)1RZ
12V 45A,50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD 12V 60A |
1 | ||
| 27060-72111 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27060-75080 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27060-75090 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27060-75040 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27060-75250 |
1RZ..RZH112..4D..06S 12V 70A,MALAYSIA SPEC |
1 | ||
| 27060-75150 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27060-75150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
1RZ,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN) |
1 | ||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 90105-10221 |
1RZ..RZH112..4D..06S |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27039-72010 |
2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-72010 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27039-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27039-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27312-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27312-70200 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27312-70200 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27312-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27312-70200 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27312-70200 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72151 |
1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27310-43060 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-43060 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310-75040 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27310-43060 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27310-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27310-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10178 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 90099-10198 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10199 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10178 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 90099-10178 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 90099-10159 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 90099-10178 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27330-72101 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27330-72101 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330-64570 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-67100 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27330-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10154 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 90099-10140 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10140 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 90099-10216 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 90099-10216 |
1RZ..RZH112..4D..06S |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27357-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27357-63020 |
2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125 12V 60A |
1 | ||
| 27357-63060 |
2L..LH104,114..LHD;2L,3L,1RZ..LH102,103,112,113,RZH102,112 12V 55A |
1 | ||
| 27357-63020 |
1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D 12V 60A,70A |
1 | ||
| 27357-16380 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27357-67100 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27357-67100 |
1RZ..RZH102..GL;1RZ..RZH112..4D..06S |
1 | ||
| 27357-11130 |
1RZ..RZH104,112..SG;1RZ..RZH112,114..LHD..SRF..4D..STD VIETNAM SPEC |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-16180 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-72150 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27359-16182 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27359-16180 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27359-16180 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27359-75160 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27359-75160 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
1RZ..RZH112..4D;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,104,113..RHD;1RZ,2RZ..RZH102,114,125..03S,14S,15S |
1 | ||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27370-63021 |
1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125 |
1 | ||
| 27370-35060 |
1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH103,113,125..ARL 12V 70A |
1 | ||
| 27370-35060 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27370-35060 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125 12V 45A |
2 | ||
| 27371-70300 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27371-70300 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27371-70300 |
1RZ..RZH112..4D..06S |
2 | ||
| 27371-63020 |
1RZ..RZH104..RHD;2L..LH104,114..LHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH102,103,11#,125 12V 55A |
2 | ||
| 27371-70300 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-63020 |
3L..LH113,125..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH112..4D..06S ALTERNATOR 12V 70A |
4 | ||
| 27372-63020 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) |
2 | ||
| 27372-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
2 | ||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27372-87501 |
1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH114..LHD..SRF..STD;1RZ..RZH102,104,112..LHD..4D..(03S,10S,12S) |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27387-70170 |
2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
3L..LH113,125..STD;2L,3L,1RZ,2RZ..LH10#,112,114,115,RZH10#,11#,125 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH102,104,112..RHD..4D;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125 12V 60A |
1 | ||
| 27387-70171 |
2RZE..RZH103,113,125..ARL;2L,3L,1RZ,2RZ..LH102,103,104,11#,125,RZH10#,11#..5F..(ARL,GCC,GEN) 12V 70A |
1 | ||
| 27387-70171 |
1RZ..RZH112..4D..06S 12V 70A |
1 | ||
| 27387-70170 |
1RZ..RZH104..STD;1RZ..RZH114..LHD..GEN;1RZ,2RZ..RZH102,103,105,112,113,115,125 12V 70A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD 12V 60A |
1 | ||
| 27411-16180 |
1RZ..RZH114;1RZ,2RZ..RZH10#,112,113,125..RHD 12V 60A |
1 | ||
| 27411-16150 |
1RZ..RZH102,112 12V 55A |
1 | ||
| 27411-16150 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27411-72120 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27411-16180 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27411-16150 |
1RZ..RZH112..4D..06S |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27443-63020 |
3L..LH115..RHD;3L..LH115..GCC;3L..LH103,113..5D..03S;2L,5L,2RZ#..LH112,114,166,174,176,RZH103,105,113,115..LHD;5L,1RZ,2RZE..LH172,184,RZH102,103,104,112,113,114,125,135,153 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH103,113,114,125 |
1 | ||
| 27443-63020 |
2L,3L,1RZ#,2RZ#..LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 27443-63020 |
2RZE..RZH113..5D;1RZ,2RZE..RZH112,155..LHD..SG;2RZE..RZH113,115..4D..(ARL,GCC);1RZ,2RZE..RZH103,112,114,125..4D..(03S,14S,15S);2L,3L,5L#,1RZ,2RZ..LH10#,11#,125,154,16#,17#,184,RZH102,104,105,113,115 |
1 | ||
| 27443-63020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66020 |
1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-66020 |
1RZ,2RZ..RZH10#,11#,125 12V 60A |
1 | ||
| 27700-10080 |
2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S 12V 45A |
1 | ||
| 27700-66020 |
1RZ..RZH104,114;1RZ,2RZ..RZH102,112,125..RHD 12V 60A |
1 | ||
| 27700-75020 |
1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL |
1 | ||
| 27700-75020 |
1RZ..RZH112..4D..06S |
1 | ||
| 27700-66040 |
1RZ,2RZ#..RZH10#,11#,125 |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27700-70030 |
1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD..4D 12V 60A |
1 | ||
| 27700-66040 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90099-00159 | ||||
| 90099-00161 | ||||
| 90099-00197 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-04333 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(8908-9308)1RZ
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00159 | ||||
| 90099-00161 | ||||
| 90099-00197 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-04333 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(8908-9308)1RZ,2RZE
12V 55A,60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(9308- )1RZ,2RZE
12V 55A,60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00159 | ||||
| 90099-00161 | ||||
| 90099-00197 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-04333 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
