8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

RZH112R-RRMRE (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Mar 1997

Engine 1RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(8908- )

Click highlighted areas on diagram

REAR COOLER DUCT(MAKER OPT)

Part #	Description	Period	Qty	Price
Common parts
88536-95J42
90119-06882
90159-60446
93315-15010
93540-25020
93560-56012

ILLUST NO. 2 OF 4(8908- )LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

REAR CONTROL

Part #	Description	Period	Qty	Price
Common parts
55933-22020
82711-95J03
90480-01532
93566-14512
Linked diagrams
8401

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

FRONT CONTROL

Part #	Description	Period	Qty
55538A - COVER, COOLER SWITCH HOLE
55538-22060	LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD	08/1989 - 11/1994	1
55905A - KNOB, HEATER CONTROL
55905-22260	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD BLOWER & TEMP	08/1989 - 11/1994	2
55905-22280	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD MODE,FRS/REC	08/1989 - 11/1994	2
55905A - KNOB, HEATER CONTROL
55905-22260	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD BLOWER & TEMP	08/1989 - 11/1994	2
55905-22280	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD MODE,FRS/REC	08/1989 - 11/1994	2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95J03	LH10#,11#,125,RZH10#,11#,125	08/1989 - 11/1989	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J09	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J09	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER)	08/1989 - 11/1994	1
55910-95J11	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 11/1994	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-13013	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	1
55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)
90950-01112	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)	08/1989 - 11/1994	1
55922 - BRACKET, HEATER CONTROL BASE
55922-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-22100	RZH102,112..RHD..4D;RZH102..RHD..5D..03S;LH102,103,112,113..06S DEALER OPTION	08/1989 - 08/1993	1
88032-22110	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN W/O HEATER	08/1989 - 08/1993	1
Common parts
87124-20020
93560-55016
93568-54512
Linked diagrams
8302
8401

ILLUST NO. 3 OF 4(8908- )RHD

Click highlighted areas on diagram

FRONT DUCT-W(HEATER) & W(B/V)

Part #	Description	Period	Qty
55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1
55081-95J04	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER)	08/1989 - 11/1994	1
55081-95J06	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1995	1
55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2
55082-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55083C - DUCT SUB-ASSY, FRONT VENTILATOR
55083-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-95J03	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-95J07	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-95J04	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-95J02	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
87239A - COVER, HEATER INLET HOLE
87239-95J04	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020
93568-55012

ILLUST NO. 3 OF 4(8908- )RHD

Click highlighted areas on diagram

FRONT DUCT-W/O(HEATER) & W/O(B/V)

Part #	Description	Period	Qty
55077B - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55077-95J03	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1995	1
55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1
55081-95J04	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER)	08/1989 - 11/1994	1
55081-95J06	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1995	1
55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2
55082-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55083C - DUCT SUB-ASSY, FRONT VENTILATOR
55083-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-95J03	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-95J05	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1995	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-95J02	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
87239A - COVER, HEATER INLET HOLE
87239-95J04	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

FRONT DUCT-W/O(HEATER) & W/O(B/V)

Part #	Description	Period	Qty
55077B - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55077-95J03	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1995	1
55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1
55081-95J04	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER)	08/1989 - 11/1994	1
55081-95J06	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1995	1
55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2
55082-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55083C - DUCT SUB-ASSY, FRONT VENTILATOR
55083-95J01	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-95J03	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-95J05	RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN	08/1989 - 08/1995	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-95J02	LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD	08/1989 - 11/1994	1
87239A - COVER, HEATER INLET HOLE
87239-95J04	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020

ILLUST NO. 4 OF 4(8908- )LH174,RZH112..06S,10S,15S ; (8908-)LH10#,11#,125,154,16#,172,176,184

Click highlighted areas on diagram

REAR COOLER DUCT(DEALER OPT)

Part #	Description	Period	Qty	Price
Common parts
88578-26010
88718-22420
88893-26020
93219-13005
93219-13008
93385-16018

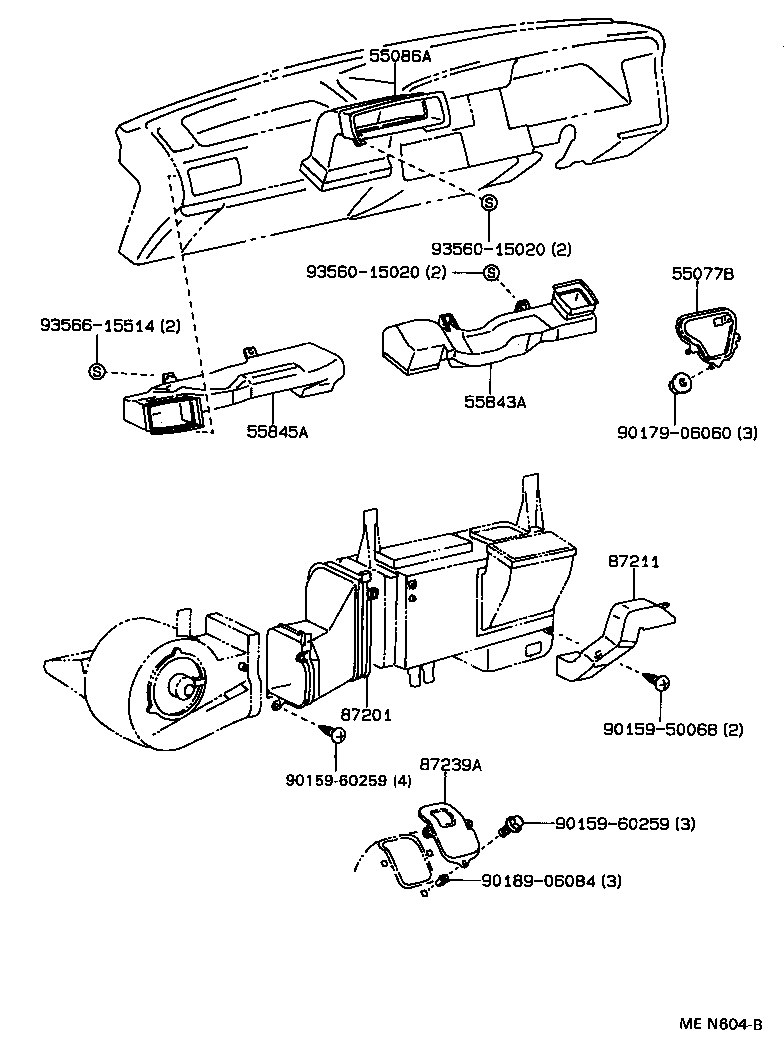

ILLUST NO. 3 OF 4(8908- )LH102,112,RZH112..RHD

Click highlighted areas on diagram

FRONT DUCT

Part #	Description	Period	Qty	Price
Common parts
90159-50068
90159-60259
90179-06060
90189-06084
93560-15020
93566-15514

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

FRONT CONTROL

Part #	Description	Period	Qty	Price
Common parts
93560-15020
Linked diagrams
8302
8401

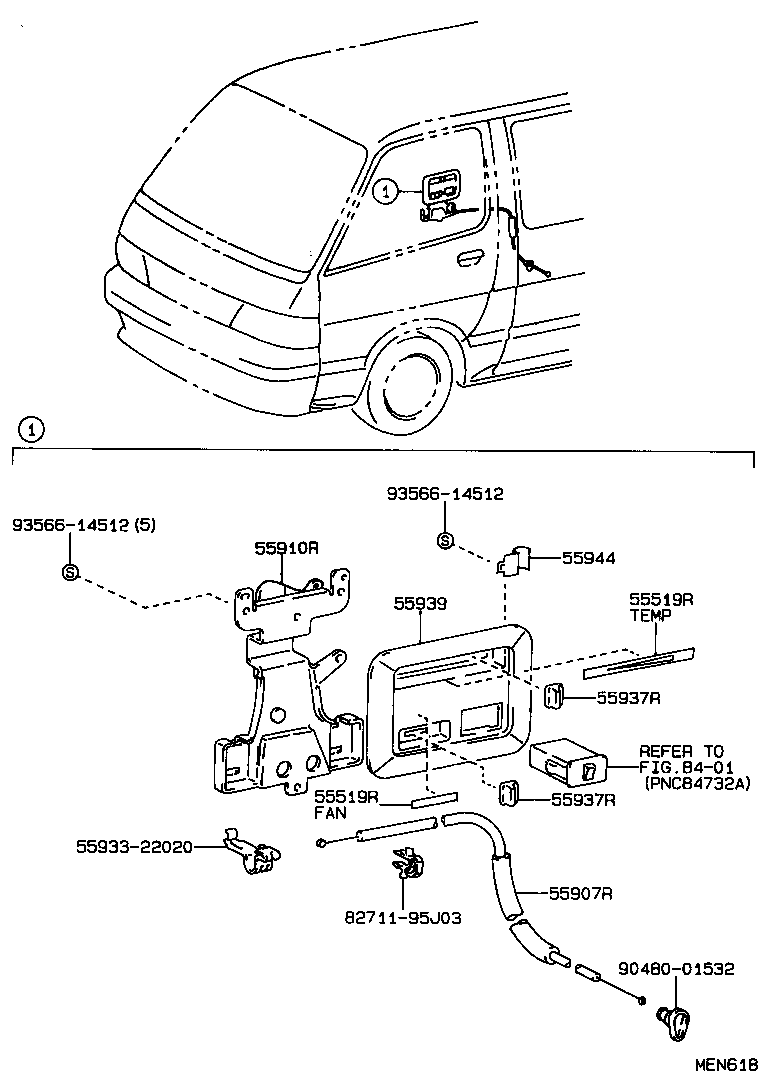

ILLUST NO. 2 OF 4(8908- )LH102,11#,RZH102,103,11#..4D..06S,09S,15S

Click highlighted areas on diagram

REAR CONTROL

Part #	Description	Period	Qty	Price
Common parts
55933-22020
82711-95J03
90480-01532
93566-14512
Linked diagrams
8401
