RZH112R-RRMRE (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Mar 1997
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8908- )RHD

Click highlighted areas on diagram

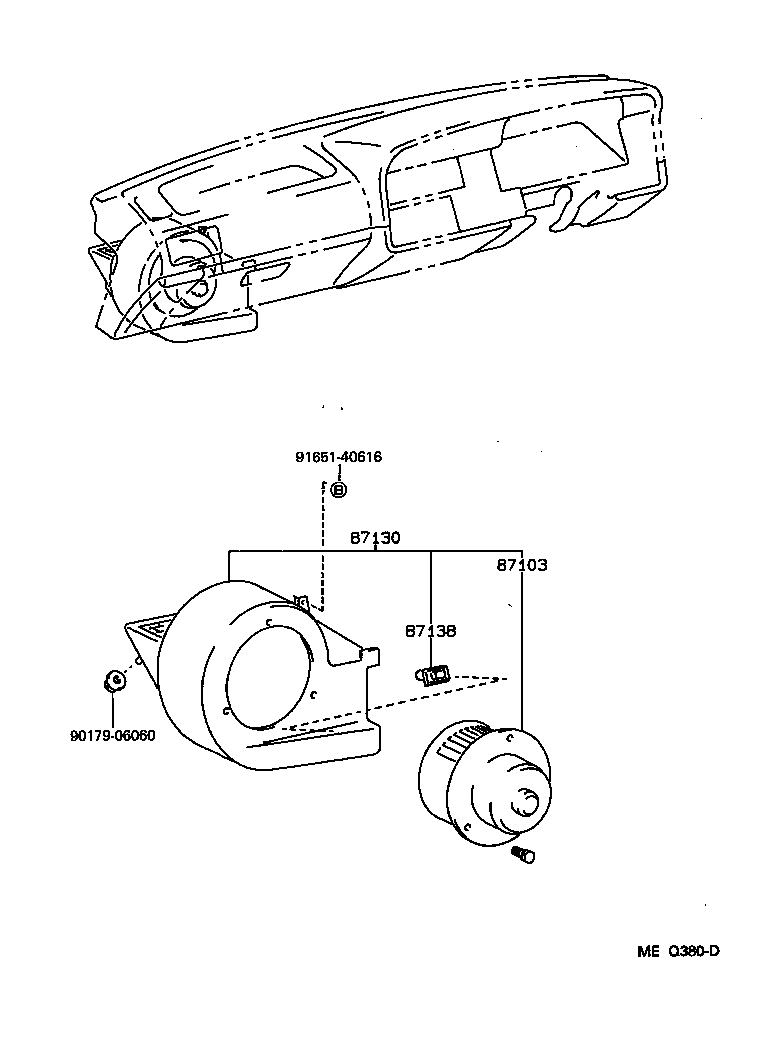

FRONT HEATER BLOWER

diagram 87103 87130 87138 9017906060 9165160614
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-26010

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95J04

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95J04

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
Common parts
90179-06060
91651-60614

ILLUST NO. 1 OF 3(8908- )RHD

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 87174D 88910 9017908123 91651B0825
Part # Description Qty Price
87174D - GUIDE, AIR
87174-95J06

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

 1
88910 - VENTILATOR ASSY, BOOST
88910-95J03

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN

 1
Common parts
90179-08123
91651-B0825

ILLUST NO. 1 OF 3(8908- )RHD

Click highlighted areas on diagram

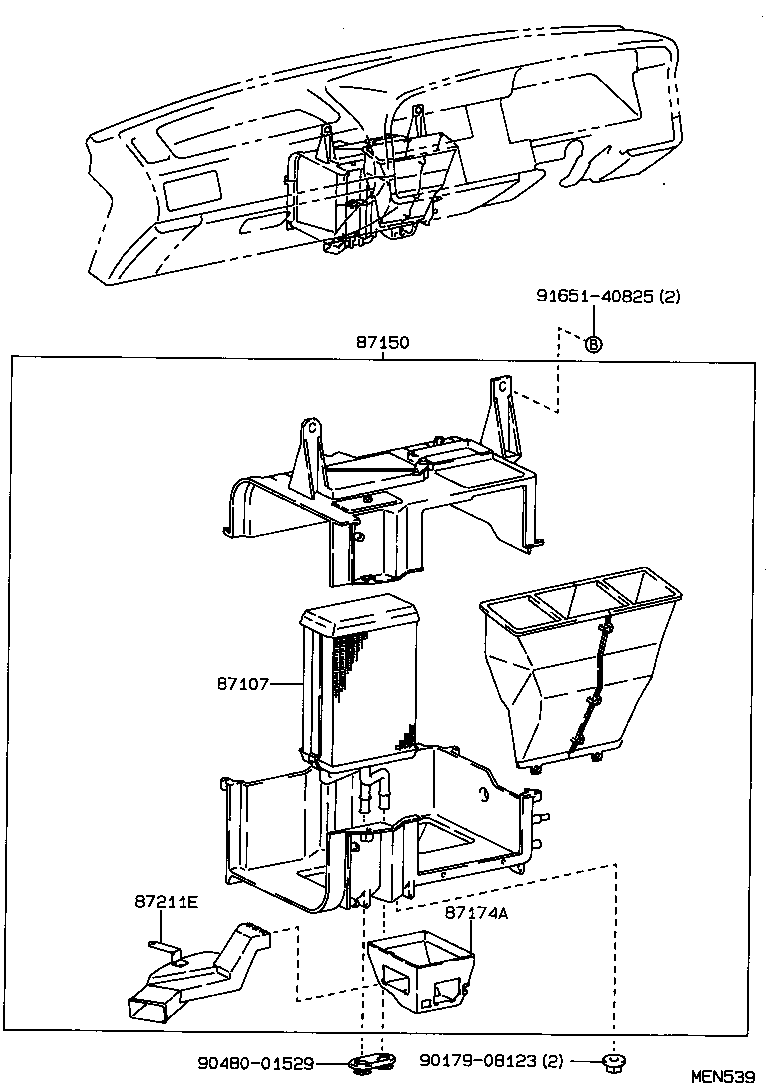

FRONT HEATER RADIATOR

diagram 87107 87150 87174A 9017908123 9048001529 9095001006 9095001694 9165140825
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95J11

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87150 - RADIATOR ASSY, HEATER
87150-95J12

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
87174A - GUIDE, AIR HEATER
87174-95J06

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
Common parts
90179-08123
90480-01529
90950-01006
90950-01694
91651-40825

ILLUST NO. 1 OF 3(8908- )LH102,112,RZH112..RHD

Click highlighted areas on diagram

HEATER UNIT(FRONT)

diagram 87107 87150 87174A 87211E 9017908123 9048001529 9165140825
Part # Description Qty Price
Common parts
90179-08123
90480-01529
91651-40825

ILLUST NO. 3 OF 3(8908- )RZH102,103,112,113..4D..SG

Click highlighted areas on diagram

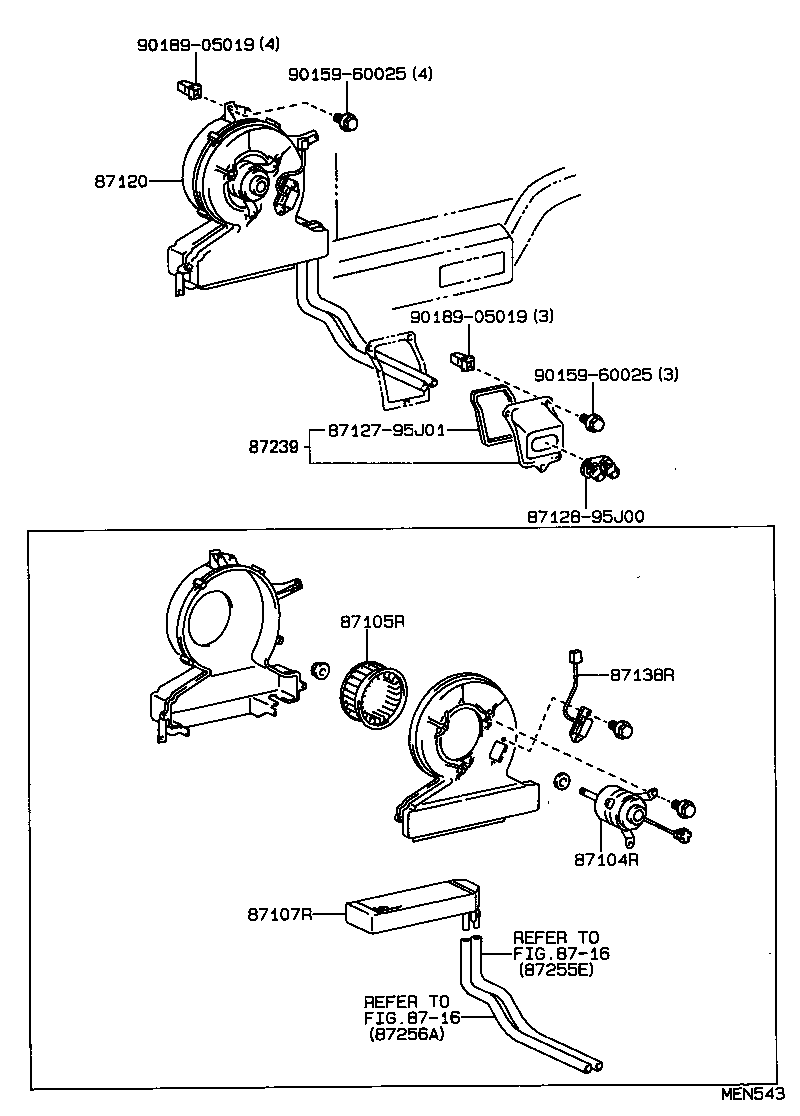

REAR HERTER-TRIM TYPE

diagram 87104R 87105R 87107R 87120 8712795J01 8712895J00 87138R 8716 8716 87239 9015960025 9015960025 9018905019 9018905019
Part # Description Qty Price
Common parts
87127-95J01
87128-95J00
90159-60025
90189-05019
Linked diagrams
8716

ILLUST NO. 2 OF 3(8908- )

Click highlighted areas on diagram

HEATER BLOWER(FRONT)

diagram 87103 87130 87138 9017906060 9165140616
Part # Description Qty Price
Common parts
90179-06060
91651-40616
