RZH112R-RRMRE (1995)
Toyota Hiace Van,Commuter

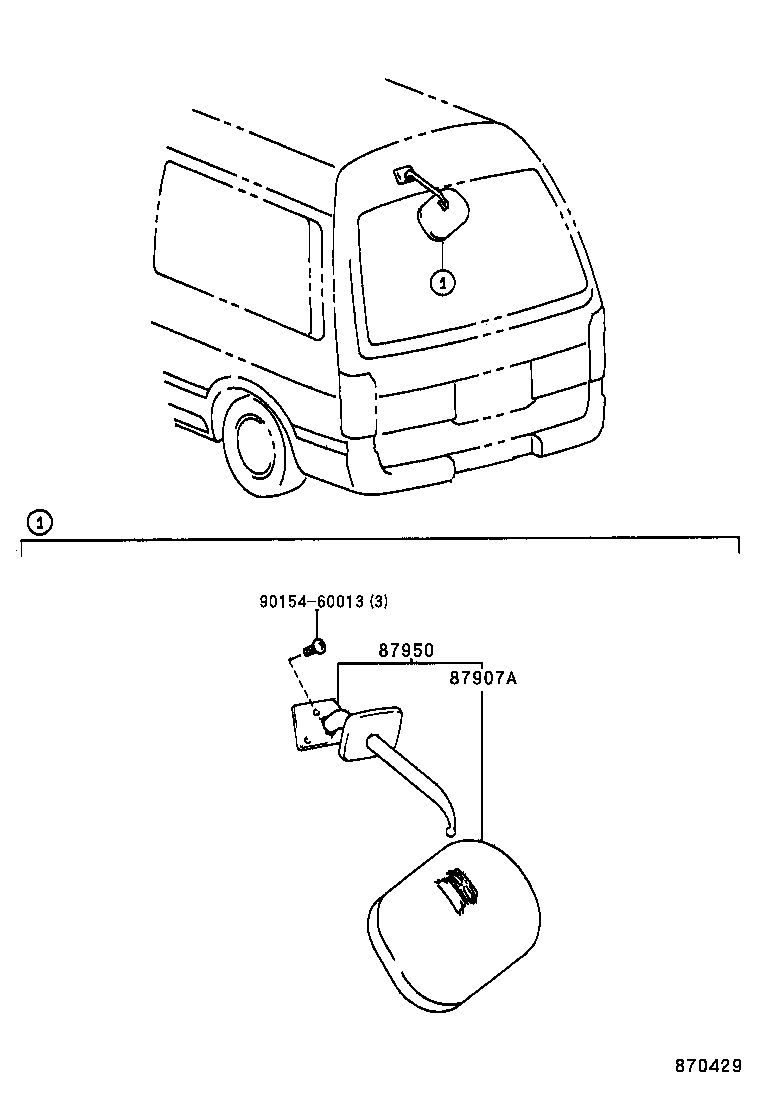

ILLUST NO. 3 OF 3(9608- )
REAR UNDER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90154-60013 | ||||
ILLUST NO. 2 OF 3(8908- )
OUTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87906-95J00 |
RZH104,112,114..RHD;LH102,112,RZH102..RHD..4D..03S |
1 | ||
| 87906-95J00 |
RZH102..RHD..4D;LH113,RZH112..06S..(DSL,EFI);LH102,103,112,125,RZH112..RHD..(03S,15S)..GEN |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J09 |
LH103..03S..GEN;LH113,RZH102,112..SG..(DSL,EFI) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95J40 |
LH10#,11#,RZH102,103,104,11#..RHD..STD..GEN |
1 | ||
| 87910-95J33 |
RZH102..RHD..4D;LH113,RZH112..06S..(DSL,EFI);LH102,103,112,125,RZH112..RHD..(03S,15S)..GEN HONG KONG OR THAILAND SPEC |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-95J37 |
RZH112,113..CIS,GCC,GEN;LH10#,11#,RZH10#,114,115..(DX,SGL,STD)..(CIS,GCC,GEN)..(CBR,DSL) FOR MANUAL DOOR MIRROR |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95J39 |
LH10#,11#,RZH102,103,104,11#..RHD..STD..GEN |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-95J36 |
RZH112,113..CIS,GCC,GEN;LH10#,11#,RZH10#,114,115..(DX,SGL,STD)..(CIS,GCC,GEN)..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90105-06264 | ||||
| 90154-60013 | ||||
ILLUST NO. 1 OF 3(8908- )
INNER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95J0901 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 87810-95J1001 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD W(DAY & NIGHT MIRROR),BLACK,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95J0901 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 87810-95J1001 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD W(DAY & NIGHT MIRROR),BLACK,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=44 |
1 | ||
| 87828-10010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=41 |
1 | ||
| 87828-32010 |
LH10#,11#,125,RZH10#,11#,125 L=47 |
1 | ||
| 87828-10010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=41 |
1 | ||
| 87828-30010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=44 |
1 | ||
| 87828-22020 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=35.8 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=44 |
1 | ||
| 87828-10010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=41 |
1 | ||
| 87828-32010 |
LH10#,11#,125,RZH10#,11#,125 L=47 |
1 | ||
| 87828-10010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=41 |
1 | ||
| 87828-30010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=44 |
1 | ||
| 87828-22020 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=35.8 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81241-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90152-60008 | ||||
ILLUST NO. 1 OF 2(8908- )
INNER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95J0901 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 87810-95J1001 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD W(DAY & NIGHT MIRROR),BLACK,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95J0901 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 87810-95J1001 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD W(DAY & NIGHT MIRROR),BLACK,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=44 |
1 | ||
| 87828-10010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=41 |
1 | ||
| 87828-32010 |
LH10#,11#,125,RZH10#,11#,125 L=47 |
1 | ||
| 87828-10010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=41 |
1 | ||
| 87828-30010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=44 |
1 | ||
| 87828-22020 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=35.8 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=44 |
1 | ||
| 87828-10010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=41 |
1 | ||
| 87828-32010 |
LH10#,11#,125,RZH10#,11#,125 L=47 |
1 | ||
| 87828-10010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=41 |
1 | ||
| 87828-30010 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=44 |
1 | ||
| 87828-22020 |
LH10#,11#,125,RZH102,103,104,11#,125..ARL,CIS,GEN L=35.8 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81241-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90152-60008 | ||||
ILLUST NO. 2 OF 2(8908- )
OUTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60070 | ||||
