RZH112R-RRMRE (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Mar 1997
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(8908- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCHES

diagram 84119 84172 84232 84330 84330B 84480 84660C 84730 84730B 84730D 84730R 84790 84790B 84870A 84930 85500 85500B 85500F 85513 85515 85520 85533 88607C
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-95J02

LH10#,11#,125,RZH10#,11#,125

 1
84332-26080

RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
84480 - SWITCH ASSY, MAIN
84480-26030

LH10#,11#,125,RZH10#,11#,125

 1
84660C - SWITCH, COOLER
84660-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-22130

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

LH125..ARL;LH10#,11#,RZH10#,11#,125

14V 1.4W

 1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10050

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-95J01

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH113,125,RZH102,114,125;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,112,114,115,166,176,RZH104,112,135,153..(SMRF,SRF)..(03S,06S,09S,12S,15S)

 1
84790-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320

RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH113,125,RZH102,114,125;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,112,114,115,166,176,RZH104,112,135,153..(SMRF,SRF)..(03S,06S,09S,12S,15S)

14V 0.84W

 1
84999-10320

LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S

14V 0.84W

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-12250

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-20080

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-30040

LH10#,11#,125,RZH10#,11#,125..STD

 1

ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

ROOF, FRONT FLOOR RELAY & SWITCHES

diagram 28610 8271126120 84730R 84732A 85336 85530B 85959A 9011906171 9356614512
Part # Description Qty Price
85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING
85335-54190

LH10#,11#,125

 1
85335-75010

RZH10#,11#,125

 1
Common parts
82711-26120
90119-06171
93566-14512

ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 28380A 8271122690 8271126171 83391 83399 83420 83530 84210 84540 89465 89466 89491 89491 89491A 89620 89620 89620 89629 9011908063 9017908101 9043018008 9043027001 9165140814 9165140816 9165160614 91651B0814 9338516025
Part # Description Qty Price
28380A - RESISTER, FUEL PUMP
23080-75010

1RZE..RZH102,112

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LH10#,11#,125,RZH10#,11#,125

 1
83420-16040

RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14040

RZH10#,11#,125

 1
83530-30060

LH10#,11#,125

YAZAKI

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)

 1
89465 - SENSOR, OXYGEN
89465-29625

RZH102,112..EFI

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
89620 - IGNITER ASSY
89620-10120

RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD

 1
89620-12440

RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN)..EFI;RZH102,103,112,125,135,153..RHD..EFI

 1
89620 - IGNITER ASSY
89620-10120

RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD

 1
89620-12440

RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN)..EFI;RZH102,103,112,125,135,153..RHD..EFI

 1
89620 - IGNITER ASSY
89620-10120

RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD

 1
89620-12440

RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN)..EFI;RZH102,103,112,125,135,153..RHD..EFI

 1
Common parts
82711-22690
82711-26171
90119-08063
90179-08101
90430-18008
90430-27001
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16025

ILLUST NO. 8 OF 9(8908- )

Click highlighted areas on diagram

DOOR CONTROL

diagram 84234 84261B 84261C 84262B 84262C 84535A 84931A 85918A 85975 9010906296 9011906885 9011906885 9011906911 9011906911 9015960025 9015960413 9015960413 9017906274 9018905019 9018905131 9018905131 9353055020 9353055020
Part # Description Qty Price
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-95J02

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
84261B - JUNCTION, SLIDE DOOR CONTROL,MALE
84261-95J03

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262-95J03

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
Common parts
90109-06296
90119-06885
90119-06911
90159-60025
90159-60413
90179-06274
90189-05019
90189-05131
93530-55020

ILLUST NO. 9 OF 9(8908- )

Click highlighted areas on diagram

REAR FLOOR, BACK DOOR RELAY & SW.

diagram 83320 83361 84235 84238A 84265 84265 84266 84266 85940B 9011906390 9016150004 9016150004 9016150004 9016150004 9016150004 9018905063 9018905063 9018905063 9018905063 9018905063 9048015194 9048015194 9165160614 93319A4010
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80342

RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH102,104,112,135,153..SMRF,SRF;RZH103,105,113,114,115..(CIS,GCC,GEN)..CBR

 1
83320-80153

LH10#,11#,125

 1
83320-80150

RZH10#,11#..CIS,GCC,GEN

 1
83320-80150

RZH10#,11#,125

 1
83320-80153

LH10#,11#,125..CIS,GCC,GEN

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
85940B - RELAY ASSY, REAR WIPER
85940-26020

LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF

 1
85940-95J02

LH10#,11#,125,RZH10#,11#,125

 1
Common parts
90119-06390
90161-50004
90189-05063
90480-15194
91651-60614
93319-A4010

ILLUST NO. 3 OF 9(8908- )RHD

Click highlighted areas on diagram

COWL RELAY & SWITCHES

diagram 28300 28300 28317 28610A 28610A 81980 82223F 8271595J00 82825A 83390 84340 84340 84461A 85930 85940B 85980 85985 86650C 9011906198 9165140612 9165140816 9165160614 9165160614 9165160614 91651B0814 9165640814 9338516012 9412041000 9412041000
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-22110

LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30020

LH10#,11#,125

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LH10#,11#,125,RZH10#,11#,125

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LH10#,11#,125,RZH10#,11#,125

 1
84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING
84461-26040

LH10#,11#,125,RZH10#,11#,125

 1
85940B - RELAY ASSY, REAR WIPER
85940-26020

LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF

 1
85940-95J02

LH10#,11#,125,RZH10#,11#,125

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-95J04

LH10#,11#,125,RZH102,103,104,11#,125..RHD

 1
86650C - BUZZER ASSY, SEDIMENTER WARNING
86650-95J06

LH10#,11#,125

 1
86650-28010

LH10#,11#,125

 1
Common parts
82715-95J00
90119-06198
91651-40612
91651-40816
91651-60614
91651-B0814
91656-40814
93385-16012
94120-41000

ILLUST NO. 4 OF 9(9608- )RHD

Click highlighted areas on diagram

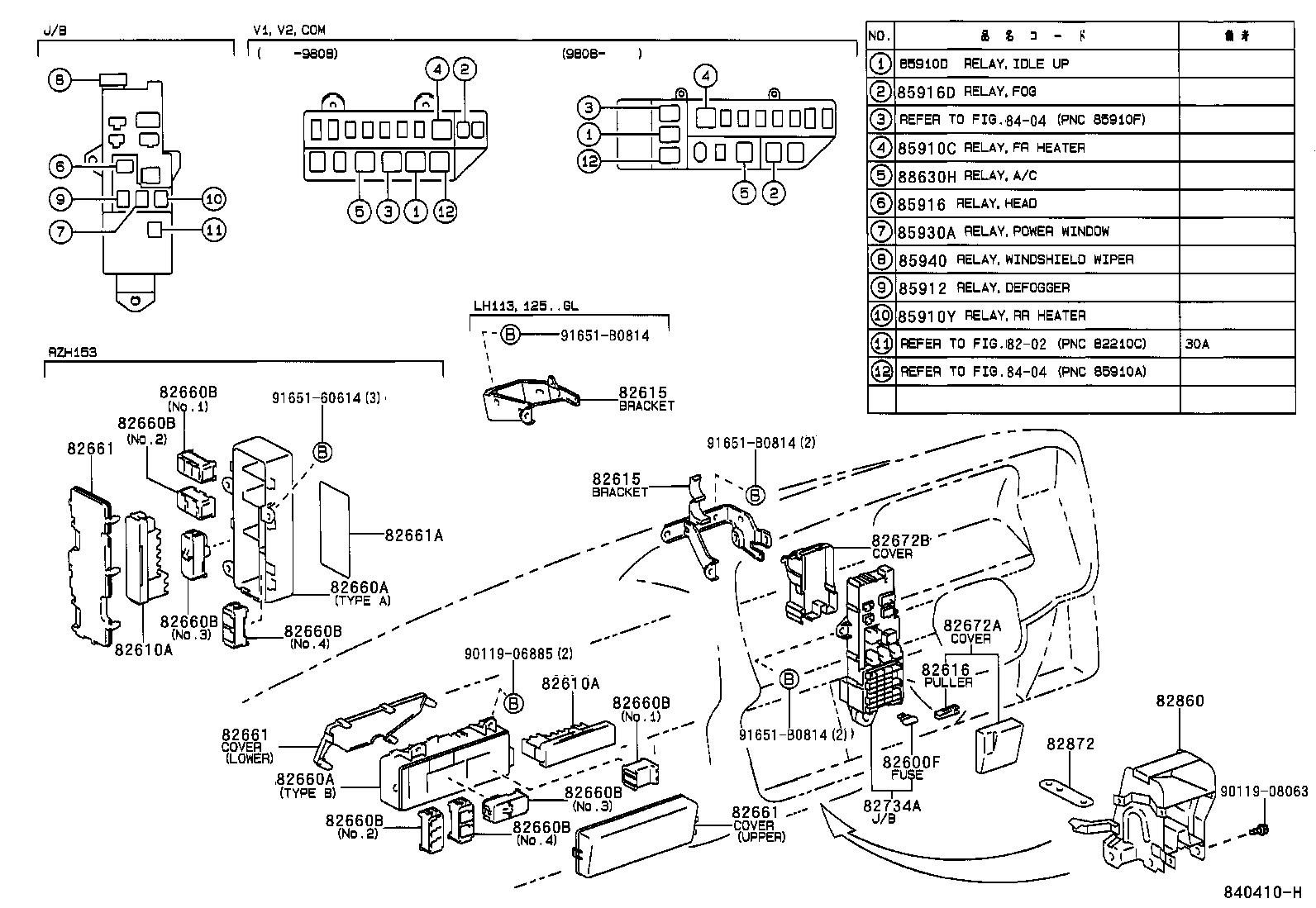

INSTRUMENT PANEL RELAY

diagram 8202 82600F 82610A 82610A 82615 82615 82616 82660A 82660A 82660B 82660B 82660B 82660B 82660B 82660B 82660B 82660B 82661 82661 82661 82661A 82672A 82672B 82734A 82860 82872 8404 8404 85910C 85910Y 85912 85916 85916D 85930A 85940 88630H 9011906885 9011908063 9165160614 91651B0814 91651B0814 91651B0814
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09003

LH10#,11#,125,RZH10#,11#,125

15A

 1
90982-09005

LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153

7.5A

 1
82615 - BRACKET, FUSE
82605-95J00

LH10#,11#,125,RZH10#,11#,125..RHD

LOWER

 1
82615-95J01

LH10#,11#,125,RZH10#,11#,125..RHD

UPPER

 1
82615 - BRACKET, FUSE
82605-95J00

LH10#,11#,125,RZH10#,11#,125..RHD

LOWER

 1
82615-95J01

LH10#,11#,125,RZH10#,11#,125..RHD

UPPER

 1
82616 - PULLER, FUSE
82616-12010

LH10#,11#,125,RZH10#,11#,125

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-95J07

LH10#,11#,125,RZH10#,11#,125..RHD

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-95J07

LH10#,11#,125,RZH10#,11#,125..RHD

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-95J07

LH10#,11#,125,RZH10#,11#,125..RHD

 1
82661A - COVER, RELAY BLOCK, NO.2
82661-95J08

LH10#,11#,125..RHD

 1
82661-95J09

RZH10#,11#,125..RHD

 1
82672B - COVER, JUNCTION BLOCK
82672-26020

RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH103,11#,125,RZH102,103,104,114,115,125,135,153..RHD

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004

LH10#,11#,125,RZH10#,11#,125

 1
85912 - RELAY, DEFOGGER
90987-02004

LH10#,11#,125,RZH10#,11#,125

 1
85915-26010

LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF

 1
90987-02009

LH125,RZH114,125;LH10#,11#,RZH10#,112,113,115..SRF

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

LH10#,11#,125,RZH10#,11#,125

TAIL LAMP

 1
85915-26010

LH10#,11#,125,RZH10#,11#,125

TAIL LAMP

 1
90987-02006

RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S

HEAD LAMP

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-95J00

LH112..(DX,STD)..GEN;LH10#,113,114,115,125,RZH10#,11#,125..ARL,GCC,GEN

 1
88630H - RELAY ASSY, COOLER
90987-04002

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
90987-04004

RZH105,115..STD..CIS;RZH113..4D..STD..GEN..EFI;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,114,115..(CIS,GCC,GEN)..CBR;LH113,RZH103..(DX,STD)..(CIS,GCC,GEN)..(DSL,EFI);LH10#,112,114,115,166,176,RZH104,112..SRF..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)

 1
Common parts
90119-06885
90119-08063
91651-60614
91651-B0814
Linked diagrams
8202
8404

ILLUST NO. 1 OF 9(8908- )LH10#,11#,125,154,16#,17#,184

Click highlighted areas on diagram

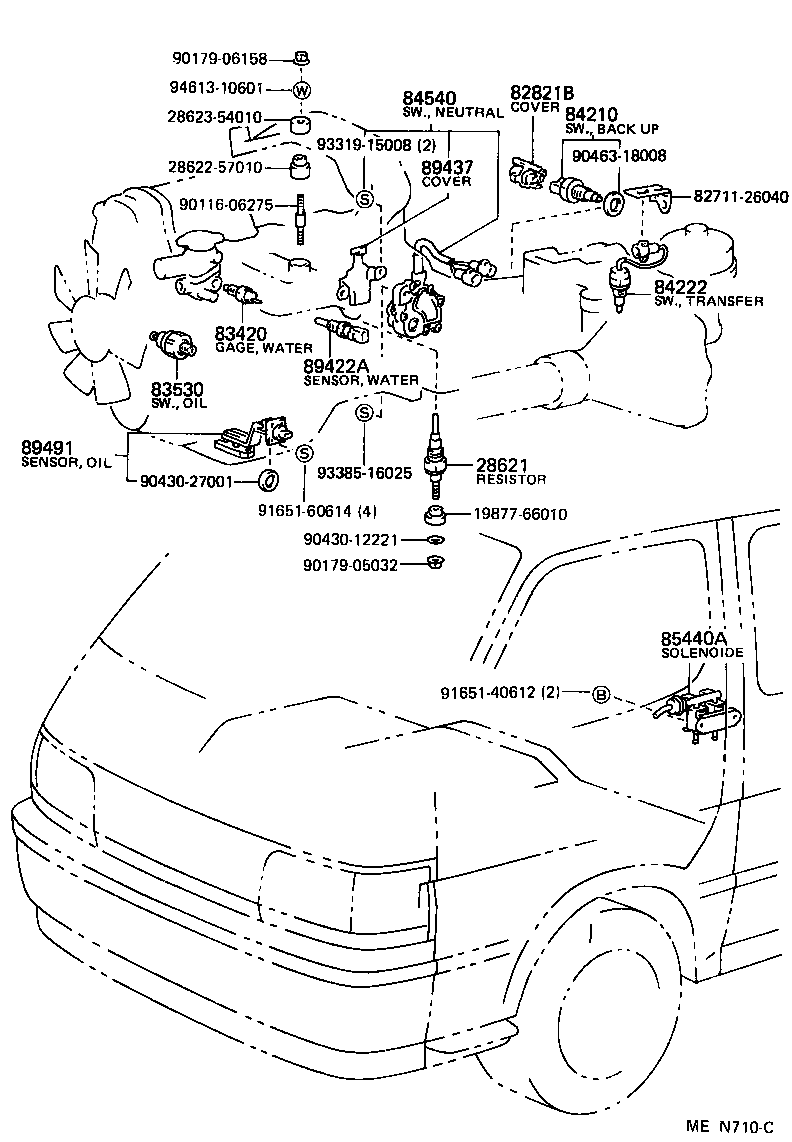

ENGINE & TRANSMISSION

diagram 1987766010 28621 2862257010 2862354010 83420 83530 84210 84540 89420F 89421D 89422A 89437 89491 89491 89491A 9011606095 9017905032 9017906158 9043012221 9043018008 9043027001 9165160614 9331915008 9338516025 9461310601
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LH10#,11#,125,RZH10#,11#,125

 1
83420-16040

RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14040

RZH10#,11#,125

 1
83530-30060

LH10#,11#,125

YAZAKI

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
Common parts
19877-66010
28622-57010
28623-54010
90116-06095
90179-05032
90179-06158
90430-12221
90430-18008
90430-27001
91651-60614
93319-15008
93385-16025
94613-10601

ILLUST NO. 5 OF 9(8908-9808) ; (9808- )RZH105,155..GL..EFI ; (9808- )RZH114,115..15S..GEN

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCHES

diagram 84110 84140 84310 84312 84450 84450 84650 85432 89435 9014940013 9014940013 9046400551 9165140816 9331913008 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80028

LH10#,11#,125,RZH102,103,104,112,113,114,125..RHD..STD

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26120

LH10#,11#,125,RZH10#,11#,125..RHD..STD

 1
84140-26050

LH102,103,11#,RZH102,103,104,11#..RHD..STD..GEN

 1
84140-26050

LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD..(DX,STD)

W(INTERMITTENT WIPER)

 1
84140-26060

LH102,103,11#,125,RZH102,103,104,11#,125..RHD..(GL,STD)

W(TILT STEERING)

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-26390

LH10#,11#,125,RZH10#,11#,125..RHD..STD

W(INTERMITTENT WIPER & REAR WIPER)

 1
84310-26420

RZH102..RHD..4F;LH10#,11#,RZH104,112,114..RHD..GEN

 1
84310-26370

RZH113..ARL;RZH102..RHD..4F;LH10#,11#,125,RZH103,104,112,114,125..RHD..STD

W(INTERMITTENT WIPER)

 1
84310-26410

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN

W(REAR WIPER)

 1
84310-26590

LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD..STD

W(TILT STEERING & INTERMITTENT WIPER)

 1
84310-26280

LH125..ARL;LH112..RHD..SRF..STD;LH102,103,113,114,115,RZH102,103,104,11#,125..RHD..STD

W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)

 1
84312 - PLATE, HORN CONTACT
84312-12040

LH10#,11#,125,RZH10#,11#,125,135,153

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26050

LH10#,11#,125,RZH10#,11#,125

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26050

LH10#,11#,125,RZH10#,11#,125

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-26240

LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD..STD

W(INTERMITTENT WIPER & REAR WIPER)

 1
84652-26270

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN

W(REAR WIPER)

 1
84652-26210

RZH102..4D;RZH103,113..STD..ARL;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD..STD

W(INTERMITTENT WIPER)

 1
84652-26170

RZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..STD..GEN

 1
84652-26260

LH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD..STD

W(TILT STEERING & INTERMITTENT WIPER)

 1
84652-26200

LH125..ARL;LH112..RHD..SRF..STD;LH102,103,113,114,115,RZH102,103,104,11#,125..RHD..STD

W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER)

 1
89435 - BRACKET, CONNECTOR COVER
89435-26090

RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S

 1
Common parts
90149-40013
90464-00551
91651-40816
93319-13008
93319-15012

ILLUST NO. 6 OF 9(8908- )

Click highlighted areas on diagram

FRONT DOOR SWITCHES

diagram 28300 28520 28520 28521 28521 28529 82620B 82622 82623 84233 84233 84550 84739A 84739B 84810 84810 8481926010 8481926010 8481926020 8481926020 84820 84820 84931B 84931B 88610M 89550 89551 8966726090 8966826090 9010906296 9010906296 9016430003 9016430003 9016440100 9165140614 9165160614 9165160614 9331514014 9331915010 9351016012 9351016012 9354016012 9354016012 9354054014 9359016014
Part # Description Qty Price
82622 - COVER, FUSIBLE LINK, UPPER
82622-26020

RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S

 1
82622-26010

RZH10#,11#,125

 1
82622-26020

LH10#,11#,125

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
84550 - SWITCH ASSY, PARKING BRAKE
84550-12060

LH10#,11#,125,RZH10#,11#,125..RHD

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-26040B0

LH102,103,11#,125,RZH102,103,104,11#,125..RHD

BLUISH GRAY,TRIM1#

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-26040B0

LH102,103,11#,125,RZH102,103,104,11#,125..RHD

BLUISH GRAY,TRIM1#

 1
84931B - SWITCH, DOOR CONTROL
84931-95J04

LH10#,11#,125,RZH10#,11#,125..RHD

RH

 1
84931B - SWITCH, DOOR CONTROL
84931-95J04

LH10#,11#,125,RZH10#,11#,125..RHD

RH

 1
Common parts
84819-26010
84819-26020
89667-26090
89668-26090
90109-06296
90164-30003
90164-40100
91651-40614
91651-60614
93315-14014
93319-15010
93510-16012
93540-16012
93540-54014
93590-16014

ILLUST NO. 8 OF 8(8908- )

Click highlighted areas on diagram

diagram 83320 83361 84235 84238A 84265 84265 84266 84266 85940B 9011906390 9015940155 9016150004 9016150004 9016150004 9016150004 9016150004 9018905117 9018905117 9018905117 9018905117 9018905117 9165640616
Part # Description Qty Price
Common parts
90119-06390
90159-40155
90161-50004
90189-05117
91656-40616

ILLUST NO. 1 OF 8(8908- )LH10#,11#

Click highlighted areas on diagram

diagram 1987766010 28621 2862257010 2862354010 8271126040 82821B 83420 83530 84210 84222 84540 85440A 89422A 89437 89491 9011606275 9017905032 9017906158 9043012221 9043027001 9046318008 9165140612 9165160614 9331915008 9338516025 9461310601
Part # Description Qty Price
Common parts
19877-66010
28622-57010
28623-54010
82711-26040
90116-06275
90179-05032
90179-06158
90430-12221
90430-27001
90463-18008
91651-40612
91651-60614
93319-15008
93385-16025
94613-10601

ILLUST NO. 1 OF 8(8908- )RZH10#,11#

Click highlighted areas on diagram

diagram 8271126040 8271126171 82821B 83391 83399 83420 83530 84210 84222 84540 85440A 89465 89466 89491 89620 89629 9011908063 9017908059 9043018008 9043027001 9046315439 9161160612 9165140814 9165160614 9338516025
Part # Description Qty Price
Common parts
82711-26040
82711-26171
90119-08063
90179-08059
90430-18008
90430-27001
90463-15439
91611-60612
91651-40814
91651-60614
93385-16025

ILLUST NO. 2 OF 8(8908- )RHD

Click highlighted areas on diagram

diagram 84162A 84162C 84232 84330 84330B 84480 84724 84724B 84730 84730B 84730R 84790 84790B 85500 85513 85515 85533
Part # Description Qty Price

ILLUST NO. 3 OF 8(8908- )RHD

Click highlighted areas on diagram

diagram 28300 28300 28317 28610A 81980 82640 8271595J00 83390 84340 84461A 85969 85980 9011906171 9018305003 9165140816 9165160614 9165160614 9165640814 9356755016 9412041000
Part # Description Qty Price
Common parts
82715-95J00
90119-06171
90183-05003
91651-40816
91651-60614
91656-40814
93567-55016
94120-41000

ILLUST NO. 6 OF 8(8908- )

Click highlighted areas on diagram

diagram 28521 28529 84233 84233 84550 84739A 84810 8481926010 84820 84931B 84931B 85276A 85335 85930 89550 9011906390 9011906390 9016430003 9017906070 9165640622 9331514014 9351016012 9351016012
Part # Description Qty Price
Common parts
84819-26010
90119-06390
90164-30003
90179-06070
91656-40622
93315-14014
93510-16012

ILLUST NO. 7 OF 8(8908- )

Click highlighted areas on diagram

diagram 2332264020 2334454010 28610 8271126120 84234 84261B 84262B 84461 84730B 84730R 84730R 84732A 84732A 85336 85959A 9011906198 9011906390 9015960143 9015960143
Part # Description Qty Price
Common parts
23322-64020
23344-54010
82711-26120
90119-06198
90119-06390
90159-60143

ILLUST NO. 5 OF 8(8908- )

Click highlighted areas on diagram

diagram 84110 84140 84310 84312 84450 84650 85432 89435 9014940013 9165140816 9331915012
Part # Description Qty Price
Common parts
90149-40013
91651-40816
93319-15012
