RZH112R-RRMRE (1995)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF 3(8908- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95J29 |
LH10#,11#,125,RZH10#,11#,125..STD DUST PROOFING |
1 | ||
| 67001-95J30 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 67001-95J36 |
LH10#,11#,125,RZH10#,11#,125..STD DUST PROOFING & W(POWER DOOR LOCK) |
1 | ||
| 67001-95J34 |
LH10#,11#,RZH10#,11#..GEN W(POWER DOOR LOCK) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09064 |
LH10#,11#,125,RZH10#,11#,125 LOWER |
2 | ||
| 90541-09026 |
LH10#,11#,125,RZH10#,11#,125 UPPER |
2 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09064 |
LH10#,11#,125,RZH10#,11#,125 LOWER |
2 | ||
| 90541-09026 |
LH10#,11#,125,RZH10#,11#,125 UPPER |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95J28 |
LH10#,11#,125,RZH10#,11#,125..STD DUST PROOFING |
1 | ||
| 67002-95J33 |
LH10#,11#,RZH10#,11#..GEN W(POWER DOOR LOCK) |
1 | ||
| 67002-95J35 |
LH10#,11#,125,RZH10#,11#,125..STD DUST PROOFING & W(POWER DOOR LOCK) |
1 | ||
| 67002-95J29 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-95J05 |
LH103..5D;LH172..03S..GL;RZH112..06S..5F;RZH103..RHD..EFI;RZH113..03S..CBR;RZH112,115..(03S,15S)..CIS;LH103,RZH112..4D..SP..(4FC,5F);RZH113..06S..5F..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,105..LHD..4D..STD..(CIS,GEN);RZH103,115..(03S,06S,09S,12S,15S)..CBR;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH102,184,RZH102,114..(03S,09S,10S,12S,15S)..5F;LH102,104,105,166,174,RZH105..LHD..(06S,10S,12S)..(CBR,DSL);LH11#,125,176,RZH104,125,135,153..(03S,06S,09S,12S,14S,15S)..(4FC,5F) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-95J05 |
LH103..5D;LH172..03S..GL;RZH112..06S..5F;RZH103..RHD..EFI;RZH113..03S..CBR;RZH112,115..(03S,15S)..CIS;LH103,RZH112..4D..SP..(4FC,5F);RZH113..06S..5F..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,105..LHD..4D..STD..(CIS,GEN);RZH103,115..(03S,06S,09S,12S,15S)..CBR;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH102,184,RZH102,114..(03S,09S,10S,12S,15S)..5F;LH102,104,105,166,174,RZH105..LHD..(06S,10S,12S)..(CBR,DSL);LH11#,125,176,RZH104,125,135,153..(03S,06S,09S,12S,14S,15S)..(4FC,5F) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95J04 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95J04 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95J04 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95J04 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 67829A - SEAL, FRONT DOOR WIRE HOLE | ||||
| 67829-95J00 |
LH10#,11#,125,RZH10#,11#,125..DX,STD |
2 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-95J05 |
LH10#,11#,125,RZH10#,11#,125..DX,STD W(POWER DOOR LOCK) |
1 | ||
| 67835B - COVER, FRONT DOOR SERVICE HOLE SUB | ||||
| 67835-95J00 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 67836B - COVER, FRONT DOOR SERVICE HOLE SUB, LH | ||||
| 67836-95J00 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67837-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-95J05 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95J05 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-95J00 |
LH10#,11#,125,RZH10#,11#,125 DUST PROOFING |
1 | ||
| 67863-95J01 |
LH172..03S..GL;RZH112..SRF..GEN;RZH103..RHD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH114,RZH115..(12S,15S)..(GCC,GEN)..(CBR,DSL);LH10#,112,113,115,125,184,RZH102,104,114,135,153..GCC,GEN;LH174,RZH103,105,113..SRF..(03S,06S,09S,10S,12S)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-95J02 |
LH10#,11#,125,RZH10#,11#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
13 | ||
| 67867-95J03 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-95J01 |
LH172..03S..GL;RZH112..SRF..GEN;RZH103..RHD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH114,RZH115..(12S,15S)..(GCC,GEN)..(CBR,DSL);LH10#,112,113,115,125,184,RZH102,104,114,135,153..GCC,GEN;LH174,RZH103,105,113..SRF..(03S,06S,09S,10S,12S)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 67864-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S DUST PROOFING |
1 | ||
| 67864G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-95J03 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 67868-95J00 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION |
13 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-95J02 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 |
20 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-95J02 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-95J00 |
LH10#,11#,125,RZH10#,11#,125 |
20 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-26020 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 *TT,T=4.0 |
1 | ||
| 68111-95J08 |
LH10#,11#,125,RZH10#,11#,125..STD *TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-26020 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 *TT,T=4.0 |
1 | ||
| 68112-95J08 |
LH10#,11#,125,RZH10#,11#,125..STD *TEM,T=4.0 |
1 | ||
| 68127B - SHUTTER, FRONT DOOR, LOWER RH | ||||
| 68127-95J03 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-95J04 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-95J04 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68212-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
10 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-95J04 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95J01 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 69951 - BRACKET, FRONT DOOR GLASS | ||||
| 69951-95J01 |
LH10#,11#,125,RZH10#,11#,125..STD FRONT |
2 | ||
| 69951-95J00 |
LH10#,11#,125,RZH10#,11#,125..STD REAR |
2 | ||
| 69951 - BRACKET, FRONT DOOR GLASS | ||||
| 69951-95J01 |
LH10#,11#,125,RZH10#,11#,125..STD FRONT |
2 | ||
| 69951-95J00 |
LH10#,11#,125,RZH10#,11#,125..STD REAR |
2 | ||
| Common parts | ||||
| 82711-10270 | ||||
| 90167-40046 | ||||
| 90179-06159 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 7552 | ||||
ILLUST NO. 1 OF 2(8908- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-95J1203 |
LH10#,11#,125,RZH10#,11#,125..STD GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
LH10#,11#,125,RZH10#,11#,125 |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704353 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704353 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704353 |
LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1# |
2 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000223 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-0150333 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1#,TYPE B:REFER ILLUST. |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-95J3403 |
LH10#,11#,125,RZH10#,11#,125..STD GRAY,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95J02 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S LH |
1 | ||
| 68171-95J02 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S RH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-95J02 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 68211-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-95J02 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 68211-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-95J02 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 68211-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-95J02 |
LH10#,11#,125,RZH10#,11#,125,135,153 TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 68211-95J00 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S TYPE A:REFER TO ILLUSTRATION |
4 | ||
| Common parts | ||||
| 67772-95J03 | ||||
| 90159-40185 | ||||
| 90159-40204 | ||||
| 90159-60247 | ||||
| 90159-60303 | ||||
| 90189-04084 | ||||
| 90189-04101 | ||||
| 90189-04136 | ||||
| 90189-06018 | ||||
| 90189-06129 | ||||
| 93568-15014 | ||||

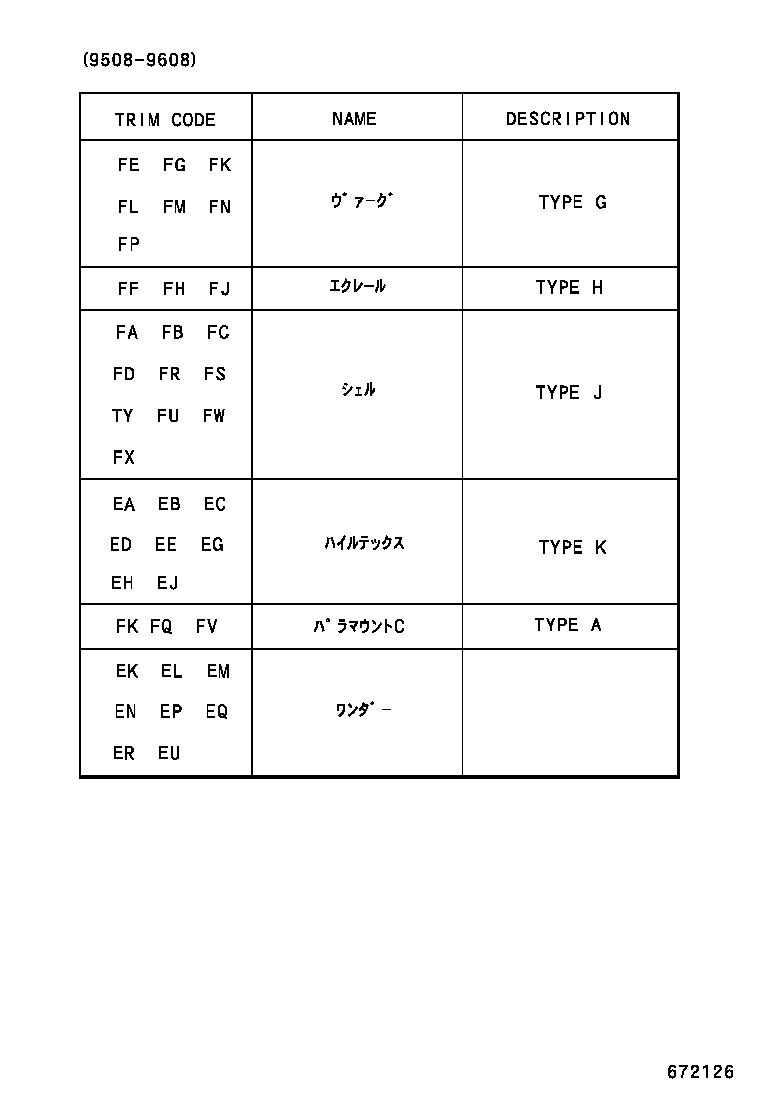

ILLUST NO. 3 OF 3(9508-9608)
TRIM CODE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-40046 | ||||
| 90179-06070 | ||||
| 91651-60612 | ||||
ILLUST NO. 2 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40185 | ||||
| 90159-40204 | ||||
| 90159-60303 | ||||
| 90189-04101 | ||||
| 90189-06018 | ||||
