Manufacturers Home
Toyota
EU
HIACE VAN,COMMUTER
RZH112R-RRMRE (1995)
4705 - FRONT DISC BRAKE CALIPER & DUST COVER

RZH112R-RRMRE (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Mar 1997

Engine 1RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

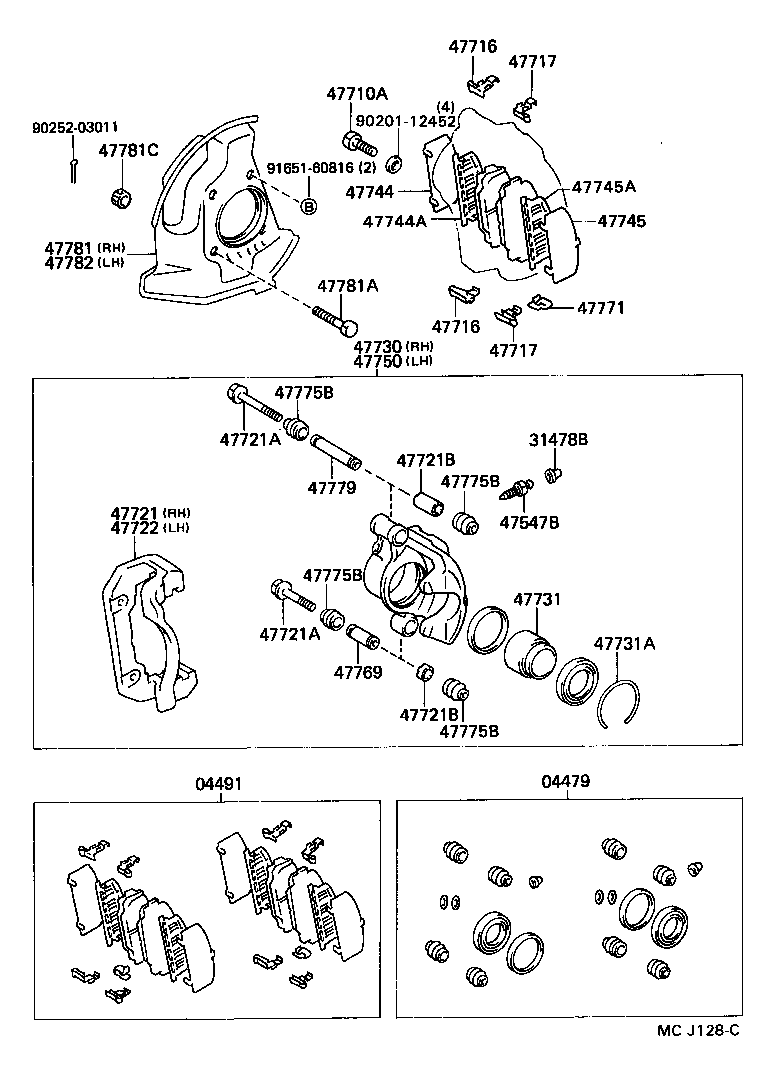

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-26030	LH10#,11#,125,RZH10#,11#,125 MARK SUMITOMO PS509	08/1989 - 08/1993	1
04465-26310	LH10#,11#,125,RZH10#,11#,125 W(15 INCHES DISC WHEEL)	08/1995 - 11/1996	1
04465-26320	RZH102,112..SRF;RZH103..RHD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(03S,06S,09S,12S)..CBR;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S MARK AKB PA533,W(15 INCHES DISC WHEEL)	11/1996 - 12/2999	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-26010	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
04945-26140	LH10#,11#,125,RZH10#,11#,125 W(15 INCHES DISC WHEEL)	08/1995 - 11/1996	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26010	LH10#,11#,125,RZH10#,11#,125..GL,STD	08/1989 - 11/1994	1

(8908- )LH102,112,RZH102,103,112,113,115

Click highlighted areas on diagram

14 INCHES DISC WHEEL

diagram

Part #	Description	Period	Qty	Price
Common parts
90201-12452
90252-03011
91651-60816

(8908- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
