Toyota Hiace van,commuter RZH112 POWER STEERING TUBE

RZH112R-RRMRE (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Mar 1997

Engine 1RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

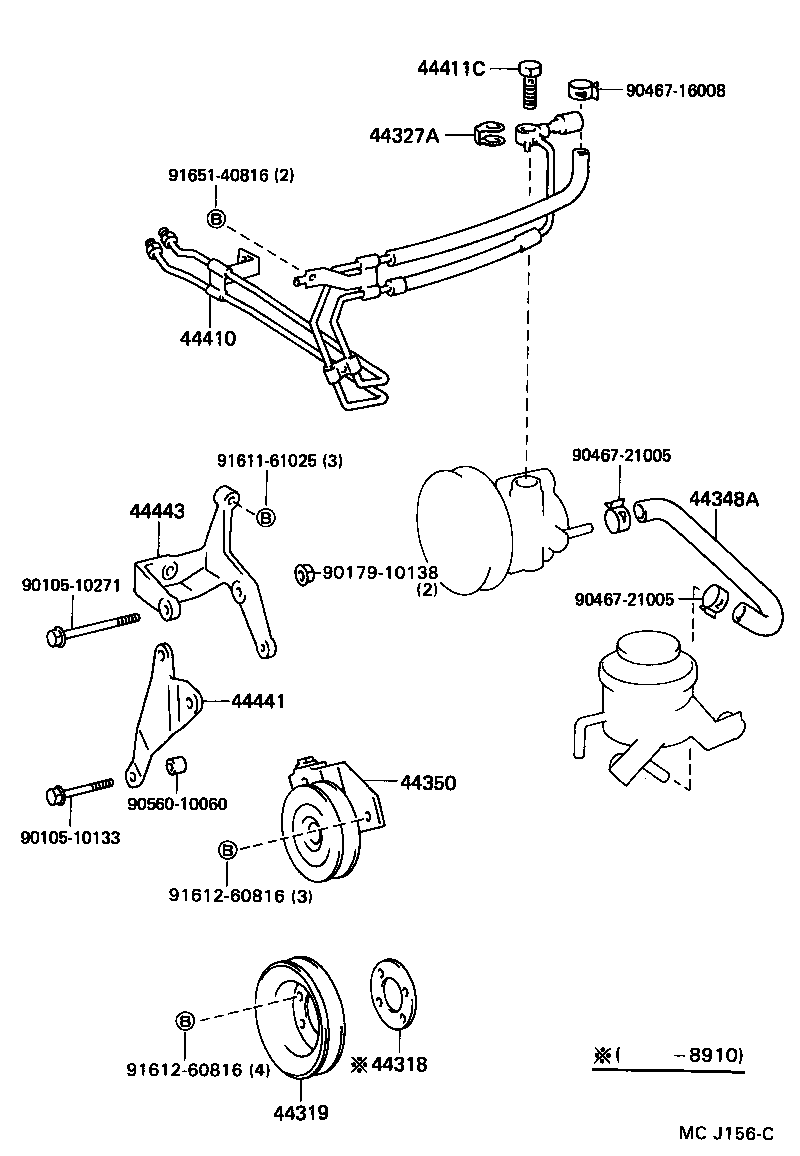

(8908- )RZH10#,11#,125,135,153..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26010	LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184	08/1989 - 08/2000	1
44318-26020	RZH10#,11#,125	08/1989 - 08/1998	1
44319 - PULLEY, VANE PUMP DRIVE
44319-26020	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44319-26010	LH10#,11#,125	08/1989 - 10/1990	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010	LH10#,11#,125	08/1989 - 11/1989	1
44327-26020	RZH10#,11#,125	08/1989 - 05/1990	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26090	LH10#,11#,125	08/1989 - 06/1998	1
44348-26070	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-26010	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26240	LH10#,11#,125..RHD D=14	08/1989 - 05/1990	1
44410-26170	RZH113..RHD..4D..STD..EFI;RZH102,103,112,125,135,153..RHD..EFI	08/1995 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26240	LH10#,11#,125..RHD D=14	08/1989 - 05/1990	1
44410-26170	RZH113..RHD..4D..STD..EFI;RZH102,103,112,125,135,153..RHD..EFI	08/1995 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008	LH10#,11#,125 *16-1.5PX26-12	08/1989 - 05/1990	1
90401-16014	RZH10#,11#,125	08/1989 - 05/1990	1
44441 - BRACKET, PUMP, FRONT
44441-26010	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44443 - BRACKET, PUMP
44443-26030	RZH10#,11#,125	08/1989 - 10/1989	1
44443-26040	LH10#,11#,125	08/1989 - 08/1993	1
Common parts
90105-10133
90105-10271
90179-10138
90467-16007
90467-16019
90467-21010
90560-10060
91611-B0816
91612-61025
91651-40816
Linked diagrams
1708

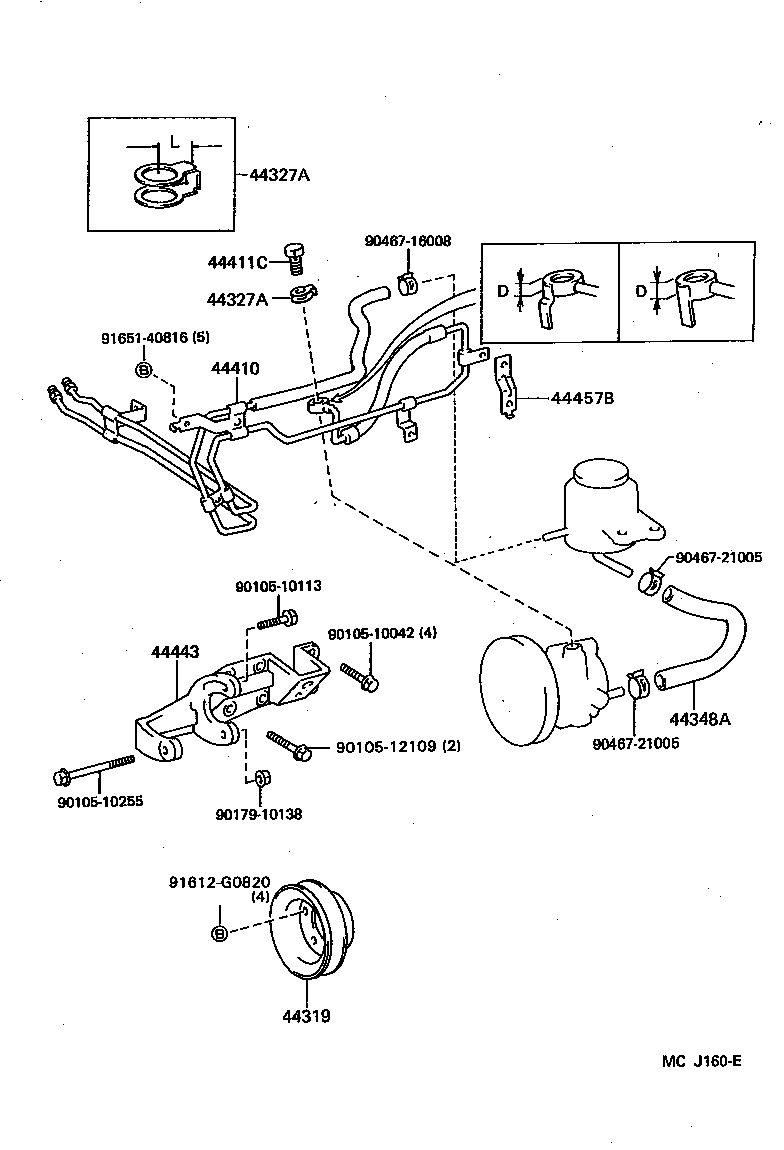

(8908- )LH10#,11#,125,162,172,174,184..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26010	LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184	08/1989 - 08/2000	1
44318-26020	RZH10#,11#,125	08/1989 - 08/1998	1
44319 - PULLEY, VANE PUMP DRIVE
44319-26020	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44319-26010	LH10#,11#,125	08/1989 - 10/1990	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010	LH10#,11#,125	08/1989 - 11/1989	1
44327-26020	RZH10#,11#,125	08/1989 - 05/1990	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010	LH10#,11#,125	08/1989 - 11/1989	1
44327-26020	RZH10#,11#,125	08/1989 - 05/1990	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26090	LH10#,11#,125	08/1989 - 06/1998	1
44348-26070	RZH114,125;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI	08/1989 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26240	LH10#,11#,125..RHD D=14	08/1989 - 05/1990	1
44410-26170	RZH113..RHD..4D..STD..EFI;RZH102,103,112,125,135,153..RHD..EFI	08/1995 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008	LH10#,11#,125 *16-1.5PX26-12	08/1989 - 05/1990	1
90401-16014	RZH10#,11#,125	08/1989 - 05/1990	1
44443 - BRACKET, PUMP
44443-26030	RZH10#,11#,125	08/1989 - 10/1989	1
44443-26040	LH10#,11#,125	08/1989 - 08/1993	1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-26060	LH174..GL;LH172..RHD;LH10#,11#,125,184	08/1989 - 08/2000	1
Common parts
90105-10042
90105-10113
90105-10255
90105-12109
90179-10138
90467-16007
90467-16019
90467-21010
91611-B0816
91651-40816

(8908- )RZH112

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-10133
90105-10271
90179-10138
90467-16008
90467-21005
90560-10060
91611-61025
91612-60816
91651-40816

(8908- )LH102,112..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-10042
90105-10113
90105-10255
90105-12109
90179-10138
90467-16008
90467-21005
91612-G0820
91651-40816
