RZH112R-RRMRE (1995)
Toyota Hiace Van,Commuter

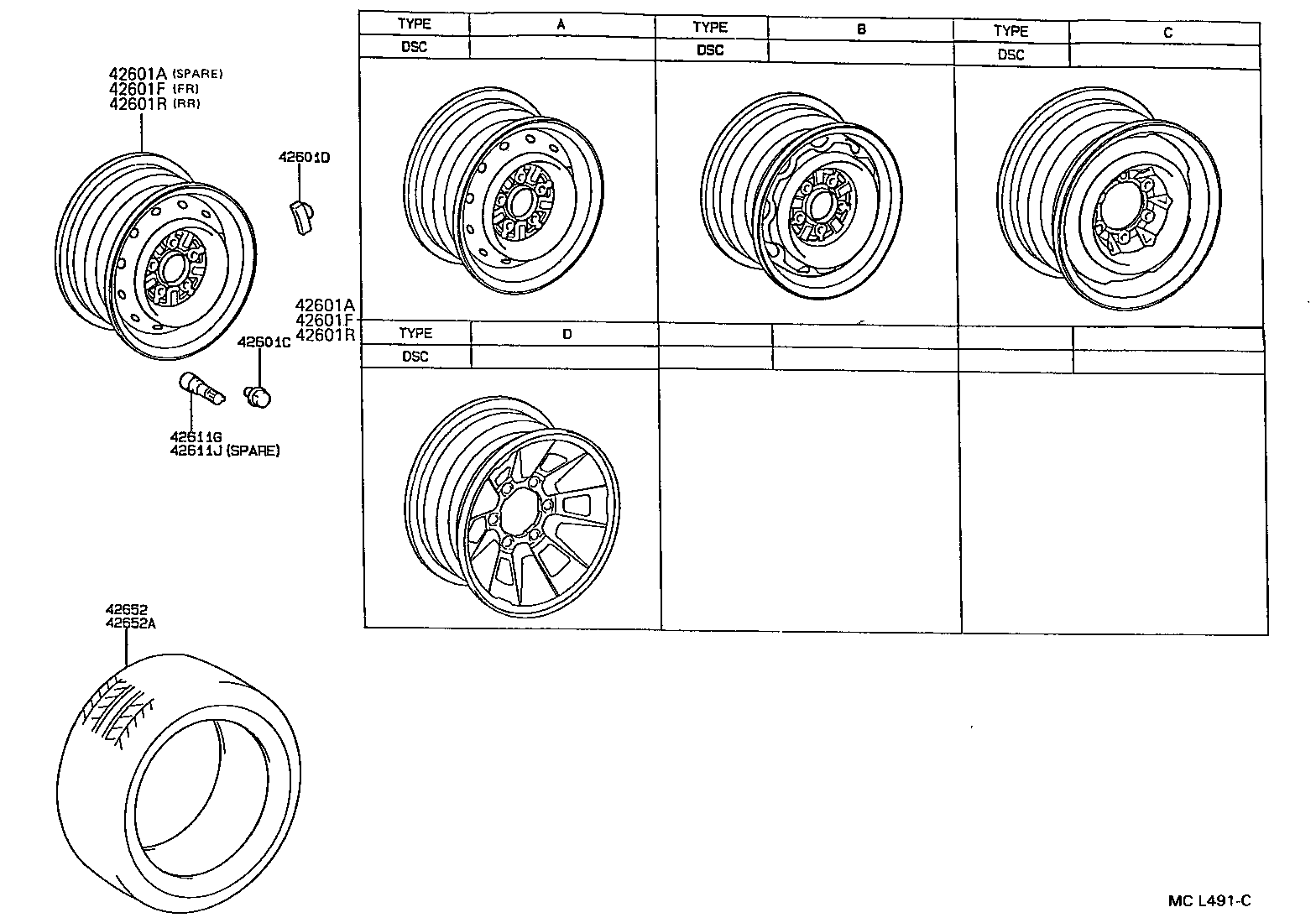

ILLUST NO. 1 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-2624003 |
LH10#,11#,RZH10#,11#..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
1 | ||
| 42601-2625003 |
LH10#,11#,RZH102,104,11#..GEN 5.5J-14, #,SILVER,TYPE B:REFER ILLUST. |
2 | ||
| 42601-2636003 |
RZH103..SG;LH10#,11#,125,RZH102,104,105,11#..(GL,STD)..(CIS,GCC,GEN) 14X5.5J, #,SILVER,TYPE A:REFER ILLUST. |
1 | ||
| 42601-26321 |
RZH103..STD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH102,112..SRF..(GL,STD);RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(03S,06S,09S,12S)..CBR;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 15X6JJ SILVER, #,TYPE A:REFER ILLUST. |
1 | ||
| 42601-2624003 |
RZH113..06S..GEN;LH102,103,112,113,RZH102,103,112..(GL,STD)..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26440 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH103,105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,RZH115..(03S,12S)..GL..(CBR,DSL);LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH104,114,135,153..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) 15X6JJ BLACK, #,TYPE A:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-2624003 |
LH10#,11#,RZH10#,11#..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
1 | ||
| 42601-2625003 |
LH10#,11#,RZH102,104,11#..GEN 5.5J-14, #,SILVER,TYPE B:REFER ILLUST. |
2 | ||
| 42601-2636003 |
RZH103..SG;LH10#,11#,125,RZH102,104,105,11#..(GL,STD)..(CIS,GCC,GEN) 14X5.5J, #,SILVER,TYPE A:REFER ILLUST. |
1 | ||
| 42601-26321 |
RZH103..STD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH102,112..SRF..(GL,STD);RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(03S,06S,09S,12S)..CBR;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 15X6JJ SILVER, #,TYPE A:REFER ILLUST. |
1 | ||
| 42601-2624003 |
RZH113..06S..GEN;LH102,103,112,113,RZH102,103,112..(GL,STD)..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26440 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH103,105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,RZH115..(03S,12S)..GL..(CBR,DSL);LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH104,114,135,153..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) 15X6JJ BLACK, #,TYPE A:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
RZH103,105..SG..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN;RZH113,115..STD..(GCC,GEN)..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH172,174,RZH115..(03S,10S,12S)..GL..(CBR,DSL);LH10#,11#,125,184,RZH102,104,112,114,135,153..CIS,GCC,GEN TYPE A:REFER ILLUST. |
20 | ||
| 90942-01061 |
LH10#,11#,125,RZH10#,11#,125..03S,06S,09S,12S,14S,15S TYPE B:REFER ILLUST. |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
RZH103,105..SG..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN;RZH113,115..STD..(GCC,GEN)..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH172,174,RZH115..(03S,10S,12S)..GL..(CBR,DSL);LH10#,11#,125,184,RZH102,104,112,114,135,153..CIS,GCC,GEN TYPE A:REFER ILLUST. |
20 | ||
| 90942-01061 |
LH10#,11#,125,RZH10#,11#,125..03S,06S,09S,12S,14S,15S TYPE B:REFER ILLUST. |
20 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-2625003 |
LH10#,11#,RZH102,104,11#..GEN 5.5J-14, #,SILVER,TYPE B:REFER ILLUST. |
4 | ||
| 42601-2624003 |
LH10#,11#,RZH10#,11#..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-2624003 |
RZH113..06S..GEN;LH102,103,112,113,RZH102,103,112..(GL,STD)..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
4 | ||
| 42601-2636003 |
RZH103..SG;LH10#,11#,125,RZH102,104,105,11#..(GL,STD)..(CIS,GCC,GEN) 14X5.5J, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26440 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH103,105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,RZH115..(03S,12S)..GL..(CBR,DSL);LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH104,114,135,153..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) 15X6JJ BLACK, #,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26321 |
RZH103..STD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH102,112..SRF..(GL,STD);RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(03S,06S,09S,12S)..CBR;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 15X6JJ SILVER, #,TYPE A:REFER ILLUST. |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-2625003 |
LH10#,11#,RZH102,104,11#..GEN 5.5J-14, #,SILVER,TYPE B:REFER ILLUST. |
4 | ||
| 42601-2624003 |
LH10#,11#,RZH10#,11#..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-2624003 |
RZH113..06S..GEN;LH102,103,112,113,RZH102,103,112..(GL,STD)..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
4 | ||
| 42601-2636003 |
RZH103..SG;LH10#,11#,125,RZH102,104,105,11#..(GL,STD)..(CIS,GCC,GEN) 14X5.5J, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26440 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH103,105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,RZH115..(03S,12S)..GL..(CBR,DSL);LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH104,114,135,153..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) 15X6JJ BLACK, #,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26321 |
RZH103..STD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH102,112..SRF..(GL,STD);RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(03S,06S,09S,12S)..CBR;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 15X6JJ SILVER, #,TYPE A:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-2625003 |
LH10#,11#,RZH102,104,11#..GEN 5.5J-14, #,SILVER,TYPE B:REFER ILLUST. |
4 | ||
| 42601-2624003 |
LH10#,11#,RZH10#,11#..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-2624003 |
RZH113..06S..GEN;LH102,103,112,113,RZH102,103,112..(GL,STD)..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
4 | ||
| 42601-2636003 |
RZH103..SG;LH10#,11#,125,RZH102,104,105,11#..(GL,STD)..(CIS,GCC,GEN) 14X5.5J, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26321 |
RZH103..STD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH102,112..SRF..(GL,STD);RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(03S,06S,09S,12S)..CBR;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 15X6JJ SILVER, #,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26440 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH103,105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,RZH115..(03S,12S)..GL..(CBR,DSL);LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH104,114,135,153..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) 15X6JJ BLACK, #,TYPE A:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-2625003 |
LH10#,11#,RZH102,104,11#..GEN 5.5J-14, #,SILVER,TYPE B:REFER ILLUST. |
4 | ||
| 42601-2624003 |
LH10#,11#,RZH10#,11#..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-2624003 |
RZH113..06S..GEN;LH102,103,112,113,RZH102,103,112..(GL,STD)..GEN 5J-14, #,SILVER,TYPE A:REFER ILLUST. |
4 | ||
| 42601-2636003 |
RZH103..SG;LH10#,11#,125,RZH102,104,105,11#..(GL,STD)..(CIS,GCC,GEN) 14X5.5J, #,SILVER,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26321 |
RZH103..STD..EFI;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH102,112..SRF..(GL,STD);RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(03S,06S,09S,12S)..CBR;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S 15X6JJ SILVER, #,TYPE A:REFER ILLUST. |
2 | ||
| 42601-26440 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;RZH103,105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,RZH115..(03S,12S)..GL..(CBR,DSL);LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH104,114,135,153..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) 15X6JJ BLACK, #,TYPE A:REFER ILLUST. |
2 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 42652 - TIRE | ||||
| 42605-26080 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) 185R14 6PR,*D/L,*T/Y |
2 | ||
| 42605-26170 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) 185R14-6,W(TUBE) |
2 | ||
| 42605-26110 |
LH125,RZH125;LH10#,11#,RZH10#,11#..(GL,STD)..(CIS,GCC,GEN) 185R14 8PR,*D/L,*T/Y |
4 | ||
| 42605-26140 |
LH102,103,112,113,RZH102,103,112,113..GEN 6.00-14-6,W(TUBE) |
2 | ||
| 42605-26150 |
LH102,103,112,113,RZH102,103,112,113..GEN 6.00-14-8,W(TUBE) |
4 | ||
| 42605-26180 |
LH125,RZH125;LH10#,11#,RZH10#,11#..(GL,STD)..(CIS,GCC,GEN) 185R14-8,W/TUBE,*B/S |
4 | ||
| 42652-26570 |
LH10#,11#,125,RZH10#,11#,125 195/70R15C |
4 | ||
| 42652-26550 |
RZH104,114;LH10#,11#,RZH102,103,105,112,113,115..GCC,GEN 185R14-8 |
4 | ||
| 42652-26500 |
LH10#,11#,125,RZH10#,11#,125..GL,SGL,STD 195/70R15,*D/L |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42605-26150 |
LH102,103,112,113,RZH102,103,112,113..GEN 6.00-14-8,W(TUBE) |
1 | ||
| 42605-26110 |
LH10#,11#,RZH102,104,11#..GEN 185R14 8PR,*D/L,*T/Y |
1 | ||
| 42605-26180 |
LH10#,11#,RZH102,104,11#..GEN 185R14-8,W/TUBE,*B/S |
1 | ||
| 42652-26570 |
LH10#,11#,125,RZH10#,11#,125 195/70R15C |
1 | ||
| 42652-26500 |
LH10#,11#,125,RZH10#,11#,125..GL,SGL,STD 195/70R15,*D/L |
1 | ||

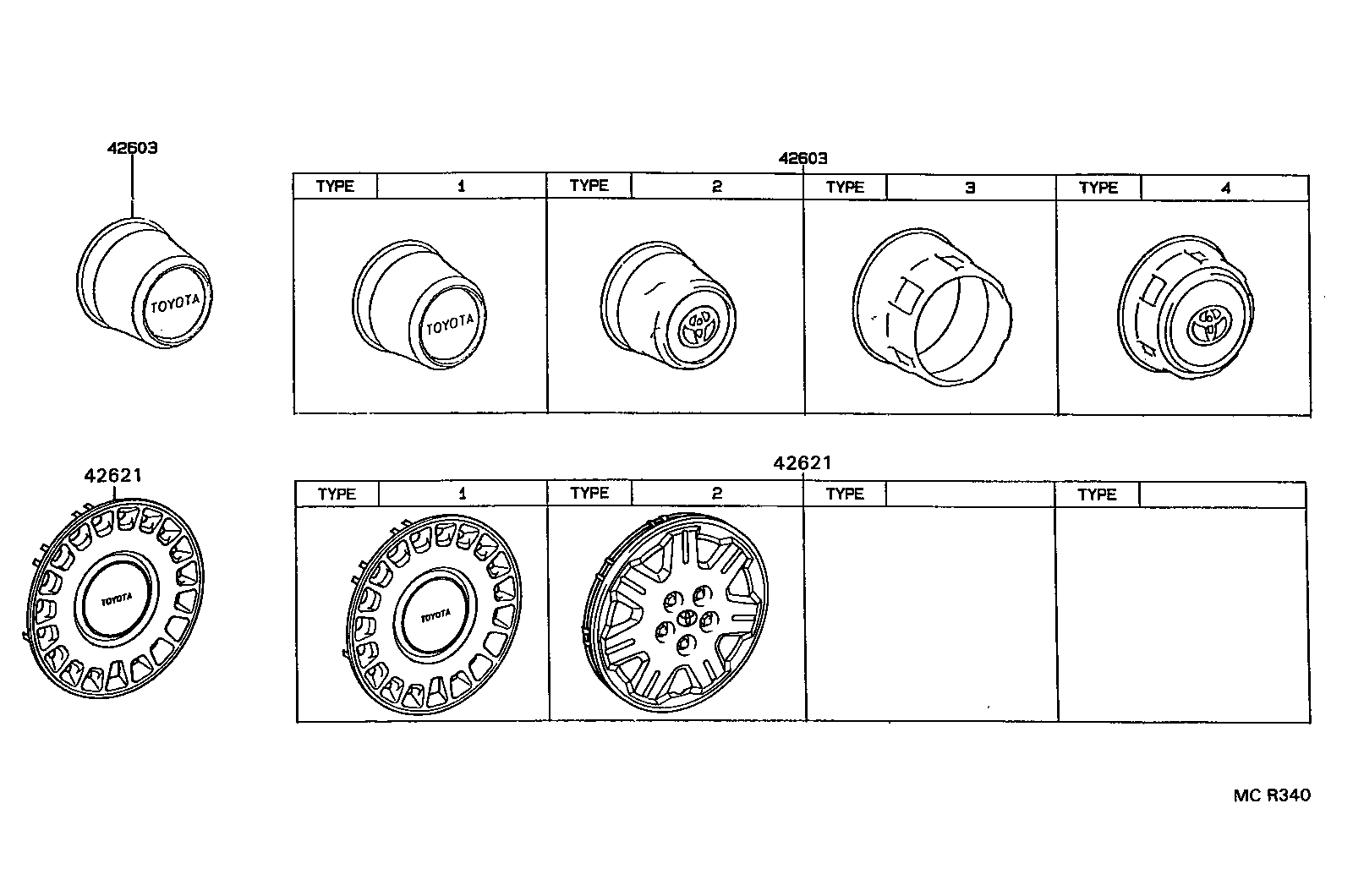

ILLUST NO. 2 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-26070 |
LH10#,11#,125,RZH10#,11#,125..STD TYPE A:REFER ILLUST. |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-26170 |
RZH103..GL;LH10#,11#,RZH102,104,11#..GEN TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-26170 |
RZH103..GL;LH10#,11#,RZH102,104,11#..GEN TYPE A:REFER TO ILLUSTRATION |
4 | ||
ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-42101 | ||||
| 90080-42105 | ||||
| 90080-42109 | ||||
| 90080-42113 | ||||
| 90080-42115 | ||||
| 90080-42117 | ||||
| 90080-42119 | ||||
| 90080-42121 | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03027 | ||||
| 90942-03029 | ||||
| 90942-03031 | ||||
| 90942-03041 | ||||
| 90942-03079 | ||||
| 90942-03080 | ||||
| 90942-03081 | ||||
| 90942-03082 | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03086 | ||||
| 90942-03107 | ||||
| 90942-03218 | ||||
| 90942-03219 | ||||
| 90942-03220 | ||||
| 90942-03221 | ||||
| 90942-03222 | ||||
| 90942-03223 | ||||
| 90942-03224 | ||||
| 90942-03225 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(8908- )
| Part # | Description | Qty | Price |
|---|
