RZH112R-RRMRE (1995)
Toyota Hiace Van,Commuter
(8908-9608)1RZ,2RZ
12V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

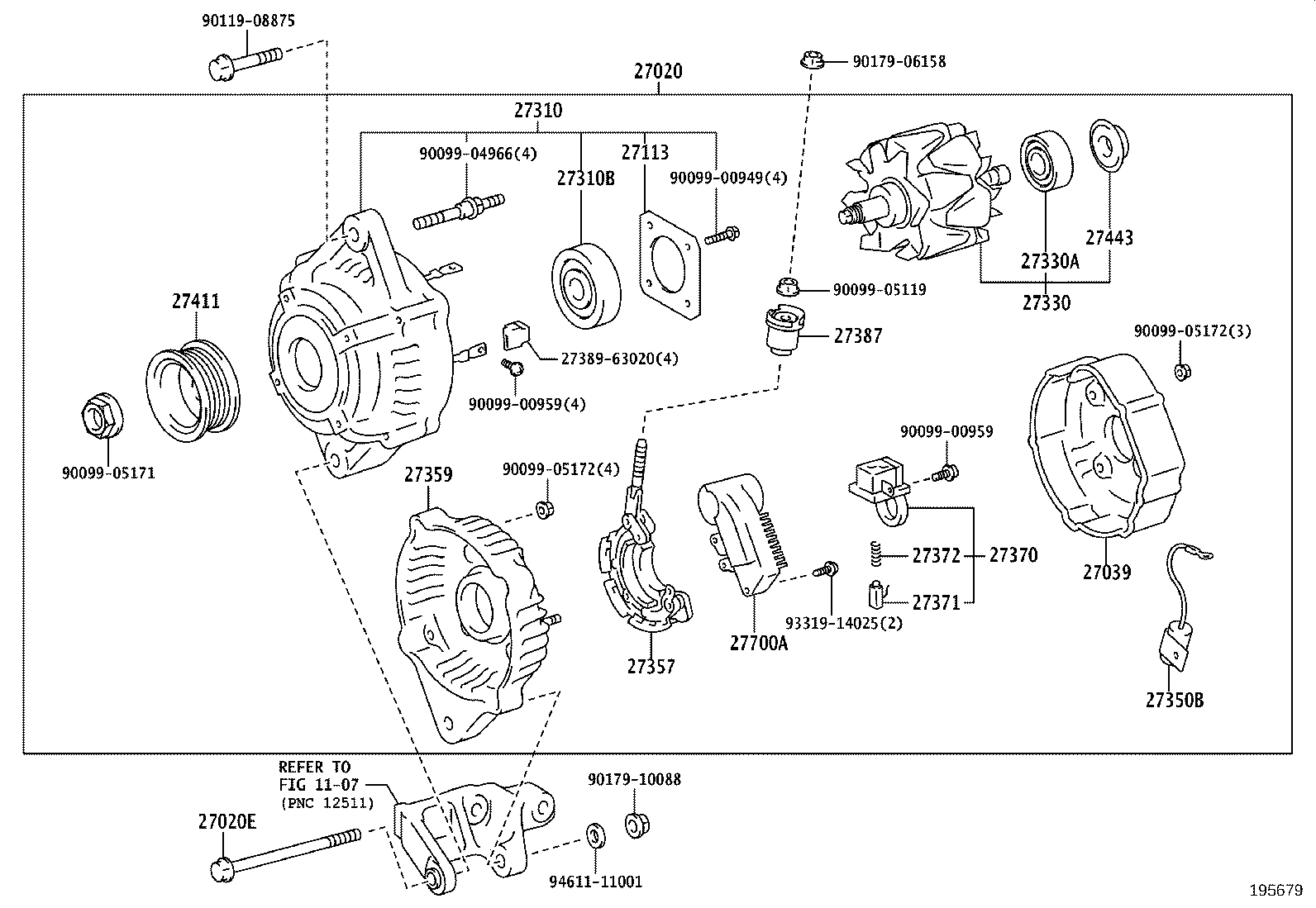

| 27020 - ALTERNATOR ASSY | ||||
| 27060-75090 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27060-75100 |
1RZE..RZH102,112 12V 70A |
1 | ||
| 27060-72111 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10282 |
1RZ#,2RZ#..RZH10#,11#,125,135,153 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27039-72010 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27039-73020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 55A |
1 | ||
| 27039-73020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27312-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72150 |
1RZ..RZH102,112 12V 45A |
1 | ||
| 27310-75100 |
1RZE..RZH102,112 |
1 | ||
| 27310-43060 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 90099-10170 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27330-72101 |
1RZ#,2RZ..RZH10#,11#,125 |
1 | ||
| 27330-72101 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10154 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 90099-10140 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27357-63020 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,105,114,115,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27357-63020 |
1RZ..RZH114..LHD;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF 12V 70A |
1 | ||
| 27357-63020 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27359-72150 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27359-16181 |
3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF 12V 70A |
1 | ||
| 27359-16180 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1RZ,2RZ..RZH10#,11#,125 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27387-70170 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27387-70170 |
2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27411-72120 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| 27411-16150 |
1RZE..RZH102,112 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D 12V 60A |
1 | ||
| 27700-10080 |
2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD 12V 50A |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||
