RZH112R-RRMRE (1995)

Toyota Hiace Van,Commuter

Production Aug 1995 - Mar 1997
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )1RZ#,2RZ#

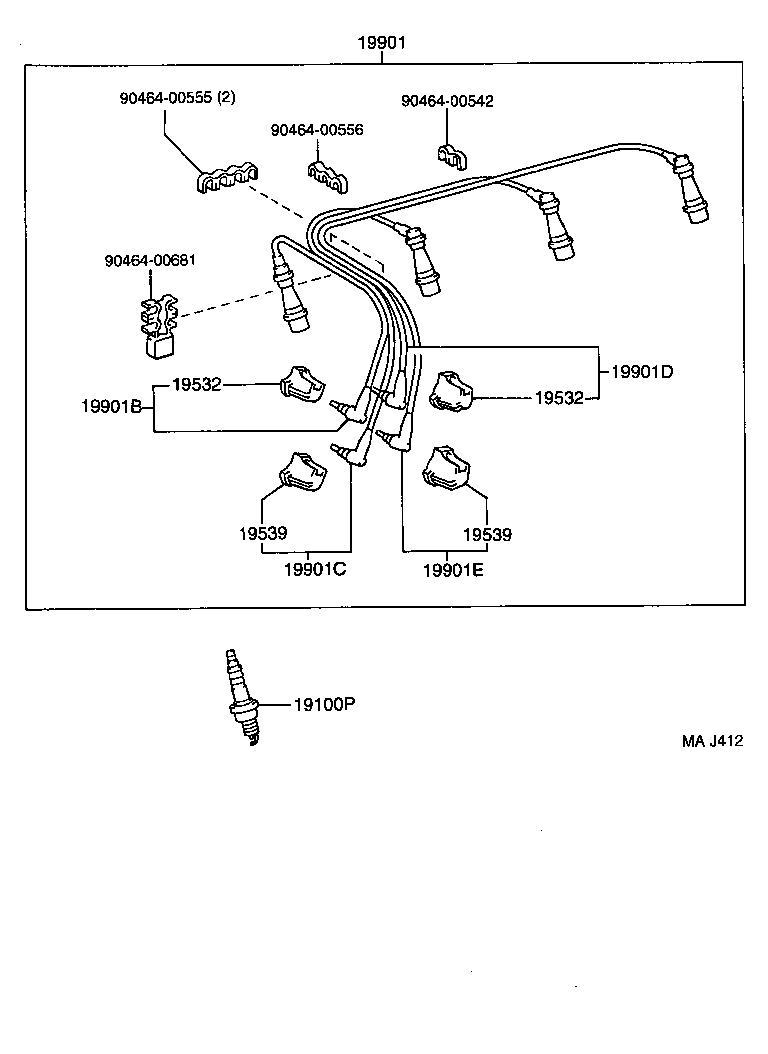

Click highlighted areas on diagram

diagram 19100P 19532 19532 19539 19539 19901 19901B 19901C 19901D 19901E 9046400542 9046400555 9046400556 9046400681
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01102

1RZ..RZH104,112,114..SG;1RZ..RZH102,112..RHD..03S

BPR5EY

 4
90919-01064

1RZ..RZH104,112,114..CIS;1RZ..RZH102..RHD..5D..03S;1RZ..RZH102,104,112,114..RHD..4D

W16EXR-U

 4
90919-01059

2RZ..RZH115..STD;1RZ..RZH114..15S..GEN;1RZ,2RZ..RZH10#,112,113,125..ARL,GCC,GEN

W16EX-U

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22273

1RZ..RZH102,104,112,114..RHD

*IIA

 1
90919-21475

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15022

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15018

1RZ..RZH102,104,112,114..RHD

*IIA

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15023

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15019

1RZ..RZH102,104,112,114..RHD

*IIA

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15020

1RZ..RZH102,104,112,114..RHD

*IIA

 1
90919-15024

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15025

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15021

1RZ..RZH102,104,112,114..RHD

*IIA

 1
Common parts
90464-00542
90464-00555
90464-00556
90464-00681

(8908- )1RZ,2RZE

Click highlighted areas on diagram

diagram 19100P 19100P 19532 19532 19539 19539 19901 19901 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 9046400061 9046400061 9046400144 9046400208 9046400536 9046400542 9046400555 9046400556 9046400681
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01102

1RZ..RZH104,112,114..SG;1RZ..RZH102,112..RHD..03S

BPR5EY

 4
90919-01064

1RZ..RZH104,112,114..CIS;1RZ..RZH102..RHD..5D..03S;1RZ..RZH102,104,112,114..RHD..4D

W16EXR-U

 4
90919-01059

2RZ..RZH115..STD;1RZ..RZH114..15S..GEN;1RZ,2RZ..RZH10#,112,113,125..ARL,GCC,GEN

W16EX-U

 4
19100P - PLUG, SPARK
90919-01102

1RZ..RZH104,112,114..SG;1RZ..RZH102,112..RHD..03S

BPR5EY

 4
90919-01064

1RZ..RZH104,112,114..CIS;1RZ..RZH102..RHD..5D..03S;1RZ..RZH102,104,112,114..RHD..4D

W16EXR-U

 4
90919-01059

2RZ..RZH115..STD;1RZ..RZH114..15S..GEN;1RZ,2RZ..RZH10#,112,113,125..ARL,GCC,GEN

W16EX-U

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22273

1RZ..RZH102,104,112,114..RHD

*IIA

 1
90919-21475

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22273

1RZ..RZH102,104,112,114..RHD

*IIA

 1
90919-21475

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15022

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15018

1RZ..RZH102,104,112,114..RHD

*IIA

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15022

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15018

1RZ..RZH102,104,112,114..RHD

*IIA

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15023

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15019

1RZ..RZH102,104,112,114..RHD

*IIA

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15023

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15019

1RZ..RZH102,104,112,114..RHD

*IIA

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15020

1RZ..RZH102,104,112,114..RHD

*IIA

 1
90919-15024

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15020

1RZ..RZH102,104,112,114..RHD

*IIA

 1
90919-15024

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15025

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15021

1RZ..RZH102,104,112,114..RHD

*IIA

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15025

1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S

 1
90919-15021

1RZ..RZH102,104,112,114..RHD

*IIA

 1
Common parts
90464-00061
90464-00144
90464-00208
90464-00536
90464-00542
90464-00555
90464-00556
90464-00681
