RZH112L-SRMRSX (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT(DEALER OPT)

diagram 8271195704 8271195704 88510T 88539C 88539C 88539J 88539J 88539K 88539K 88539K 88539K 8856995J00 8857895J01 8857895J01 8857895J09 8857895J09 88605C 88605S 88635R 8889787101 8889787101 88898D 8889995J19 88899G 9041315001 9041315001 9048020013 9048026022 9338516014 9354014012 9354014012 9354015020
Part # Description Qty Price
Common parts
82711-95704
88569-95J00
88578-95J01
88578-95J09
88897-87101
88899-95J19
90413-15001
90480-20013
90480-26022
93385-16014
93540-14012
93540-15020

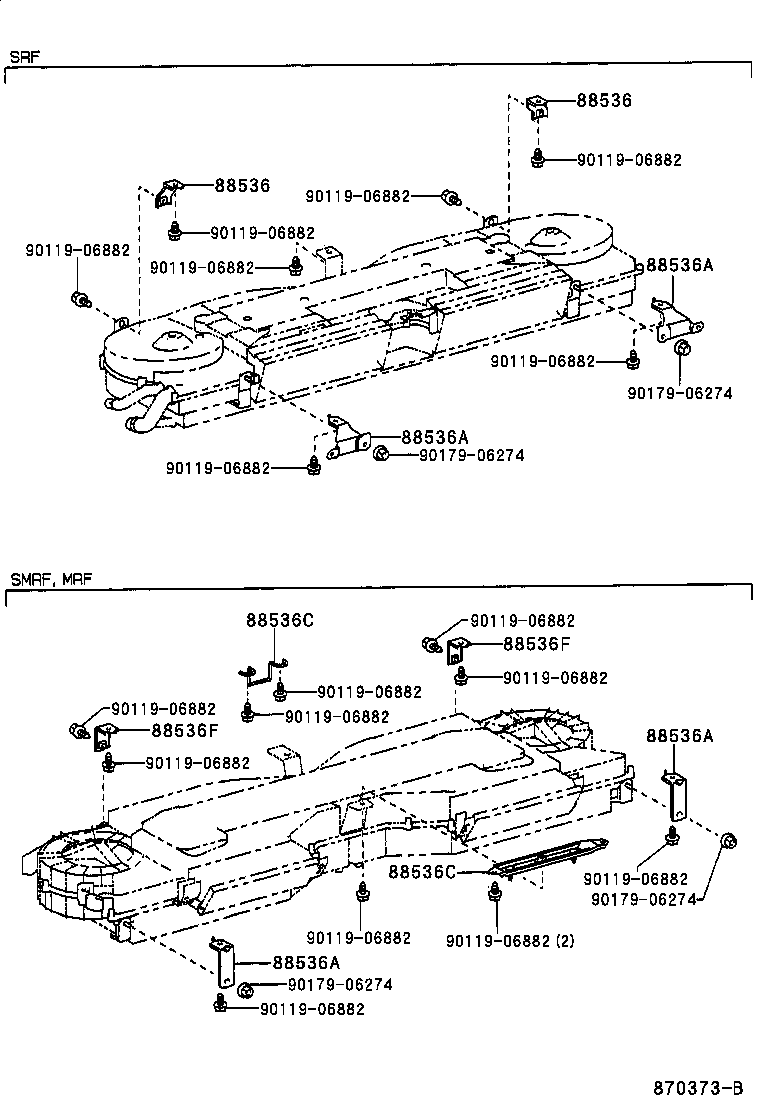

ILLUST NO. 3 OF 4(9308- )SMRF,SRF

Click highlighted areas on diagram

REAR UNIT BRACKET(MAKER OPT)

diagram 88536 88536 88536A 88536A 88536A 88536A 88536C 88536C 88536F 88536F 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9011906882 9017906274 9017906274 9017906274 9017906274
Part # Description Qty Price
Common parts
90119-06882
90179-06274

ILLUST NO. 1 OF 4(9308- )LHD

Click highlighted areas on diagram

FRONT--DUAL

diagram 82650E 88510 88539 88605 88630 88630A 88630A 88630B 88630B 8863195J04 88650 8868826240 8868826370 8868826420 8868895J85 8871822420 88899B 9009490413 9009490413 9009490413 9011906361 9015960096 9018906084 9046805047 9165260616 9356055016
Part # Description Qty Price
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010

LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD

20A

 1
88510 - UNIT ASSY, COOLER
88510-95J59

LH102,104,112,114,RZH102,104,112,114..LHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88539-95701

LH10#,11#,125,RZH10#,11#,125

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J85

RZH102,112..LHD

 1
88605-95J48

RZH102,112..LHD

W(HEATER)

 1
88605-95N01

LH102,112..LHD

W(HEATER)

 1
88605-95N11

LH102,112..LHD

 1
88605-26460

RZH112,113..LHD..STD

W(HEATER)

 1
88605-26480

LH102,112,113..LHD..STD

W(HEATER)

 1
88630 - RELAY ASSY, COOLER
88630-14030

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
90987-02004

RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S

 2
90987-02004

LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14030

LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD

 1
88650-87101

RZH102,103,112,113..STD

 1
88899B - COVER, COOLER CONTROL
88891-95J29

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

W(AIR CONDITIONER)

 1
88891-26050

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
Common parts
88631-95J04
88688-26240
88688-26370
88688-26420
88688-95J85
88718-22420
90094-90413
90119-06361
90159-60096
90189-06084
90468-05047
91652-60616
93560-55016

ILLUST NO. 1 OF 4(9308- )LHD

Click highlighted areas on diagram

FRONT--SINGLE

diagram 82650E 88510 88539 88605 88630 88630A 88630A 88648 88650 8868826240 8868826420 8868895J85 8868895J86 8871822420 88899B 9009490413 9009490413 9011906361 9015960096 9018906084 9046805047 9165260616 9356055016
Part # Description Qty Price
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010

LH103..ARL;LH102,103,112..06S;LH113,RZH102,103,112,113..RHD..STD

20A

 1
88510 - UNIT ASSY, COOLER
88510-95J59

LH102,104,112,114,RZH102,104,112,114..LHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88539-95701

LH10#,11#,125,RZH10#,11#,125

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J85

RZH102,112..LHD

 1
88605-95J48

RZH102,112..LHD

W(HEATER)

 1
88605-95N01

LH102,112..LHD

W(HEATER)

 1
88605-95N11

LH102,112..LHD

 1
88605-26460

RZH112,113..LHD..STD

W(HEATER)

 1
88605-26480

LH102,112,113..LHD..STD

W(HEATER)

 1
88630 - RELAY ASSY, COOLER
88630-14030

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
90987-02004

RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S

 2
90987-02004

LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14030

LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD

 1
88650-87101

RZH102,103,112,113..STD

 1
88899B - COVER, COOLER CONTROL
88891-95J29

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

W(AIR CONDITIONER)

 1
88891-26050

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
Common parts
88688-26240
88688-26420
88688-95J85
88688-95J86
88718-22420
90094-90413
90119-06361
90159-60096
90189-06084
90468-05047
91652-60616
93560-55016

ILLUST NO. 1 OF 4(9308- )

Click highlighted areas on diagram

FRONT

diagram 8711614010 88501 88510 88515 88578B 88578C 88625 88626A 88710A 9009900968 9009900968 9009904381 9009914119 9009914121 9009914121 9009914121
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J12

LH102,104,112,114,RZH102,104,112,114..LHD

 1
88501-26040

LH102,104,105,11#,RZH104,105,11#..LHD

 1
88510 - UNIT ASSY, COOLER
88510-95J59

LH102,104,112,114,RZH102,104,112,114..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-28020

LH10#,11#,125,RZH10#,11#,125

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

LH10#,11#,125,RZH10#,11#,125

 1
88626A - HOLDER, THERMISTOR
88626-33010

RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,05S,06S,09S,10S,12S)..(CBR,DSL)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26020

RZH114..LHD..4F;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH102,104,112..LHD

MAKER OPTION

 1
88710-26020

LH102,104,105,11#,RZH104,105,11#..LHD..(CBR,DSL)

MAKER OPTION

 1
Common parts
87116-14010
90099-00968
90099-04381
90099-14119
90099-14121

ILLUST NO. 1 OF 4(8908-9508)

Click highlighted areas on diagram

FRONT(MAKER OPT)

diagram 8271595J27 8271595J28 88501 88510 88515 88539 88605 88630 88630A 88630A 88630B 88630B 88648 88650 8868895J75 8868895J85 88710A 88723A 8889926030 88899B 9011906361 9015960096 9015960096 9018906084 9046805047 9165140616 9356055016 9356055016
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J12

LH102,104,112,114,RZH102,104,112,114..LHD

 1
88501-26040

LH102,104,105,11#,RZH104,105,11#..LHD

 1
88510 - UNIT ASSY, COOLER
88510-95J59

LH102,104,112,114,RZH102,104,112,114..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-28020

LH10#,11#,125,RZH10#,11#,125

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88539-95701

LH10#,11#,125,RZH10#,11#,125

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J85

RZH102,112..LHD

 1
88605-95J48

RZH102,112..LHD

W(HEATER)

 1
88605-95N01

LH102,112..LHD

W(HEATER)

 1
88605-95N11

LH102,112..LHD

 1
88605-26460

RZH112,113..LHD..STD

W(HEATER)

 1
88605-26480

LH102,112,113..LHD..STD

W(HEATER)

 1
88630 - RELAY ASSY, COOLER
88630-14030

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
90987-02004

RZH102,103,112,113..CIS,GCC,GEN;LH104,105,112,114,115,RZH104,105,114,115..09S,12S,15S

 2
90987-02004

LH102,103,112,113..(GL,STD)..(CIS,GCC,GEN)

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88630A - RELAY ASSY, COOLER
88630-95702

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 2
90987-03001

LH10#,11#,RZH10#,11#..CIS,GCC,GEN

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14030

LH113..STD;LH172..RHD..STD;LH102,103,112..GL,STD

 1
88650-87101

RZH102,103,112,113..STD

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26020

RZH114..LHD..4F;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH102,104,112..LHD

MAKER OPTION

 1
88710-26020

LH102,104,105,11#,RZH104,105,11#..LHD..(CBR,DSL)

MAKER OPTION

 1
88899B - COVER, COOLER CONTROL
88891-95J29

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

W(AIR CONDITIONER)

 1
88891-26050

LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD

DEALER OPTION

 1
Common parts
82715-95J27
82715-95J28
88688-95J75
88688-95J85
88899-26030
90119-06361
90159-60096
90189-06084
90468-05047
91651-40616
93560-55016

ILLUST NO. 2 OF 4(9308- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

REAR UNIT

diagram 6324995700 8271195704 87105C 87105C 8718 88501R 88510T 88515B 88539C 88539C 88539C 88539C 88550B 88550B 88605S 88635R 8889995J19 9009900931 9009900931 9009902210 9009902210 9009905164 9009905164 9009932138 9018306020 9048020013 9048026022 9353055016 9354055014
Part # Description Qty Price
Common parts
63249-95700
82711-95704
88899-95J19
90099-00931
90099-02210
90099-05164
90099-32138
90183-06020
90480-20013
90480-26022
93530-55016
93540-55014
Linked diagrams
8718

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT BRACKET(DEALER OPT)

diagram 88536 88536 88536 88536 88536A 88536A 88536A 88536A 88536B 88536B 8868826010 8868826010 8868826010 8868826010 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9017906274 9017906274 9017906274 9017906274 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012
Part # Description Qty Price
Common parts
88688-26010
90091-20604
90179-06274
93385-16014
93540-15012

ILLUST NO. 4 OF 4(9308- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
