Toyota Hiace van,commuter RZH112 METER

RZH112L-SRMRSX (1993)

Toyota Hiace Van,Commuter

Production Aug 1993 - Aug 1995

Engine 1RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

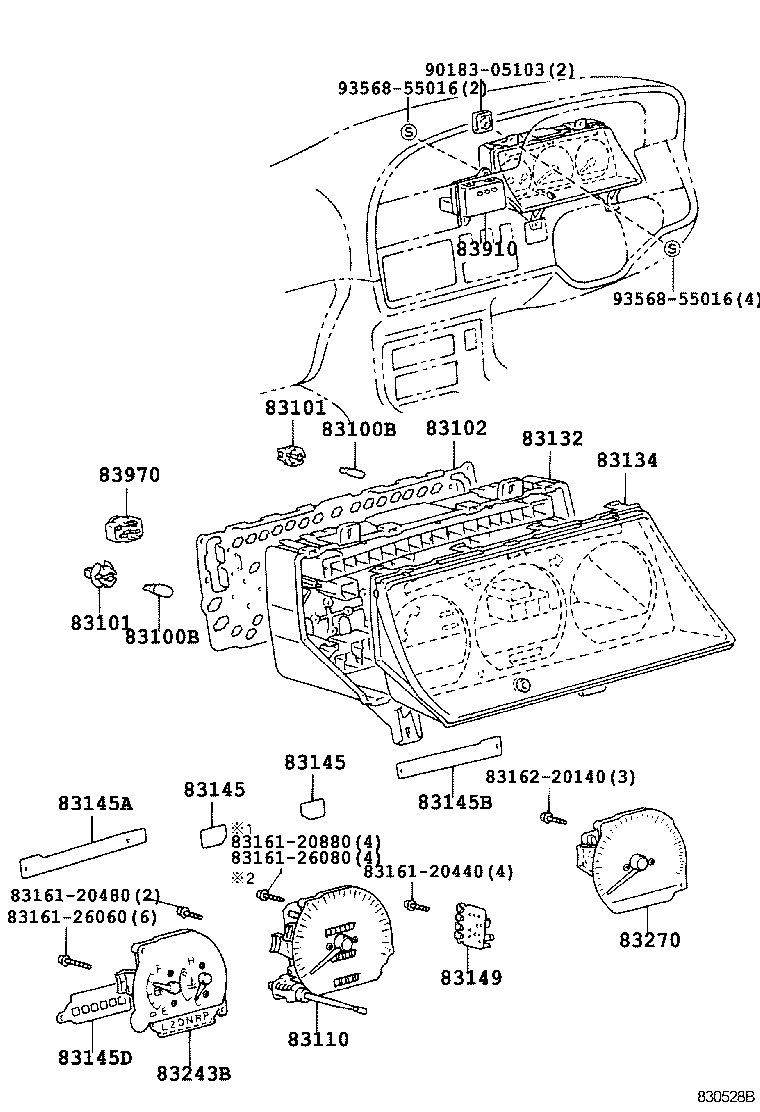

ILLUST NO. 1 OF 3(8908- )

Click highlighted areas on diagram

BULB, SOCKET

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF 3(9308- )

Click highlighted areas on diagram

SPEEDOMETER, W/O(TACHOMETER)

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-94350	LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
90981-11018	LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET	08/1989 - 08/1996	1
83109-24030	LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
99132-12034	LH10#,11#,125,RZH10#,11#,125 12V 3.4W	08/1989 - 08/1996	1
83109-95J00	LH10#,11#,125,RZH10#,11#,125 14V 3.78W	08/1989 - 08/1996	1
83100B - BULB, COMBINATION METER, NO.1
83109-94350	LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
90981-11018	LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET	08/1989 - 08/1996	1
83109-24030	LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
99132-12034	LH10#,11#,125,RZH10#,11#,125 12V 3.4W	08/1989 - 08/1996	1
83109-95J00	LH10#,11#,125,RZH10#,11#,125 14V 3.78W	08/1989 - 08/1996	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST.	08/1989 - 08/1996	16
83101-20040	LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST.	08/1989 - 08/1998	3
83101-20070	LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST.	08/1989 - 08/1996	4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST.	08/1989 - 08/1996	16
83101-20040	LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST.	08/1989 - 08/1998	3
83101-20070	LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST.	08/1989 - 08/1996	4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95N46	RZH10#,11#,125..(4F,5F)..STD	08/1989 - 10/1990	1
83149-26420	RZH102,104,112,114,125;RZH103,113..(03S,09S)..5F..(ARL,GEN) KM/MPH	08/1993 - 08/1995	1
83149-26460	LH112..DX;LH104,112,114..CIS	08/1993 - 08/1995	1
83110 - SPEEDOMETER ASSY
83110-26390	LH10#,11#,125..CIS,GCC,GEN	08/1993 - 07/1994	1
83110-26350	RZH113..LHD;RZH102,104,105,112,114,115	08/1993 - 07/1994	1
83110-26390	LH112..DX;LH104,105,11#..CIS,GCC	07/1994 - 08/1995	1
83110-26350	RZH113..DX;RZH104,105,11#..CIS,GCC	07/1994 - 08/1995	1
83132 - CASE, COMBINATION METER
83132-26100	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,RZH102,104,105,112,114,115..CIS,GCC,GEN	11/1994 - 08/1995	1
83132-26100	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN	08/1993 - 11/1994	1
83134 - COVER, COMBINATION METER, NO.1
83134-26180	RZH113..EFI;RZH103,113,125..5F..(ARL,GCC);LH10#,11#,RZH102,104,105,112,114,115..CIS,GCC,GEN	11/1994 - 08/1995	1
83134-26180	RZH113..EFI;RZH103,113,125..5F..(ARL,GCC);LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN	08/1993 - 11/1994	1
83145 - LENS, METER, NO.1
83145-95N26	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
83145 - LENS, METER, NO.1
83145-95N26	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
83145B - LENS, METER, NO.3
83145-26360	RZH104,112,113,114..LHD..(CIS,GEN)	08/1993 - 07/1994	1
83145-26400	LH112..DX;LH104,112,114..CIS	08/1993 - 08/1995	1
83145-26360	RZH113..DX;RZH104,112,114..CIS	07/1994 - 08/1995	1
83145C - LENS, METER, NO.4
83145-26500	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,RZH102,104,105,112,114,115..CIS,GCC,GEN	11/1994 - 08/1995	1
83145-26500	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN	08/1993 - 11/1994	1
83145D - LENS, METER, NO.5
83145-95N13	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
83145F - LENS, METER, NO.7
83166-26020	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,RZH102,104,105,112,114,115..CIS,GCC,GEN	11/1994 - 08/1995	1
83166-26020	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN	08/1993 - 11/1994	1
83910 - CLOCK ASSY
83910-95J05	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
83161-20440
83161-20480
83161-20880
83161-26060
83161-26080
90183-05103
93540-14012
93567-55018
93568-55016

ILLUST NO. 1 OF 3(9308- )RZH112..SRF ; (9308- )LH174..10S,15S ; (9308- )LH10#,11#,125,154,1

Click highlighted areas on diagram

SPEEDOMETER, W(TACHOMETER)

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-94350	LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
90981-11018	LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET	08/1989 - 08/1996	1
83109-24030	LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
99132-12034	LH10#,11#,125,RZH10#,11#,125 12V 3.4W	08/1989 - 08/1996	1
83109-95J00	LH10#,11#,125,RZH10#,11#,125 14V 3.78W	08/1989 - 08/1996	1
83100B - BULB, COMBINATION METER, NO.1
83109-94350	LH10#,11#,125,RZH10#,11#,125 14V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
90981-11018	LH10#,11#,125,RZH10#,11#,125 12V 1.2W W/O SOCKET	08/1989 - 08/1996	1
83109-24030	LH10#,11#,125,RZH10#,11#,125 12V3.4W W(GREEN CAP)	08/1989 - 08/1996	1
99132-12034	LH10#,11#,125,RZH10#,11#,125 12V 3.4W	08/1989 - 08/1996	1
83109-95J00	LH10#,11#,125,RZH10#,11#,125 14V 3.78W	08/1989 - 08/1996	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST.	08/1989 - 08/1996	16
83101-20040	LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST.	08/1989 - 08/1998	3
83101-20070	LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST.	08/1989 - 08/1996	4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER ILLUST.	08/1989 - 08/1996	16
83101-20040	LH10#,11#,125,RZH10#,11#,125,135,153 TYPE C:REFER ILLUST.	08/1989 - 08/1998	3
83101-20070	LH10#,11#,125,RZH10#,11#,125 TYPE A:REFER ILLUST.	08/1989 - 08/1996	4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95N46	RZH10#,11#,125..(4F,5F)..STD	08/1989 - 10/1990	1
83149-26420	RZH102,104,112,114,125;RZH103,113..(03S,09S)..5F..(ARL,GEN) KM/MPH	08/1993 - 08/1995	1
83149-26460	LH112..DX;LH104,112,114..CIS	08/1993 - 08/1995	1
83110 - SPEEDOMETER ASSY
83110-26390	LH10#,11#,125..CIS,GCC,GEN	08/1993 - 07/1994	1
83110-26350	RZH113..LHD;RZH102,104,105,112,114,115	08/1993 - 07/1994	1
83110-26390	LH112..DX;LH104,105,11#..CIS,GCC	07/1994 - 08/1995	1
83110-26350	RZH113..DX;RZH104,105,11#..CIS,GCC	07/1994 - 08/1995	1
83132 - CASE, COMBINATION METER
83132-26100	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,RZH102,104,105,112,114,115..CIS,GCC,GEN	11/1994 - 08/1995	1
83132-26100	RZH113..EFI;RZH103,113,125..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN	08/1993 - 11/1994	1
83134 - COVER, COMBINATION METER, NO.1
83134-26180	RZH113..EFI;RZH103,113,125..5F..(ARL,GCC);LH10#,11#,RZH102,104,105,112,114,115..CIS,GCC,GEN	11/1994 - 08/1995	1
83134-26180	RZH113..EFI;RZH103,113,125..5F..(ARL,GCC);LH10#,11#,125,RZH102,104,105,112,114,115..CIS,GCC,GEN	08/1993 - 11/1994	1
83145 - LENS, METER, NO.1
83145-95N26	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
83145 - LENS, METER, NO.1
83145-95N26	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
83145B - LENS, METER, NO.3
83145-26360	RZH104,112,113,114..LHD..(CIS,GEN)	08/1993 - 07/1994	1
83145-26400	LH112..DX;LH104,112,114..CIS	08/1993 - 08/1995	1
83145-26360	RZH113..DX;RZH104,112,114..CIS	07/1994 - 08/1995	1
83145D - LENS, METER, NO.5
83145-95N13	LH10#,11#,125,RZH10#,11#,125	08/1989 - 05/1992	1
83910 - CLOCK ASSY
83910-95J05	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
83161-20440
83161-20480
83161-20880
83161-26060
83161-26080
83162-20140
90183-05103
93568-55016

ILLUST NO. 2 OF 3(9308- )

Click highlighted areas on diagram

SPEEDOMETER SENSOR

Part #	Description	Period	Qty	Price
Common parts
91651-40825

ILLUST NO. 1 OF 4(9308- )

Click highlighted areas on diagram

SPEEDOMETER(W/O TACHOTETER)

Part #	Description	Period	Qty	Price
Common parts
83161-20440
83161-20880
83161-26060
90183-05103
93567-15016
93567-55018

ILLUST NO. 1 OF 4(9308- )

Click highlighted areas on diagram

SPEEDOMETER(W/TACHOTETER)

Part #	Description	Period	Qty	Price
Common parts
83161-20440
83161-20880
83161-26060
83162-20140
90183-05103
93567-15016
93567-55018

ILLUST NO. 2 OF 4(9308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
