RZH112L-SRMRSX (1993)
Toyota Hiace Van,Commuter

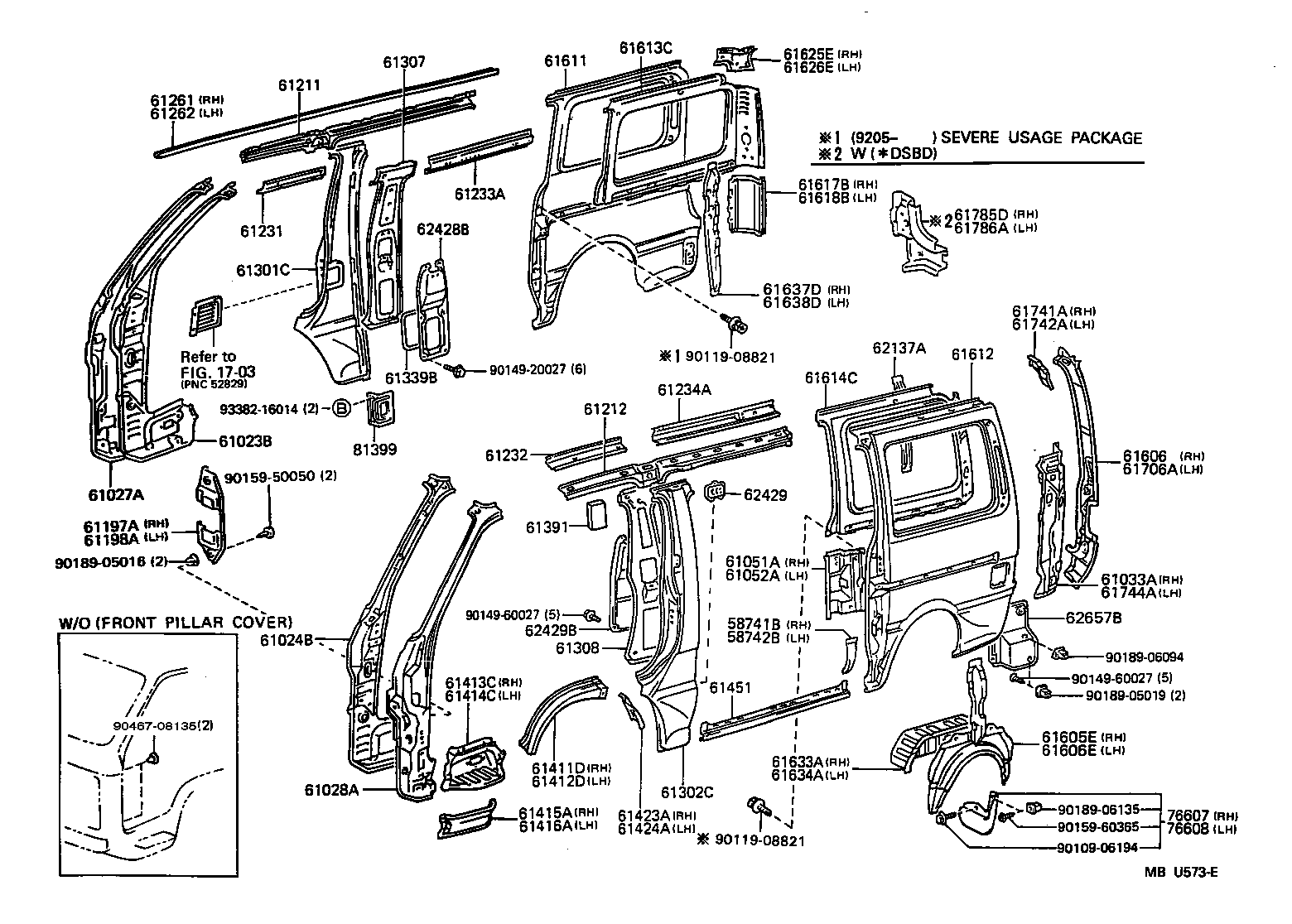

ILLUST NO. 1 OF 3(8908- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-95J02 |
RZH114..SRF..4F;RZH114,125..4FC,5F;LH11#,RZH112,113..SRF |
1 | ||
| 58741-95J02 |
LH125..ARL;LH11#,RZH11#,125 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-95J02 |
RZH114..SRF..4F;RZH114,125..4FC,5F;LH11#,RZH112,113..SRF |
1 | ||
| 58742-95J02 |
LH125..ARL;LH11#,RZH11#,125 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J19 |
RZH104..LHD..4F;LH102,104,112,114,RZH102,112,114..LHD..SRF SEVERE USAGE PACKAGE & W(MOON ROOF) |
1 | ||
| 61023-95J12 |
LH102,104,112,114,RZH102,104,112,114..LHD..SRF W(MOON ROOF) |
1 | ||
| 61023-95J14 |
RZH103,105..LHD..CBR;RZH105,115..STD..CIS;RZH115..LHD..15S..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J08 |
LH102,104,112,114,RZH102,104,112,114..LHD..SRF W(MOON ROOF) |
1 | ||
| 61024-95J15 |
LH102,104,112,114,RZH102,104,112,114..LHD..SRF SEVERE USAGE PACKAGE & W(MOON ROOF) |
1 | ||
| 61024-95J10 |
RZH103,105..LHD..CBR;RZH105,115..STD..CIS;RZH115..LHD..15S..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J16 |
LH102,104,11#,RZH102,103,104,11#..LHD..(SGL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J20 |
RZH113..4FC..ARL;RZH113,125..SG..ARL;LH102,104,112,114,RZH102,104,112,114..LHD SEVERE USAGE PACKAGE & W(AIR CONDITIONER) |
1 | ||
| 61028-95J19 |
LH102,104,112,RZH102,104,112,114..LHD SEVERE USAGE PACKAGE |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-95J03 |
LH102,103,112,113,RZH102,103,112,113..SG W(STEP TYPE REAR BUMPER) |
1 | ||
| 61033-95J04 |
LH103,104,11#,RZH104,112,114..SRF..SG..(CIS,GEN) SEVERE USAGE PACKAGE |
1 | ||
| 61033-95J04 |
LH10#,11#,RZH10#,11#..SRF..SG..STD |
1 | ||
| 61052A - PANEL SUB-ASSY, QUARTER LOCK, INNER LH | ||||
| 61052-95J01 |
RZH112..06S;RZH112..RHD..03S;RZH112..03S..CIS;LH112,125,RZH125..SG..(ARL,CIS);LH102,103,11#,RZH102,104,114..RHD..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61201-95J02 |
RZH102..5D..4F;RZH102..LHD..5F;LH102,104,112,114,RZH104,112,114..LHD SEVERE USAGE PACKAGE |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-95J01 |
RZH102..4F;RZH112..06S;RZH102..LHD..5F;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,RZH104,114..RHD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J06 |
LH10#,11#,RZH10#,11#..SRF..STD W(MOON ROOF) |
1 | ||
| 61231-95J07 |
RZH105,115..STD..CIS;RZH114,115..LHD..15S..CBR;LH102,RZH105..LHD..(03S,06S,12S)..(CBR,DSL);LH104,105,11#,166,176,RZH102,104,112,113..LHD..(03S,06S,09S,12S,15S) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J04 |
LH102..LHD..STD;LH104,105,11#,RZH102,104,105,11#..LHD |
1 | ||
| 61232-95J05 |
LH10#,11#,RZH10#,11#..SRF W(MOON ROOF) |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61207-95J07 |
RZH102..LHD..06S;LH103,112,RZH112..5D..06S SEVERE USAGE PACKAGE |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-95J19 |
RZH102..06S..4F;RZH102..LHD..06S..5F;LH102,103,112,113,RZH112..06S SEVERE USAGE PACKAGE |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-95J16 |
LH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD W(MUD GUARD) |
1 | ||
| 61301-95J20 |
LH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD W(MUD GUARD & POWER DOOR LOCK) |
1 | ||
| 61301-95J25 |
RZH102..LHD..06S;LH103,RZH102..5D..03S;LH102,104,112,114,RZH104,112,114..LHD SEVERE USAGE PACKAGE & W(MUD GUARD) |
1 | ||
| 61301-95J15 |
LH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD |
1 | ||
| 61301-95J26 |
RZH102..LHD..06S;LH103,RZH102..5D..03S;LH102,104,112,114,RZH104,112,114..LHD SEVERE USAGE PACKAGE & W(MUD GUARD & POWER DOOR LOCK) |
1 | ||
| 61301-95J23 |
RZH102..LHD..06S;LH103,RZH102..5D..03S;LH102,104,112,114,RZH104,112,114..LHD SEVERE USAGE PACKAGE |
1 | ||
| 61301-95J24 |
RZH102..LHD..06S;LH103,RZH102..5D..03S;LH102,104,112,114,RZH104,112,114..LHD SEVERE USAGE PACKAGE & W(POWER DOOR LOCK) |
1 | ||
| 61301-95J19 |
LH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD W(POWER DOOR LOCK) |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-95J21 |
RZH112..06S;RZH102,113..GEN;RZH112..5D..03S;RZH112,113..RHD..03S;LH10#,11#,RZH103,104,114..RHD..STD |
1 | ||
| 61302-95J28 |
RZH112..06S;RZH102,113..GEN;RZH112..5D..03S;RZH112,113..RHD..03S;LH10#,11#,RZH103,104,114..RHD..STD W(MUD GUARD & POWER DOOR LOCK) |
1 | ||
| 61302-95J22 |
RZH112..06S;RZH102,113..GEN;RZH112..5D..03S;RZH112,113..RHD..03S;LH10#,11#,RZH103,104,114..RHD..STD W(MUD GUARD) |
1 | ||
| 61302-95J32 |
RZH102..4D;RZH112..06S;RZH102..LHD..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH10#,11#,RZH104,114..RHD..GEN SEVERE USAGE PACKAGE & W(POWER DOOR LOCK) |
1 | ||
| 61302-95J33 |
RZH102..4D;RZH112..06S;RZH102..LHD..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH10#,11#,RZH104,114..RHD..GEN SEVERE USAGE PACKAGE & W(MUD GUARD & POWER DOOR LOCK) |
1 | ||
| 61302-95J27 |
RZH112..06S;RZH102,113..GEN;RZH112..5D..03S;RZH112,113..RHD..03S;LH10#,11#,RZH103,104,114..RHD..STD W(POWER DOOR LOCK) |
1 | ||
| 61302-26070 |
LH114,RZH104,114..RHD;LH103,112,113,115,RZH112..SG..(CIS,GEN) SEVERE USAGE PACKAGE & W(MUD GUARD & SLIDE DOOR FRONT HOOK) |
1 | ||
| 61302-95J34 |
RZH102..4D;RZH112..06S;RZH102..LHD..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH10#,11#,RZH104,114..RHD..GEN SEVERE USAGE PACKAGE & W(MUD GUARD) |
1 | ||
| 61302-95J31 |
RZH102..4D;RZH112..06S;RZH102..LHD..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH10#,11#,RZH104,114..RHD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 61302-26100 |
LH114,RZH104,114..RHD;LH103,112,113,115,RZH112..SG..(CIS,GEN) SEVERE USAGE PACKAGE & W(MUD GUARD & POWER DOOR LOCK & SLIDE DOOR FRONT HOOK) |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-95J58 |
RZH102..LHD..06S;LH103,RZH102..5D..03S;LH102,112,RZH112..LHD SEVERE USAGE PACKAGE & W(MOON ROOF) |
1 | ||
| 61307-95J61 |
RZH102..LHD..06S;LH103,RZH102..5D..03S;LH102,112,RZH112..LHD SEVERE USAGE PACKAGE & W(AIR CONDITIONER & MOON ROOF) |
1 | ||
| 61307-95J55 |
LH103..5D;RZH102..5D..03S;RZH102..LHD..06S;LH102,112,RZH112,113..LHD..STD..(CIS,GEN) SEVERE USAGE PACKAGE |
1 | ||
| 61307-95J46 |
LH103,RZH102,103..5D;LH102,112,RZH112..LHD W(MOON ROOF) |
1 | ||
| 61307-95J57 |
LH112,RZH112..CIS W(AIR CONDITIONER) |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J79 |
RZH102..4D;RZH112..06S;RZH102..LHD..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH102,103,112,113..RHD..SRF..GEN SEVERE USAGE PACKAGE & W(MOON ROOF) |
1 | ||
| 61308-95J62 |
RZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH102,103,112,113,RZH103,113..RHD..SRF..GEN W(MOON ROOF) |
1 | ||
| 61308-95J83 |
RZH102..4D;RZH112..06S;RZH102..LHD..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH102,103,112,113..RHD..SRF..GEN SEVERE USAGE PACKAGE & W(AIR CONDITIONER & MOON ROOF) |
1 | ||
| 61308-95J75 |
RZH102..4D;RZH112..06S;RZH112..RHD..03S;RZH102,112..5D..03S;LH112,RZH102..LHD..06S;LH102,103,112,113..RHD..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 61308-95J77 |
LH112,RZH112..5D..CIS W(AIR CONDITIONER) |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61391 - SPACER, CENTER BODY PILLAR, INNER | ||||
| 61391-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-95J00 |
RZH113..5D..CBR;LH103,112,113,RZH102,103,112..5D |
1 | ||
| 61452A - PANEL, ROCKER OUTER, LH | ||||
| 61451-95J00 |
RZH113..5D..CBR;LH103,112,113,RZH102,103,112..5D |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95J06 |
LH102,103,112,113,RZH102,103,112,113..SRF W(STEP TYPE REAR BUMPER) |
1 | ||
| 61705-95J07 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-95N37 |
LH114,RZH112,114..LHD..SRF..SG SEVERE USAGE PACKAGE & W(MUD GUARD) |
1 | ||
| 61601-95N27 |
LH114,RZH112,114..LHD..SRF..SG SEVERE USAGE PACKAGE |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-26170 |
RZH112..06S;LH11#,RZH114..RHD..SG SEVERE USAGE PACKAGE |
1 | ||
| 61602-95N37 |
RZH112..06S;LH11#,RZH114..RHD..SG W(FUEL LID OPENER) |
1 | ||
| 61602-95N69 |
RZH112..06S;LH11#,RZH114..RHD..SG SEVERE USAGE PACKAGE & W(MUD GUARD & FUEL LID OPENER) |
1 | ||
| 61602-95N36 |
RZH112..06S;LH11#,RZH114..RHD..SG |
1 | ||
| 61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH | ||||
| 61608-95N03 |
LH112,113,RZH112..06S SEVERE USAGE PACKAGE |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J04 |
RZH105..CIS;LH172..03S..GL;LH112,RZH105,113..SRF..(CBR,DSL);RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH114,115,172,RZH114,115..RHD..SRF..4D..STD..GEN..(CBR,DSL);LH10#,113,125,166,184,RZH102,103,104,112..(SMRF,SRF)..(03S,06S,12S,15S)..(GL,STD) |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-95J03 |
LH172..03S..GL;RZH115..STD..CIS;RZH114,115..LHD..SRF..15S..CBR;LH112,RZH105,113..SRF..(CBR,DSL);LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH114,115,RZH105..LHD..(12S,15S)..STD..(DSL,EFI);LH10#,113,125,166,176,184,RZH102,103,104,112..(SMRF,SRF)..(03S,06S,12S,15S)..(GL,STD) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..SG..(CBR,DSL) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..SG..(CBR,DSL) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J05 |
LH112,RZH112..GL,STD;LH10#,113,114,115,RZH10#,113,114,115..(GL,STD)..(ARL,GCC,GEN) SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61633-95J05 |
LH112,RZH112..GL,STD;LH10#,113,114,115,RZH10#,113,114,115..(GL,STD)..(ARL,GCC,GEN) SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95J06 |
LH102,103,112,113,RZH102,103,112,113..SRF W(REAR WIPER & STEP TYPE REAR BUMPER) |
1 | ||
| 61706-95J08 |
LH10#,11#,RZH102,104,11#..SRF..SG W(REAR WIPER) |
1 | ||
| 61706-95J07 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH103,113..STD..ARL;LH102,103,112,113,RZH112..SRF W(STEP TYPE REAR BUMPER) |
1 | ||
| 61706-95J09 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH103,113..STD..ARL;LH10#,11#,RZH104,112,114..SRF |
1 | ||
| 61706-95J19 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..STD..EFI;LH10#,11#,RZH104,112,114..SRF..STD..(CIS,GEN) SEVERE USAGE PACKAGE & W(REAR WIPER) |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J01 |
RZH103..RHD..EFI;RZH105,115..STD..CIS;LH172,174..(03S,10S)..GL;RZH103,105,113,115..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,11#,125,166,176,184,RZH102,104,112,114,135,153..SMRF,SRF |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J01 |
RZH103..RHD..EFI;RZH105,115..STD..CIS;LH172,174..(03S,10S)..GL;RZH103,105,113,115..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,11#,125,166,176,184,RZH102,104,112,114,135,153..SMRF,SRF |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61034-95J01 |
LH102,103,112,113,RZH102,103,112,113..SG W(STEP TYPE REAR BUMPER) |
1 | ||
| 61034-95J02 |
LH10#,11#,RZH10#,11#..SRF..SG..STD |
1 | ||
| 61034-95J02 |
LH104,112,114,RZH104,112,114..SG..CIS |
1 | ||
| 62428B - COVER, CENTER PILLAR, RH | ||||
| 62428-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 W(FRONT SEAT BELT) |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 62429B - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 W(FRONT SEAT BELT) |
1 | ||
| 62657B - COVER, QUARTER PANEL INNER, LH | ||||
| 62657-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-29245 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 76607-29395 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-29245 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 76608-29415 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 81399 - BRACKET, STEP LAMP | ||||
| 81399-95J01 |
RZH102..4D..06S..5F;LH103,RZH102,103..5D;RZH113..LHD..03S..GEN..EFI;LH102,112,113,RZH112,113..LHD..(03S,06S)..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90109-06194 | ||||
| 90119-06779 | ||||
| 90119-08821 | ||||
| 90149-60027 | ||||
| 90159-60391 | ||||
| 90189-05019 | ||||
| 90189-06094 | ||||
| 90189-06116 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO. 2 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-80031 | ||||
| 90119-08821 | ||||
| 90183-06020 | ||||
| 90333-01009 | ||||
| 90333-20001 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01095 | ||||
| 90950-01112 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01326 | ||||
| 90950-01421 | ||||
| 90950-01660 | ||||
| 90950-01759 | ||||
| 90950-01832 | ||||
| 90950-01849 | ||||
| 90950-01901 | ||||
| 90950-06013 | ||||
| 90950-06017 | ||||
| Linked diagrams | ||||
| 6155 | ||||
ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-32138 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
ILLUST NO. 2 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55856-95J00 | ||||
| 90034-80031 | ||||
| 90119-08821 | ||||
| 90183-06020 | ||||
| 90333-20001 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01095 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01326 | ||||
| 90950-01421 | ||||
| 90950-01424 | ||||
| 90950-01429 | ||||
| 90950-01660 | ||||
| 90950-01759 | ||||
| 90950-06013 | ||||
| 90950-06017 | ||||
| 90950-06065 | ||||
ILLUST NO. 1 OF 3(8908- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06194 | ||||
| 90119-08821 | ||||
| 90149-20027 | ||||
| 90149-60027 | ||||
| 90159-50050 | ||||
| 90159-60365 | ||||
| 90189-05016 | ||||
| 90189-05019 | ||||
| 90189-06094 | ||||
| 90189-06135 | ||||
| 90467-08135 | ||||
| 93382-16014 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-32138 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
