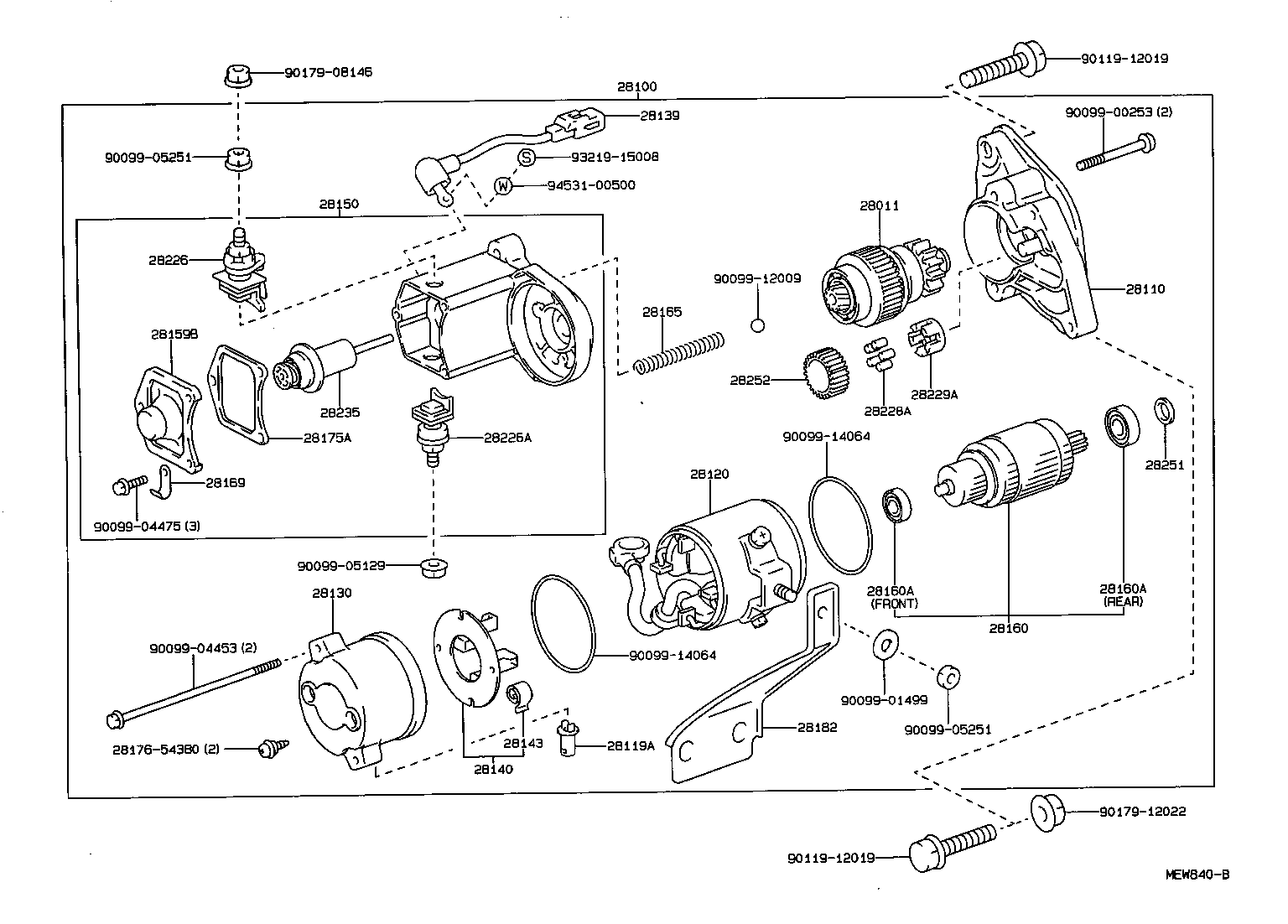

RZH112L-SRMRSX (1993)
Toyota Hiace Van,Commuter
(9308- )2L,3L
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28011-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28100-54220 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD 12V 2.7KW |
1 | ||
| 28100-75030 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28100-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75030 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28115-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28115-54011 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28110-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-72020 |
1RZ..RZH102,104,112,114..LHD |
1 | ||
| 28199-74110 |
2L..LH104..LHD;2L,3L..LH103,112;2L,3L..LH102,114,115,125..03S,14S,15S 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28120-74070 |
1RZ..RZH104,112,114..LHD 12V 1.4KW |
1 | ||
| 28120-54070 |
2L,3L..LH10#,11#,125..5F |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD |
1 | ||
| 28130-15020 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28130-64100 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77110 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD 12V 2.7KW |
1 | ||
| 28139-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28140-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28140-77090 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-76060 |
1RZ,2RZE..RZH104,112,113,114..LHD..STD 12V 1.4KW |
4 | ||
| 90099-17112 |
1RZ,2RZ..RZH10#,11#,125 |
4 | ||
| 90099-17115 |
2L,3L..LH10#,11#,125..5F |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-75090 |
1RZ..RZH104,112,114..LHD 12V 1.4KW |
1 | ||
| 28150-41060 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28150-54220 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD 12V 2.7KW |
1 | ||
| 28150-45050 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28150-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15091 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28160-54071 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28160-54140 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,FRONT |
1 | ||
| 90099-10131 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,REAR |
1 | ||
| 90099-10144 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,REAR |
1 | ||
| 90099-10107 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,FRONT |
1 | ||
| 90099-10119 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,REAR |
1 | ||
| 28253-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,FRONT |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,FRONT |
1 | ||
| 90099-10131 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,REAR |
1 | ||
| 90099-10144 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,REAR |
1 | ||
| 90099-10107 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,FRONT |
1 | ||
| 90099-10119 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,REAR |
1 | ||
| 28253-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,FRONT |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
1 | ||
| 28165-77090 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54080 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28226-72080 |
1RZ..RZH112..4D..4F;1RZ..RZH112..5D..06S;1RZ..RZH102..06S..5F;2RZ..RZH103,113,125..4D;1RZ..RZH112..5D..03S..4F;1RZ..RZH102,104,114..4F,4FC;1RZ..RZH104,114..LHD..SRF..5F |
1 | ||
| 28226-54250 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD 12V 2.7KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 28226-54220 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
5 | ||
| 28228-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
5 | ||
| 28228-26040 |
2L..LH112..DX,GL;2L,2RZ..LH114,RZH125..HRF;1RZ,2RZ..RZH102,103,112,113;3L,2RZE..LH113,115,RZH113..LHD;3L,1RZ,2RZ..LH103,105,125,RZH104,105,114,115..SG..(CIS,GCC,GEN) 12V 1.4KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
1 | ||
| 28229-56080 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2L,3L..LH10#,11#,125..5F |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
1RZ..RZH102,104,112,114..LHD |
1 | ||
| 28251-54070 |
2L,3L..LH10#,11#,125..5F |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 28254-77090 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28254-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| Common parts | ||||
| 28176-54380 | ||||
| 90099-00253 | ||||
| 90099-00271 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 90179-12022 | ||||
| 93219-15008 | ||||
| 94531-00500 | ||||
(8908-9808)1RZ#,2RZ#
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28011-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28100-54220 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD 12V 2.7KW |
1 | ||
| 28100-75030 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28100-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75030 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28115-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28115-54011 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28110-75010 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28120-74070 |
1RZ..RZH104,112,114..LHD 12V 1.4KW |
1 | ||
| 28120-54070 |
2L,3L..LH10#,11#,125..5F |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD |
1 | ||
| 28130-15020 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28130-64100 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28140-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28140-77090 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-76060 |
1RZ,2RZE..RZH104,112,113,114..LHD..STD 12V 1.4KW |
4 | ||
| 90099-17112 |
1RZ,2RZ..RZH10#,11#,125 |
4 | ||
| 90099-17115 |
2L,3L..LH10#,11#,125..5F |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-75090 |
1RZ..RZH104,112,114..LHD 12V 1.4KW |
1 | ||
| 28150-41060 |
1RZ,2RZ..RZH10#,11#,125 12V 1.0KW |
1 | ||
| 28150-54220 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD 12V 2.7KW |
1 | ||
| 28150-45050 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28150-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15091 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW |
1 | ||
| 28160-54071 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28160-54140 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,FRONT |
1 | ||
| 90099-10131 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,REAR |
1 | ||
| 90099-10144 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,REAR |
1 | ||
| 90099-10107 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,FRONT |
1 | ||
| 90099-10119 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,REAR |
1 | ||
| 28253-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,FRONT |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,FRONT |
1 | ||
| 90099-10131 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,REAR |
1 | ||
| 90099-10144 |
1RZ..RZH102,104,112,114..LHD 12V 1.4KW,REAR |
1 | ||
| 90099-10107 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,FRONT |
1 | ||
| 90099-10119 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW,REAR |
1 | ||
| 28253-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW,FRONT |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
1 | ||
| 28165-77090 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54080 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| 28226-72080 |
1RZ..RZH112..4D..4F;1RZ..RZH112..5D..06S;1RZ..RZH102..06S..5F;2RZ..RZH103,113,125..4D;1RZ..RZH112..5D..03S..4F;1RZ..RZH102,104,114..4F,4FC;1RZ..RZH104,114..LHD..SRF..5F |
1 | ||
| 28226-54250 |
3L..LH103,113..4FC;2L..LH102,104,112,114..LHD 12V 2.7KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 28226-54220 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
5 | ||
| 28228-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
5 | ||
| 28228-26040 |
2L..LH112..DX,GL;2L,2RZ..LH114,RZH125..HRF;1RZ,2RZ..RZH102,103,112,113;3L,2RZE..LH113,115,RZH113..LHD;3L,1RZ,2RZ..LH103,105,125,RZH104,105,114,115..SG..(CIS,GCC,GEN) 12V 1.4KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F |
1 | ||
| 28229-56080 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2L,3L..LH10#,11#,125..5F |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1RZ,2RZ..RZH10#,11#,125 |
1 | ||
| 28254-77090 |
3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN) 12V 2.7KW |
1 | ||
| 28254-54070 |
2L,3L..LH10#,11#,125..5F 12V 2.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 91612-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8908- )2L
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-01436 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 90179-12022 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
(8908- )1RZ,2RZE
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04475 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(9308- )2L..5F..DX,STD
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28176-54380 | ||||
| 90099-00253 | ||||
| 90099-01499 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 90179-12022 | ||||
| 93219-15008 | ||||
| 94531-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
