Toyota Hiace van,commuter RZH112 RADIATOR GRILLE

RZH112L-SRMRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Jan 2005

Engine 1RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9608-9808)RZH114..LHD..SRF..STD..GEN ; (9608-9808)LH102,113,125,RZH103,104,105,112

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-26070	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53100-26070	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53100-95J22	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53100-95J22	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53100-26110	RZH114..15S;RZH115..STD;RZH115..12S;LH10#,11#,125,166,172,176,184,RZH10#,112,113,125..03S,06S,12S,14S,15S	08/1998 - 07/1999	1
53100-26110	RZH114..15S;RZH115..STD;RZH115..12S;LH10#,11#,125,166,172,176,184,RZH10#,112,113,125..03S,06S,12S,14S,15S	08/1998 - 07/1999	1
53100-26070	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53100-26070	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53100-26110	RZH112..5D;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,16#,17#,184,RZH10#,113,114,125..DX,STD	07/1999 - 12/2999	1
53100-26110	RZH112..5D;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,16#,17#,184,RZH10#,113,114,125..DX,STD	07/1999 - 12/2999	1
53118B - RETAINER, RADIATOR GRILLE, NO.2 RH
53118-26030	RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 08/2002	1
53118-26030	RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 08/2002	1
53118-26030	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
53118-26030	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
53128B - RETAINER, RADIATOR GRILLE, NO.2 LH
53128-26010	RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 08/2002	1
53128-26010	RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 08/2002	1
53128-26010	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
53128-26010	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
Common parts
67921-32010
71196-26020
93540-54010
Linked diagrams
7551

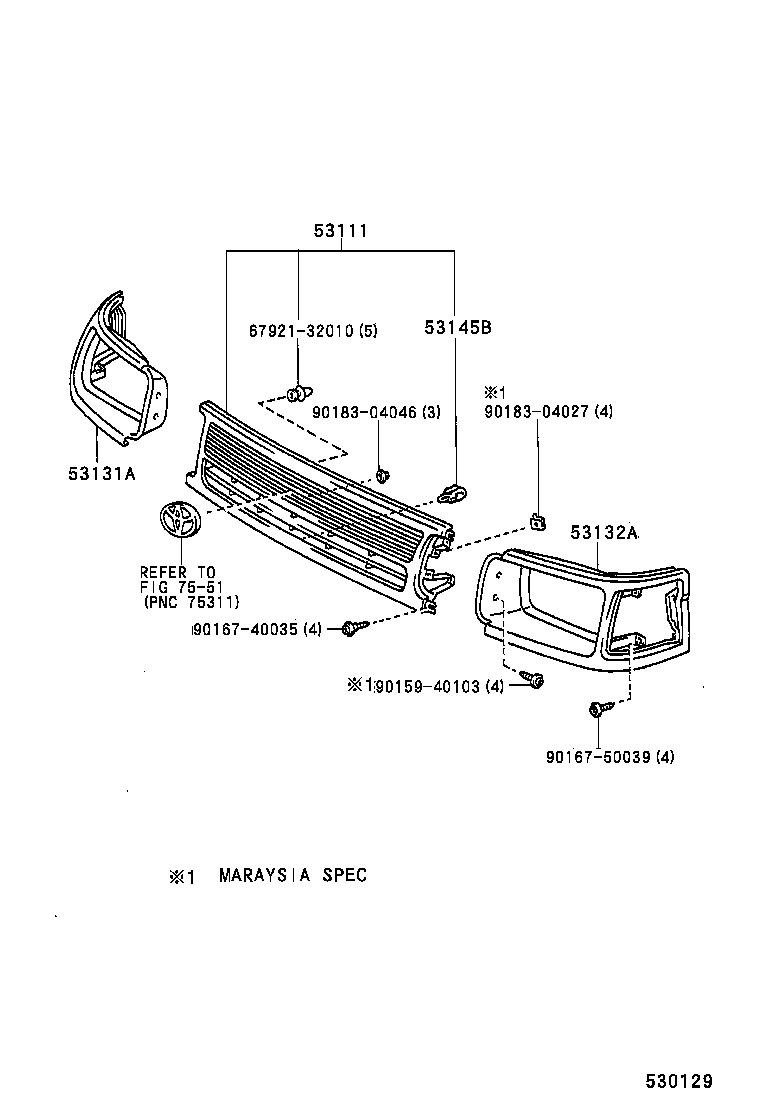

(9308-9808)STD ; (9405-9808)DX,SGL

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-26070	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53100-95J22	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53100-26110	RZH114..15S;RZH115..STD;RZH115..12S;LH10#,11#,125,166,172,176,184,RZH10#,112,113,125..03S,06S,12S,14S,15S	08/1998 - 07/1999	1
53100-26070	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53100-26110	RZH112..5D;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,16#,17#,184,RZH10#,113,114,125..DX,STD	07/1999 - 12/2999	1
53131A - DOOR, HEADLAMP, RH
53131-26020	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53131-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53131-95J10	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53132A - DOOR, HEADLAMP, LH
53132-95J10	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53132-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53132-26020	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01	LH10#,11#,125,RZH10#,11#,125	08/1993 - 02/1994	3
53145-95J01	LH10#,11#,125,RZH10#,11#,125 EXCELLENT PACKAGE	08/1989 - 08/1993	3
53145-26010	LH112;LH10#,113,114,115,125,RZH10#,11#,125..DX,SGL,STD	02/1994 - 08/1998	3
53145-95J02	LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION	08/1989 - 08/1993	2
Common parts
67921-32010
90159-40103
90167-40035
90167-50039
90183-04027
90183-04046
Linked diagrams
7551

(9808- )DX,SGL,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-26070	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53100-95J22	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53100-26110	RZH114..15S;RZH115..STD;RZH115..12S;LH10#,11#,125,166,172,176,184,RZH10#,112,113,125..03S,06S,12S,14S,15S	08/1998 - 07/1999	1
53100-26070	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53100-26110	RZH112..5D;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,16#,17#,184,RZH10#,113,114,125..DX,STD	07/1999 - 12/2999	1
53118B - RETAINER, RADIATOR GRILLE, NO.2 RH
53118-26030	RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 08/2002	1
53118-26030	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
53128B - RETAINER, RADIATOR GRILLE, NO.2 LH
53128-26010	RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S	08/1998 - 08/2002	1
53128-26010	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
53130 - ORNAMENT ASSY, HEADLAMP, RH
53130-26010	RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD	07/1999 - 12/2999	1
53130-26010	RZH105..LHD..STD;RZH115..STD..CIS;RZH113,115..STD..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH102,103,104,112,114,125..(03S,06S,12S,14S,15S)..(DX,STD)	08/1998 - 08/2002	1
53140 - ORNAMENT ASSY, HEADLAMP, LH
53140-26010	RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD	07/1999 - 12/2999	1
53140-26010	RZH105..LHD..STD;RZH115..STD..CIS;RZH113,115..STD..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH102,103,104,112,114,125..(03S,06S,12S,14S,15S)..(DX,STD)	08/1998 - 08/2002	1
Common parts
53135-26010
53137-26010
67921-32010
71196-28040
90075-10823
90167-50035
90189-06018
93540-54010
Linked diagrams
7551

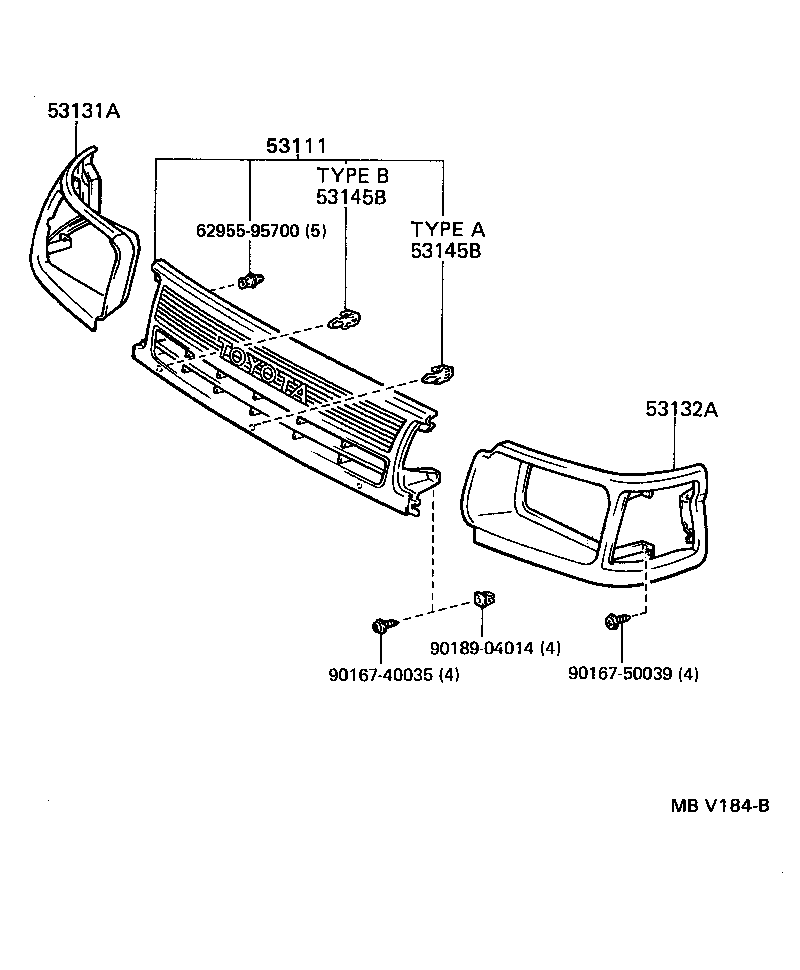

(8908-9308)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-26070	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53100-95J22	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53100-26110	RZH114..15S;RZH115..STD;RZH115..12S;LH10#,11#,125,166,172,176,184,RZH10#,112,113,125..03S,06S,12S,14S,15S	08/1998 - 07/1999	1
53100-26070	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53100-26110	RZH112..5D;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,16#,17#,184,RZH10#,113,114,125..DX,STD	07/1999 - 12/2999	1
53131A - DOOR, HEADLAMP, RH
53131-26020	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53131-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53131-95J10	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53132A - DOOR, HEADLAMP, LH
53132-95J10	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
53132-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD	11/1994 - 08/1998	1
53132-26020	LH10#,11#,125,RZH10#,11#,125..DX,STD	08/1993 - 11/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01	LH10#,11#,125,RZH10#,11#,125	08/1993 - 02/1994	3
53145-95J01	LH10#,11#,125,RZH10#,11#,125 EXCELLENT PACKAGE	08/1989 - 08/1993	3
53145-26010	LH112;LH10#,113,114,115,125,RZH10#,11#,125..DX,SGL,STD	02/1994 - 08/1998	3
53145-95J02	LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION	08/1989 - 08/1993	2
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01	LH10#,11#,125,RZH10#,11#,125	08/1993 - 02/1994	3
53145-95J01	LH10#,11#,125,RZH10#,11#,125 EXCELLENT PACKAGE	08/1989 - 08/1993	3
53145-26010	LH112;LH10#,113,114,115,125,RZH10#,11#,125..DX,SGL,STD	02/1994 - 08/1998	3
53145-95J02	LH10#,11#,125,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION	08/1989 - 08/1993	2
55871A - SEAL, AIR DUCT, NO.1
55871-95J04	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
Common parts
62955-95700
90167-40035
90167-50039
90183-04027
90189-04014
90901-67001

(8908-9308)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
62955-95700
90167-40035
90167-50039
90189-04014

(9308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
67921-32010
90167-40035
90167-50039
90183-04046
Linked diagrams
7551

RZH112L-SRMRS (1989)

(9608-9808)RZH114..LHD..SRF..STD..GEN ; (9608-9808)LH102,113,125,RZH103,104,105,112

(9308-9808)STD ; (9405-9808)DX,SGL

(9808- )DX,SGL,STD

(8908-9308)

(8908-9308)

(9308- )
