Toyota Hiace van,commuter RZH112 REAR BUMPER & BUMPER STAY

RZH112L-SRMRS (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Jan 2005

Engine 1RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8908-9308)STD

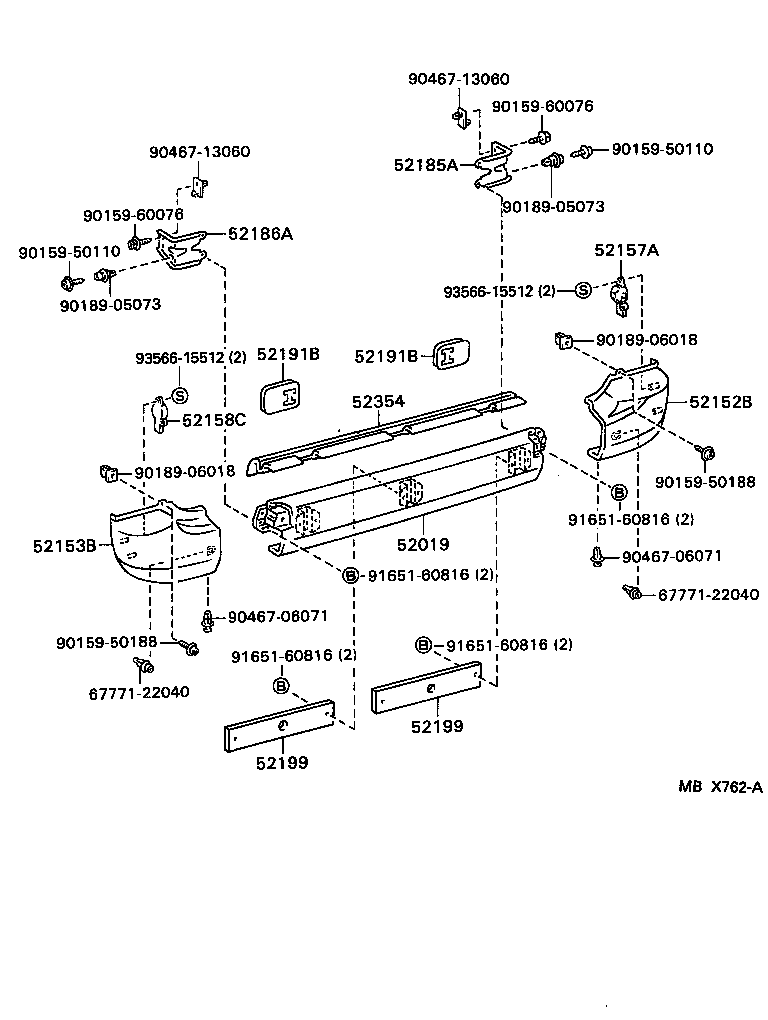

Click highlighted areas on diagram

Part #	Description	Period	Qty
52019 - BAR SUB-ASSY, REAR BUMPER
52019-95J31	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52019-95J31	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
52019-95J31	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52152B - EXTENSION, REAR BUMPER, RH
52165-95J01	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
52165-95J01	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52165-95J01	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52153B - EXTENSION, REAR BUMPER, LH
52166-95J01	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
52166-95J01	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52166-95J01	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52157-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52158-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
Common parts
90159-50110
90159-50188
90159-60076
90189-05073
90189-06018
90467-06071
90467-08038
90467-13060
91651-60816
93566-15512

(9308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-95J01	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1996 - 08/2001	1
52023-95J01	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN	08/1995 - 08/1996	1
52023-95J01	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN	08/1993 - 08/1995	1
52023-95J01	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52157-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52158-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-95J23	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 08/1993	1
52159-95J28G1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LIGHT GREEN ME,6L1	08/1995 - 08/1996	1
52159-95J26	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN BLACK	08/1993 - 08/1995	1
52159-95J28J1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-95J23	RZH103..GL,SGL,STD;LH102,103,112,113,RZH102,112,113..ARL,GCC,GEN W(STEP TYPE REAR BUMPER)	01/1994 - 08/1998	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045 ,3H7	08/1997 - 08/1998	1
52159-95J28H0	RZH113..LHD..EFI;RZH103,113..(SGL,STD)..CBR;LH10#,11#,RZH102,104,105,112,114,115..(DX,STD)..(ARL,GCC,GEN) W(PAINTED BUMPER),DK.TEAL GREEN MC.,751	08/1996 - 08/1998	1
52159-95J28A1	RZH113..LHD..EFI;RZH103..(SGL,STD)..CBR;LH113,125,RZH102,104,105,112,114..(DX,STD)..(ARL,GCC,GEN);LH10#,112,114,115,RZH113,115,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN)..(CBR,DSL) W(PAINTED BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25J1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-26110	RZH112..RHD..03S;LH112,RZH112..LHD;LH10#,113,114,115,166,174,176,RZH10#,113,114,115..(GL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1998 - 07/1999	1
52159-95J23	RZH113..LHD;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD W(STEP TYPE REAR BUMPER)	08/1998 - 08/2001	1
52159-26110	LH113..STD..GEN;LH10#,112,114,115,RZH10#,11#..(GL,SGL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1996 - 08/1998	1
52159-95J23	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD W(STEP TYPE REAR BUMPER)	07/1999 - 01/2005	1
52159-95J26	RZH10#,112,114,115..(DX,SGL,STD)..(ARL,GCC,GEN);LH102,103,104,11#,125,172,184,RZH113,125,135,153..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	08/1995 - 07/1999	1
52159-95J28G1	RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH154,RZH102,112,155..LHD..(03S,06S,11S,12S);LH102,103,104,11#,125,162,172,184,RZH103,125,135..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) LIGHT GREEN ME,6L1	07/1999 - 01/2005	1
52159-95J26	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	07/1999 - 01/2005	1
52159-95J28A2	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) WHITE,058 ,3L5	07/1999 - 01/2005	1
52159-26110	RZH115..CIS;LH172..RHD..5D;RZH112..RHD..SP;RZH113..4D..03S..GEN;LH174,RZH112..LHD..GEN;LH172,174..HRF..(03S,15S);LH162,RZH103,113..RHD..06S;LH172,RZH105..LHD..4D..STD..(DSL,EFI);LH10#,11#,166,176,RZH102,104,114,115..(CIS,GEN)..(CBR,DSL) SEVERE USAGE PACKAGE	07/1999 - 12/2999	1
52159-95J25G1	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD LIGHT GREEN M,6L1	07/1999 - 01/2005	1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
Common parts
90109-08163
90159-50110
90159-50376
90179-08219
90189-05073
90189-05164
91651-60816
91655-40820
93568-55012

(9308- )

Click highlighted areas on diagram

EXCEPT CIS(SEVERE USAGE PACKAGE)

Part #	Description	Period	Qty
52019 - BAR SUB-ASSY, REAR BUMPER
52019-95J31	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52019-95J31	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
52019-95J31	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52152B - EXTENSION, REAR BUMPER, RH
52165-95J01	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
52165-95J01	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52165-95J01	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52153B - EXTENSION, REAR BUMPER, LH
52166-95J01	LH10#,11#,125,RZH10#,11#,125..STD	08/1989 - 08/1993	1
52166-95J01	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52166-95J01	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52157-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52158-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
Common parts
67771-22040
90159-50110
90159-50376
90159-60076
90189-05073
90189-05164
90467-06071
90467-13060
91651-60816
93566-15512

(9308- )

Click highlighted areas on diagram

W(STEP)

Part #	Description	Period	Qty
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52157-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52158-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-95J23	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 08/1993	1
52159-95J28G1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LIGHT GREEN ME,6L1	08/1995 - 08/1996	1
52159-95J26	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN BLACK	08/1993 - 08/1995	1
52159-95J28J1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-95J23	RZH103..GL,SGL,STD;LH102,103,112,113,RZH102,112,113..ARL,GCC,GEN W(STEP TYPE REAR BUMPER)	01/1994 - 08/1998	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045 ,3H7	08/1997 - 08/1998	1
52159-95J28H0	RZH113..LHD..EFI;RZH103,113..(SGL,STD)..CBR;LH10#,11#,RZH102,104,105,112,114,115..(DX,STD)..(ARL,GCC,GEN) W(PAINTED BUMPER),DK.TEAL GREEN MC.,751	08/1996 - 08/1998	1
52159-95J28A1	RZH113..LHD..EFI;RZH103..(SGL,STD)..CBR;LH113,125,RZH102,104,105,112,114..(DX,STD)..(ARL,GCC,GEN);LH10#,112,114,115,RZH113,115,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN)..(CBR,DSL) W(PAINTED BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25J1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-26110	RZH112..RHD..03S;LH112,RZH112..LHD;LH10#,113,114,115,166,174,176,RZH10#,113,114,115..(GL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1998 - 07/1999	1
52159-95J23	RZH113..LHD;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD W(STEP TYPE REAR BUMPER)	08/1998 - 08/2001	1
52159-26110	LH113..STD..GEN;LH10#,112,114,115,RZH10#,11#..(GL,SGL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1996 - 08/1998	1
52159-95J23	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD W(STEP TYPE REAR BUMPER)	07/1999 - 01/2005	1
52159-95J26	RZH10#,112,114,115..(DX,SGL,STD)..(ARL,GCC,GEN);LH102,103,104,11#,125,172,184,RZH113,125,135,153..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	08/1995 - 07/1999	1
52159-95J28G1	RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH154,RZH102,112,155..LHD..(03S,06S,11S,12S);LH102,103,104,11#,125,162,172,184,RZH103,125,135..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) LIGHT GREEN ME,6L1	07/1999 - 01/2005	1
52159-95J26	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	07/1999 - 01/2005	1
52159-95J28A2	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) WHITE,058 ,3L5	07/1999 - 01/2005	1
52159-26110	RZH115..CIS;LH172..RHD..5D;RZH112..RHD..SP;RZH113..4D..03S..GEN;LH174,RZH112..LHD..GEN;LH172,174..HRF..(03S,15S);LH162,RZH103,113..RHD..06S;LH172,RZH105..LHD..4D..STD..(DSL,EFI);LH10#,11#,166,176,RZH102,104,114,115..(CIS,GEN)..(CBR,DSL) SEVERE USAGE PACKAGE	07/1999 - 12/2999	1
52159-95J25G1	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD LIGHT GREEN M,6L1	07/1999 - 01/2005	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52302 - STEP SUB-ASSY, BACK
52302-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..STD..(ARL,GCC,GEN)	01/1994 - 08/2001	1
52302-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	1
52302-95J00	LH102,103,112,113,RZH102,103,112,113	08/1989 - 08/1993	1
52302-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	1
Common parts
90159-50110
90159-50376
90189-05073
90189-05164
90189-06018
90950-01695
91651-40814
91651-40816
93568-55012

(8908-9308)

Click highlighted areas on diagram

W(STEP)

Part #	Description	Period	Qty
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52157-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52158-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-95J23	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 08/1993	1
52159-95J28G1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LIGHT GREEN ME,6L1	08/1995 - 08/1996	1
52159-95J26	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN BLACK	08/1993 - 08/1995	1
52159-95J28J1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-95J23	RZH103..GL,SGL,STD;LH102,103,112,113,RZH102,112,113..ARL,GCC,GEN W(STEP TYPE REAR BUMPER)	01/1994 - 08/1998	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045 ,3H7	08/1997 - 08/1998	1
52159-95J28H0	RZH113..LHD..EFI;RZH103,113..(SGL,STD)..CBR;LH10#,11#,RZH102,104,105,112,114,115..(DX,STD)..(ARL,GCC,GEN) W(PAINTED BUMPER),DK.TEAL GREEN MC.,751	08/1996 - 08/1998	1
52159-95J28A1	RZH113..LHD..EFI;RZH103..(SGL,STD)..CBR;LH113,125,RZH102,104,105,112,114..(DX,STD)..(ARL,GCC,GEN);LH10#,112,114,115,RZH113,115,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN)..(CBR,DSL) W(PAINTED BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25J1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-26110	RZH112..RHD..03S;LH112,RZH112..LHD;LH10#,113,114,115,166,174,176,RZH10#,113,114,115..(GL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1998 - 07/1999	1
52159-95J23	RZH113..LHD;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD W(STEP TYPE REAR BUMPER)	08/1998 - 08/2001	1
52159-26110	LH113..STD..GEN;LH10#,112,114,115,RZH10#,11#..(GL,SGL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1996 - 08/1998	1
52159-95J23	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD W(STEP TYPE REAR BUMPER)	07/1999 - 01/2005	1
52159-95J26	RZH10#,112,114,115..(DX,SGL,STD)..(ARL,GCC,GEN);LH102,103,104,11#,125,172,184,RZH113,125,135,153..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	08/1995 - 07/1999	1
52159-95J28G1	RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH154,RZH102,112,155..LHD..(03S,06S,11S,12S);LH102,103,104,11#,125,162,172,184,RZH103,125,135..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) LIGHT GREEN ME,6L1	07/1999 - 01/2005	1
52159-95J26	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	07/1999 - 01/2005	1
52159-95J28A2	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) WHITE,058 ,3L5	07/1999 - 01/2005	1
52159-26110	RZH115..CIS;LH172..RHD..5D;RZH112..RHD..SP;RZH113..4D..03S..GEN;LH174,RZH112..LHD..GEN;LH172,174..HRF..(03S,15S);LH162,RZH103,113..RHD..06S;LH172,RZH105..LHD..4D..STD..(DSL,EFI);LH10#,11#,166,176,RZH102,104,114,115..(CIS,GEN)..(CBR,DSL) SEVERE USAGE PACKAGE	07/1999 - 12/2999	1
52159-95J25G1	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD LIGHT GREEN M,6L1	07/1999 - 01/2005	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52302 - STEP SUB-ASSY, BACK
52302-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..STD..(ARL,GCC,GEN)	01/1994 - 08/2001	1
52302-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	1
52302-95J00	LH102,103,112,113,RZH102,103,112,113	08/1989 - 08/1993	1
52302-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
Common parts
90159-50110
90159-50188
90189-05073
90189-06018
90950-01695
91651-40814
93566-15512

(8908-9308)LH118..STD ; (8908-9308)LH10#,112,RZH10#,11#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90159-10076
90159-50110
90159-50188
90189-05073
90189-06018
90467-06071
90467-08038
91655-40820
93566-15512

(8908-9308)

Click highlighted areas on diagram

W(STEP)

Part #	Description	Period	Qty
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52157-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153	08/1989 - 08/2001	1
52158-95J00	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	07/1999 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-95J23	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 08/1993	1
52159-95J28G1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LIGHT GREEN ME,6L1	08/1995 - 08/1996	1
52159-95J26	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN BLACK	08/1993 - 08/1995	1
52159-95J28J1	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-95J23	RZH103..GL,SGL,STD;LH102,103,112,113,RZH102,112,113..ARL,GCC,GEN W(STEP TYPE REAR BUMPER)	01/1994 - 08/1998	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25A1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),WHITE,045 ,3H7	08/1997 - 08/1998	1
52159-95J28H0	RZH113..LHD..EFI;RZH103,113..(SGL,STD)..CBR;LH10#,11#,RZH102,104,105,112,114,115..(DX,STD)..(ARL,GCC,GEN) W(PAINTED BUMPER),DK.TEAL GREEN MC.,751	08/1996 - 08/1998	1
52159-95J28A1	RZH113..LHD..EFI;RZH103..(SGL,STD)..CBR;LH113,125,RZH102,104,105,112,114..(DX,STD)..(ARL,GCC,GEN);LH10#,112,114,115,RZH113,115,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN)..(CBR,DSL) W(PAINTED BUMPER),WHITE,045	08/1995 - 08/1997	1
52159-95J25J1	LH102,103,112,113,RZH102,103,112,113..STD W(STEP TYPE REAR BUMPER),GRAYISH BLUE MM,8G8	08/1995 - 08/1996	1
52159-26110	RZH112..RHD..03S;LH112,RZH112..LHD;LH10#,113,114,115,166,174,176,RZH10#,113,114,115..(GL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1998 - 07/1999	1
52159-95J23	RZH113..LHD;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD W(STEP TYPE REAR BUMPER)	08/1998 - 08/2001	1
52159-26110	LH113..STD..GEN;LH10#,112,114,115,RZH10#,11#..(GL,SGL,STD)..(CIS,GEN) SEVERE USAGE PACKAGE	08/1996 - 08/1998	1
52159-95J23	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD W(STEP TYPE REAR BUMPER)	07/1999 - 01/2005	1
52159-95J26	RZH10#,112,114,115..(DX,SGL,STD)..(ARL,GCC,GEN);LH102,103,104,11#,125,172,184,RZH113,125,135,153..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	08/1995 - 07/1999	1
52159-95J28G1	RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH154,RZH102,112,155..LHD..(03S,06S,11S,12S);LH102,103,104,11#,125,162,172,184,RZH103,125,135..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) LIGHT GREEN ME,6L1	07/1999 - 01/2005	1
52159-95J26	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) BLACK	07/1999 - 01/2005	1
52159-95J28A2	RZH112..LHD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH115..GCC..EFI;RZH113..LHD..03S..GEN;RZH102,104,105,114..STD..(GCC,GEN);LH174,RZH115..15S..(GCC,GEN)..(CBR,DSL);LH102,103,104,11#,125,162,172,184,RZH103,125..(03S,06S,10S,12S,14S,15S)..(ARL,GCC,GEN) WHITE,058 ,3L5	07/1999 - 01/2005	1
52159-26110	RZH115..CIS;LH172..RHD..5D;RZH112..RHD..SP;RZH113..4D..03S..GEN;LH174,RZH112..LHD..GEN;LH172,174..HRF..(03S,15S);LH162,RZH103,113..RHD..06S;LH172,RZH105..LHD..4D..STD..(DSL,EFI);LH10#,11#,166,176,RZH102,104,114,115..(CIS,GEN)..(CBR,DSL) SEVERE USAGE PACKAGE	07/1999 - 12/2999	1
52159-95J25G1	LH172..GCC;RZH112..LHD;LH172..RHD..STD;RZH112..RHD..SP;RZH113..ARL,GCC;RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN;LH102,103,112,113,162,RZH102,103..SRF..STD LIGHT GREEN M,6L1	07/1999 - 01/2005	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	2
52191-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD	08/1996 - 08/2001	2
52191-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	2
52191-95J00	LH115,RZH115..GEN;LH102,103,104,112,113,114,RZH102,103,104,112,113,114..SGL,STD	01/1994 - 08/1996	2
52191-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	2
52191-95J00	LH102,103,104,11#,RZH102,103,104,112,113,114..STD..(ARL,CIS,GEN)	08/1993 - 01/1994	2
52302 - STEP SUB-ASSY, BACK
52302-95J00	RZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..STD..(ARL,GCC,GEN)	01/1994 - 08/2001	1
52302-95J00	LH102,112..LHD..06S;LH103,113,RZH102..SRF..STD	07/1999 - 08/2000	1
52302-95J00	LH102,103,112,113,RZH102,103,112,113	08/1989 - 08/1993	1
52302-95J00	LH112..4D;LH172..GCC;RZH112..LHD;RZH112..RHD..SP;LH172..RHD..5F..STD;RZH113..5F..(ARL,GCC);RZH113..RHD..STD..GEN;LH172,RZH113..LHD..4D..GEN	07/1999 - 01/2005	1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J02	LH102,103,112,113,RZH102,103,112,113 W(STEP TYPE REAR BUMPER)	08/1989 - 10/1990	2
52354-95J03	LH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)	08/1995 - 08/1996	1
52354-26020	RZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S LH	08/1998 - 08/2001	1
52354-95J03	LH10#,11#,125,RZH10#,11#,125..STD W(DOUBLE SWING BACK DOOR)	08/1989 - 08/1993	1
52353-26020	RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153 RH	08/1996 - 08/2001	1
52353-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN RH	08/1995 - 08/1996	1
52354-95J03	RZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)	08/1993 - 08/1995	1
52354-26020	RZH104..STD;RZH114..GEN;LH10#,11#,125,RZH102,103,105,112,113,115,125,135,153 LH	08/1996 - 08/1998	1
52354-26020	LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN LH	08/1995 - 08/1996	1
52353-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN RH	08/1993 - 08/1995	1
52353-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# RH	07/1999 - 01/2002	1
52354-26020	RZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..ARL,GCC,GEN LH	08/1993 - 08/1995	1
52354-26020	LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# LH	07/1999 - 01/2002	1
52354-26021	RZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#	01/2002 - 12/2999	2
Common parts
90159-50110
90159-50188
90189-05073
90189-06018
90950-01695
91651-40814
93566-15512

(9308- )RZH113..STD..EUR ; (9308- )LH10#,11#,RZH103,109,119..03S,06S

Click highlighted areas on diagram

W(STEP)

Part #	Description	Period	Qty	Price
Common parts
90159-50110
90159-50188
90189-05073
90189-06018
90950-01695
91651-40814
93566-15512

(9308- )STD..SDN ; (9308- )RZH103..DX..FRG; (9308- )LH112..03S,09S..EUR ;

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
67771-22040
90159-50110
90159-50188
90159-60076
90189-05073
90189-06018
90467-06071
90467-13060
91651-60816
93566-15512

RZH112L-SRMRS (1989)

(8908-9308)STD

(9308- )

(9308- )

(9308- )

(8908-9308)

(8908-9308)LH118..STD ; (8908-9308)LH10#,112,RZH10#,11#

(8908-9308)

(9308- )RZH113..STD..EUR ; (9308- )LH10#,11#,RZH103,109,119..03S,06S

(9308- )STD..SDN ; (9308- )RZH103..DX..FRG; (9308- )LH112..03S,09S..EUR ;

Part Price Details
