RZH112L-SBPRSW (1989)
Toyota Hiace Van,Commuter
(8908- )LH10#,11#,125,164,166,176,184,RZH103,104,105,114,125,135,15#..03S,05S,06
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67771-16080 | ||||
| 67771-26010 | ||||
| 67772-20021 | ||||
| 90467-0803733 | ||||
| 90467-08037B1 | ||||
| 90467-08037N8 | ||||
(8908- )RZH112..SRF ; (8908- )LH172,RZH113,115..4D..ARL,CIS,GEN..DSL,EFI ; (8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67771-16080 | ||||
| 67771-26010 | ||||
| 67772-20021 | ||||
| 90467-0803733 | ||||
| 90467-08037B1 | ||||
| 90467-08037N8 | ||||

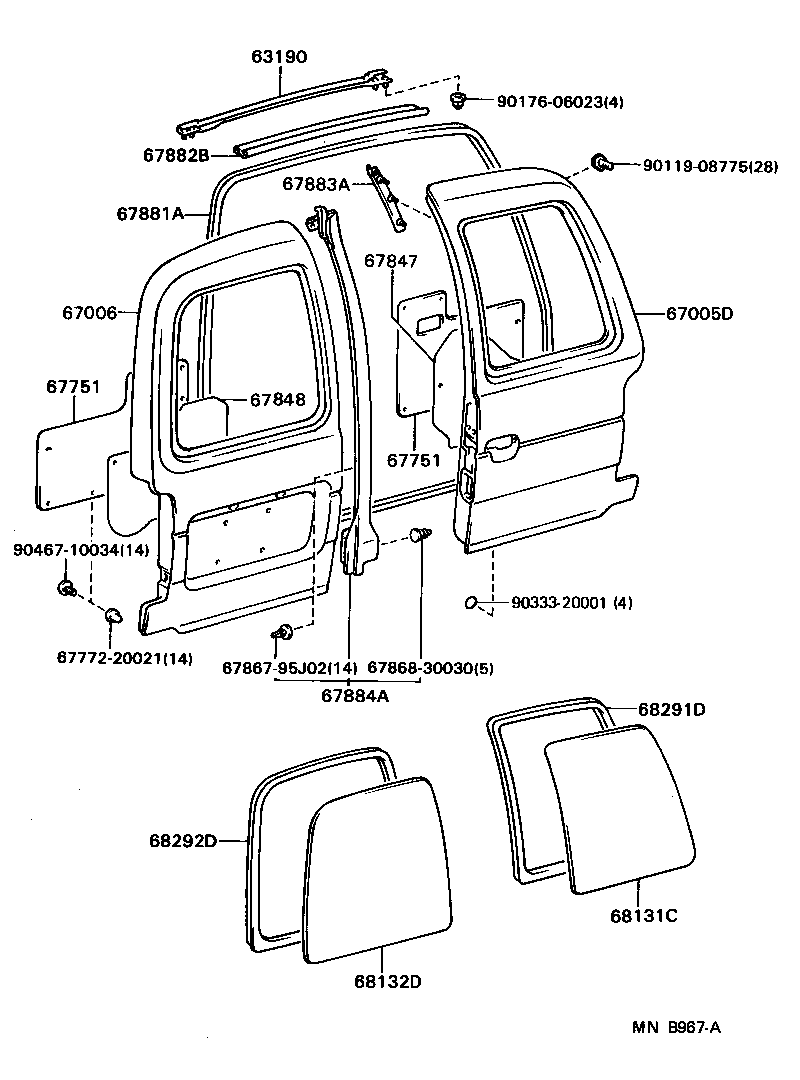

ILLUST NO. 2 OF 2(8908- )LH154..11S ; (8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60027 | ||||
| 90179-06159 | ||||
| 90189-06002 | ||||
| 90333-40001 | ||||
| 93312-26012 | ||||
| Linked diagrams | ||||
| 8504 | ||||
(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62899D - BAR, BACK DOOR WINDOW GUARD | ||||
| 62899-95J00 |
LH112,RZH103,112,113;LH10#,118,RZH102,109,119..STD |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-95N50 |
LH102,11#,RZH102,112,119..5D..03S W(*RWD & 2 STEP BACK DOOR DAMPER) |
1 | ||
| 67005-95N80 |
LH102,11#,RZH102,112,119..5D..03S W(*RWD & *RW) |
1 | ||
| 67005-95N82 |
LH11#,RZH102,112,119..5D..03S W(*RWD & BACK WINDOW GUARD & *RW) |
1 | ||
| 67005-95N81 |
LH11#,RZH102,112,119..5D..03S W(*RWD & 2 STEP BACK DOOR DAMPER & *RW) |
1 | ||
| 67005-95N57 |
LH102,11#,RZH102,112,119..5D..03S W(*RWD & 2 STEP BACK DOOR DAMPER & BACK WINDOW GUARD) |
1 | ||
| 67005-95N83 |
LH102,RZH102,112,119..5D..03S W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOORDAMPER & *RW) |
1 | ||
| 67005-95N60 |
LH10#,118,RZH102,109,119..SP;LH112,RZH103,112,113..03S,09S W(BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER) |
1 | ||
| 67005-95N88 |
RZH113,119;RZH102..DX;LH118,RZH109..STD;LH102,112,RZH102,112..5D..03S W(*RWD) |
1 | ||
| 67005-95P01 |
LH10#,11#,RZH10#,11# W(2 STEP BACK DOOR DAMPER) |
1 | ||
| 67005-95P00 |
LH10#,11#,RZH10#,11# |
1 | ||
| 67005-95P03 |
LH10#,118,RZH102,109,119..SP;LH112,RZH103,112,113..03S,09S W(BACK WINDOW GUARD) |
1 | ||
| 67005-95P02 |
LH102,11#,RZH102,112,119..5D..03S W(*RWD & BACK DOOR DAMPER) |
1 | ||
| 67005-95N50 |
RZH112..5D..5F;LH102,11#,RZH102,119..5D..03S W(*RWD & 2 STEP BACK DOOR DAMPER) |
1 | ||
| 67005-95N88 |
RZH113,119;RZH102..DX;LH102,112,RZH102..5D..03S;LH118,RZH109,112..LHD..5F..STD W(*RWD) |
1 | ||
| 67005-95N57 |
RZH112..5D..5F;LH102,11#,RZH102,119..5D..03S W(*RWD & 2 STEP BACK DOOR DAMPER & BACK WINDOW GUARD) |
1 | ||
| 67005-95P02 |
RZH112..5D..5F;LH102,11#,RZH102,119..5D..03S W(*RWD & BACK DOOR DAMPER) |
1 | ||
| 67005-95N80 |
RZH112..5D..5F;LH102,11#,RZH102,119..5D..03S W(*RWD & *RW) |
1 | ||
| 67005-95N80 |
RZH112..4FC W(*RW) |
1 | ||
| 67005-95N88 |
RZH112..4FC |
1 | ||
| 67005-95N57 |
RZH112..4FC W(BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER) |
1 | ||
| 67005-95N83 |
RZH112..4FC W(BACK DOOR WINDOW GUARD & 2-STEP BACK DOOR DAMPER & *RW) |
1 | ||
| 67005-95P02 |
RZH112..4FC W(BACK WINDOW GUARD) |
1 | ||
| 67005-95N82 |
RZH112..4FC W(*RW & BACK WINDOW GUARD) |
1 | ||
| 67005-95N81 |
RZH112..4FC W(*RW & 2 STEP BACK DOOR DAMPER) |
1 | ||
| 67005-95N50 |
RZH112..4FC W(2 STEP BACK DOOR DAMPER) |
1 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
LH10#,11#,RZH10#,11#..DX,STD |
2 | ||
| 67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67526-95A00 |
LH10#,11#,RZH10#,11#..DX,STD |
2 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J06 |
LH10#,11#,RZH10#,11#..DX,STD |
1 | ||
| 67847-95J05 |
LH10#,11#,RZH10#,11#..DX,STD W(BACK DOOR INSIDE LOCK) |
1 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J06 |
LH10#,11#,RZH10#,11#..DX,STD |
1 | ||
| 67847-95J05 |
LH10#,11#,RZH10#,11#..DX,STD W(BACK DOOR INSIDE LOCK) |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-95J00 |
LH10#,11#,RZH10#,11#..DX,STD |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-95J16 |
LH10#,11#,RZH10#,11# |
1 | ||
| 67881-95J17 |
LH112..RHD;LH112,RZH113..5D..03S;LH118,RZH103,112,119..03S;LH102,RZH102..LHD..4D..SP W(*DSBD) |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-95J09 |
RZH113,119;RZH102..DX;LH118,RZH109..STD;LH102,112,RZH102,112..5D..03S *EHT,T=4.0,W(*RWD) |
1 | ||
| 68131-95J09 |
RZH112..4FC *EHT,T=4.0 |
1 | ||
| 68131-95J09 |
RZH113,119;RZH102..DX;LH102,112,RZH102..5D..03S;LH118,RZH109,112..LHD..5F..STD *EHT,T=4.0,W(*RWD) |
1 | ||
| 68131-95J10 |
LH10#,11#,RZH10#,11# *TEM,T=4.0 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
RZH102..DX;RZH112..5D..5F;LH102,11#,RZH102,119..5D..03S NORWAY SPEC & W(*RWD) |
1 | ||
| 68291-95J05 |
RZH102..DX;LH102,11#,RZH102,112,119..5D..03S NORWAY SPEC & W(*RWD) |
1 | ||
| 68291-95J04 |
LH10#,11#,RZH10#,11# W(CHROME PLATED WINDSHIELD MOULDING) |
1 | ||
| 68291-95J05 |
LH10#,11#,RZH10#,11#..DX,STD |
1 | ||
| Common parts | ||||
| 67771-16080 | ||||
| 90149-60027 | ||||
| 90189-06002 | ||||
| 90333-40001 | ||||
| 93312-26012 | ||||
(9001- )
W(*DSBD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005D - PANEL SUB-ASSY, BACK DOOR, RH | ||||
| 67005-95P24 |
LH112..RHD;LH112,RZH113..5D..03S;LH118,RZH103,112,119..03S;LH102,RZH102..LHD..4D..SP |
1 | ||
| 67005-95P25 |
LH11#,RZH112,119..5D..03S W(*RWD) |
1 | ||
| 67006 - DOOR SUB-ASSY, BACK, LH | ||||
| 67006-95J06 |
LH11#,RZH112,119..5D..03S W(*RWD) |
1 | ||
| 67006-95J05 |
LH112..RHD;LH112,RZH113..5D..03S;LH118,RZH103,112,119..03S;LH102,RZH102..LHD..4D..SP |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-95J07 |
LH112,RZH113..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-95J01 |
LH112,RZH113..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-95J16 |
LH10#,11#,RZH10#,11# |
1 | ||
| 67881-95J17 |
LH112..RHD;LH112,RZH113..5D..03S;LH118,RZH103,112,119..03S;LH102,RZH102..LHD..4D..SP W(*DSBD) |
1 | ||
| 67883A - RETAINER, BACK DOOR WEATHERSTRIP | ||||
| 67883-26010 |
LH112..RHD;LH112,RZH113..5D..03S;LH118,RZH103,112,119..03S;LH102,RZH102..LHD..4D..SP |
1 | ||
| 68131C - GLASS, BACK DOOR, RH | ||||
| 68131-95J14 |
LH112..RHD;LH112,RZH113..5D..03S;LH118,RZH103,112,119..03S;LH102,RZH102..LHD..4D..SP *TEM,T=3.5 |
1 | ||
| 68131-95J15 |
LH11#,RZH112,119..5D..03S *EHT,T=3.5,W(*RWD) |
1 | ||
| 68132D - GLASS, BACK DOOR, LH | ||||
| 68132-95J01 |
LH11#,RZH112,119..5D..03S *EHT,T=3.5,W(*RWD) |
1 | ||
| 68132-95J02 |
LH112..RHD;LH112,RZH113..5D..03S;LH118,RZH103,112,119..03S;LH102,RZH102..LHD..4D..SP *TEM |
1 | ||
| 68291D - WEATHERSTRIP, BACK DOOR GLASS, RH | ||||
| 68291-95J07 |
LH11#,RZH112,113,119..5D..03S |
1 | ||
| 68291-95J07 |
RZH112..4FC;LH112,RZH112..RHD;LH102,RZH102,103..LHD..4D..SP |
1 | ||
| 68292D - WEATHERSTRIP, BACK DOOR GLASS, LH | ||||
| 68292-95J00 |
LH11#,RZH112,113,119..5D..03S |
1 | ||
| 68292-95J00 |
RZH112..4FC;LH112,RZH112..RHD;LH102,RZH102,103..LHD..4D..SP |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 67867-95J02 | ||||
| 67868-30030 | ||||
| 90119-08775 | ||||
| 90176-06023 | ||||
| 90333-20001 | ||||
| 90467-10034 | ||||
