RZH112L-SBPRSW (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)

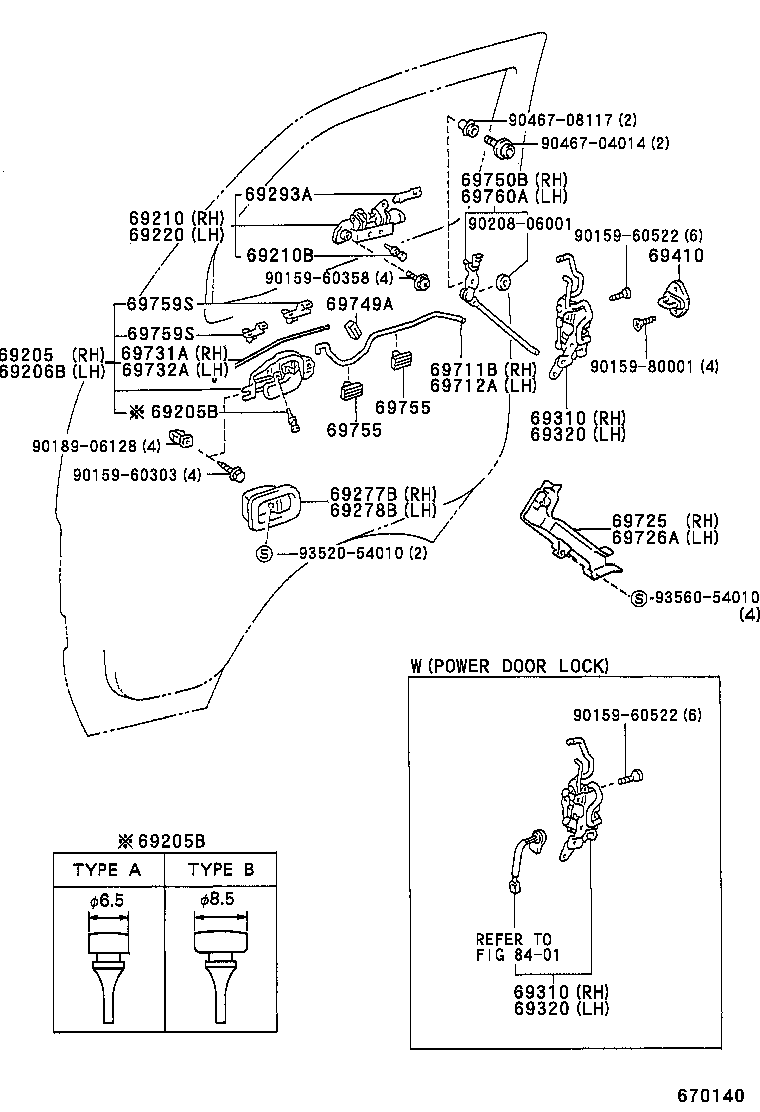

Click highlighted areas on diagram

diagram 69205 69205B 69205B 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69310 69320 69320 69410 69711B 69712A 69725 69726A 69731A 69732A 69749A 69750B 69755 69755 69759S 69759S 69760A 8401 9015960303 9015960358 9015960522 9015960522 9015980001 9018906128 9020806001 9046704014 9046708117 9352054010 9356054010
Part # Description Qty Price
Common parts
90159-60303
90159-60358
90159-60522
90159-80001
90189-06128
90208-06001
90467-04014
90467-08117
93520-54010
93560-54010
Linked diagrams
8401

(8908-9308)

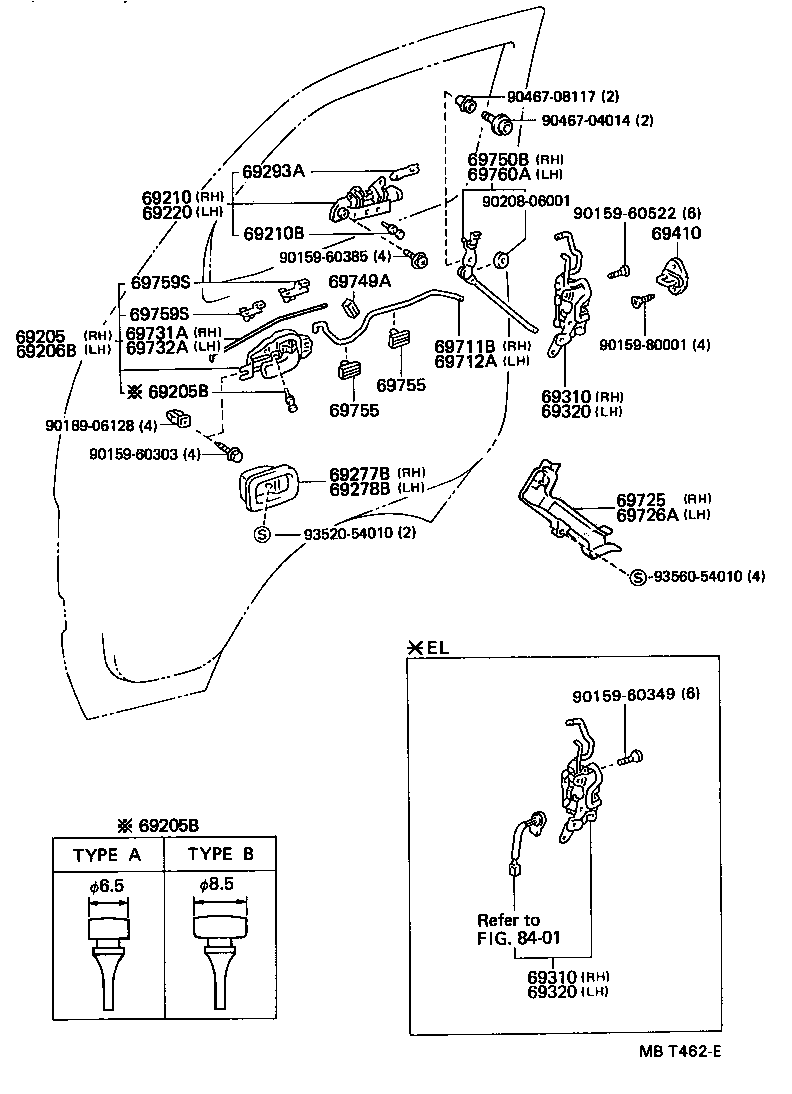

Click highlighted areas on diagram

diagram 69205 69205B 69205B 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69310 69320 69320 69410 69711B 69712A 69725 69726A 69731A 69732A 69749A 69750B 69755 69755 69759S 69759S 69760A 8401 9015960303 9015960349 9015960385 9015960522 9015980001 9018906128 9020806001 9046704014 9046708117 9352054010 9356054010
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

LH10#,11#,RZH10#,11#

TYPE B

 2
90541-04018

LH10#,11#,RZH10#,11#

 2
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

LH10#,11#,RZH10#,11#

TYPE B

 2
90541-04018

LH10#,11#,RZH10#,11#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95J03

LH10#,11#,RZH10#,11#

NO PAINT REQ.

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

LH10#,11#,RZH10#,11#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95J03

LH10#,11#,RZH10#,11#

NO PAINT REQ.

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-95J0003

LH10#,11#,RZH10#,11#

GRAY,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

LH10#,11#,RZH10#,11#

RH

 1
69293-12030

LH10#,11#,RZH10#,11#

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95J07

LH10#,11#,RZH10#,11#

 1
69030-95J04

LH10#,11#,RZH10#,11#..LHD

W(*EL)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95J07

LH10#,11#,RZH10#,11#

 1
69030-95J04

LH10#,11#,RZH10#,11#..LHD

W(*EL)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-95J04

LH10#,11#,RZH10#,11#..LHD

W(*EL)

 1
69320-95J06

LH10#,11#,RZH10#,11#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-95J04

LH10#,11#,RZH10#,11#..LHD

W(*EL)

 1
69320-95J06

LH10#,11#,RZH10#,11#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-14050

LH10#,11#,RZH10#,11#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-95J01

LH10#,11#,RZH10#,11#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-95J01

LH10#,11#,RZH10#,11#

 1
69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69725-95J00

LH10#,11#,RZH10#,11#

 1
69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69726-95J00

LH10#,11#,RZH10#,11#

 1
69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69731-95J00

LH10#,11#,RZH10#,11#

 1
69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69732-95J00

LH10#,11#,RZH10#,11#

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-50010

LH10#,11#,RZH10#,11#

 6
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-95J00

LH10#,11#,RZH10#,11#

 1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-95500

LH10#,11#,RZH10#,11#

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-95500

LH10#,11#,RZH10#,11#

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

LH10#,11#,RZH10#,11#

RH

 2
69759-14050

LH10#,11#,RZH10#,11#

LH

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

LH10#,11#,RZH10#,11#

RH

 2
69759-14050

LH10#,11#,RZH10#,11#

LH

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-95J00

LH10#,11#,RZH10#,11#

 1
Common parts
90159-60303
90159-60349
90159-60385
90159-60522
90159-80001
90189-06128
90208-06001
90467-04014
90467-08117
93520-54010
93560-54010
Linked diagrams
8401
