RZH112L-SBPRSW (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1991
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L

12V 2.7KW

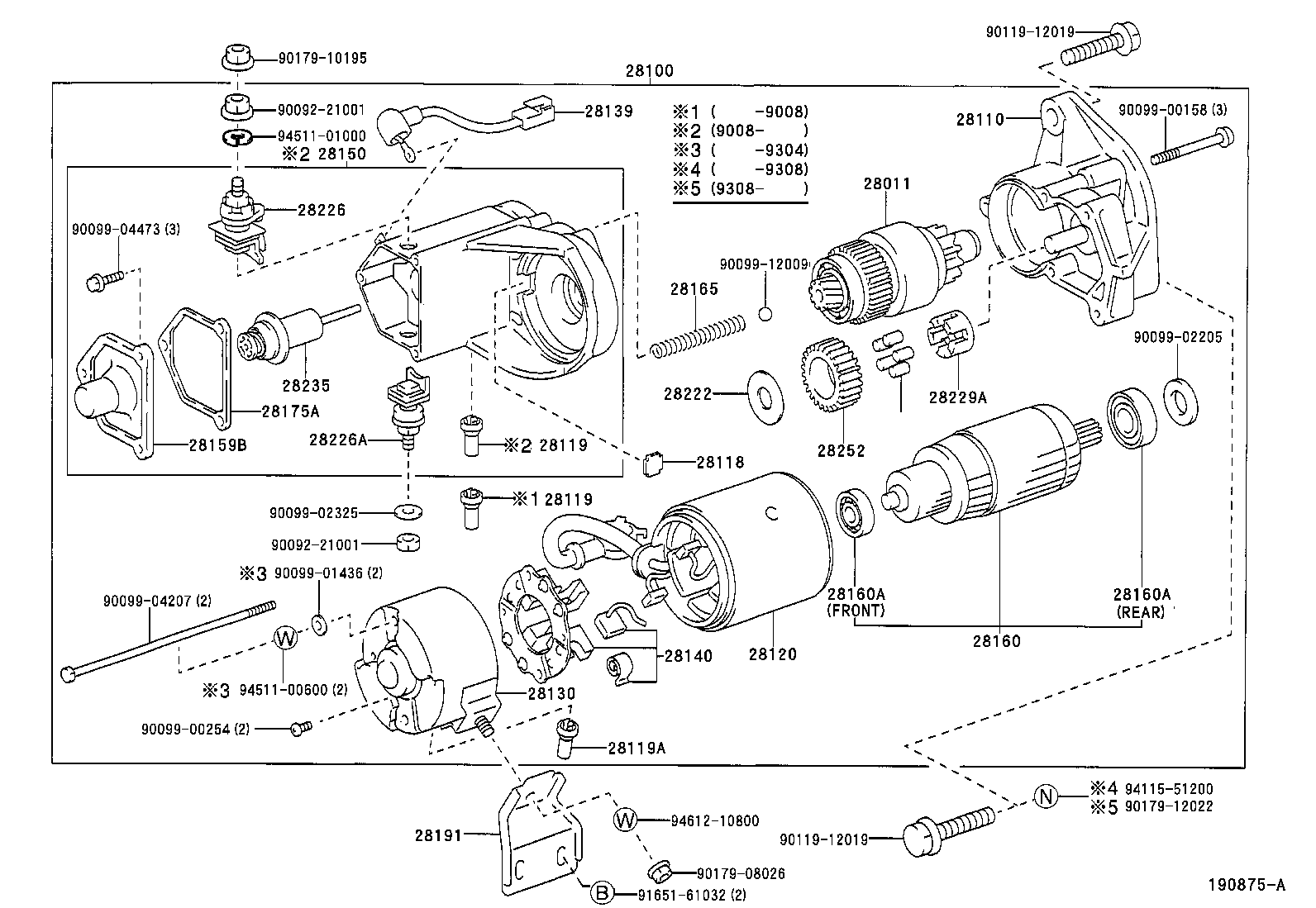

diagram 28011 28100 28110 28118 28119 28119 28119A 28120 28130 28139 28140 28150 28159B 28160 28160A 28160A 28165 28175A 28191 28222 28226 28226A 28228A 28229A 28235 28252 9009221001 9009221001 9009900158 9009900254 9009901436 9009902205 9009902325 9009904207 9009904473 9009912009 9011912019 9011912019 9017908026 9017912022 9411551200 9451100600 9451101000 9461210800
Part # Description Qty Price
28119A - COVER, STARTER END FRAME
28199-77090

2L..LH10#,11#

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

1RZ,2RZE..RZH10#,11#

 1
Common parts
90092-21001 None epc.PartDetail.None
90099-00158 None epc.PartDetail.None
90099-00254 None epc.PartDetail.None
90099-01436 None epc.PartDetail.None
90099-02205 None epc.PartDetail.None
90099-02325 None epc.PartDetail.None
90099-04207 None epc.PartDetail.None
90099-04473 None epc.PartDetail.None
90099-12009 None epc.PartDetail.None
90119-12019 None epc.PartDetail.None
90179-08026 None epc.PartDetail.None
90179-12022 None epc.PartDetail.None
94115-51200 None epc.PartDetail.None
94511-00600 None epc.PartDetail.None
94511-01000 None epc.PartDetail.None
94612-10800 None epc.PartDetail.None

(8908- )1RZ,2RZE

12V 1.4KW

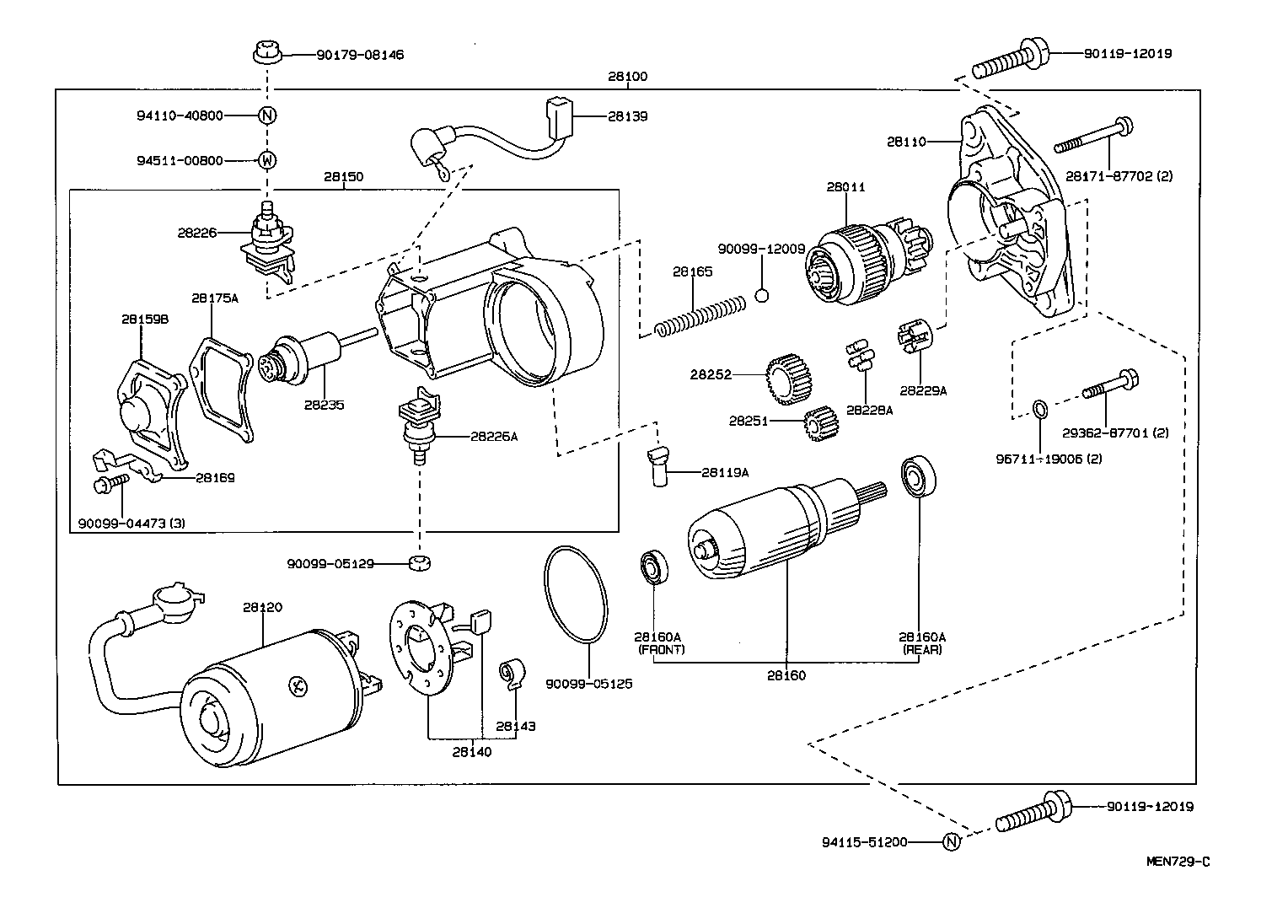

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 2817615090 28199A 28226 28226A 28228A 28229A 28235 28251 28252 9009900907 9009904448 9009904449 9009904475 9009904974 9009905129 9009905251 9009912009 9009914064 9009914064 9017908146 9161161055 9411040800 9451100600 9451100800
Part # Description Qty Price
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

1RZ,2RZE..RZH10#,11#

 1
Common parts
28176-15090 None epc.PartDetail.None
90099-00907 None epc.PartDetail.None
90099-04448 None epc.PartDetail.None
90099-04449 None epc.PartDetail.None
90099-04475 None epc.PartDetail.None
90099-04974 None epc.PartDetail.None
90099-05129 None epc.PartDetail.None
90099-05251 None epc.PartDetail.None
90099-12009 None epc.PartDetail.None
90099-14064 None epc.PartDetail.None
90179-08146 None epc.PartDetail.None
91611-61055 None epc.PartDetail.None
94110-40800 None epc.PartDetail.None
94511-00600 None epc.PartDetail.None
94511-00800 None epc.PartDetail.None
