RZH112L-SBPRSW (1989)
Toyota Hiace Van,Commuter
Production
Aug 1989
-
Aug 1991
Engine
1RZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8908- )1RZ,2RZ
Click highlighted areas on diagram
INTEGRATED IGNITION ASSEMBLY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00245 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08937 | ||||
| 90149-80028 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8908-9308)1RZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00171 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-02198 | ||||
| 90099-05803 | ||||
| 90099-07109 | ||||
| 90149-80028 | ||||
| 94511-00400 | ||||

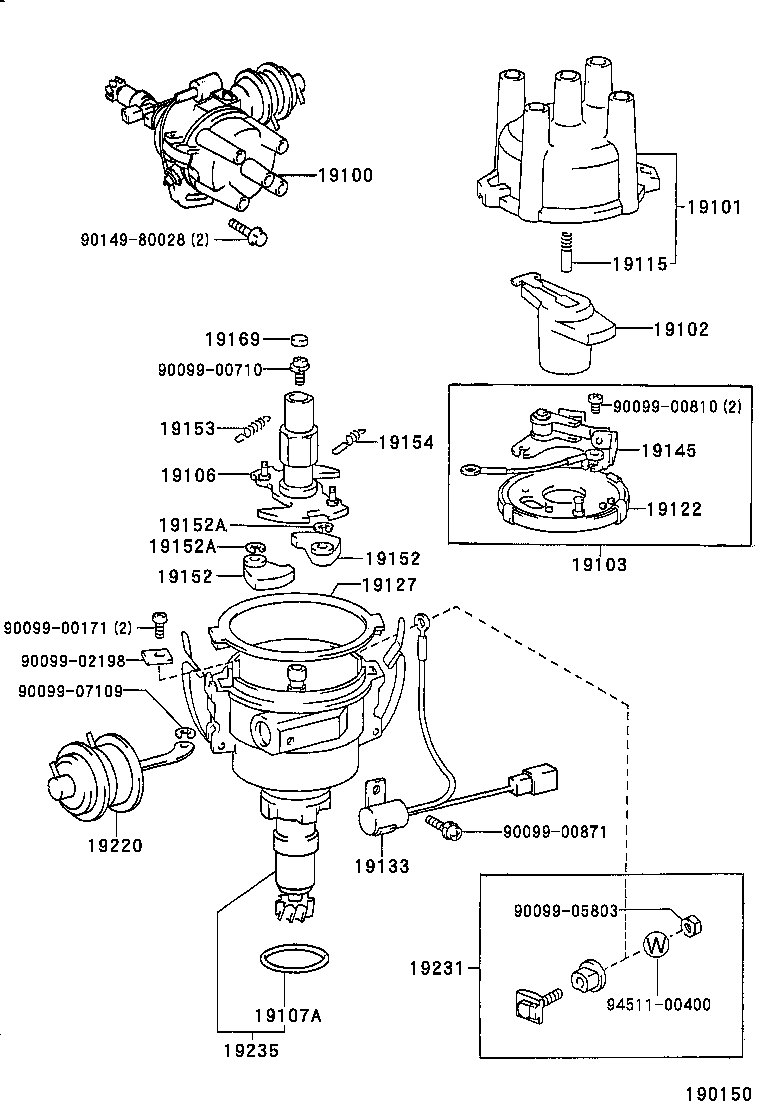

ILLUST NO. 2 OF 2(8908- )1RZ#,2RZ#
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(8908- )1RZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19020-75020 |
1RZ..RZH102,112 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-75040 |
1RZ,2RZE..RZH10#,11# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11031 |
1RZ,2RZE..RZH10#,11# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14091 |
1RZ,2RZE..RZH10#,11# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
1RZ,2RZE..RZH10#,11# |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
1RZ,2RZE..RZH10#,11# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11080 |
1RZ,2RZE..RZH10#,11# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15120 |
1RZ,2RZE..RZH10#,11# |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-75020 |
1RZ..RZH102,112 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
1RZ..RZH102,112 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
1RZ..RZH102,112 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
1RZ..RZH102,112 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
1RZ..RZH102,112 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-75020 |
1RZ..RZH102,112 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-75020 |
1RZ..RZH102,112 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
1RZ..RZH102,112 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-75010 |
1RZ..RZH102,112 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
1RZ..RZH102,112 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
1RZ..RZH102,112 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-75020 |
1RZ..RZH102,112 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-75020 |
1RZ..RZH102,112 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-75040 |
1RZ..RZH102,112 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-16100 |
1RZ..RZH102,112 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
1RZ..RZH102,112 |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00245 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90148-80020 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
