RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter

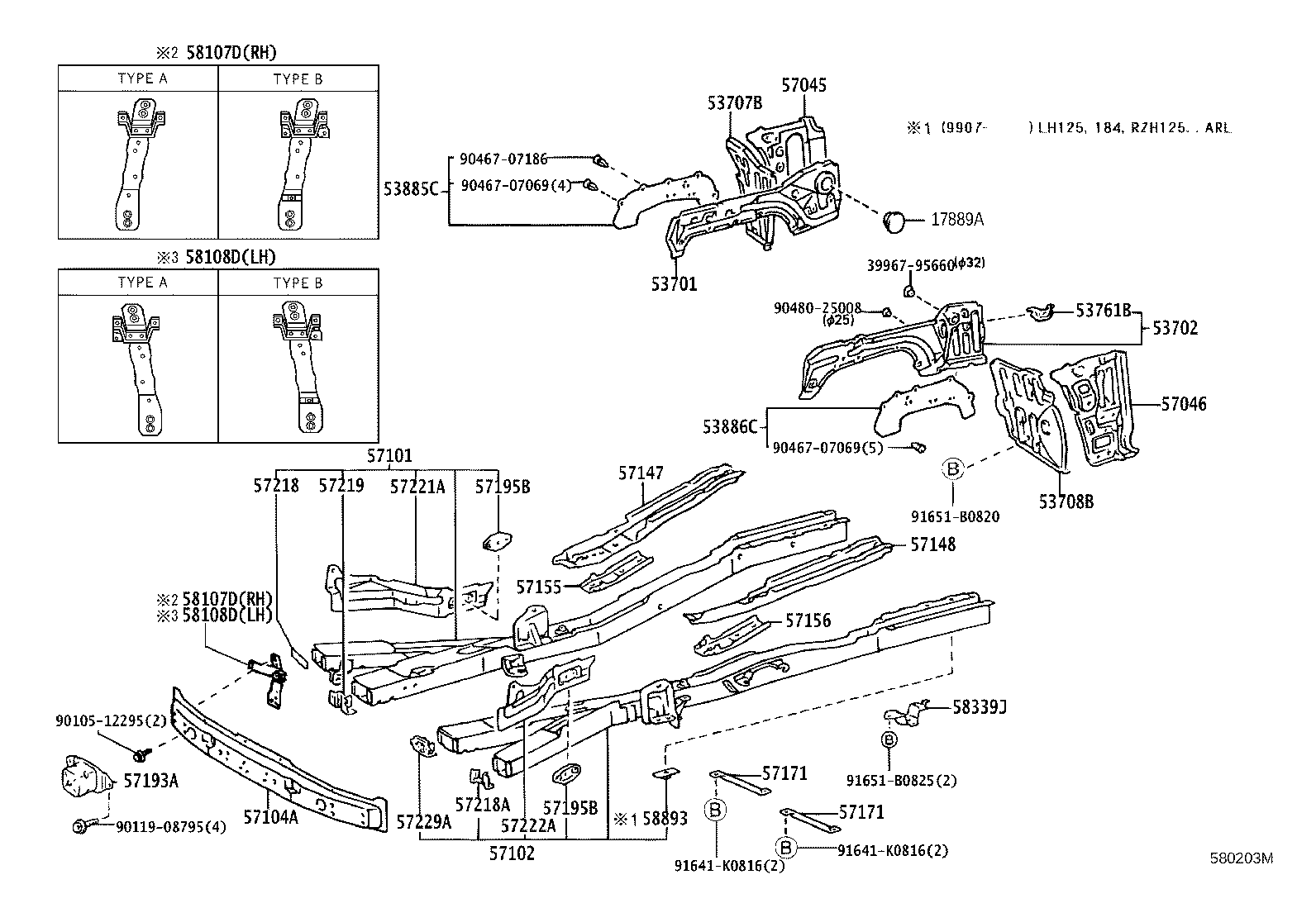

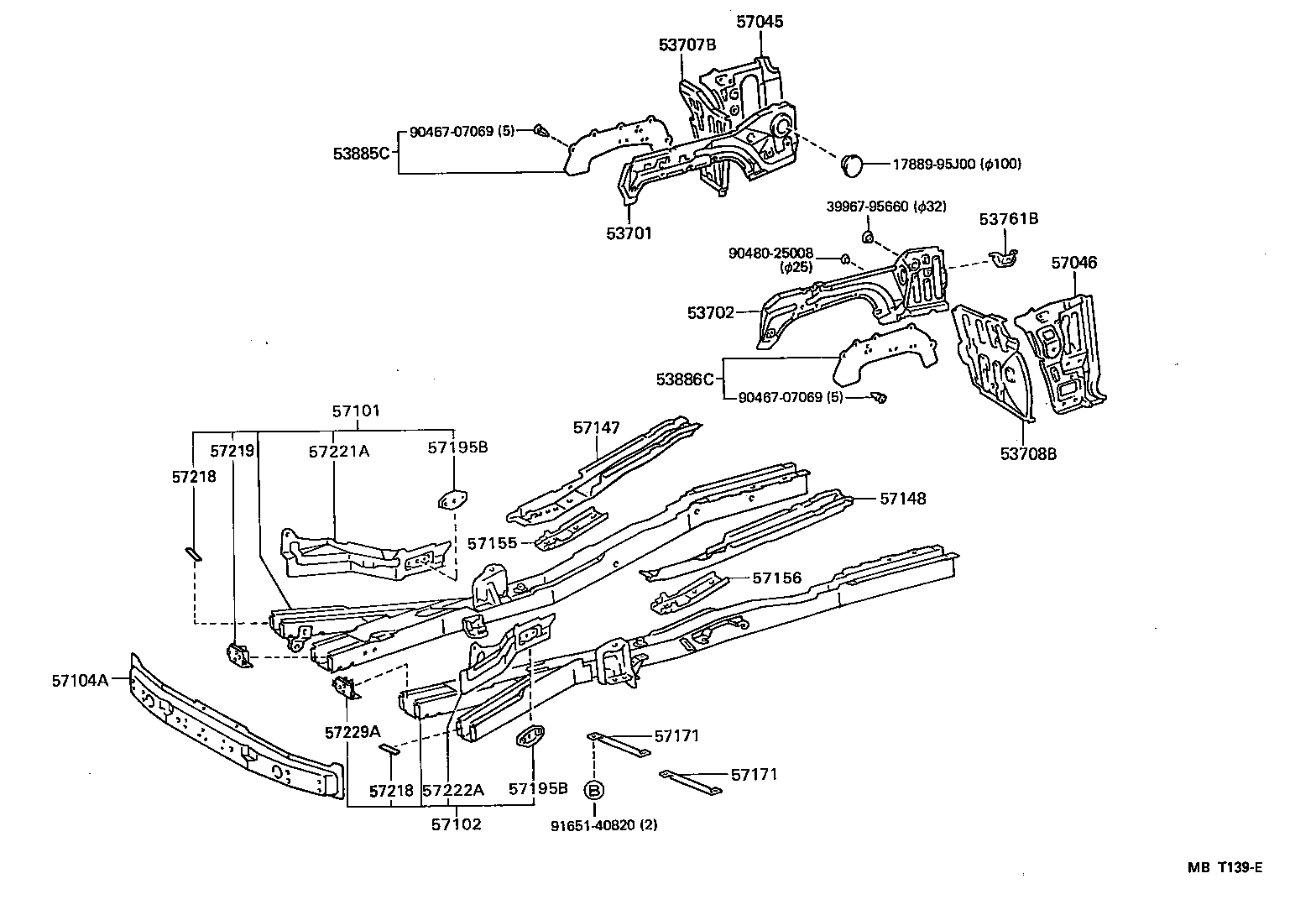

ILLUST NO. 2 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95J09 |
LH10#,11#,125,154,16#,17#,184,RZH103,105,113,115,125,135,15#..DEFI,DSL,EFI |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-26050 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-26020 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 53707-95J16 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-95J09 |
RZH10#,11#,125..GL,SGL,STD |
1 | ||
| 53708-26031 |
LH174..HRF;RZH113..5D..EFI;RZH115,155..GL,SGL;RZH113..4D..GCC..EFI;RZH115..STD..(GCC,GEN)..EFI;LH154,184,RZH103,105,112,113..SG..(03S,08S,09S,10S,11S,12S,14S)..(ARL,GEN) |
1 | ||
| 53761B - BRACKET, BATTERY CLAMP MOUNTING | ||||
| 53761-95J02 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 53761-95J02 |
RZH113,115..CBR;RZH113..5D..03S..GEN;RZH10#,112,135,15#..SMRF,SRF;RZH113,114,115,125..4D..(ARL,CIS,GEN) W(BATTERY=80D26L-MF X 2) |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 53885-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 53886-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-26070 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD..4D |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-95J27 |
LH104,105,114,115..RHD SEVERE USAGE PACKAGE, W(BATTERY=80D26L-MF X 2) |
1 | ||
| 57046-95J25 |
RZH114..RHD..(4FC,5F);LH104,105,114,115,RZH104..RHD SEVERE USAGE PACKAGE |
1 | ||
| 57046-26171 |
RZH105..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-95J48 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 57101-26121 |
RZH105..STD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-95J46 |
LH10#,11#,RZH10#,11#..RHD |
1 | ||
| 57102-26141 |
RZH105..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57147 - PLATE, FRONT SIDE MEMBER, REAR RH | ||||
| 57105-95J12 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57105-26011 |
RZH102..SG;LH10#,11#,125,166,17#,184,RZH103,104,105,11#,125..06S,08S,09S,12S,14S,15S PLANT NO.C11,C21-C26 |
1 | ||
| 57105-26090 |
RZH102..SG;LH10#,11#,125,166,17#,184,RZH103,104,105,11#,125..06S,08S,09S,12S,14S,15S PLANT NO. C31 |
1 | ||
| 57105-26011 |
LH174..STD;RZH112..5D;LH10#,11#,125,16#,172,176,184,RZH10#,113,114,115,125..SG..(DX,GL,STD) PLANT NO.C11,C21-C26 |
1 | ||
| 57148 - PLATE, FRONT SIDE MEMBER, REAR LH | ||||
| 57106-95J15 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57106-26011 |
RZH102,153..4D;LH10#,11#,125,166,17#,184,RZH103,104,105,11#,125..06S,08S,09S,12S,14S,15S PLANT NO.C11,C21-C26 |
1 | ||
| 57106-26070 |
RZH102,153..4D;LH10#,11#,125,166,17#,184,RZH103,104,105,11#,125..06S,08S,09S,12S,14S,15S PLANT NO. C31 |
1 | ||
| 57106-26011 |
LH174..STD;RZH112..5D;LH10#,11#,125,16#,172,176,184,RZH10#,113,114,115,125..SG..(DX,GL,STD) PLANT NO.C11,C21-C26 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-95J02 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57155-26010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57155-26010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57155-95J02 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57171 - BRACKET, CROSSMEMBER FLOOR, NO.1 | ||||
| 57171-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57171-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 57171 - BRACKET, CROSSMEMBER FLOOR, NO.1 | ||||
| 57171-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57171-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 57195B - BRACKET, SHIFT CONTROL CABLE | ||||
| 57195-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57195-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57195B - BRACKET, SHIFT CONTROL CABLE | ||||
| 57195-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57195-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57218A - GUSSET, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57218-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-26020 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57221A - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57221-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57221-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57222A - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57222-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57222-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57229A - GUSSET, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57229-26020 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-26010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-26010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-26010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-26010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 58339J - BRACKET, JACK UP | ||||
| 58339-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 58339-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| Common parts | ||||
| 39967-95660 | ||||
| 90105-12295 | ||||
| 90119-08795 | ||||
| 90467-07069 | ||||
| 90467-07186 | ||||
| 90480-25008 | ||||
| 91641-K0816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||

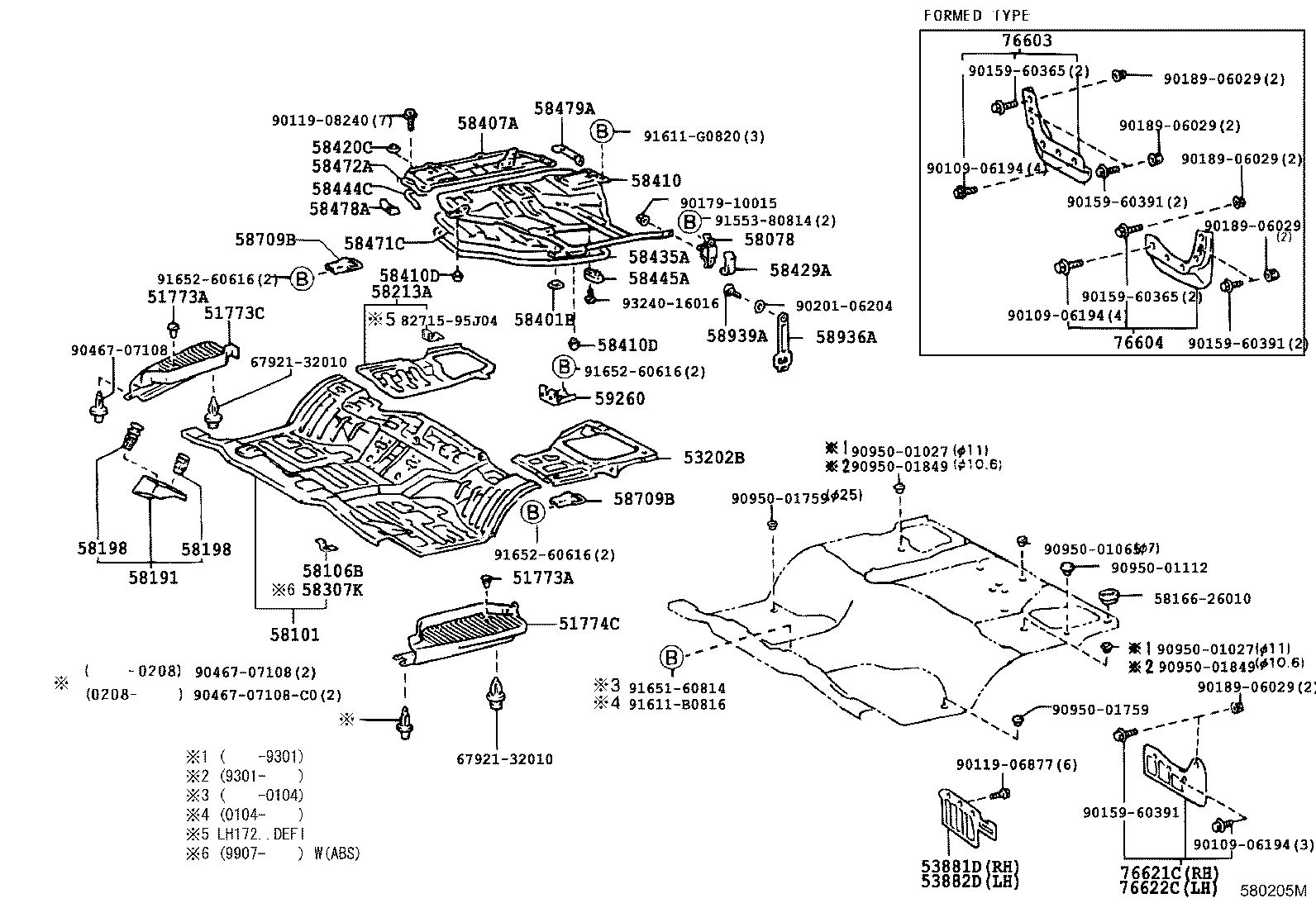

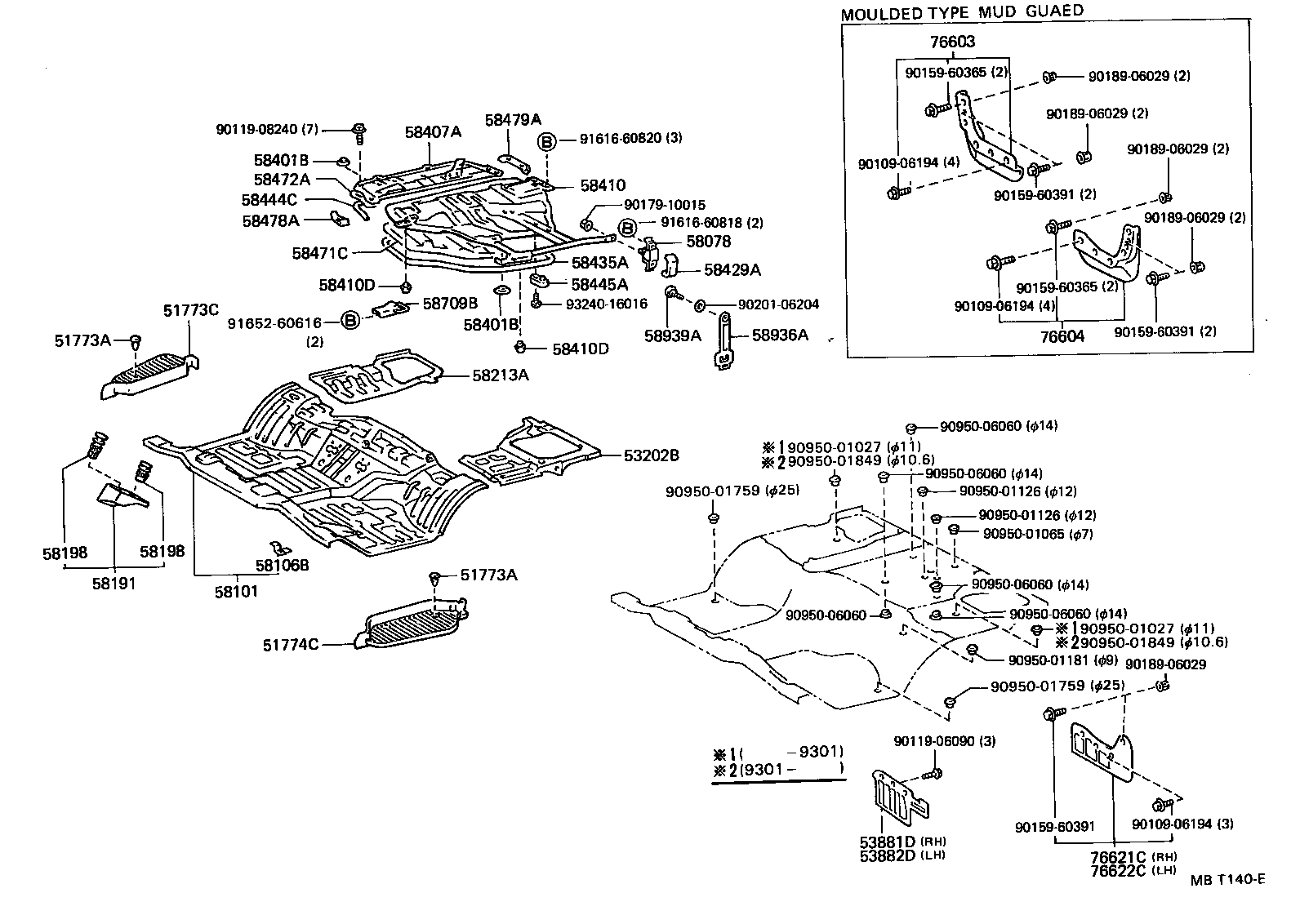

ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-09013 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
4 | ||
| 90467-07041C0 |
RZH112..5D;LH174,184,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,RZH103,104,105,113,125..03S,06S,08S,10S,12S,14S,15S BLACK,058 ,3L5 ,6L1 ,6P2 ,8E2 |
4 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-09013 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
4 | ||
| 90467-07041C0 |
RZH112..5D;LH174,184,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,RZH103,104,105,113,125..03S,06S,08S,10S,12S,14S,15S BLACK,058 ,3L5 ,6L1 ,6P2 ,8E2 |
4 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 51773-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 51774-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD |
1 | ||
| 53202B - PANEL SUB-ASSY, SEAT FLOOR, LH | ||||
| 58202-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58202-95J01 |
RZH115;RZH10#,112,113,114,135,153..SMRF,SRF PLANT NO.C11,C21-C26 |
1 | ||
| 58202-95J01 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,135,15# |
1 | ||
| 58202-26040 |
RZH115;RZH10#,112,113,114,135,153..SMRF,SRF PLANT NO. C31 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 53881-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 53881-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58078 - BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 58078-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58078-95J03 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 58078-26010 |
LH172,RZH114..(03S,06S,15S)..5F;LH10#,11#,154,16#,174,176,184,RZH10#,112,113,115,125,135,15# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95J57 |
LH104,105,114,115,RZH104,114..RHD W(AIR CONDITIONER) |
1 | ||
| 58101-26113 |
RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) |
1 | ||
| 58106B - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH104,105,114,115,RZH104,114..RHD W(AIR CONDITIONER) |
4 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-95J03 |
LH162..06S;LH172,174..HRF;LH172..RHD..5D;RZH112..RHD..03S;LH162,172,184..4FC..ARL;LH103,11#,125,RZH103,104,105,113,114,125..RHD |
1 | ||
| 58401B - CLIP(FOR DECK BOARD NO.1) | ||||
| 90467-09103 |
LH10#,11#,125,RZH10#,11#,125 |
13 | ||
| 90467-09123 |
RZH103..SG;RZH113..ARL;RZH113,114..LHD;RZH103,104..4D..STD;LH10#,11#,125,16#,17#,184,RZH102,105,112,115,125 ENGINE MAIN COVER |
8 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-95J09 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD)..(CBR,DSL,EFI) |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95J20 |
RZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90541-09126 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 RH |
2 | ||
| 90541-09028 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 LH |
1 | ||
| 90541-09028 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155..ARL,CIS,GEN NO.1 |
1 | ||
| 90541-09126 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155..ARL,CIS,GEN NO.2 |
2 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90541-09126 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 RH |
2 | ||
| 90541-09028 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 LH |
1 | ||
| 90541-09028 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155..ARL,CIS,GEN NO.1 |
1 | ||
| 90541-09126 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155..ARL,CIS,GEN NO.2 |
2 | ||
| 58420C - CLIP, ENGINE SERVICE HOLE COVER | ||||
| 90467-09123 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125..GL,SGL,STD |
5 | ||
| 58429A - PROTECTOR, ENGINE MAIN COVER HINGE | ||||
| 58429-95J0203 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 58435A - PACKING, ENGINE MAIN COVER | ||||
| 58435-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58435-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58444C - PACKING, ENGINE SUB COVER, NO.1 | ||||
| 58444-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58444-95J01 |
RZH112..5D;LH174,RZH112..03S,12S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,135,15#..DX,GL,STD |
1 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58445-95400 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-95J09 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155..(GL,SGL,STD)..(CBR,DSL,EFI) |
1 | ||
| 58471-95J09 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58472A - SILENCER, ENGINE SUB COVER | ||||
| 58472-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58472-95J03 |
RZH112..5D;LH174,RZH112..03S,12S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,155..(GL,STD)..(CBR,DSL,EFI) |
1 | ||
| 58478A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58478-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58478-95J01 |
RZH112..5D;LH174,RZH112..03S,12S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,135,15#..DX,GL,STD |
1 | ||
| 58479A - PACKING, ENGINE SUB COVER, NO.3 | ||||
| 58479-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58479-95J02 |
RZH112..5D;LH174,RZH112..03S,12S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,135,15#..DX,GL,STD |
1 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) RH |
1 | ||
| 71902-95J01 |
LH10#,11#,RZH10#,11#..(GL,STD)..(GCC,GEN) LH |
1 | ||
| 71902-95J01 |
RZH112..5D;RZH112..03S;LH102,103,104,11#,154,162,172,174,184,RZH10#,113,114,115,135,15#..GCC,GEN LH |
1 | ||
| 58709-95J01 |
RZH112..5D;RZH112..03S;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,113,114,115,125,135,155..(GL,STD)..(ARL,GCC,GEN) RH |
1 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN) RH |
1 | ||
| 71902-95J01 |
LH10#,11#,RZH10#,11#..(GL,STD)..(GCC,GEN) LH |
1 | ||
| 71902-95J01 |
RZH112..5D;RZH112..03S;LH102,103,104,11#,154,162,172,174,184,RZH10#,113,114,115,135,15#..GCC,GEN LH |
1 | ||
| 58709-95J01 |
RZH112..5D;RZH112..03S;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,113,114,115,125,135,155..(GL,STD)..(ARL,GCC,GEN) RH |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-95J0103 |
LH10#,11#,125,RZH10#,11#,125 GRAY,TRIM1# |
1 | ||
| 58936-95J01C0 |
RZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,155 BLACK,TRIM1# |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 58939-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 90149-60112 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-29185 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-29185 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 76621C - MUDGUAD, FRONT FENDER, RH | ||||
| 76621-29085 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 76622C - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-29085 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| Common parts | ||||
| 58166-26010 | ||||
| 67921-32010 | ||||
| 82715-95J04 | ||||
| 90109-06194 | ||||
| 90119-06877 | ||||
| 90119-08240 | ||||
| 90159-60365 | ||||
| 90159-60391 | ||||
| 90179-10015 | ||||
| 90189-06029 | ||||
| 90201-06204 | ||||
| 90467-07108 | ||||
| 90467-07108C0 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01112 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
| 91553-80814 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-60814 | ||||
| 91652-60616 | ||||
| 93240-16016 | ||||
ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17889-95J00 | ||||
| 39967-95660 | ||||
| 90467-07069 | ||||
| 90480-25008 | ||||
| 91651-40820 | ||||
ILLUST NO. 2 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06194 | ||||
| 90119-06090 | ||||
| 90119-08240 | ||||
| 90159-60365 | ||||
| 90159-60391 | ||||
| 90179-10015 | ||||
| 90189-06029 | ||||
| 90201-06204 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
| 90950-06060 | ||||
| 91616-60818 | ||||
| 91616-60820 | ||||
| 91652-60616 | ||||
| 93240-16016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
