RZH105R-BFMRE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2004
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8908- )RZH10#,11#,125,135,15#

Click highlighted areas on diagram

diagram 88420 88431 88443 88545 8889920090 9009904306 9011910327 9017910132 9165161045
Part # Description Qty Price
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-26190

RZH112..5D;RZH112..03S;RZH10#,113,114,115,155..CIS,GCC,GEN

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-95J00

RZH10#,11#,125

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

RZH10#,11#,125,155

 1
88443-36010

RZH10#,11#,125

 1
88443-36010

RZH125;RZH10#,11#,155..CIS,GCC,GEN

 1
88443-36010

RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,155

 1
88545 - PULLEY ASSY, IDLE
88440-26100

RZH114..HRF..4F;RZH10#,11#..SRF..GEN

MAKER OPTION

 1
Common parts
88899-20090
90099-04306
90119-10327
90179-10132
91651-61045

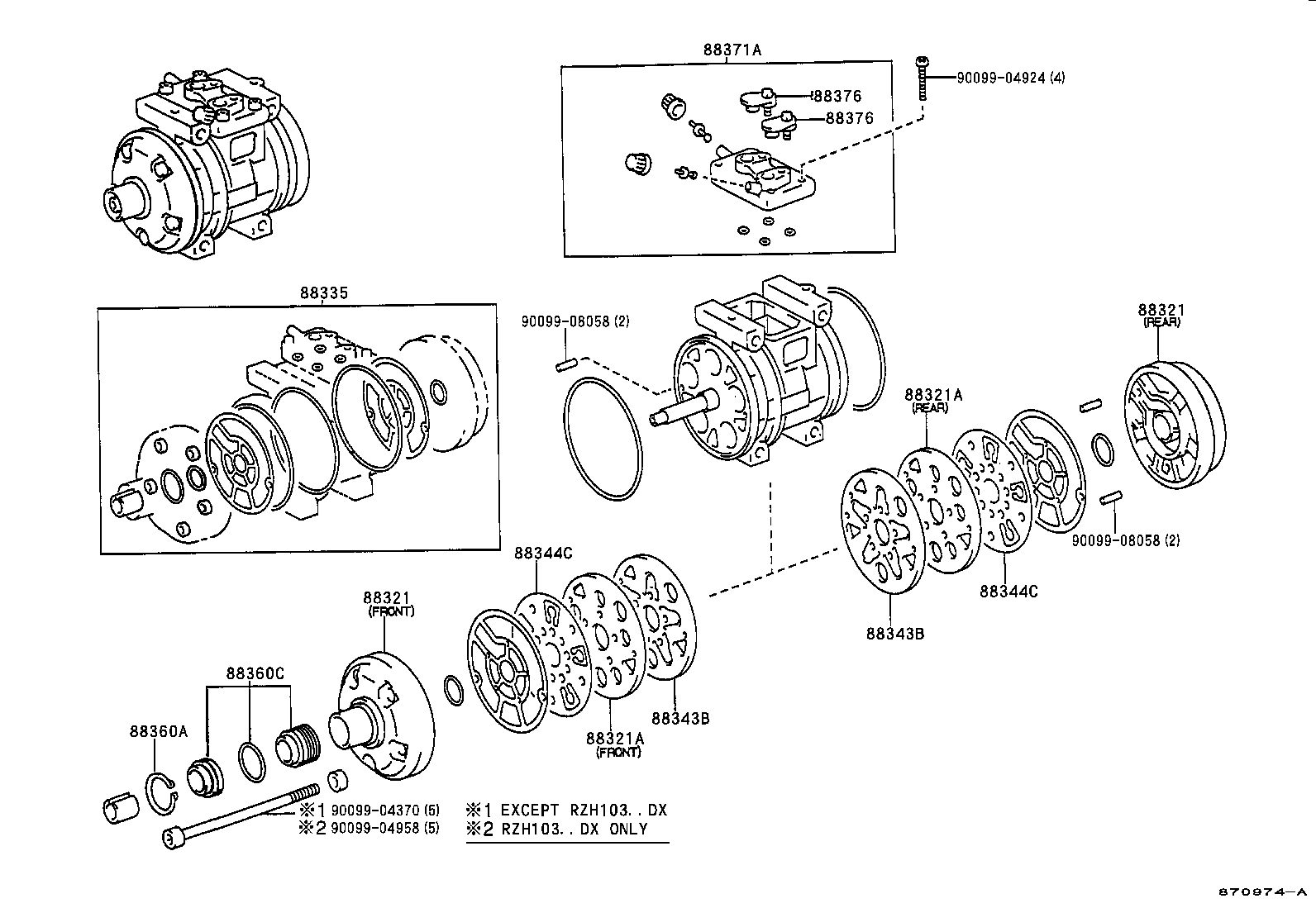

ILLUST NO. 2 OF 3(8908- )

Click highlighted areas on diagram

diagram 88321 88321 88321A 88321A 88335 88343B 88343B 88344C 88344C 88360A 88360C 88371A 88376 88376 9009904370 9009904924 9009904958 9009908058 9009908058
Part # Description Qty Price
Common parts
90099-04370
90099-04924
90099-04958
90099-08058

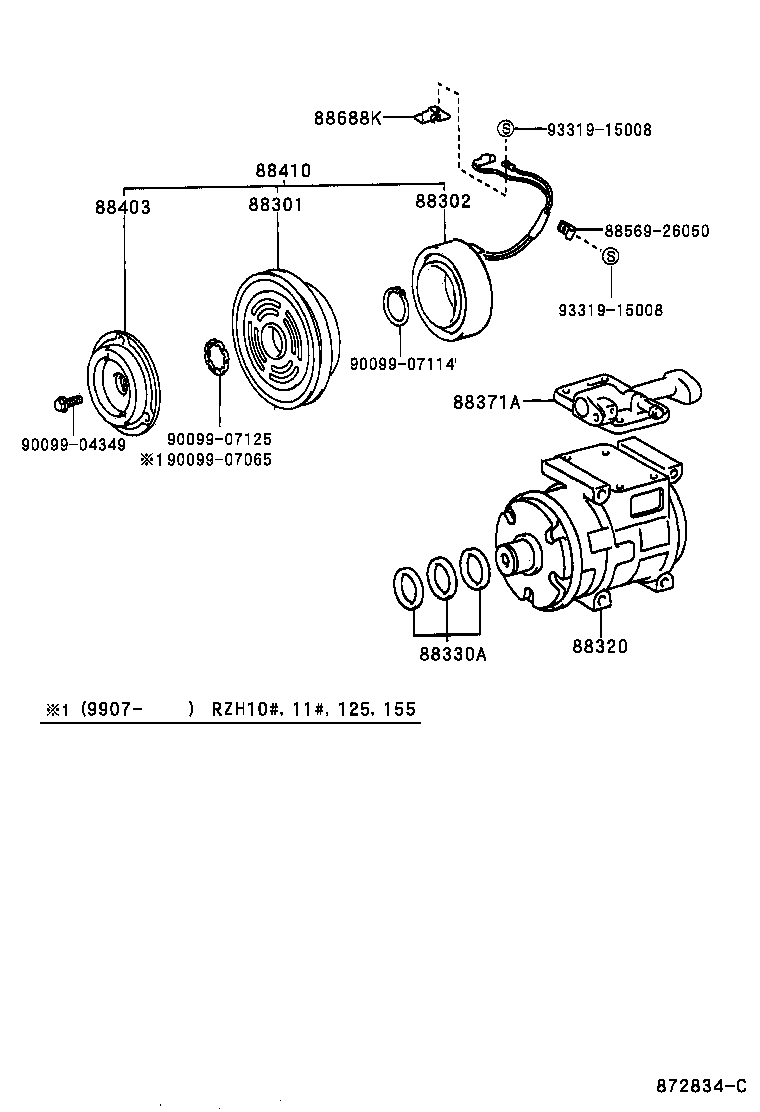

ILLUST NO. 3 OF 3(8908- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88371A 88403 88410 8856926050 88688K 9009904349 9009907065 9009907114 9009907125 9331915008 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22080

LH104,105,114,115

DUAL AIR CONDITIONER

 1
88412-95J00

RZH10#,11#..STD

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-30510

RZH10#,11#..STD

 1
88320 - COMPRESSOR ASSY, COOLER
88320-26400

LH104,105,114,115

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

RZH103..CBR;RZH103,113..GEN..EFI;LH113,125,172,RZH113,125..(03S,06S,14S)..STD..(CBR,DSL);LH10#,112,114,115,166,174,176,RZH102,104,105,112,114,115

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

LH10#,11#,RZH10#,11#..STD

 1
88410 - CLUTCH ASSY, MAGNET
88410-95J00

RZH10#,11#,125

 1
88410-95J01

LH104,105,114,115,125

 1
Common parts
88569-26050
90099-04349
90099-07065
90099-07114
90099-07125
93319-15008
