HIACE VAN,COMMUTER
RZH105R-BFMRE (1999)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

RZH105R-BFMRE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2004

Engine 2RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(8908- )

Click highlighted areas on diagram

REAR COOLER DUCT(MAKER OPT)

Part #	Description	Period	Qty
88561B - GRILLE, COOLER AIR INLET
88561-95J0503	RZH114..HRF..4F;LH104,105,114,115,RZH103,104,114..SRF..4D..SG LIGHT GRAY,TRIM1#	08/1989 - 08/1993	2
88561B - GRILLE, COOLER AIR INLET
88561-95J0503	RZH114..HRF..4F;LH104,105,114,115,RZH103,104,114..SRF..4D..SG LIGHT GRAY,TRIM1#	08/1989 - 08/1993	2
88561B - GRILLE, COOLER AIR INLET
88561-95J0503	RZH114..HRF..4F;LH104,105,114,115,RZH103,104,114..SRF..4D..SG LIGHT GRAY,TRIM1#	08/1989 - 08/1993	2
88561B - GRILLE, COOLER AIR INLET
88561-95J0503	RZH114..HRF..4F;LH104,105,114,115,RZH103,104,114..SRF..4D..SG LIGHT GRAY,TRIM1#	08/1989 - 08/1993	2
88573A - BASE, GRILLE
88573-95J01A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH	08/1989 - 08/1993	1
88573-95J00A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH	08/1989 - 08/1993	1
88573A - BASE, GRILLE
88573-95J01A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH	08/1989 - 08/1993	1
88573-95J00A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH	08/1989 - 08/1993	1
88573A - BASE, GRILLE
88573-95J01A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH	08/1989 - 08/1993	1
88573-95J00A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH	08/1989 - 08/1993	1
88573A - BASE, GRILLE
88573-95J01A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH	08/1989 - 08/1993	1
88573-95J00A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH	08/1989 - 08/1993	1
88604F - PANEL SUB-ASSY, COOLER CONTROL
88604-95J0308	LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1#	08/1989 - 08/1993	1
88604F - PANEL SUB-ASSY, COOLER CONTROL
88604-95J0308	LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1#	08/1989 - 08/1993	1
88610C - SWITCH ASSY, COOLER CONTROL
88610-95J0208	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#	08/1989 - 08/1993	1
88610C - SWITCH ASSY, COOLER CONTROL
88610-95J0208	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#	08/1989 - 08/1993	1
88891K - COVER, COOLER
88891-95J1608	LH104,105,114,115,RZH104,114..RHD W(SUN ROOF),IVORY,TRIM1#,NO.2	08/1989 - 08/1993	1
88891-95J0608	LH104,105,114,115,RZH104,114..RHD IVORY,TRIM1#	08/1989 - 08/1993	1
88891K - COVER, COOLER
88891-95J1608	LH104,105,114,115,RZH104,114..RHD W(SUN ROOF),IVORY,TRIM1#,NO.2	08/1989 - 08/1993	1
88891-95J0608	LH104,105,114,115,RZH104,114..RHD IVORY,TRIM1#	08/1989 - 08/1993	1
88891K - COVER, COOLER
88891-95J1608	LH104,105,114,115,RZH104,114..RHD W(SUN ROOF),IVORY,TRIM1#,NO.2	08/1989 - 08/1993	1
88891-95J0608	LH104,105,114,115,RZH104,114..RHD IVORY,TRIM1#	08/1989 - 08/1993	1
88891K - COVER, COOLER
88891-95J1608	LH104,105,114,115,RZH104,114..RHD W(SUN ROOF),IVORY,TRIM1#,NO.2	08/1989 - 08/1993	1
88891-95J0608	LH104,105,114,115,RZH104,114..RHD IVORY,TRIM1#	08/1989 - 08/1993	1
88891K - COVER, COOLER
88891-95J1608	LH104,105,114,115,RZH104,114..RHD W(SUN ROOF),IVORY,TRIM1#,NO.2	08/1989 - 08/1993	1
88891-95J0608	LH104,105,114,115,RZH104,114..RHD IVORY,TRIM1#	08/1989 - 08/1993	1
Common parts
88536-95J42
90119-06882
90159-60446
93315-15010
93540-25020
93560-56012

ILLUST NO. 2 OF 4(8908- )LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

REAR CONTROL

Part #	Description	Period	Qty
55519R - PLATE, HEATER CONTROL NAME
55519-95J20	LH104,105,114,115,RZH104,105,114,115 TEMP	08/1989 - 03/1994	1
55519-95J19	LH104,105,114,115,RZH104,105,114,115 FAN	08/1989 - 03/1994	1
55519-26040	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S TEMP	07/1999 - 12/2999	1
55519-26030	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S FAN	07/1999 - 12/2999	1
55519R - PLATE, HEATER CONTROL NAME
55519-95J20	LH104,105,114,115,RZH104,105,114,115 TEMP	08/1989 - 03/1994	1
55519-95J19	LH104,105,114,115,RZH104,105,114,115 FAN	08/1989 - 03/1994	1
55519-26040	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S TEMP	07/1999 - 12/2999	1
55519-26030	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S FAN	07/1999 - 12/2999	1
55907R - CABLE SUB-ASSY, TEMPERATURE CONTROL
55907-95J05	RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S	08/1989 - 07/1999	1
55907-95J05	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S	07/1999 - 12/2999	1
55910R - CONTROL ASSY, HEATER
55910-95J21	RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S	08/1989 - 07/1999	1
55910-95J21	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S	07/1999 - 12/2999	1
55937R - KNOB, HEATER CONTROL LEVER
55905-10110	RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S	08/1989 - 07/1999	2
55905-10110	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114,155..08S,09S,11S,12S,15S	07/1999 - 12/2999	2
55937R - KNOB, HEATER CONTROL LEVER
55905-10110	RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S	08/1989 - 07/1999	2
55905-10110	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114,155..08S,09S,11S,12S,15S	07/1999 - 12/2999	2
55939 - ORNAMENT, HEATER CONTROL
55939-95J01B0	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S BLUISH GRAY,TRIM1#	07/1999 - 12/2999	1
55939-95J0103	LH104,105,114,115,RZH104,114 GRAY,TRIM1#	08/1989 - 08/1993	1
55944 - PLATE, HEATER CONTROL SUPPORT
55944-95J00	RZH103..4D..SG..GEN;LH102,104,105,112,114,115,166,176,RZH102,104,105,113,114,115..09S,10S,12S,15S	08/1989 - 07/1999	3
55944-95J00	RZH115;LH174..15S;LH104,105,114,115,164,166,176,RZH103,104,105,113,114..08S,09S,12S,15S	07/1999 - 12/2999	3
Common parts
55933-22020
82711-95J03
90480-01532
93566-14512
Linked diagrams
8401

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

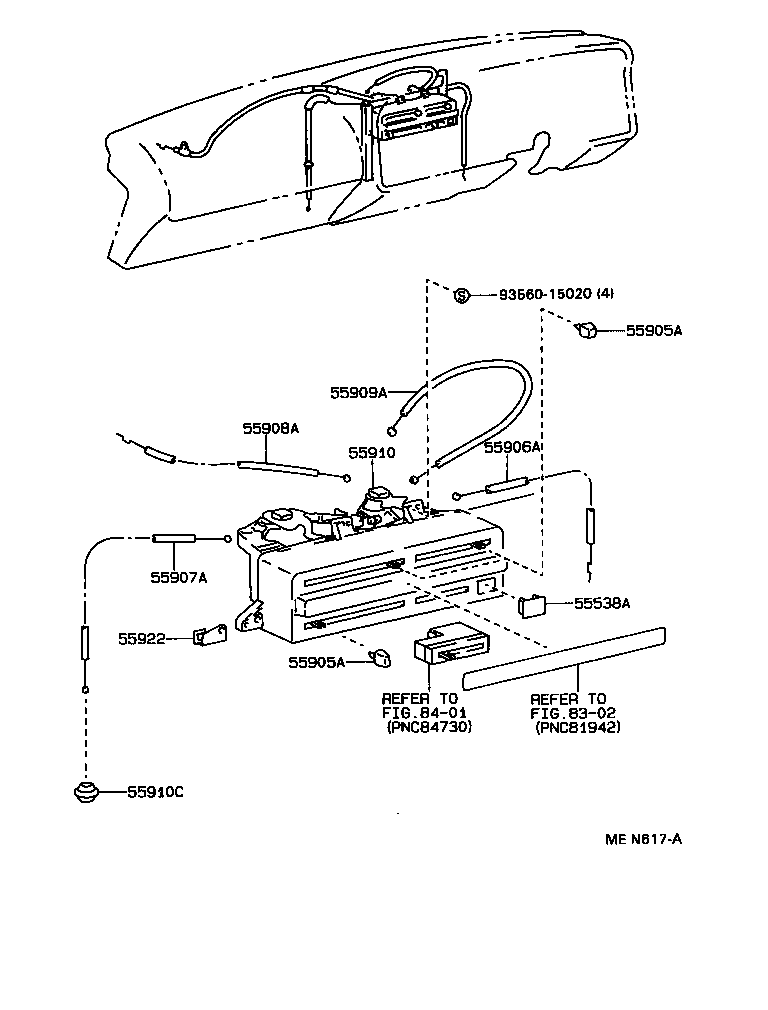

FRONT CONTROL

Part #	Description	Period	Qty
55538A - COVER, COOLER SWITCH HOLE
55538-22060	LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD	08/1989 - 11/1994	1
55538-22060	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,153	07/1999 - 12/2999	1
55905A - KNOB, HEATER CONTROL
55905-22280	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# MODE,FRS/REC	07/1999 - 12/2999	2
55905-22260	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# BLOWER & TEMP	07/1999 - 12/2999	2
55905A - KNOB, HEATER CONTROL
55905-22280	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# MODE,FRS/REC	07/1999 - 12/2999	2
55905-22260	RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# BLOWER & TEMP	07/1999 - 12/2999	2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95J03	LH10#,11#,125,RZH10#,11#,125	08/1989 - 11/1989	1
55906-26010	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-26170	LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD	07/1999 - 12/2999	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-26100	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J01	LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD	07/1999 - 12/2999	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-26090	LH172..03S..GL;RZH112..RHD..03S;LH172..RHD..STD..GEN..DSL;LH103,11#,162,174,184,RZH103,104,105,113,114,135,153..RHD..(GL,STD)..GEN	07/1999 - 12/2999	1
55910-26080	LH172..GL..DEFI;RZH112..RHD..SP;LH172..RHD..STD..GEN;LH162,174,184..RHD..(03S,06S,15S)..GEN;LH103,11#,125,RZH103,104,105,113,114,125..RHD W(HEATER)	07/1999 - 12/2999	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-13013	RZH112..LHD;LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..(03S,06S,15S)..STD;LH10#,11#,125,16#,176,184,RZH10#,113,114,115,125,155	07/1999 - 12/2999	1
90480-13013	LH125..ARL;LH10#,11#,RZH10#,11#,125	08/1989 - 11/1994	1
55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)
90950-01112	RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)	08/1989 - 11/1994	1
90950-01112	RZH112..5D;RZH112..03S;LH172..03S..GL;LH172..STD..(GCC,GEN)..DSL;LH102,103,104,11#,154,162,174,184,RZH10#,113,114,115,135,153..(GL,STD)..(GCC,GEN)	07/1999 - 12/2999	1
55922 - BRACKET, HEATER CONTROL BASE
55922-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
Common parts
87124-20020
93560-55016
93568-54512
Linked diagrams
8302
8401

ILLUST NO. 3 OF 4(8908- )RHD

Click highlighted areas on diagram

FRONT DUCT-W(HEATER) & W(B/V)

Part #	Description	Period	Qty
55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1
55081-95J04	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(HEATER)	07/1999 - 12/2999	1
55081-95J06	RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI)	07/1999 - 12/2999	1
55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2
55082-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55083C - DUCT SUB-ASSY, FRONT VENTILATOR
55083-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-95J03	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-95J07	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-95J04	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-95J02	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
87239A - COVER, HEATER INLET HOLE
87239-95J04	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
87239-26010	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
Common parts
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020
93568-55012

ILLUST NO. 3 OF 4(8908- )RHD

Click highlighted areas on diagram

FRONT DUCT-W/O(HEATER) & W/O(B/V)

Part #	Description	Period	Qty
55077B - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55077-95J03	RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI)	07/1999 - 12/2999	1
55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1
55081-95J04	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(HEATER)	07/1999 - 12/2999	1
55081-95J06	RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI)	07/1999 - 12/2999	1
55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2
55082-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55083C - DUCT SUB-ASSY, FRONT VENTILATOR
55083-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-95J03	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-95J05	RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI)	07/1999 - 12/2999	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-95J02	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
87239A - COVER, HEATER INLET HOLE
87239-95J04	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
87239-26010	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
Common parts
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

FRONT DUCT-W/O(HEATER) & W/O(B/V)

Part #	Description	Period	Qty
55077B - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55077-95J03	RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI)	07/1999 - 12/2999	1
55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1
55081-95J04	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(HEATER)	07/1999 - 12/2999	1
55081-95J06	RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI)	07/1999 - 12/2999	1
55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2
55082-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55083C - DUCT SUB-ASSY, FRONT VENTILATOR
55083-95J01	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-95J03	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-95J05	RZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..STD..GEN..(CBR,DSL,EFI)	07/1999 - 12/2999	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-95J02	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)	07/1999 - 12/2999	1
87239A - COVER, HEATER INLET HOLE
87239-95J04	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
87239-26010	RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD	07/1999 - 12/2999	1
Common parts
90159-60259
90179-06060
90189-06084
91651-40625
93560-15014
93560-15020

ILLUST NO. 4 OF 4(9907- )

Click highlighted areas on diagram

REAR COOLER DUCT

Part #	Description	Period	Qty
88561B - GRILLE, COOLER AIR INLET
88561-95J0503	RZH114..HRF..4F;LH104,105,114,115,RZH103,104,114..SRF..4D..SG LIGHT GRAY,TRIM1#	08/1989 - 08/1993	2
88561B - GRILLE, COOLER AIR INLET
88561-95J0503	RZH114..HRF..4F;LH104,105,114,115,RZH103,104,114..SRF..4D..SG LIGHT GRAY,TRIM1#	08/1989 - 08/1993	2
88573A - BASE, GRILLE
88573-95J01A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH	08/1989 - 08/1993	1
88573-95J00A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH	08/1989 - 08/1993	1
88573A - BASE, GRILLE
88573-95J01A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH	08/1989 - 08/1993	1
88573-95J00A0	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH	08/1989 - 08/1993	1
88604F - PANEL SUB-ASSY, COOLER CONTROL
88604-95J0308	LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1#	08/1989 - 08/1993	1
88604F - PANEL SUB-ASSY, COOLER CONTROL
88604-95J0308	LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1#	08/1989 - 08/1993	1
88610C - SWITCH ASSY, COOLER CONTROL
88610-95J0208	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#	08/1989 - 08/1993	1
88610C - SWITCH ASSY, COOLER CONTROL
88610-95J0208	LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#	08/1989 - 08/1993	1
88891K - COVER, COOLER
88891-95J1608	LH104,105,114,115,RZH104,114..RHD W(SUN ROOF),IVORY,TRIM1#,NO.2	08/1989 - 08/1993	1
88891-95J0608	LH104,105,114,115,RZH104,114..RHD IVORY,TRIM1#	08/1989 - 08/1993	1
88891K - COVER, COOLER
88891-95J1608	LH104,105,114,115,RZH104,114..RHD W(SUN ROOF),IVORY,TRIM1#,NO.2	08/1989 - 08/1993	1
88891-95J0608	LH104,105,114,115,RZH104,114..RHD IVORY,TRIM1#	08/1989 - 08/1993	1
Common parts
88536-95J42
88578-26010
88718-22420
88899-95J19
90119-06882
93219-13005
93219-13008
93315-15010
93540-55020
93560-56012

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

FRONT CONTROL

Part #	Description	Period	Qty	Price
Common parts
93560-15020
Linked diagrams
8302
8401

RZH105R-BFMRE (1999)

ILLUST NO. 4 OF 4(8908- )

ILLUST NO. 2 OF 4(8908- )LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,153

ILLUST NO. 1 OF 4(8908- )

ILLUST NO. 3 OF 4(8908- )RHD

ILLUST NO. 3 OF 4(8908- )RHD

ILLUST NO. 3 OF 4(8908- )

ILLUST NO. 4 OF 4(9907- )

ILLUST NO. 1 OF 4(8908- )

Part Price Details
