RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF12(8908- )
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-26132 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#..5F |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 82711-14110 | ||||
| 82711-35060 | ||||
| 82711-95J12 | ||||
| 82711-95J26 | ||||
| 82715-22560 | ||||
| 82715-26020 | ||||
| 82715-26110 | ||||
| 82715-26120 | ||||
| 82715-28370 | ||||
| 82715-28430 | ||||
| 82715-30500 | ||||
| 82729-26140 | ||||
| 90119-08413 | ||||
| 90119-T0094 | ||||
| 90461-06102 | ||||
| 91621-40814 | ||||
| 91621-60814 | ||||
| 91651-60612 | ||||
ILLUST NO. 3 OF12(8908- )
ENGINE WIRE NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J44 |
RZH10#,11#,125..4F,5F |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J44 |
RZH10#,11#,125..4F,5F |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J44 |
RZH10#,11#,125..4F,5F |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J44 |
RZH10#,11#,125..4F,5F |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08103 | ||||
| 93385-15010 | ||||
ILLUST NO. 8 OF12(8908- )
FLOOR & FRAME WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82158A - WIRE, STEP PANEL, LH | ||||
| 82158-26010 |
LH114,174,184,RZH105,114,125..RHD |
1 | ||
| 82158-95J22 |
LH104,105,114,115,125,184,RZH102,103,104,114,115,125..RHD..SG..(03S,09S,12S,14S,15S) |
1 | ||
| 82158-26011 |
RZH105..STD..GEN |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-95J22 |
LH104,105,114,115,RZH104,114 |
1 | ||
| 82162-26071 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD |
1 | ||
| Common parts | ||||
| 82702-26070 | ||||
| 82715-26240 | ||||
| 82715-95J13 | ||||
| 90119-08103 | ||||
| 90480-40507 | ||||
| 91621-40820 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91656-40814 | ||||
ILLUST NO. 1 OF12(8908- )
ENGINE ROOM WIRE CLAMPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26020 | ||||
| 82702-26030 | ||||
| 82702-26080 | ||||
| 82702-95J00 | ||||
| 82711-12200 | ||||
| 82711-26070 | ||||
| 82711-26100 | ||||
| 82711-2A710 | ||||
| 82711-95J11 | ||||
| 82711-95J12 | ||||
| 82711-95J24 | ||||
| 82715-26680 | ||||
| 82715-2F010 | ||||
| 82715-2F240 | ||||
| 82715-95J00 | ||||
| 82715-95J03 | ||||
| 82715-95J26 | ||||
| 82715-95J28 | ||||
| 90159-50068 | ||||
| 90159-60025 | ||||
| 90189-05055 | ||||
| 90463-15439 | ||||
| 90464-00500 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 93240-16016 | ||||
ILLUST NO. 1 OF12(8908- )
ENGINE ROOM WIRE CLAMPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-95J01 | ||||
| 82702-95J02 | ||||
| 82702-95J03 | ||||
| 82702-95J04 | ||||
| 82711-95727 | ||||
| 82715-2F280 | ||||
| 82729-26010 | ||||
| 90159-50068 | ||||
| 90179-08123 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
ILLUST NO. 1 OF12(8908- )RZH10#,11#,125,135,153..RHD
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2N602 |
RZH103,105,113,125..RHD..STD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-95J17 |
RZH10#,11#,125 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26040 |
RZH103..5F..STD;LH162,RZH105..SG..5F..STD..GEN |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-95J01 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22060 |
RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,125,RZH104,105,112,114,115..STD..(CIS,GCC,GEN) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
LH162..GEN;LH162..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;LH172..RHD..5F..STD;LH112,114,174,184,RZH103,105,112,113,114,125,153..RHD..(GL,STD) |
1 | ||
| 82823-22050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90119-06909 | ||||
| 90119-08116 | ||||
| 90179-06158 | ||||
| 91621-40814 | ||||
| 91621-60814 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

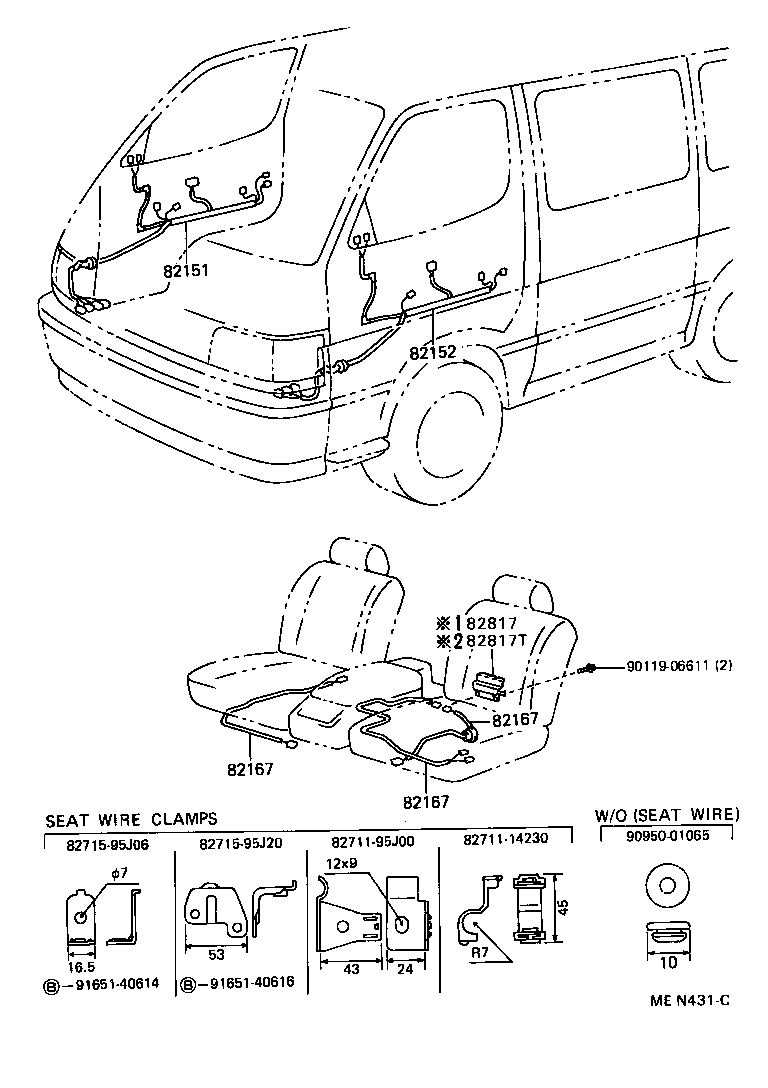

ILLUST NO. 7 OF12(8908- )
DOOR & SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-95J23 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD |
1 | ||
| 82151-26013 |
LH162,174,RZH103,105..RHD..(03S,12S,15S)..GEN |
1 | ||
| 82151-26173 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125..RHD W(POWER WINDOW & POWER DOOR LOCK) |
1 | ||
| 82151-26174 |
LH172..ARL;LH172..HRF;LH172..03S..GL;RZH112..RHD..SP;LH172..RHD..5D..03S;LH172,174..RHD..(06S,15S);LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-26014 |
LH172..ARL;LH172..HRF;LH162..4FC..ARL;RZH112..RHD..SP;RZH113..RHD..4D..STD;LH172,RZH113..RHD..5D..03S;LH162,174..RHD..(03S,06S,15S)..5F;LH103,11#,125,184,RZH103,104,105,114,125..RHD..STD W(POWER DOOR LOCK) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-95J09 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD |
1 | ||
| 82152-26162 |
RZH113..DX;LH162,174,RZH103,105..RHD..(03S,12S,15S)..GEN W(POWER WINDOW & POWER DOOR LOCK) |
1 | ||
| 82152-26013 |
LH172..RHD..03S;LH103,11#,125,162,174,184,RZH103,104,105,112,113,114,125..RHD..(GL,STD) W(POWER DOOR LOCK) |
1 | ||
| 82152-26163 |
LH172..ARL;LH172..HRF;LH172..03S..GL;RZH112..RHD..SP;LH172..RHD..5D..03S;LH172,174..RHD..(06S,15S);LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-26014 |
LH172..ARL;LH172..HRF;LH162..4FC..ARL;RZH112..RHD..SP;RZH113..RHD..4D..STD;LH172,RZH113..RHD..5D..03S;LH162,174..RHD..(03S,06S,15S)..5F;LH103,11#,125,184,RZH103,104,105,114,125..RHD..STD W(POWER DOOR LOCK) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26030 |
LH162..5F..ARL;RZH103..5F..STD;LH162,RZH105..STD..GEN |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-26040 |
LH162..5F..ARL;RZH103..5F..STD;LH162,RZH105..STD..GEN |
1 | ||
| Common parts | ||||
| 82711-14230 | ||||
| 82715-95J06 | ||||
| 82715-95J20 | ||||
| 90119-06611 | ||||
| 90950-01065 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91652-60616 | ||||
ILLUST NO.10 OF12(8908- )
BACK DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-95J06 |
LH10#,11#,RZH10#,11#..SRF..GEN W(REAR WIPER) |
1 | ||
| 82185-95J07 |
LH10#,11#,RZH10#,11#..SRF W(REAR WINDOW DEFOGGER & POWER DOOR LOCK & REAR WIPER) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-95J06 |
LH10#,11#,RZH10#,11#..SRF..GEN W(REAR WIPER) |
1 | ||
| 82185-95J07 |
LH10#,11#,RZH10#,11#..SRF W(REAR WINDOW DEFOGGER & POWER DOOR LOCK & REAR WIPER) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 82186-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 82186-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 82186-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 82186-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26111 |
LH172..03S..GL;RZH112..RHD..SP;LH125,RZH102,125;LH172..LHD..5D..GEN;RZH115..(CIS,GEN)..EFI;RZH112,113,115..LHD..CBR;LH162,174..SRF..(03S,10S,15S)..GEN;LH172,RZH113..SRF..4D..(DX,STD)..GEN..(DSL,EFI);LH10#,11#,166,176,184,RZH103,104,105,114..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) MAKER OPTION,W(HIGH MOUNT STOP LAMP BULB TYPE) |
1 | ||
| Common parts | ||||
| 67847-26050 | ||||
| 82819-26300 | ||||
| 82819-26310 | ||||
| 82819-95J18 | ||||
| 82819-95J19 | ||||
| 90154-60024 | ||||
ILLUST NO. 3 OF12(8908- )
ENGINE WIRE NO.2 CLAMPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2A190 | ||||
| 82715-2F250 | ||||
| 82715-95J12 | ||||
| 82715-95J13 | ||||
| 82715-95J25 | ||||
| 82819-26370 | ||||
| 90168-60010 | ||||
| 90461-06645 | ||||
| 90480-01419 | ||||
| 91651-40816 | ||||

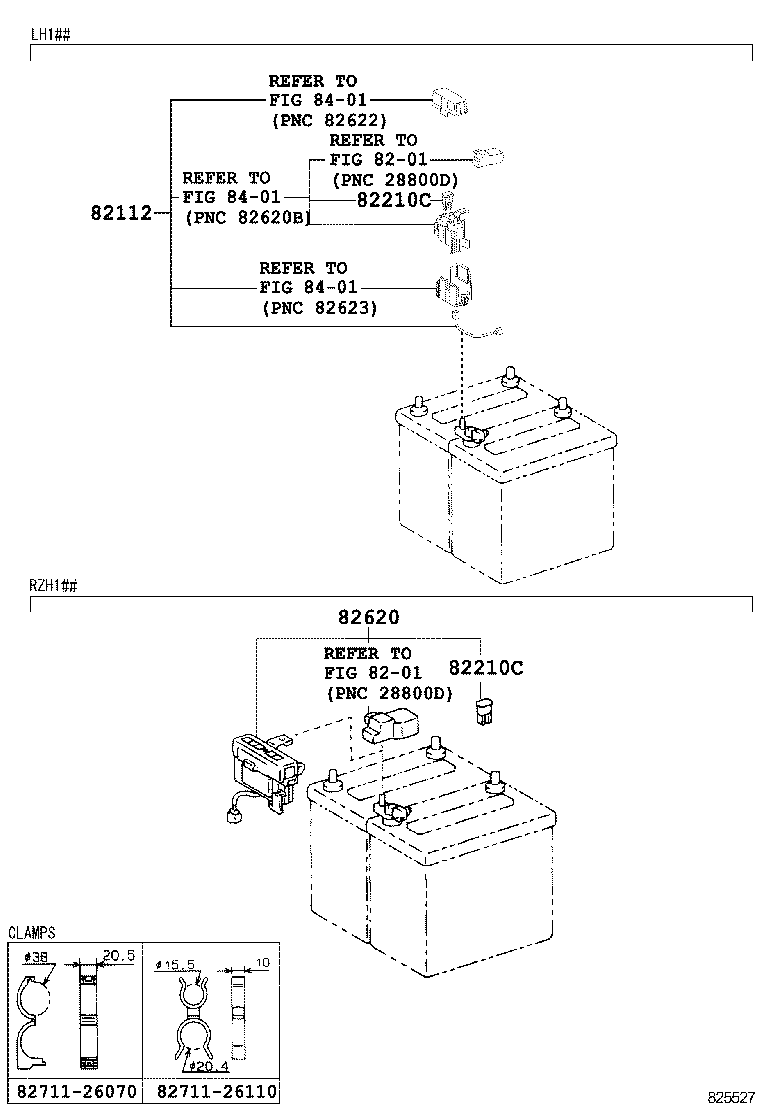

ILLUST NO. 4 OF12(8908- )
ENGINE ROOM WIRE NO.2, 1-BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-95J05 |
LH104,114;LH102,103,105,112,113,115,125..RHD..5F |
1 | ||
| 82112-26191 |
RZH113..ARL,GCC;RZH113..RHD..GEN;RZH112,155..03S,11S,12S;RZH112,113..LHD..06S..GEN;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,114,115,125,135,153..ARL,GCC,GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH10#,11#,125,RZH10#,11#,125 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
LH104,114;LH102,103,105,112,113,115,125..RHD..5F 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08227 |
LH104,114;RZH114..RHD..(4F,4FC);RZH102,104,112,114..LHD;LH102,103,105,112,113,115,125..RHD..5F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08188 |
RZH10#,11#,125 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH10#,11#,125,RZH10#,11#,125 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
LH104,114;LH102,103,105,112,113,115,125..RHD..5F 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08227 |
LH104,114;RZH114..RHD..(4F,4FC);RZH102,104,112,114..LHD;LH102,103,105,112,113,115,125..RHD..5F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08188 |
RZH10#,11#,125 30A,TERM.:FEMALE,PNK |
1 | ||
| Common parts | ||||
| 82711-26070 | ||||
| 82711-26110 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 9 OF12(8908- )
ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95J54 |
LH104,105,RZH104..RHD W(REAR HEATER) |
1 | ||
| 82171-95J52 |
LH10#,RZH10#..STD |
1 | ||
| 82171-26525 |
RZH104,105..RHD W(REAR HEATER) |
1 | ||
| 82171-26535 |
LH10#,16#,RZH10# |
1 | ||
| 82171-2F760 |
RZH104,105..RHD W(REAR HEATER) |
1 | ||
| 82719 - COVER, WIRE HANRESS SERVICE HOLE(FOR CENTER PILLAR) | ||||
| 82719-26020B0 |
RZH113..5D;RZH113..RHD..4D;RZH112..RHD..03S;LH112,172,RZH102,112..LHD..5D;LH112,114,115,172,174,RZH104,105,114..RHD;LH103,113,162,184,RZH103..(03S,06S,15S)..(ARL,GCC,GEN) LT. BLUISH GRAY,TRIM1# |
1 | ||
| 82719A - COVER, WIRE HANRESS SERVICE HOLE(FOR ROOF BACK) | ||||
| 82719-95J0208 |
LH10#,11#,RZH10#,11#..SRF..STD IVORY,TRIM1# |
2 | ||
| Common parts | ||||
| 61391-95J00 | ||||
| 82711-2A710 | ||||
| 82711-30130 | ||||
| 82711-95015 | ||||
| 90119-06005 | ||||
ILLUST NO.11 OF12(8908- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
RZH10#,11#,125 ENGINE LH BODY SIDE |
1 | ||
| 90980-07315 |
RZH10#,11#,125 L=260 |
1 | ||
| 90980-07315 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# ENGINE LH SIDE |
1 | ||
| 90980-07228 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# LH FENDER PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
RZH10#,11#,125 ENGINE LH BODY SIDE |
1 | ||
| 90980-07315 |
RZH10#,11#,125 L=260 |
1 | ||
| 90980-07315 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# ENGINE LH SIDE |
1 | ||
| 90980-07228 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# LH FENDER PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
RZH10#,11#,125 ENGINE LH BODY SIDE |
1 | ||
| 90980-07315 |
RZH10#,11#,125 L=260 |
1 | ||
| 90980-07315 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# ENGINE LH SIDE |
1 | ||
| 90980-07228 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# LH FENDER PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
RZH10#,11#,125 ENGINE LH BODY SIDE |
1 | ||
| 90980-07315 |
RZH10#,11#,125 L=260 |
1 | ||
| 90980-07315 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# ENGINE LH SIDE |
1 | ||
| 90980-07228 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# LH FENDER PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
RZH10#,11#,125 ENGINE LH BODY SIDE |
1 | ||
| 90980-07315 |
RZH10#,11#,125 L=260 |
1 | ||
| 90980-07315 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# ENGINE LH SIDE |
1 | ||
| 90980-07228 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# LH FENDER PANEL |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08103 | ||||
| 90463-13003 | ||||
| 91611-60812 | ||||
| 91651-61016 | ||||
ILLUST NO.12 OF12(8908- )
CONNETOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10173 | ||||
| 90980-10216 | ||||
| 90980-10355 | ||||
| 90980-10619 | ||||
| 90980-10859 | ||||
| 90980-10978 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11075 | ||||
| 90980-11156 | ||||
| 90980-11235 | ||||
| 90980-11314 | ||||
ILLUST NO. 4 OF12(8908- )
ENGINE ROOM WIRE NO.2, 2-BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-95J05 |
LH104,114;LH102,103,105,112,113,115,125..RHD..5F |
1 | ||
| 82112-26191 |
RZH113..ARL,GCC;RZH113..RHD..GEN;RZH112,155..03S,11S,12S;RZH112,113..LHD..06S..GEN;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,114,115,125,135,153..ARL,GCC,GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH10#,11#,125,RZH10#,11#,125 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
LH104,114;LH102,103,105,112,113,115,125..RHD..5F 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08227 |
LH104,114;RZH114..RHD..(4F,4FC);RZH102,104,112,114..LHD;LH102,103,105,112,113,115,125..RHD..5F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08188 |
RZH10#,11#,125 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH10#,11#,125,RZH10#,11#,125 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
LH104,114;LH102,103,105,112,113,115,125..RHD..5F 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08227 |
LH104,114;RZH114..RHD..(4F,4FC);RZH102,104,112,114..LHD;LH102,103,105,112,113,115,125..RHD..5F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08188 |
RZH10#,11#,125 30A,TERM.:FEMALE,PNK |
1 | ||
| Common parts | ||||
| 82711-26070 | ||||
| 82711-26110 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(8908- )
ENGINE ROOM WIRE, NO,2 1-BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-26070 | ||||
| 82711-26110 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(8908- )
ENGINE ROOM WIRE, NO,2 2-BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-26070 | ||||
| 82711-26110 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 9(8908- )
ENGINE ROOM WIRE(CLAMPS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-95J00 | ||||
| 82711-12200 | ||||
| 82711-26070 | ||||
| 82711-26100 | ||||
| 82711-2A710 | ||||
| 82711-95J11 | ||||
| 82711-95J12 | ||||
| 82711-95J24 | ||||
| 82715-95J00 | ||||
| 82715-95J03 | ||||
| 82715-95J13 | ||||
| 82715-95J26 | ||||
| 82715-95J28 | ||||
| 90119-08492 | ||||
| 90159-50068 | ||||
| 90159-60025 | ||||
| 90189-05055 | ||||
| 90463-15439 | ||||
| 90464-00500 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93240-16016 | ||||
ILLUST NO. 2 OF 9(8908- )
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-24010 | ||||
| 82711-87009 | ||||
| 82711-95J26 | ||||
| 82715-26020 | ||||
| 82715-26120 | ||||
| 82715-30500 | ||||
| 82715-95J24 | ||||
| 90461-06102 | ||||
| 91621-40814 | ||||
| 91651-40612 | ||||
ILLUST NO. 9 OF 9(8908- )RZH10#,11#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08103 | ||||
| 91651-61016 | ||||
ILLUST NO. 5 OF 9(8908- )
DOOR & SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14230 | ||||
| 82711-95J00 | ||||
| 82715-95J06 | ||||
| 82715-95J20 | ||||
| 90119-06611 | ||||
| 90950-01065 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
ILLUST NO. 6 OF 9(8908- )
FLOOR & FRAME WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90480-40507 | ||||
| 91656-40814 | ||||
| 91656-40820 | ||||
ILLUST NO. 3 OF 9(8908- )
ENGINE WIRE, NO,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2A190 | ||||
| 82715-95J12 | ||||
| 82715-95J25 | ||||
| 90119-08063 | ||||
| 90119-08103 | ||||
| 90168-60010 | ||||
| 90461-06645 | ||||
| 91651-40816 | ||||
ILLUST NO. 7 OF 9(8908- )
ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61391-95J00 | ||||
| 82711-2A710 | ||||
| 82711-30130 | ||||
| 82711-95015 | ||||
| 90119-06005 | ||||
ILLUST NO. 8 OF 9(8908- )
BACK DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82819-95J18 | ||||
| 82819-95J19 | ||||
| 90154-60024 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
