RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter
ILLUST NO. 6 OF 7(8908- )LH104,105,114,115,125,174,184,RZH104,105,114,115,125..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-95J01 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71345C - HINGE, REAR SEAT BACK, RH | ||||
| 71345-95J08 |
RZH104,105;LH174,RZH114,115..15S;LH104,105,114,115,125,164,166,176,184,RZH125..(12S,14S,15S)..STD |
1 | ||
| 71345-95J08 |
LH125..ARL;RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105,125 |
1 | ||
| 71346C - HINGE, REAR SEAT BACK, LH | ||||
| 71346-95J04 |
LH125..ARL;RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105,125 |
1 | ||
| 71346-95J04 |
RZH104,105;LH174,RZH114,115..15S;LH104,105,114,115,125,164,166,176,184,RZH125..(12S,14S,15S)..STD |
1 | ||
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-95J44 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-95J17 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 71434-95701 |
RZH114..15S;LH184,RZH104,105,115..GL,STD;LH104,105,114,115,125,164,166,174,176,RZH125..STD |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J0103 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 71485-95J0203 |
LH104,105,RZH104 GRAY,TRIM1#,SUB SEAT HINGE |
4 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-95J0003 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95J02 |
LH103,104,105,113,114,115,125,RZH102,104,112,114,125..4D..SG 30 X 45 |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71692-9570313 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71692-9570313 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71691-9570313 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-9570213 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1#,OUTER |
1 | ||
| 71691-9570213 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1#,INNER |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95J04 |
LH104,105,114,115,125,RZH104,105,114,115,125 NO.1 SEAT |
1 | ||
| 72065-95J0103 |
LH104,105,RZH104 GRAY,TRIM1#,NO.4 SEAT |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
RZH102..RHD..06S..5F;LH104,105,114,115,RZH103,104,113,114..SG GRAY,TRIM1# |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95J02 |
LH104,105,114,115,125,RZH104,114,125 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95J04 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
RZH102..RHD..06S..5F;LH104,105,114,115,125,RZH103,104,113,114,125..SG GRAY,TRIM1# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95J04 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 79041A - COVER SUB-ASSY, NO.4 SEAT CUSHION | ||||
| 79041-95J1103 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79041-95J11B7 |
RZH104,105..LHD..(CIS,GEN);LH174,RZH114..15S..(CIS,GEN);RZH115..(10S,15S)..(CIS,GEN);LH104,105,114,115,164,166,176..(12S,15S)..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-26160B0 |
LH174,RZH114..15S..(CIS,GEN);RZH115..(10S,15S)..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105..(12S,15S)..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79041-95J11B7 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79043A - COVER SUB-ASSY, NO.4 SEAT BACK | ||||
| 79043-95J1703 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79043-95J1103 |
LH104,105,114,115,RZH104,114 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79043-26060B2 |
LH104,RZH104,105..GEN SEAT = TYPE B-*104 & W(HEADREST),BLUISH GRAY,TRIM16 |
1 | ||
| 79043-26050B2 |
RZH104,105..LHD..(CIS,GEN);LH174,RZH114,115..15S..(CIS,GEN);LH104,105,114,115,164,166,176..(12S,15S)..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79043-26050B2 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79043-95J11B3 |
RZH104,105..LHD..(CIS,GEN);LH174,RZH114,115..15S..(CIS,GEN);LH104,105,114,115,164,166,176..(12S,15S)..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79019-95J00 |
LH104,105,114,115,125,RZH104,114,125 |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH103,104,105,113,114,115,125,RZH10#,11#,125..SG L=38 |
2 | ||
| 79199-95J00 |
RZH112,113..5D..06S;RZH113,114..08S,15S;LH174,RZH102..SG..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,115,125..(06S,10S,12S,14S,15S)..(GL,STD) |
2 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-95J0003 |
LH104,105,114,115,125,RZH104,114,125 GRAY,TRIM1# |
2 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79433-26010 |
LH104,105,164,166,RZH104,105 LH |
1 | ||
| 79432-26030 |
LH104,105,164,166,RZH104,105 RH |
1 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79433-26010 |
LH104,105,164,166,RZH104,105 LH |
1 | ||
| 79432-26030 |
LH104,105,164,166,RZH104,105 RH |
1 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79433-26010 |
LH104,105,164,166,RZH104,105 LH |
1 | ||
| 79432-26030 |
LH104,105,164,166,RZH104,105 RH |
1 | ||
| 79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT | ||||
| 79405-95J03 |
LH104,105,114,115,125,RZH104,114,125 RH |
1 | ||
| 79405-95J01 |
LH104,105,114,115,125,RZH104,114,125 LH |
1 | ||
| 79433-26010 |
LH104,105,164,166,RZH104,105 LH |
1 | ||
| 79432-26030 |
LH104,105,164,166,RZH104,105 RH |
1 | ||
| 79406 - LEG SUB-ASSY, NO.4 SEAT, REAR | ||||
| 79406-95J00 |
LH104,105,RZH104 W(FOLDING REAR SEAT) |
1 | ||
| 79406-95J03 |
LH104,105,166,RZH104,105 |
1 | ||
| 79406-95J03 |
LH104,105,164,166,RZH104,105 |
1 | ||
| 79406 - LEG SUB-ASSY, NO.4 SEAT, REAR | ||||
| 79406-95J00 |
LH104,105,RZH104 W(FOLDING REAR SEAT) |
1 | ||
| 79406-95J03 |
LH104,105,166,RZH104,105 |
1 | ||
| 79406-95J03 |
LH104,105,164,166,RZH104,105 |
1 | ||
| 79420A - CUSHION ASSY, NO.4 SEAT | ||||
| 79420-95J2103 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79420-26160B3 |
LH174..15S..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105,114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P7 |
RZH104,105..LHD..STD..(CIS,GEN);LH104,105,114,115,164,166,174,176,RZH114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79420-95J21P7 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79435 - PAD, NO.4 SEAT CUSHION | ||||
| 79045-95J01 |
LH104,105,114,115,RZH104,114..CIS,GEN |
1 | ||
| 79045-95J01 |
LH174,RZH114,115..15S..(CIS,GEN);LH104,105,114,115,164,166,176,184,RZH104,105..(12S,15S)..(CIS,GEN) |
1 | ||
| 79440A - BACK ASSY, NO.4 SEAT | ||||
| 79440-95J1503 |
LH104,105,RZH104 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79440-95J2203 |
LH104,105,114,115,RZH104,114 GRAY,TRIM1# |
1 | ||
| 79440-26110B3 |
LH104,RZH104,105..STD..GEN SEAT = TYPE B-*104 & W(HEADREST),BLUISH GRAY,TRIM1# |
1 | ||
| 79440-26060B5 |
LH174..15S..(CIS,GEN);LH104,105,114,115,164,166,176,RZH104,105,114,115..(12S,15S)..STD..(CIS,GEN) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79440-95J22P4 |
RZH104,105..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79475 - PAD, NO.4 SEAT BACK | ||||
| 79047-95J00 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 |
1 | ||
| 79047-95J00 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105 |
1 | ||
| Common parts | ||||
| 90105-10161 | ||||
| 90119-10315 | ||||
| 90119-10409 | ||||
| 90119-10415 | ||||
| 90119-11008 | ||||
| 90159-60280 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90386-13016 | ||||
| 90468-18071 | ||||
| 90506-23023 | ||||
| 90523-06017 | ||||
| 91612-B1020 | ||||
| 93530-54016 | ||||
| 96160-00600 | ||||
(8908- )RHD

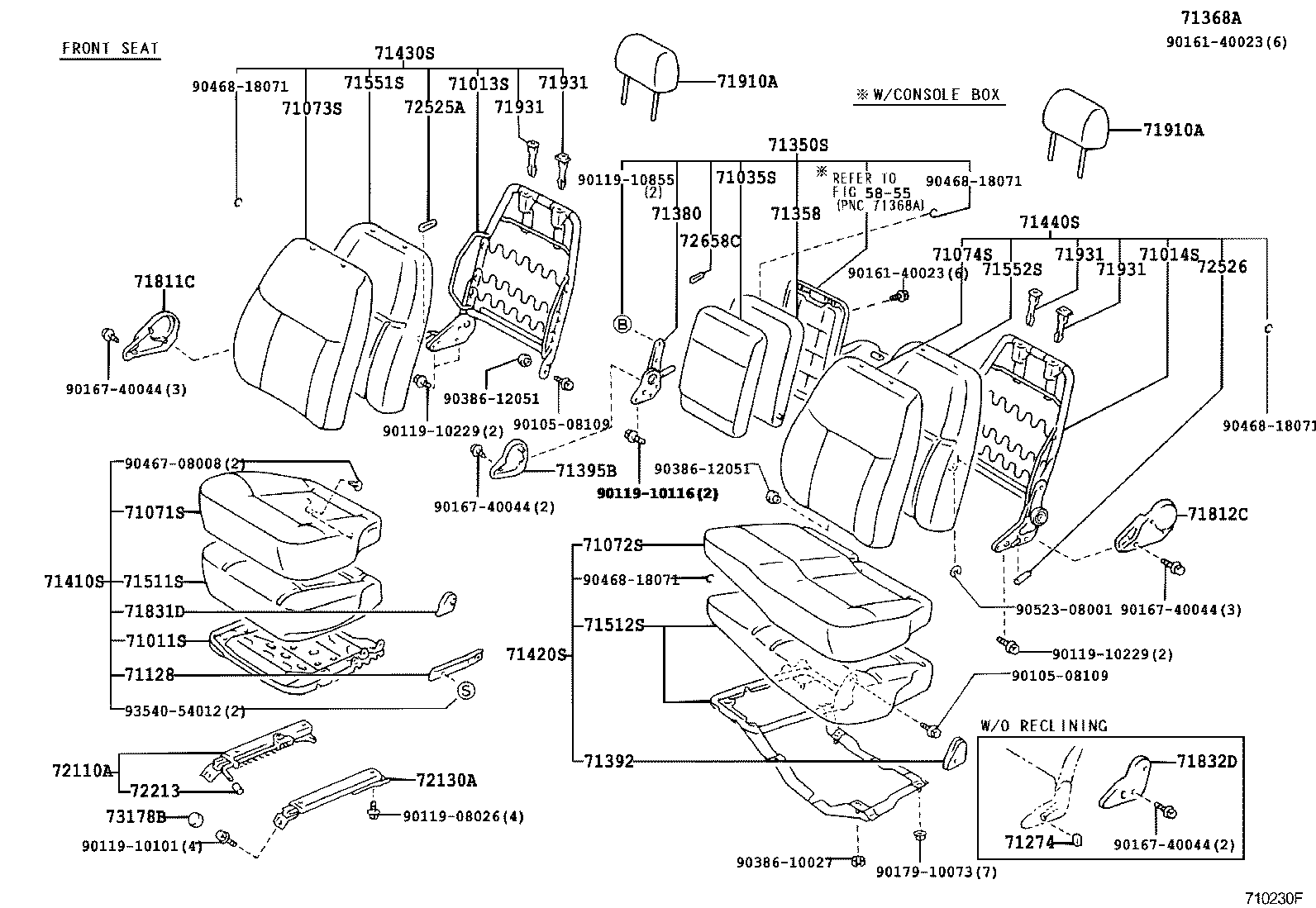

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,125,RZH10#,11#,125..RHD W(*ELR) |
1 | ||
| 71011-95J06 |
RZH112..RHD..03S;LH154,RZH155..10S,11S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J07 |
LH10#,11#,RZH10#,11#..RHD..GEN |
1 | ||
| 71013-95J16 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD W(*ELR & HEADREST) |
1 | ||
| 71013-26070 |
RZH112..RHD..03S;LH154,RZH155..11S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J13 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD W(HEADREST) |
1 | ||
| 71014-95J11 |
LH10#,11#,RZH10#,11#..RHD..GEN W(*ELR) |
1 | ||
| 71014-26080 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J1103 |
LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71095-95J11B2 |
RZH112..4D..06S;RZH113..5D..03S..GEN;RZH103,105..(03S,12S)..STD..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71095-26160B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71095-95J22B2 |
RZH113..5D..03S..GEN;RZH103,105..(03S,12S)..STD..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26480B2 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26530B1 |
LH125,184,RZH112,125..RHD..(03S,14S,15S);LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..(GL,STD)..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95N0203 |
LH125,RZH125;LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71072-26490B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-95N02B0 |
LH125,184,RZH125;LH103,11#,162,172,174,RZH103,104,105,112,113,114..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26640B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26040B0 |
LH125,184,RZH125..ARL;LH103,11#,162,172,174,RZH103,104,105,112,113,114..RHD..(GL,STD)..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-26600B0 |
RZH104,105..RHD SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26060B0 |
RZH112..RHD..03S;LH162,172,RZH103,113..RHD..(GL,STD)..GEN;LH112,114,115,125,174,184,RZH104,105,114,125..RHD SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,11#,RZH10#,11#..RHD..SRF GRAY,TRIM1# |
1 | ||
| 71128-95J08 |
LH103,104,154;RZH102,114..10S,15S;LH112,172,RZH112,113..RHD;LH105,113,114,115,125,16#,174,176,184,RZH103,104,105,115,125,135,15#..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN) TRIM1# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0003 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 71274-95J00B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD) BLUISH GRAY,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3403 |
LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71350-95J3417 |
RZH112..4D..06S;RZH113..5D..03S..GEN;RZH103,105..(03S,12S)..STD..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71350-26220B5 |
LH184,RZH105,125..RHD..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71350-95J49P4 |
RZH105..STD..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71350-26240B3 |
RZH112..RHD..SRF;RZH113..RHD..4D..03S..GEN;LH174,RZH113..RHD..(06S,15S);LH103,11#,172,RZH104,105,114..RHD..GEN..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD..(GL,STD) |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD..(GL,STD) |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0303 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 71392-95J03B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD)..(CBR,DSL,EFI) BLUISH GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0203 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 71395-95J02B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD..(GL,STD) BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-26490 |
RZH104,105..RHD |
1 | ||
| 71410-26540 |
LH125,RZH112..4D..SG;RZH103,113..5D..03S..GEN;LH103,113,115,RZH104,105..RHD..GEN W(VINYL LEATHER SEAT) |
1 | ||
| 71410-26580B3 |
LH184,RZH105,125..RHD..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26540B7 |
RZH105..STD..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95N0403 |
LH125,RZH125;LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71420-26490B3 |
LH184,RZH105,125..RHD..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-26480B6 |
RZH112..RHD..SRF;LH174,RZH103..RHD..(03S,15S)..GEN;LH103,11#,172,184,RZH104,105,113,114..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N3803 |
LH10#,11#,RZH10#,11#..RHD..GEN W(*ELR),GRAY,TRIM1# |
1 | ||
| 71401-26221P0 |
LH125,184,RZH104,105,125..RHD..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26230S7 |
LH125;LH103,112,113,115,162,172,RZH103,104,105,112,113..RHD..STD..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71401-26350B6 |
RZH112..RHD..SRF;LH174,RZH103..RHD..(03S,15S)..GEN;LH103,11#,172,184,RZH104,105,113,114..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N4103 |
LH10#,11#,RZH10#,11#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71402-26221B9 |
LH125,184,RZH104,105,125..RHD..STD SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26210S5 |
LH125;LH103,112,113,115,162,172,RZH103,104,105,112,113..RHD..STD..GEN SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71402-26290B6 |
RZH112..RHD..SRF;LH174,RZH103..RHD..(03S,15S)..GEN;LH103,11#,172,184,RZH104,105,113,114..RHD..(GL,STD)..GEN..(CBR,DSL,EFI) SEAT = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH10#,11#,125,RZH10#,11#,125..RHD W(*ELR) |
1 | ||
| 71511-95J11 |
LH125..4FC;LH172,174,RZH105,113..RHD;RZH112,155..SG..(03S,11S);LH154,162,184,RZH103,125,135..03S,06S,11S,12S,14S,15S |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J18 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J19 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1#,FRONT SEAT |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J0003 |
LH10#,11#,RZH10#,11# GRAY,TRIM1# |
1 | ||
| 71831-95J00B0 |
RZH114..15S;LH154,174..11S,12S,15S;LH10#,11#,125,16#,172,176,184,RZH10#,112,113,115,125,135,155..DX,GL,STD BLUISH GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J02B0 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD) BLUISH GRAY,TRIM1# |
1 | ||
| 71832-95J0203 |
RZH113..03S;RZH113..GEN;LH10#,11#,125,RZH10#,112,114,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J35B0 |
RZH112..4D..06S;RZH113..5D..03S..GEN;RZH103,105..(03S,12S)..STD..GEN BLUISH GRAY,TRIM1#,RH & LH |
2 | ||
| 71910-95J38B0 |
RZH105..STD..GEN FABRIC SEAT,BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J35B0 |
RZH112..4D..06S;RZH113..5D..03S..GEN;RZH103,105..(03S,12S)..STD..GEN BLUISH GRAY,TRIM1#,RH & LH |
2 | ||
| 71910-95J38B0 |
RZH105..STD..GEN FABRIC SEAT,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71956-3002033 |
RZH113..03S;RZH113..GEN;LH10#,11#,RZH10#,112,114 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-26010B1 |
RZH113..ARL,GCC;RZH112..RHD..03S;RZH113..RHD..STD..GEN;LH115,172,174,RZH115..GCC;LH113,154,RZH155..SRF..(03S,06S,11S);LH114,RZH105..(10S,12S)..STD..(GCC,GEN);LH103,112,114,115,125,162,172,174,184,RZH103,104,114,125,135..RHD W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J07 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(GL,STD) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 72130-95J02 |
LH154,RZH102,114..10S,11S,15S;LH103,112,172,RZH112,113..RHD..(GL,STD)..(CBR,DSL,EFI);LH104,105,113,114,115,125,16#,174,176,184,RZH103,104,105,115,125,155..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN) |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 72213-12040 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125,135,153..03S,06S,10S,12S,14S,15S |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,11#,RZH10#,11#..RHD GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
RZH112..RHD..03S;RZH102,114..10S,15S;LH112,125,162,172,184,RZH113,125,135..RHD;LH103,104,105,113,114,115,154,164,166,174,176,RZH103,104,105,115,155..(03S,06S,09S,11S,12S,15S)..(ARL,CIS,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570113 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 72658-9570111 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD..(GL,STD) BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08026 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90119-10229 | ||||
| 90119-10855 | ||||
| 90161-40023 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 5855 | ||||

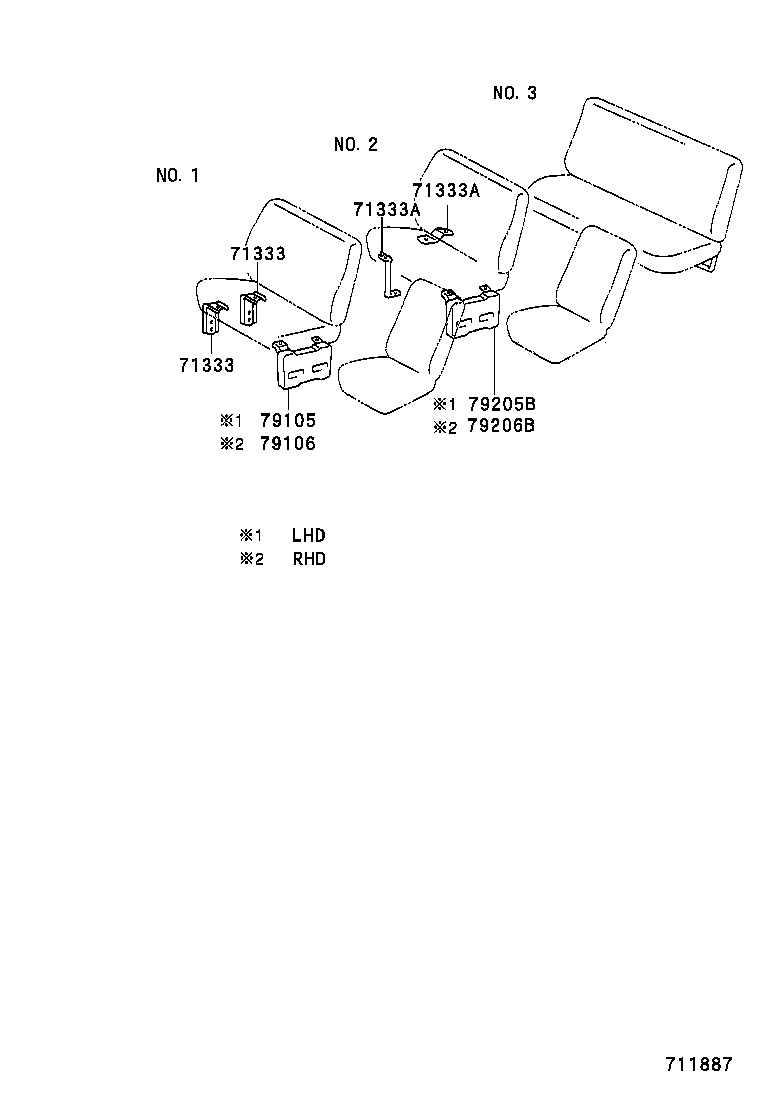

ILLUST NO. 7 OF 7(9907- )LH104,105,114,115,125,164,166,174,176,RZH125..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104,105..RHD REAR |
1 | ||
| 71333-95J23 |
RZH104,105..RHD REAR |
1 | ||
| 71333-95J30 |
RZH105..STD..GEN FRONT |
1 | ||
| 71333-95J30 |
RZH105..STD..GEN FRONT |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104,105..RHD REAR |
1 | ||
| 71333-95J23 |
RZH104,105..RHD REAR |
1 | ||
| 71333-95J30 |
RZH105..STD..GEN FRONT |
1 | ||
| 71333-95J30 |
RZH105..STD..GEN FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79106-95J10 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J10 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J11 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J11 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J18 |
LH104,105,RZH104..RHD W/O(SUB SEAT) |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79106-95J17 |
LH104,105,RZH104..RHD |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-26060 |
RZH104,105..RHD |
1 | ||
| 79206-26060 |
RZH104,105..RHD |
1 | ||
ILLUST NO. 7 OF 7(9907- )LH104,105,164,166,RZH104,105,114,115..12S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104,105..RHD REAR |
1 | ||
| 71333-95J30 |
RZH105..STD..GEN FRONT |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-95J30 |
LH104,105,RZH104,105 FRONT |
1 | ||
| 71333-95J23 |
LH104,105,RZH104,105 REAR |
1 | ||
| 71333-95J23 |
RZH104,105..RHD REAR |
1 | ||
| 71333-95J30 |
RZH105..STD..GEN FRONT |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 71333A - LEG, REAR SEAT CUSHION, NO.2 | ||||
| 71333-95J16 |
LH104,105,RZH104..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,166,RZH104,105 REAR |
1 | ||
| 71333-95J16 |
RZH104,105..RHD FRONT |
1 | ||
| 71333-95J25 |
LH104,105,164,166,RZH104,105 REAR |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-26130 |
RZH104,105..RHD |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-26060 |
RZH104,105..RHD |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
