RZH105R-BFMRE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2004
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

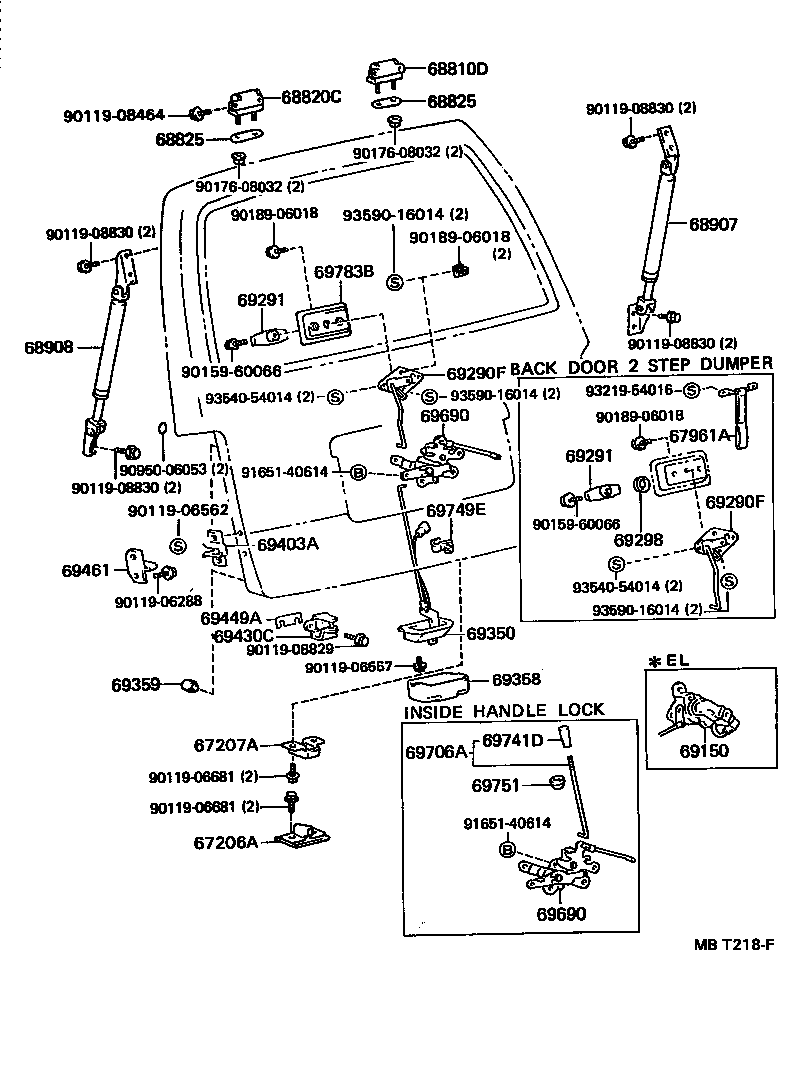

Click highlighted areas on diagram

diagram 67206A 67207A 67961A 68810D 68820C 68825 68825 68907 68908 69035 69036 69150 69211C 69290F 69290F 69291 69291 69298 69350 69358 69359 69403A 69404A 69430C 69449A 69461A 69690 69690 69706A 69741D 69749E 69751 69783B 8113 9010906125 9011906549 9011906681 9011906681 9011906767 9011906883 9011908464 9011908829 9011908830 9011908830 9015760012 9015960066 9015960066 9017608032 9017608032 9018906018 9095001027 9095006096 9165140614 9165140614 9321954012 9354054014 9354054014 9359016014 9359016014
Part # Description Qty Price
67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER
67206-26010

RZH105..STD..GEN

 1
67207A - STOPPER SUB-ASSY, BACK DOOR, RH
67207-95J01

RZH105..STD..GEN

 1
67961A - STRAP, BACK DOOR PULL
67961-26010

RZH112..LHD;RZH112..RHD..SP;LH172,174..RHD..SRF..SG;LH172..SRF..03S..STD..GEN;LH102,103,112,113,162,RZH102,103,105,113..(DX,STD)..GEN

 1
68810D - HINGE ASSY, BACK DOOR, RH
68810-95J02

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-95J02

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
68825 - PLATE, BACK DOOR HINGE
68825-95700

LH10#,11#,125,RZH10#,11#,125,135,153

 2
68825-95700

RZH112..5D;RZH115..GL,SGL;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,125,135,15#

 2
68825 - PLATE, BACK DOOR HINGE
68825-95700

LH10#,11#,125,RZH10#,11#,125,135,153

 2
68825-95700

RZH112..5D;RZH115..GL,SGL;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,125,135,15#

 2
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-95J14

LH10#,11#,RZH10#,11#..SRF

COLD SPEC OR W(REAR WINDOW WIPER)

 1
68907-95J13

RZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH10#,11#,RZH104,105,112,114,115..SRF..(DX,STD)..(ARL,GCC,GEN)

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-95J13

RZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH10#,11#,RZH104,105,112,114,115..SRF..(DX,STD)..(ARL,GCC,GEN)

 1
68908-95J14

LH10#,11#,RZH10#,11#..SRF

COLD SPEC OR W(REAR WINDOW WIPER)

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-95J00

LH172..HRF;RZH112..LHD;LH172..ARL,GCC;LH172..03S..GL;LH172..LHD..4D;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,174..06S,10S,15S;LH10#,11#,125,154,16#,176,184,RZH10#,113,114,115,125,135,15#

 1
69290F - HANDLE ASSY, BACK DOOR INSIDE
69290-95J01

RZH112..5D;RZH112..03S;LH125,184,RZH102,125..03S,06S,14S,15S;LH10#,11#,16#,17#,RZH103,104,105,113,114,115..CIS,GCC,GEN

 1
69290F - HANDLE ASSY, BACK DOOR INSIDE
69290-95J01

RZH112..5D;RZH112..03S;LH125,184,RZH102,125..03S,06S,14S,15S;LH10#,11#,16#,17#,RZH103,104,105,113,114,115..CIS,GCC,GEN

 1
69291 - HANDLE ASSY, BACK DOOR INSIDE
69291-95J0023

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

GRAY,TRIM1#

 1
69291-95J00B3

RZH112..5D;RZH112..03S;LH125,184,RZH102,125..03S,06S,14S,15S;LH10#,11#,16#,17#,RZH103,104,105,113,114,115..CIS,GCC,GEN

SHADOW GRAY,TRIM1#

 1
69291 - HANDLE ASSY, BACK DOOR INSIDE
69291-95J0023

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

GRAY,TRIM1#

 1
69291-95J00B3

RZH112..5D;RZH112..03S;LH125,184,RZH102,125..03S,06S,14S,15S;LH10#,11#,16#,17#,RZH103,104,105,113,114,115..CIS,GCC,GEN

SHADOW GRAY,TRIM1#

 1
69298 - COVER, BACK DOOR INSIDE HANDLE
69298-95J00

LH125,RZH125;RZH103..RHD..GEN;LH10#,11#,RZH102,104,105,11#..CIS,GCC,GEN

 1
69298-95J00

RZH112..5D;RZH112,114,115..03S,15S;LH125,174,184,RZH102,125..03S,06S,12S,14S,15S;LH10#,11#,16#,172,176,RZH103,104,105,113..(03S,06S,08S,10S,12S,15S)..(CIS,GCC,GEN)

 1
69350 - LOCK ASSY, BACK DOOR
69350-95J01

LH10#,11#,125,RZH10#,11#,125

 1
69350-95J01

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
69359 - CUSHION, BACK DOOR LOCK
90541-09001

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 2
90541-09029

LH10#,11#,125,RZH10#,11#,125

 2
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95J05

LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-95J05

LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95J00

LH10#,11#,125,RZH10#,11#,125

 1
69430-95J00

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
69461A - STOPPER, BACK DOOR SIDE MALE
69461-95J03

LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN

 2
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95J04

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

W(INSIDE HANDLE)

 1
69690-95J04

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
69690-95J03

LH10#,11#,RZH10#,11#

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95J04

LH125,RZH125;LH10#,11#,RZH10#,11#..GEN

W(INSIDE HANDLE)

 1
69690-95J04

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
69690-95J03

LH10#,11#,RZH10#,11#

 1
69706A - ROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69706-95J01

LH125,RZH125;LH10#,11#,RZH10#,11#,135,153..CIS,GCC,GEN

 1
69706-95J01

RZH105..STD..GEN

 1
69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR)
69741-28010C1

RZH105..STD..GEN

BLACK,TRIM1#

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
69751 - HOLDER, DOOR LOCK CONTROL KNOB
69751-95J00C0

RZH105..STD..GEN

BLACK,TRIM1#

 1
Common parts
90109-06125
90119-06549
90119-06681
90119-06767
90119-06883
90119-08464
90119-08829
90119-08830
90157-60012
90159-60066
90176-08032
90189-06018
90950-01027
90950-06096
91651-40614
93219-54012
93540-54014
93590-16014
Linked diagrams
8113

(8908- )

Click highlighted areas on diagram

diagram 67206A 67207A 67961A 68810D 68820C 68825 68825 68907 68908 69150 69290F 69290F 69291 69291 69298 69350 69358 69359 69403A 69430C 69449A 69461 69690 69690 69706A 69741D 69749E 69751 69783B 9011906288 9011906557 9011906562 9011906681 9011906681 9011908464 9011908829 9011908830 9011908830 9011908830 9011908830 9015960066 9015960066 9017608032 9017608032 9018906018 9018906018 9018906018 9095006053 9165140614 9165140614 9321954016 9354054014 9354054014 9359016014 9359016014 9359016014
Part # Description Qty Price
Common parts
90119-06288
90119-06557
90119-06562
90119-06681
90119-08464
90119-08829
90119-08830
90159-60066
90176-08032
90189-06018
90950-06053
91651-40614
93219-54016
93540-54014
93590-16014
