RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter

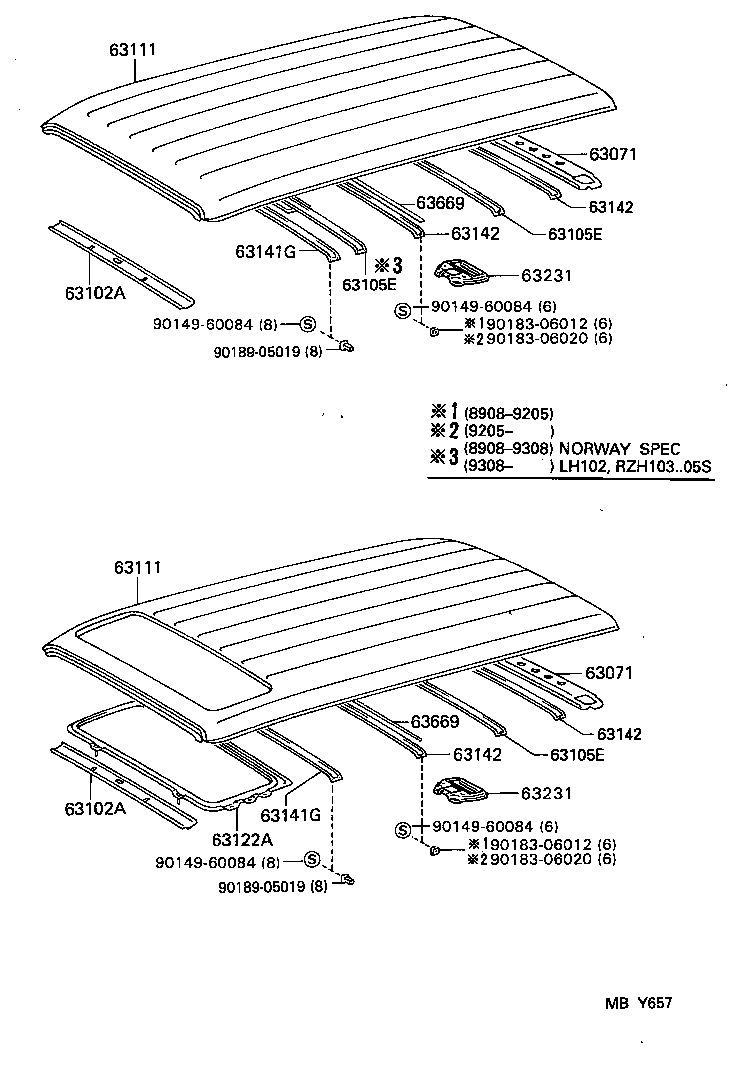

ILLUST NO. 1 OF 2(8908- )SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95J07 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63071-26030 |
RZH112..LHD;RZH112..RHD..SP;LH174,RZH102,114,115..SRF..(03S,06S,15S);LH10#,11#,16#,172,176,184,RZH103,104,105,113..(SMRF,SRF)..(03S,06S,08S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95J07 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63071-26030 |
RZH112..LHD;RZH112..RHD..SP;LH174,RZH102,114,115..SRF..(03S,06S,15S);LH10#,11#,16#,172,176,184,RZH103,104,105,113..(SMRF,SRF)..(03S,06S,08S,10S,12S,15S)..(CIS,GCC,GEN) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95J06 |
LH10#,11#,RZH10#,11#..03S,06S,09S,12S,15S |
1 | ||
| 63102-95J06 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,16#,172,176,184,RZH103,104,105,113..03S,06S,08S,10S,12S,15S |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95J06 |
LH10#,11#,RZH10#,11#..03S,06S,09S,12S,15S |
1 | ||
| 63102-95J06 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,16#,172,176,184,RZH103,104,105,113..03S,06S,08S,10S,12S,15S |
1 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-95J1608 |
LH104,105,114,115,RZH104,114..SRF IVORY,TRIM1# |
1 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-95J1608 |
LH104,105,114,115,RZH104,114..SRF IVORY,TRIM1# |
1 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-95J1608 |
LH104,105,114,115,RZH104,114..SRF IVORY,TRIM1# |
1 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-95J1608 |
LH104,105,114,115,RZH104,114..SRF IVORY,TRIM1# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95J16 |
LH10#,166,RZH10# |
1 | ||
| 63111-95J16 |
LH10#,16#,RZH10#..ARL,CIS,GEN |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95J16 |
LH10#,166,RZH10# |
1 | ||
| 63111-95J16 |
LH10#,16#,RZH10#..ARL,CIS,GEN |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-95J01 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95J2008 |
LH104,105,114,115,RZH103,104,114..SRF..4D..SG W(OVERHEAD DUAL AIR CONDITIONER),IVORY,TRIM1# |
2 | ||
| 63141-95J2208 |
LH10#,11#,RZH10#,11#..SRF..STD IVORY,TRIM1# |
1 | ||
| 63141-26900 |
RZH112..LHD;LH162,RZH112..RHD..4D..SP;LH162,174,RZH114,115..SRF..(06S,15S);LH10#,11#,164,166,172,176,RZH10#,113..SRF |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95J2008 |
LH104,105,114,115,RZH103,104,114..SRF..4D..SG W(OVERHEAD DUAL AIR CONDITIONER),IVORY,TRIM1# |
2 | ||
| 63141-95J2208 |
LH10#,11#,RZH10#,11#..SRF..STD IVORY,TRIM1# |
1 | ||
| 63141-26900 |
RZH112..LHD;LH162,RZH112..RHD..4D..SP;LH162,174,RZH114,115..SRF..(06S,15S);LH10#,11#,164,166,172,176,RZH10#,113..SRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26900 |
LH162..06S;RZH112..LHD;LH162,RZH112..RHD..4D..SP;LH10#,11#,154,164,166,17#,RZH10#,113,114,115,15#..SRF |
2 | ||
| 63142-95J0308 |
LH10#,11#,RZH10#,11#..SRF IVORY,TRIM1# |
2 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26900 |
LH162..06S;RZH112..LHD;LH162,RZH112..RHD..4D..SP;LH10#,11#,154,164,166,17#,RZH10#,113,114,115,15#..SRF |
2 | ||
| 63142-95J0308 |
LH10#,11#,RZH10#,11#..SRF IVORY,TRIM1# |
2 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26900 |
LH162..06S;RZH112..LHD;LH162,RZH112..RHD..4D..SP;LH10#,11#,154,164,166,17#,RZH10#,113,114,115,15#..SRF |
2 | ||
| 63142-95J0308 |
LH10#,11#,RZH10#,11#..SRF IVORY,TRIM1# |
2 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26900 |
LH162..06S;RZH112..LHD;LH162,RZH112..RHD..4D..SP;LH10#,11#,154,164,166,17#,RZH10#,113,114,115,15#..SRF |
2 | ||
| 63142-95J0308 |
LH10#,11#,RZH10#,11#..SRF IVORY,TRIM1# |
2 | ||
| Common parts | ||||
| 90149-60027 | ||||
| 90183-06012 | ||||
| 90183-06020 | ||||
| 90183-06028 | ||||
| 90189-05019 | ||||

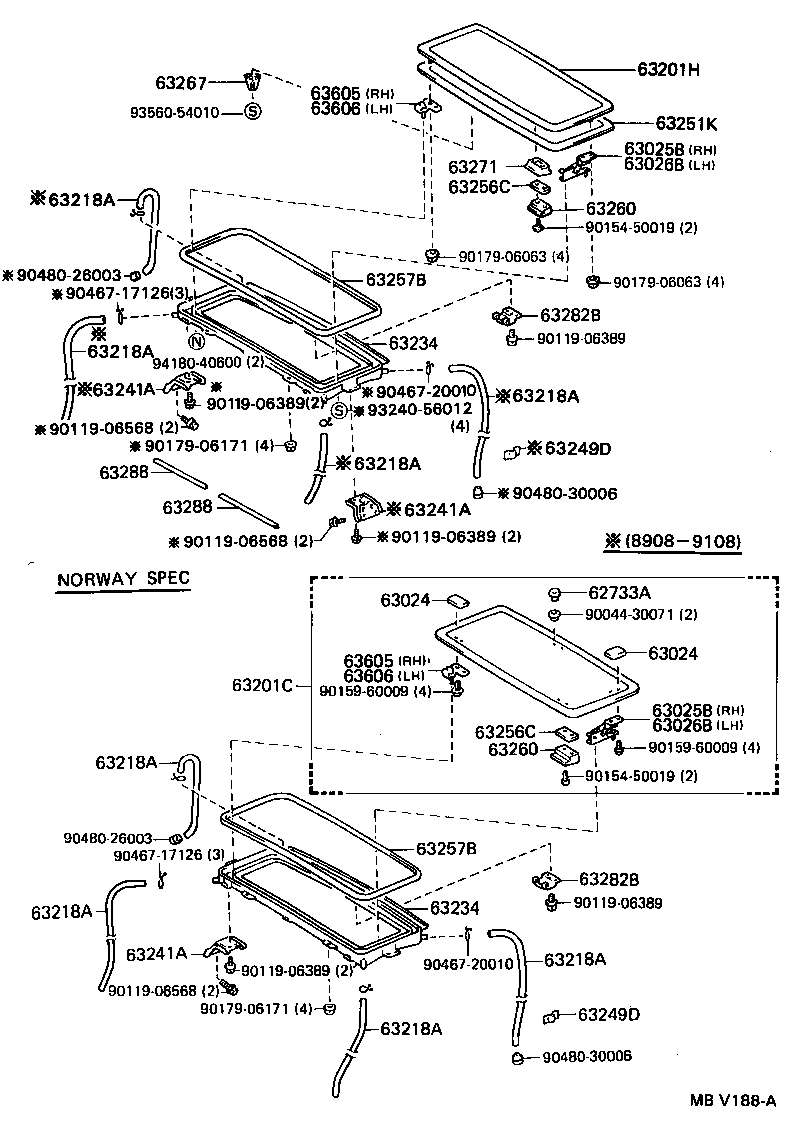

ILLUST NO. 2 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-95J01 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95J05 |
LH10#,11#,RZH10#,11#..SRF L=2050 |
1 | ||
| 63249-95J04 |
LH10#,11#,RZH10#,11#..SRF *H,L=1200 |
2 | ||
| 63249-95J10 |
LH10#,11#,RZH10#,11#..SRF L=1750 |
1 | ||
| 63234 - PROTECTOR, SLIDE ROOF HOUSING | ||||
| 63234-95J02 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63234 - PROTECTOR, SLIDE ROOF HOUSING | ||||
| 63234-95J02 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-95J02 |
LH10#,11#,RZH10#,11#..SRF..STD |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-95J02 |
LH10#,11#,RZH10#,11#..SRF..STD |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-95J02 |
LH10#,11#,RZH10#,11#..SRF..STD |
2 | ||
| 63249D - SUPPORT, SLIDE ROOF RAIN CHANNEL HOSE | ||||
| 63249-95700 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63249D - SUPPORT, SLIDE ROOF RAIN CHANNEL HOSE | ||||
| 63249-95700 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-95J04 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-95J03 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-95J03 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-95J02 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-95J02 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63260 - HANDLE ASSY, REMOVABLE ROOF LOCK | ||||
| 63260-95J03 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63260 - HANDLE ASSY, REMOVABLE ROOF LOCK | ||||
| 63260-95J03 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-28010 |
LH10#,11#,RZH10#,11#..SRF..STD |
2 | ||
| 63271 - GARNISH, REMOVABLE ROOF LOCK | ||||
| 63271-95J0008 |
LH10#,11#,RZH10#,11#..SRF..STD IVORY,TRIM1# |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-95J01 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-95J01 |
LH10#,11#,RZH10#,11#..SRF |
1 | ||
| 63288 - COVER, TILT ROOF HOUSING | ||||
| 63288-95J02 |
LH10#,11#,RZH10#,11#..SRF..STD |
2 | ||
| 63288 - COVER, TILT ROOF HOUSING | ||||
| 63288-95J02 |
LH10#,11#,RZH10#,11#..SRF..STD |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-95J00 |
LH10#,11#,RZH10#,11#..SRF..STD |
1 | ||
| Common parts | ||||
| 90044-30071 | ||||
| 90119-06389 | ||||
| 90119-06568 | ||||
| 90154-50019 | ||||
| 90159-60009 | ||||
| 90179-06063 | ||||
| 90179-06171 | ||||
| 90467-17126 | ||||
| 90467-20010 | ||||
| 90480-26003 | ||||
| 90480-30006 | ||||
| 93240-56012 | ||||
| 93560-54010 | ||||
| 94180-40600 | ||||
ILLUST NO. 2 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90044-30071 | ||||
| 90119-06389 | ||||
| 90119-06568 | ||||
| 90154-50019 | ||||
| 90159-60009 | ||||
| 90179-06063 | ||||
| 90179-06171 | ||||
| 90467-17126 | ||||
| 90467-20010 | ||||
| 90480-26003 | ||||
| 90480-30006 | ||||
| 93240-56012 | ||||
| 93560-54010 | ||||
| 94180-40600 | ||||
ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60084 | ||||
| 90183-06012 | ||||
| 90183-06020 | ||||
| 90189-05019 | ||||
