RZH105R-BFMRE (1999)
Toyota Hiace Van,Commuter

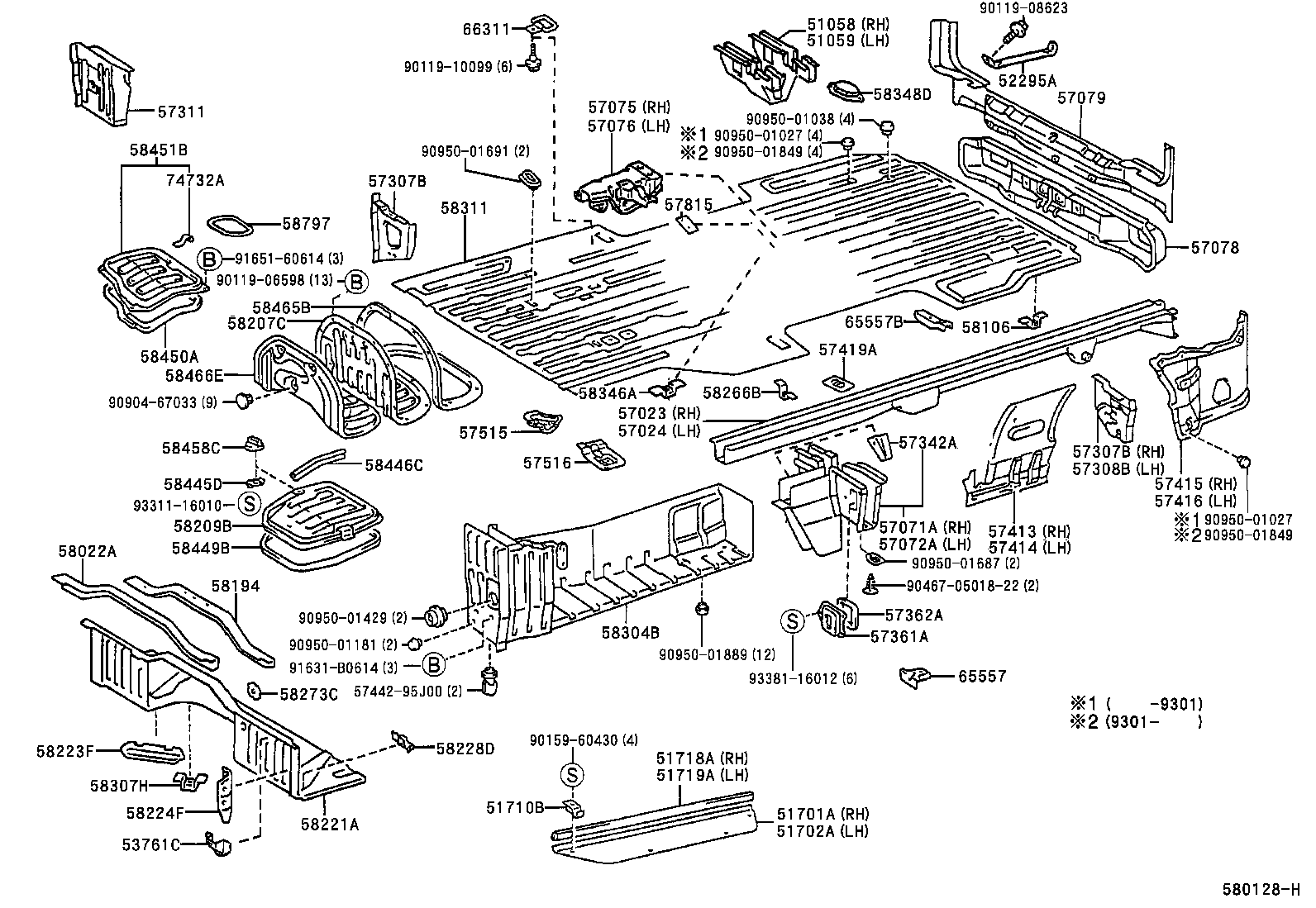

ILLUST NO. 2 OF 3(8908- )LH102,103,112,113,125,172,174,RZH102,103,105,112,113,125,135,153..RHD..4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N31 |
LH103,105,166 |
1 | ||
| 57023-95N21 |
LH102,104,RZH10#..STD..(ARL,GCC,GEN) |
1 | ||
| 57023-95N31 |
LH103,105,16# |
1 | ||
| 57023-95N37 |
RZH105..STD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N17 |
LH103,105,166 |
1 | ||
| 57024-26350 |
LH102,104,RZH10#..STD..(ARL,GCC,GEN) |
1 | ||
| 57024-95N22 |
RZH105..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57024-95N17 |
LH103,105,16# |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J49 |
LH104,105,RZH104..RHD |
1 | ||
| 57071-95J46 |
LH103..5D;RZH104,105..LHD;LH102,104,105,162,164,RZH102,103..CIS,GEN |
1 | ||
| 57071-95J49 |
RZH104,105..RHD |
1 | ||
| 57071-26160 |
RZH105..STD..GEN |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-95J51 |
RZH102..03S;LH103,162,RZH103,104,105..RHD |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J07 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 57069-26010 |
RZH105..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57068-95J07 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D FRONT |
1 | ||
| 57317-95J06 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D FRONT |
1 | ||
| 57317-95J06 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57308-95J11 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J08 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD..4D |
1 | ||
| 57342A - GUSSET, OUTRIGGER, NO.2 LH | ||||
| 57342-95J09 |
RZH105..STD..GEN |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH10#,11#,RZH10#,11#..RHD..4D |
2 | ||
| 57094-95J00 |
RZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114,135,153..RHD..4D..(03S,06S,08S,12S,15S) |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
RZH102..LHD;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,RZH10#,113,114..RHD..4D |
2 | ||
| 57362-95J01 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-95N02 |
LH104,105,RZH104..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 57405-95J80 |
LH104,105,RZH104..RHD |
1 | ||
| 57405-95J80 |
RZH104,105..RHD |
1 | ||
| 57405-95N02 |
RZH104,105..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 57413-95J88 |
LH103..5D;RZH104,105..LHD;LH102,104,105,16#,RZH102,103..STD..(CIS,GEN) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-95J51 |
LH104,105,RZH104..RHD W(EXTINGUISHER) |
1 | ||
| 57406-95J51 |
RZH104,105..RHD W(EXTINGUISHER) |
1 | ||
| 57414-95J68 |
LH162,RZH103,105..RHD |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-95J33 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S |
1 | ||
| 57415-95J33 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,16#,172,176,184,RZH103,104,105,113..03S,06S,08S,10S,12S,15S |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD |
1 | ||
| 57416-95J24 |
RZH112..5D;RZH112..03S;LH174,RZH102..STD;LH10#,11#,16#,172,176,184,RZH103,104,105,113,114,115,153..03S,06S,08S,10S,12S,15S |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
LH174,RZH112..RHD..(03S,15S);LH103,11#,162,172,RZH103,104,105,113,114,153..RHD |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
LH172,RZH113..RHD..5D..03S;LH112,113,172,174,RZH113..RHD..4D..(03S,06S,15S);LH103,114,115,125,162,184,RZH103,104,105,112,114,125,135..RHD..(03S,12S,14S,15S) |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
3 | ||
| 58106-95A00 |
RZH112..5D;RZH102..STD;LH174,RZH112..03S,10S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,114,115,125 |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155 |
1 | ||
| 58207-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P40 |
LH125..ARL;LH104,105,114,115,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58266-95J01 |
RZH112..5D;RZH102..STD;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH103,104,105,113,114,115,125,135,15# |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J71 |
LH104,105,114,115,RZH104,114..RHD W(FUEL LID OPENER) |
1 | ||
| 58304-95J67 |
LH104,105,114,115,RZH104,114,115..RHD W(TOOL COVER) |
1 | ||
| 58304-95J74 |
LH104,105,114,115,RZH102,104,114,115..RHD..(09S,12S,15S) W(FUEL LID OPENER & TOOL COVER) |
1 | ||
| 58304-95N05 |
LH104,105,114,115,RZH104,114,115..RHD |
1 | ||
| 58304-95J71 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD W(FUEL LID OPENER) |
1 | ||
| 58304-95J67 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD W(TOOL COVER) |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH113..06S..ARL;LH104,105,114,115,125,RZH103,104,114,125..SG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P11 |
LH104,105,RZH104..RHD |
1 | ||
| 58311-95P12 |
LH104,105,RZH104..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 58311-95P11 |
RZH104,105..RHD |
1 | ||
| 58311-95P12 |
RZH104,105..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58445-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58446-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,125,RZH10#,11#,125..SG |
1 | ||
| 58449-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..05S,06S,09S,12S,14S,15S |
1 | ||
| 58405-95J03 |
RZH102..5D..03S;RZH112..03S..CIS;RZH102,113..LHD..06S;LH112,RZH102,103..4D..(03S,06S);LH10#,113,114,115,RZH104,105,112,114,115..ARL,GCC,GEN SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 58405-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..CBR,DSL,EFI |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58458-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58465-95J05 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58327-95J08 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155 |
1 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-08623 | ||||
| 90119-10099 | ||||
| 90159-60430 | ||||
| 90467-0501822 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01849 | ||||
| 90950-01889 | ||||
| 91631-B0614 | ||||
| 91651-60614 | ||||
| 93311-16010 | ||||
| 93381-16012 | ||||

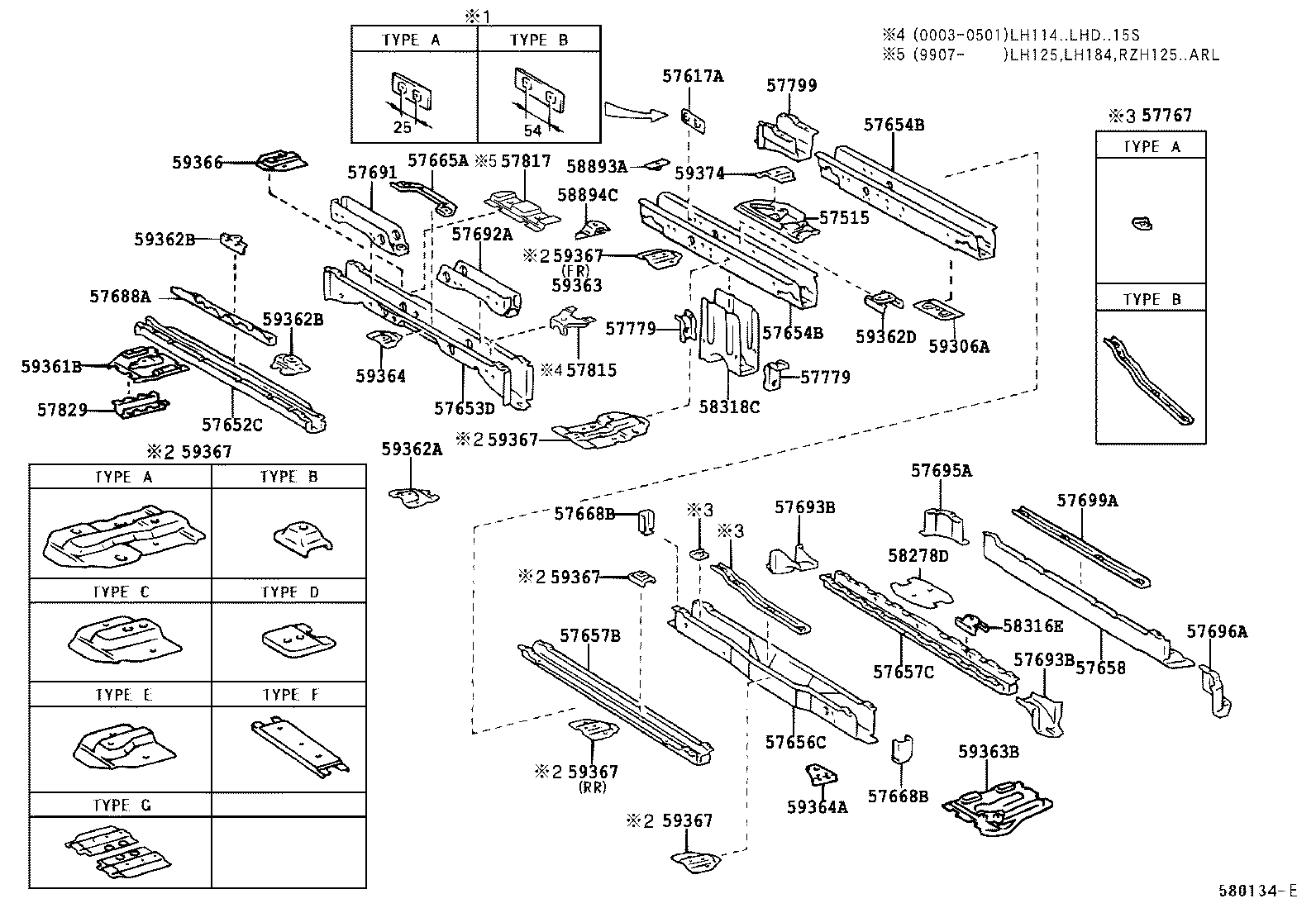

ILLUST NO. 3 OF 3(8908- )LH104,105,114,115,125,16#,17#,184,RZH104,105,114,115,125,135,153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
LH174,RZH112..RHD..(03S,15S);LH103,11#,162,172,RZH103,104,105,113,114,153..RHD |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57617-95J09 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 57617-95J09 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,155 TYPE A:REFER ILLUST. |
1 | ||
| 57617-95J10 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,16#,172,176,184,RZH10#,113,114,115,125 TYPE B:REFER ILLUST. |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57652-95J04 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57653-26110 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,16#,172,176,RZH10#,113,114,115 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,16#,172,176,RZH10#,113,114,115 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J04 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57656-95J04 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 57657C - CROSSMEMBER, REAR FLOOR, NO.6 | ||||
| 57657-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57657-95J05 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57658-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57665A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57665-26020 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57668B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57668-95J02 |
RZH105..STD..GEN |
2 | ||
| 57668B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57668-95J02 |
RZH105..STD..GEN |
2 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57688-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57691-95J01 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57692-95J01 |
RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113,114,115,125,135,155 |
1 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57693-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 57693-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57695-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57696-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57699A - RETAINER, FUEL TANK SET BAND | ||||
| 57699-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57699-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 57767-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57767-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 TYPE A:REFER ILLUST. |
1 | ||
| 57767-95J03 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 TYPE B:REFER ILLUST. |
1 | ||
| 58278D - PROTECTOR, FUEL TANK, UPPER | ||||
| 58278-95J01 |
RZH114,115..12S;LH184,RZH104,105;LH104,105,114,125,164,166,174,RZH125..(10S,12S,14S)..STD |
2 | ||
| 58278-95J01 |
LH104,105,125,RZH104,105,125..12S,14S |
2 | ||
| 59362B - RETAINER, REAR SEAT, NO.1 B | ||||
| 59362-95J05 |
LH104,105,166,RZH104,105 |
1 | ||
| 59362-95J05 |
LH104,105,164,166,RZH104,105 |
1 | ||
| 59362B - RETAINER, REAR SEAT, NO.1 B | ||||
| 59362-95J05 |
LH104,105,166,RZH104,105 |
1 | ||
| 59362-95J05 |
LH104,105,164,166,RZH104,105 |
1 | ||
| 59362D - RETAINER, REAR SEAT, NO.1 B | ||||
| 59362-95J07 |
LH104,105,114,115,RZH104,105,114,115,153 |
1 | ||
| 59362-95J07 |
LH174..15S;LH154,RZH114,115..(10S,11S,15S)..(GL,STD);LH104,105,114,115,164,166,176,RZH104,105,155..11S,12S,15S |
1 | ||
| 59364 - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-95J02 |
RZH104..LHD..STD;LH104,164,166,RZH105..DSL,EFI |
1 | ||
| 59364-95J02 |
LH104,105,166,RZH104,105 |
1 | ||
| 59367 - RETAINER, REAR SEAT, NO.2 C | ||||
| 59367-95J01 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367-95J01 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105..12S,15S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367 - RETAINER, REAR SEAT, NO.2 C | ||||
| 59367-95J01 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367-95J01 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105..12S,15S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367 - RETAINER, REAR SEAT, NO.2 C | ||||
| 59367-95J01 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367-95J01 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105..12S,15S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367 - RETAINER, REAR SEAT, NO.2 C | ||||
| 59367-95J01 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367-95J01 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105..12S,15S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367 - RETAINER, REAR SEAT, NO.2 C | ||||
| 59367-95J01 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367-95J01 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105..12S,15S TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367 - RETAINER, REAR SEAT, NO.2 C | ||||
| 59367-95J01 |
RZH114,115..15S;LH104,105,114,115,166,176,RZH104,105 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 59367-95J01 |
LH174,RZH114,115..15S;LH104,105,114,115,164,166,176,RZH104,105..12S,15S TYPE A:REFER TO ILLUSTRATION |
1 | ||
ILLUST NO. 2 OF 3(8908- )LH104,105,114,115,125,162,172,174,184,RZH104,105,11#,125,135,153..RHD..4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N31 |
LH103,105,166 |
1 | ||
| 57023-95N21 |
LH102,104,RZH10#..STD..(ARL,GCC,GEN) |
1 | ||
| 57023-95N31 |
LH103,105,16# |
1 | ||
| 57023-95N37 |
RZH105..STD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N17 |
LH103,105,166 |
1 | ||
| 57024-26350 |
LH102,104,RZH10#..STD..(ARL,GCC,GEN) |
1 | ||
| 57024-95N22 |
RZH105..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57024-95N17 |
LH103,105,16# |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J49 |
LH104,105,RZH104..RHD |
1 | ||
| 57071-95J46 |
LH103..5D;RZH104,105..LHD;LH102,104,105,162,164,RZH102,103..CIS,GEN |
1 | ||
| 57071-95J49 |
RZH104,105..RHD |
1 | ||
| 57071-26160 |
RZH105..STD..GEN |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-95J51 |
RZH102..03S;LH103,162,RZH103,104,105..RHD |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J07 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 57069-26010 |
RZH105..STD..GEN SEVERE USAGE PACKAGE |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J07 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 57068-95J07 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D FRONT |
1 | ||
| 57317-95J06 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 REAR |
1 | ||
| 57317-95J08 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D FRONT |
1 | ||
| 57317-95J06 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D REAR |
1 | ||
| 57317-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D FRONT |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 57308-95J11 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J08 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD..4D |
1 | ||
| 57342A - GUSSET, OUTRIGGER, NO.2 LH | ||||
| 57342-95J09 |
RZH105..STD..GEN |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH10#,11#,RZH10#,11#..RHD..4D |
2 | ||
| 57094-95J00 |
RZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114,135,153..RHD..4D..(03S,06S,08S,12S,15S) |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
RZH102..LHD;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,RZH10#,113,114..RHD..4D |
2 | ||
| 57362-95J01 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-95N02 |
LH104,105,RZH104..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 57405-95J80 |
LH104,105,RZH104..RHD |
1 | ||
| 57405-95J80 |
RZH104,105..RHD |
1 | ||
| 57405-95N02 |
RZH104,105..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 57413-95J88 |
LH103..5D;RZH104,105..LHD;LH102,104,105,16#,RZH102,103..STD..(CIS,GEN) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-95J51 |
LH104,105,RZH104..RHD W(EXTINGUISHER) |
1 | ||
| 57406-95J51 |
RZH104,105..RHD W(EXTINGUISHER) |
1 | ||
| 57414-95J68 |
LH162,RZH103,105..RHD |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-95J33 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S |
1 | ||
| 57415-95J33 |
RZH112..5D;LH174,RZH102..STD;RZH112,114,115..03S,15S;LH10#,11#,16#,172,176,184,RZH103,104,105,113..03S,06S,08S,10S,12S,15S |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD |
1 | ||
| 57416-95J24 |
RZH112..5D;RZH112..03S;LH174,RZH102..STD;LH10#,11#,16#,172,176,184,RZH103,104,105,113,114,115,153..03S,06S,08S,10S,12S,15S |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
LH174,RZH112..RHD..(03S,15S);LH103,11#,162,172,RZH103,104,105,113,114,153..RHD |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
LH172,RZH113..RHD..5D..03S;LH112,113,172,174,RZH113..RHD..4D..(03S,06S,15S);LH103,114,115,125,162,184,RZH103,104,105,112,114,125,135..RHD..(03S,12S,14S,15S) |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
LH172,RZH113..RHD..5D..03S;LH112,113,172,174,RZH113..RHD..4D..(03S,06S,15S);LH103,114,115,125,162,184,RZH103,104,105,112,114,125,135..RHD..(03S,12S,14S,15S) |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
3 | ||
| 58106-95A00 |
RZH112..5D;RZH102..STD;LH174,RZH112..03S,10S,15S;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,114,115,125 |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155 |
1 | ||
| 58207-95J10 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58209-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P40 |
LH125..ARL;LH104,105,114,115,RZH103,104,114,125..RHD..4D..SG |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58266-95J01 |
RZH112..5D;RZH102..STD;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH103,104,105,113,114,115,125,135,15# |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J71 |
LH104,105,114,115,RZH104,114..RHD W(FUEL LID OPENER) |
1 | ||
| 58304-95J67 |
LH104,105,114,115,RZH104,114,115..RHD W(TOOL COVER) |
1 | ||
| 58304-95J74 |
LH104,105,114,115,RZH102,104,114,115..RHD..(09S,12S,15S) W(FUEL LID OPENER & TOOL COVER) |
1 | ||
| 58304-95N05 |
LH104,105,114,115,RZH104,114,115..RHD |
1 | ||
| 58304-95J71 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD W(FUEL LID OPENER) |
1 | ||
| 58304-95J67 |
LH174..RHD..15S;LH114,115,RZH104,105,114..RHD W(TOOL COVER) |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH113..06S..ARL;LH104,105,114,115,125,RZH103,104,114,125..SG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P11 |
LH104,105,RZH104..RHD |
1 | ||
| 58311-95P12 |
LH104,105,RZH104..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 58311-95P11 |
RZH104,105..RHD |
1 | ||
| 58311-95P12 |
RZH104,105..RHD W(FLOOR SET TYPE REAR HEATER) |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58445-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58446-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58449-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,125,RZH10#,11#,125..SG |
1 | ||
| 58449-95J00 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..05S,06S,09S,12S,14S,15S |
1 | ||
| 58405-95J03 |
RZH102..5D..03S;RZH112..03S..CIS;RZH102,113..LHD..06S;LH112,RZH102,103..4D..(03S,06S);LH10#,113,114,115,RZH104,105,112,114,115..ARL,GCC,GEN SERVICE CAR SPEC(AMBULANCE) |
1 | ||
| 58405-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..CBR,DSL,EFI |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58458-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58465-95J05 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 58327-95J08 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155 |
1 | ||
| 59371 - RETAINER, REAR SEAT, NO.3 | ||||
| 59371-95J00 |
LH104,105,125,RZH104,105,125..12S,14S |
2 | ||
| 59371-95J00 |
RZH114,115..12S;LH184,RZH104,105;LH104,105,114,125,164,166,174,RZH125..(10S,12S,14S)..STD |
2 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06311 | ||||
| 90119-06598 | ||||
| 90119-08623 | ||||
| 90119-10099 | ||||
| 90119-10281 | ||||
| 90167-50038 | ||||
| 90189-04070 | ||||
| 90189-05037 | ||||
| 90467-0501822 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01889 | ||||
| 91631-B0614 | ||||
| 91651-60614 | ||||
| 91661-40820 | ||||
| 93311-16010 | ||||
| 93381-16012 | ||||
| 93540-54014 | ||||
(8908- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-10099 | ||||
| 90159-60430 | ||||
| 90467-0501801 | ||||
| 90467-09103 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01036 | ||||
| 90950-01038 | ||||
| 90950-01423 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01849 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-60825 | ||||
| 93210-26010 | ||||
| 93381-16012 | ||||
(8908- )LH10#,11#,RZH10#,112,113,119
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
