RZH105R-BFMRE (1999)

Toyota Hiace Van,Commuter

Production Jul 1999 - Aug 2004
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )DX,STD

Click highlighted areas on diagram

TYPE A

diagram 52115A 52116A 52119A 52127D 52128B 52535 52536 52711 52821 52822 9010908197 9010908197 9010908197 9017906119 9356855012 9356855012 9356855012 9356855012
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-95J03

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-95J01

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

 1
52119A - COVER, FRONT BUMPER
52119-95J24

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-26020

RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-26020

RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-95J00

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-95J00

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

 1
52711 - MOULDING, FRONT BUMPER
52711-95J00

LH10#,11#,125,RZH10#,11#,125..DX,STD

BLACK

 1
52711-26030

RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD

 1
52821 - DUCT, AIR INTAKE, RH
52821-95J00

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

 1
52821-26020

RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD

 1
52822 - DUCT, AIR INTAKE, LH
52822-95J00

RZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD

 1
52822-26020

RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD

 1
Common parts
90109-08197
90179-06119
93568-55012

(8908- )

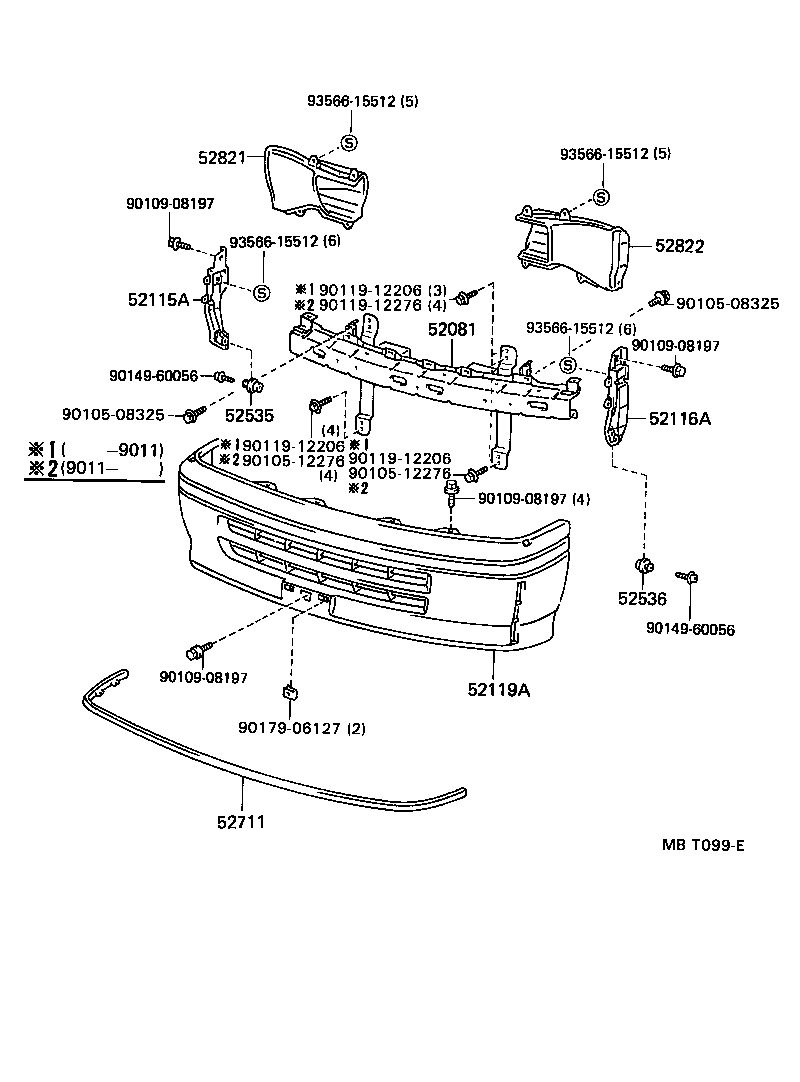

Click highlighted areas on diagram

diagram 52081 52115A 52116A 52119A 52535 52536 52711 52821 52822 9010508325 9010508325 9010512276 9010512276 9010908197 9010908197 9010908197 9010908197 9011912206 9011912206 9011912206 9011912276 9014960056 9014960056 9017906127 9356615512 9356615512 9356615512 9356615512
Part # Description Qty Price
Common parts
90105-08325
90105-12276
90109-08197
90119-12206
90119-12276
90149-60056
90179-06127
93566-15512
